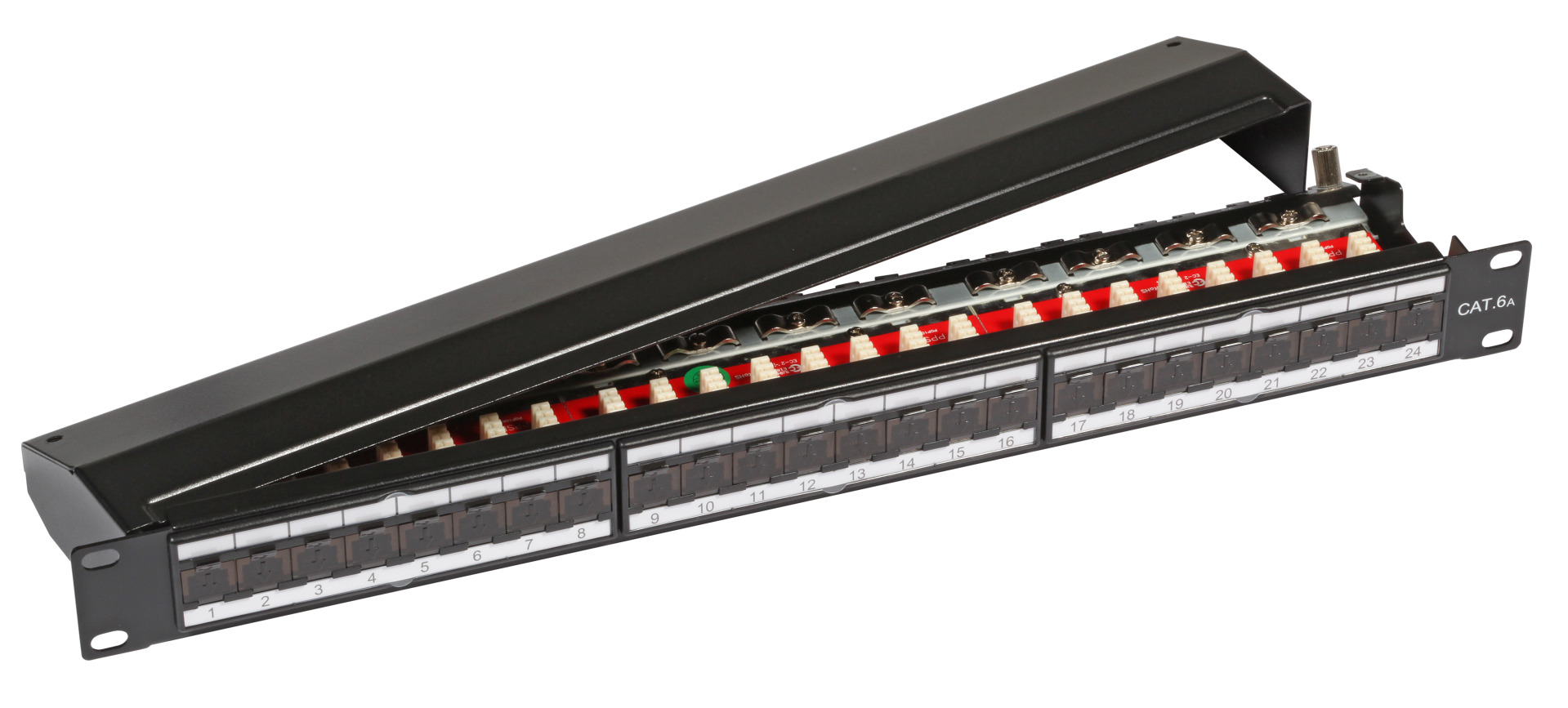

Patchpanel STP 24xRJ45 Cat.6A/Class EA, 19“ 1U
Patchpanel STP 24xRJ45 Cat.6A/Class EA, 19“ 1U, RAL9005 black
Varenummer:
37656.1
EAN Nr.:
4049759082314
Produktinformationen für Patchpanel STP 24xRJ45 Cat.6A/Class EA, 19“ 1U, RAL9005 black
The high quality of the shielded Cat.6A RJ45 patch panel ensures excellent performance for 10 Gigabit Ethernet applications. The 24 ports are covered with captive dust covers.
19" mounting, 1U
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with screw cap
With earthing terminal
19" mounting, 1U
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with screw cap
With earthing terminal
Technische Eigenschaften
| Bandwidth: | 500 MHz |
|---|---|
| Category: | 6A (TIA) |
| Colour Code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact coating: | 50 µ" gold plated |
| Contact resistance: | 20 mΩ |
| Cross section: | AWG 26 - AWG 22 |
| Current capacity: | 1.8 A |

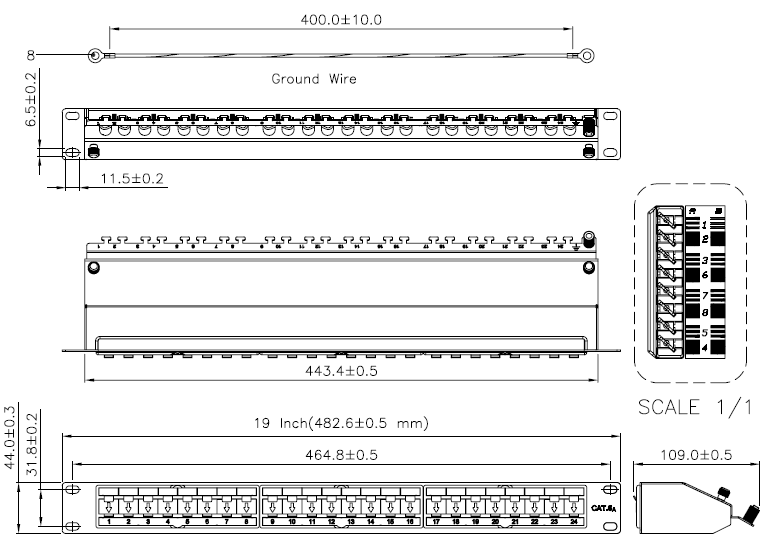

| Depth: | 109.0 mm |
| Dielectric Withstanding Voltage: | 1500 V DC |
| Earthing wire: | AWG 18 |
| Height: | 44.5 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | SECC Steel, 1.2mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 30 N |
| Insulation resistance: | 500 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: |
POE POE+ |
| Screened: | True |
| Suitable for number of connectors: | 24 |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission: | 10 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 482.6 mm |
