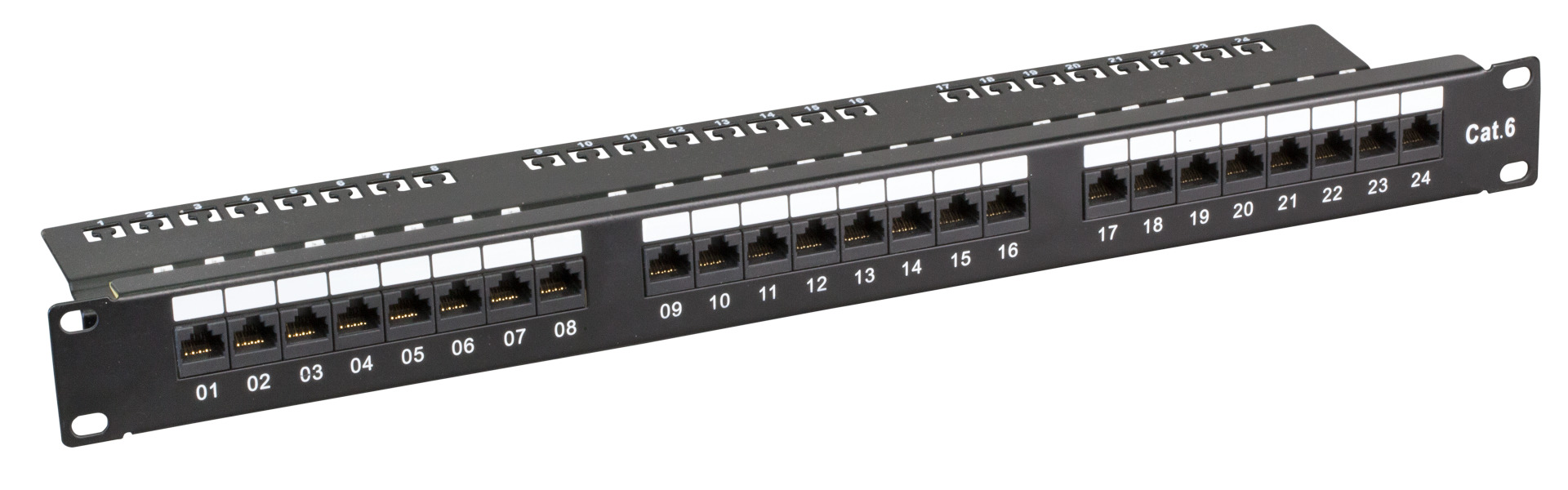

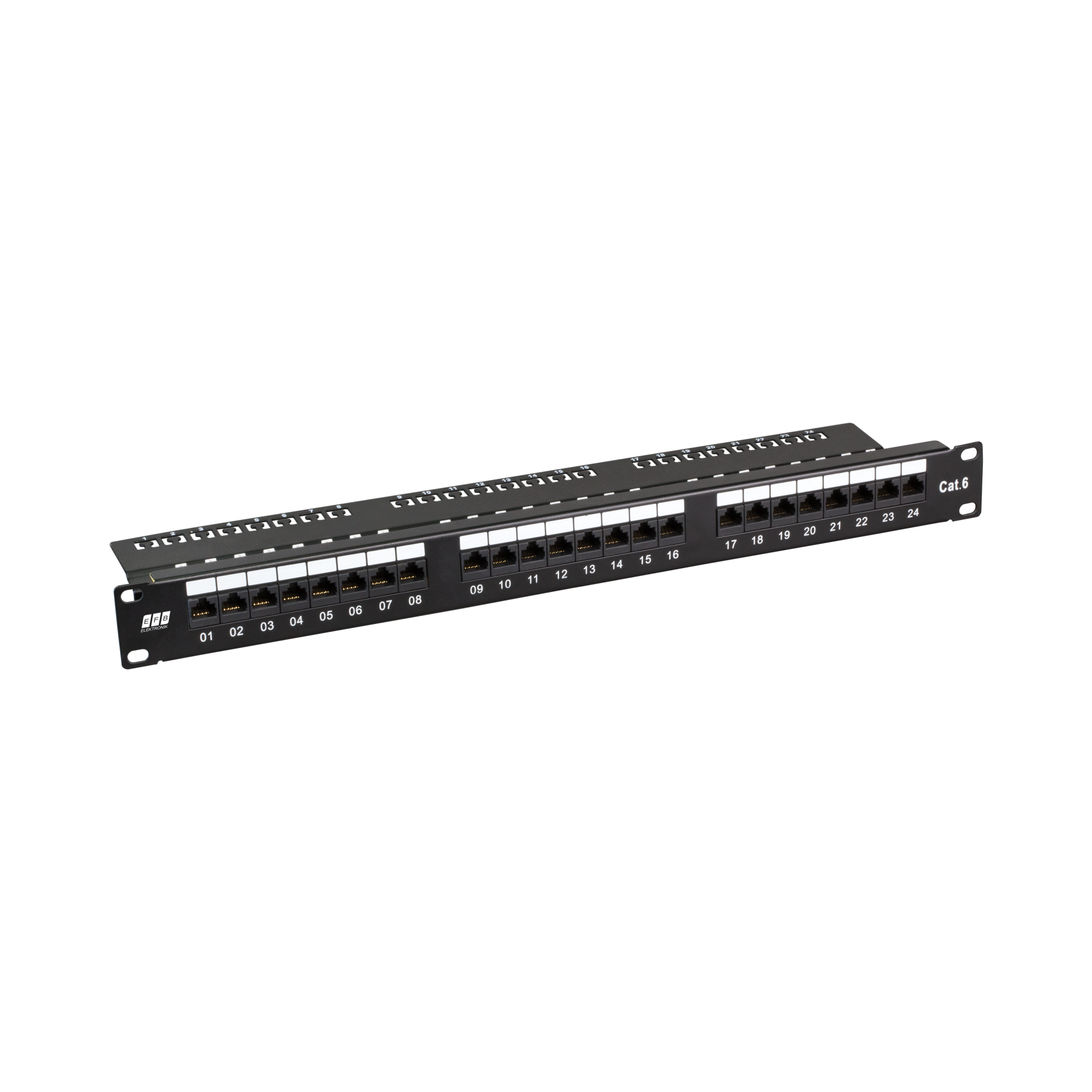

Patchpanel UTP 24 xRJ45 Cat.6 / Class E, 19" 1U
Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
Varenummer:
37583SW.1
EAN Nr.:
4049759028756
Produktinformation til Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
The high quality of the unshielded Cat.6 RJ45 patch panel ensures excellent performance for 5 Gigabit Ethernet applications.
19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG26..AWG23
Colour code according to TIA / EIA 568 A / B
Scope of delivery:
24 cable ties, Instruction manual
19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG26..AWG23
Colour code according to TIA / EIA 568 A / B
Scope of delivery:
24 cable ties, Instruction manual
Tekniske egenskaber
| Category: | 6 |
|---|---|
| Colour code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 10 mΩ |
| Contact coating: | 50 µ" gold plated |
| Cross section: | AWG 26 - AWG 23 |
| Current capacity: | 1.5 A |

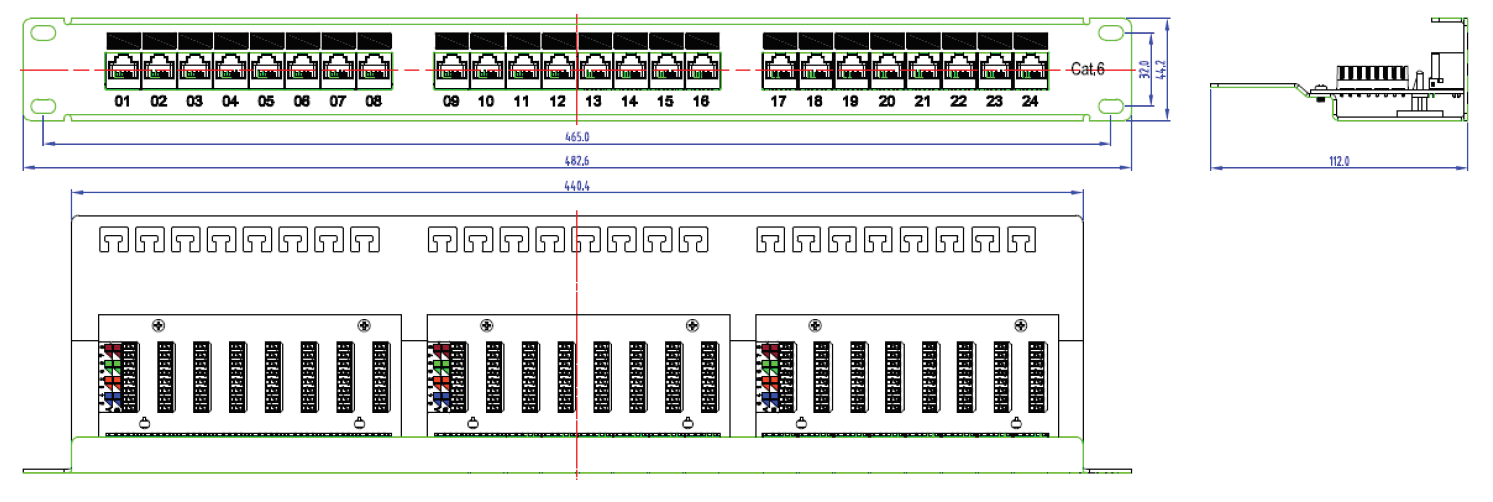

| Depth: | 112.0 mm |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.2 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | SECC Steel, 1.2mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: | POE |
| POE Standard: | POE+ |
| Screened: | False |
| Suitable for number of connectors: | 24 |
| Tape width: | 250 MHz |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Transmission: | 5 Gbit |
| Type of connector: | RJ45 8(4) |
| Width: | 482.6 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
