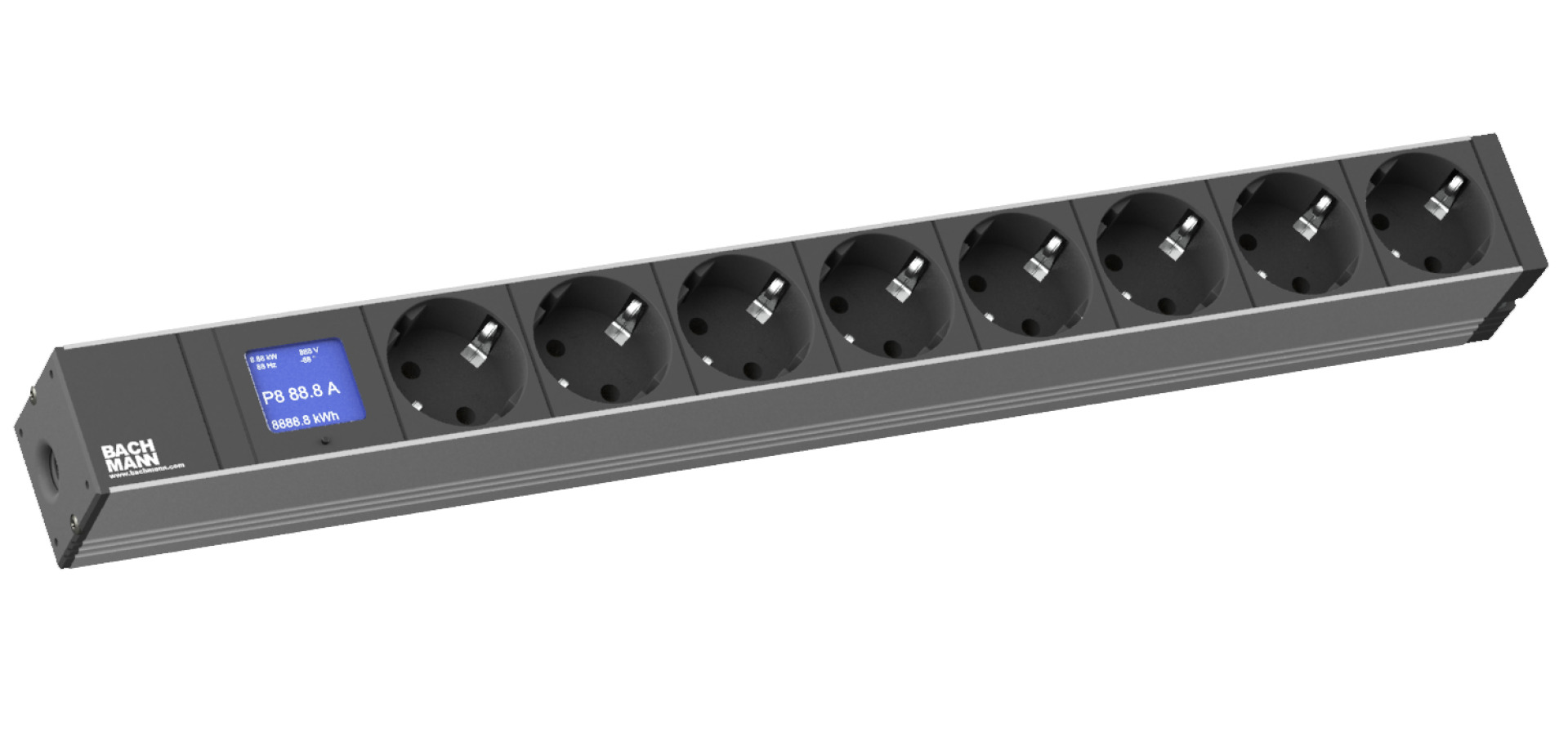

PDU 19" 1U BN500 8 x with Power Measuring
PDU 19" 1U BN500 8 x CEE7/3 with Power Measuring (Display)
Varenummer:
691790.1
EAN Nr.:
4016514088355
Produktinformation til PDU 19" 1U BN500 8 x CEE7/3 with Power Measuring (Display)
BlueNET500 socket strip 19" 1U in Aluminium profile, anodized

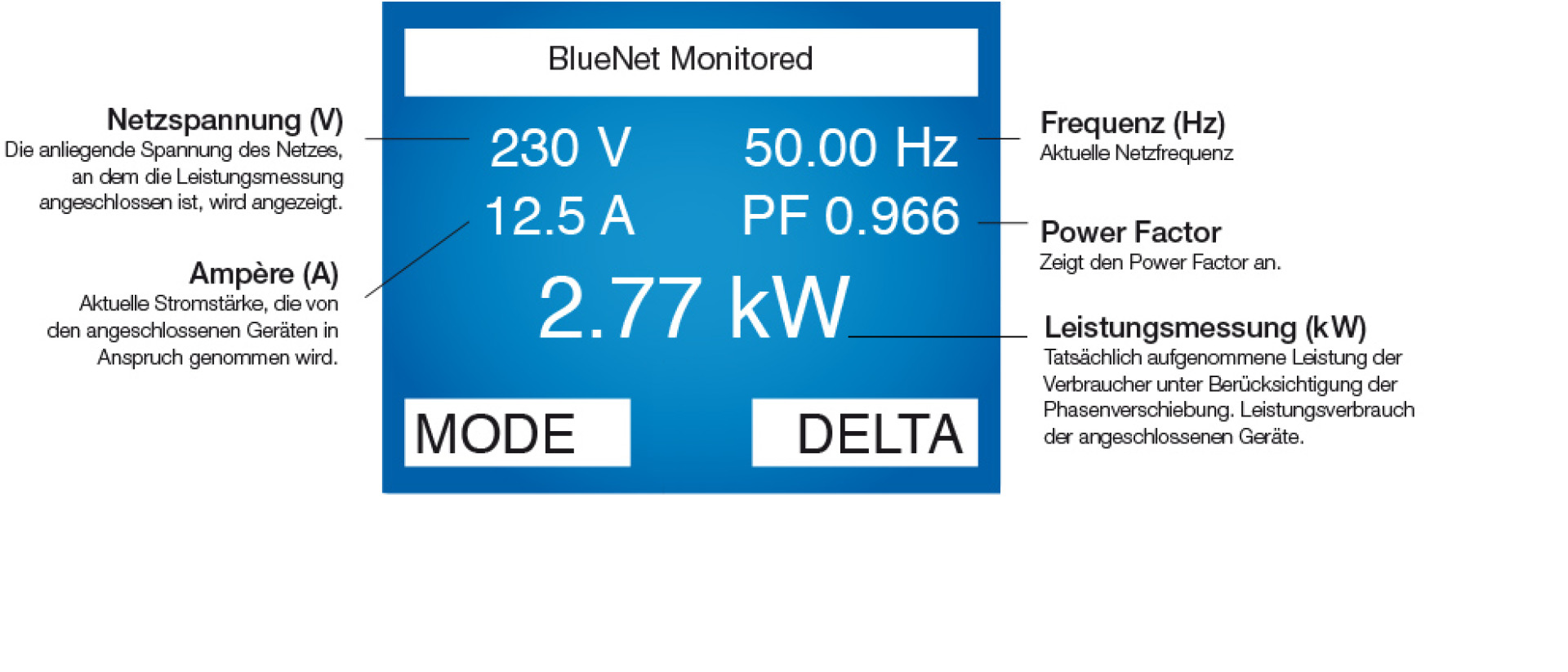

With power measuring (display V/A/kW/Hz/PF)
Outlets 8 x CEE7/3, black

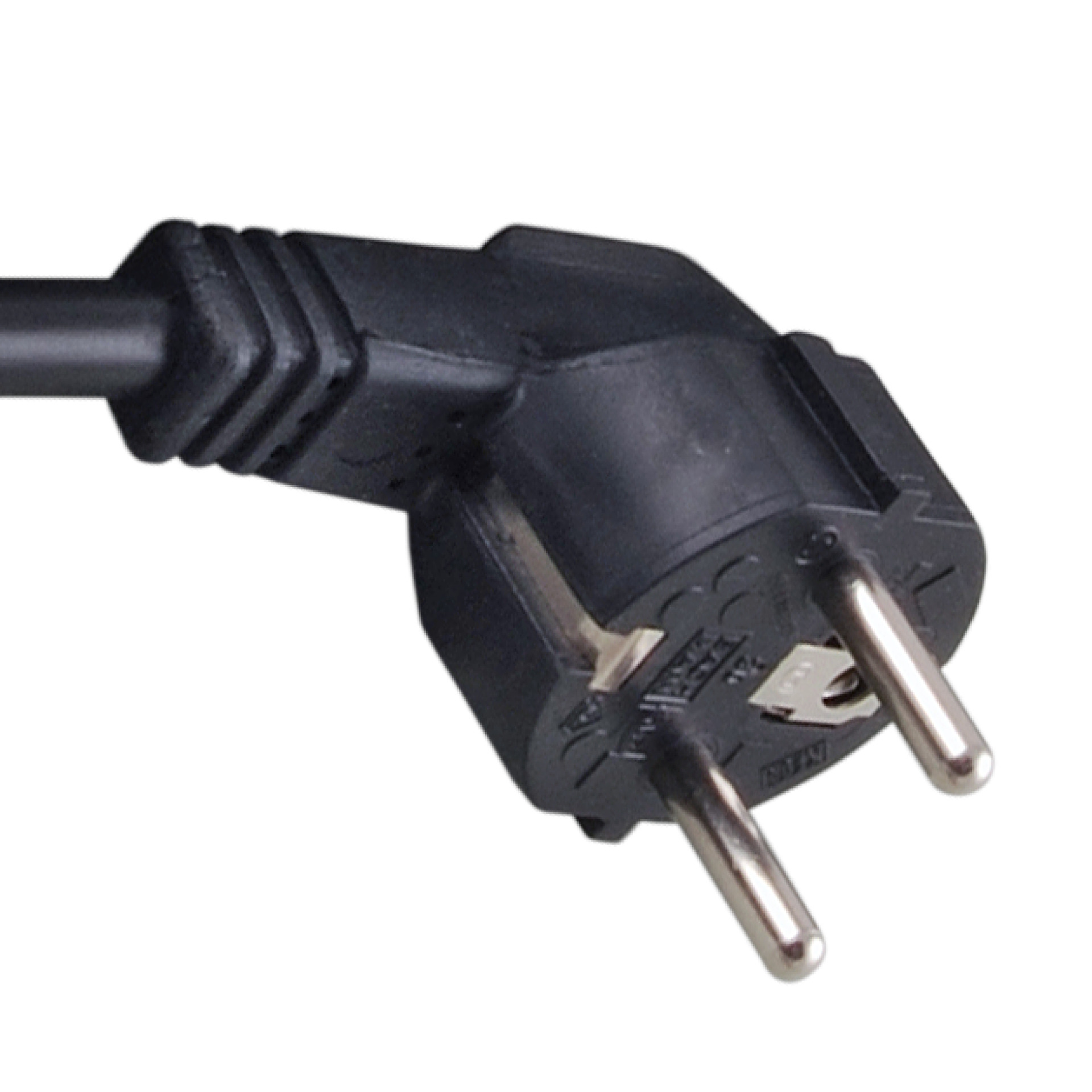

Cable 2.0 m H05VV-F 3G 1.5 mm² black, with angled CEE7/3 plug

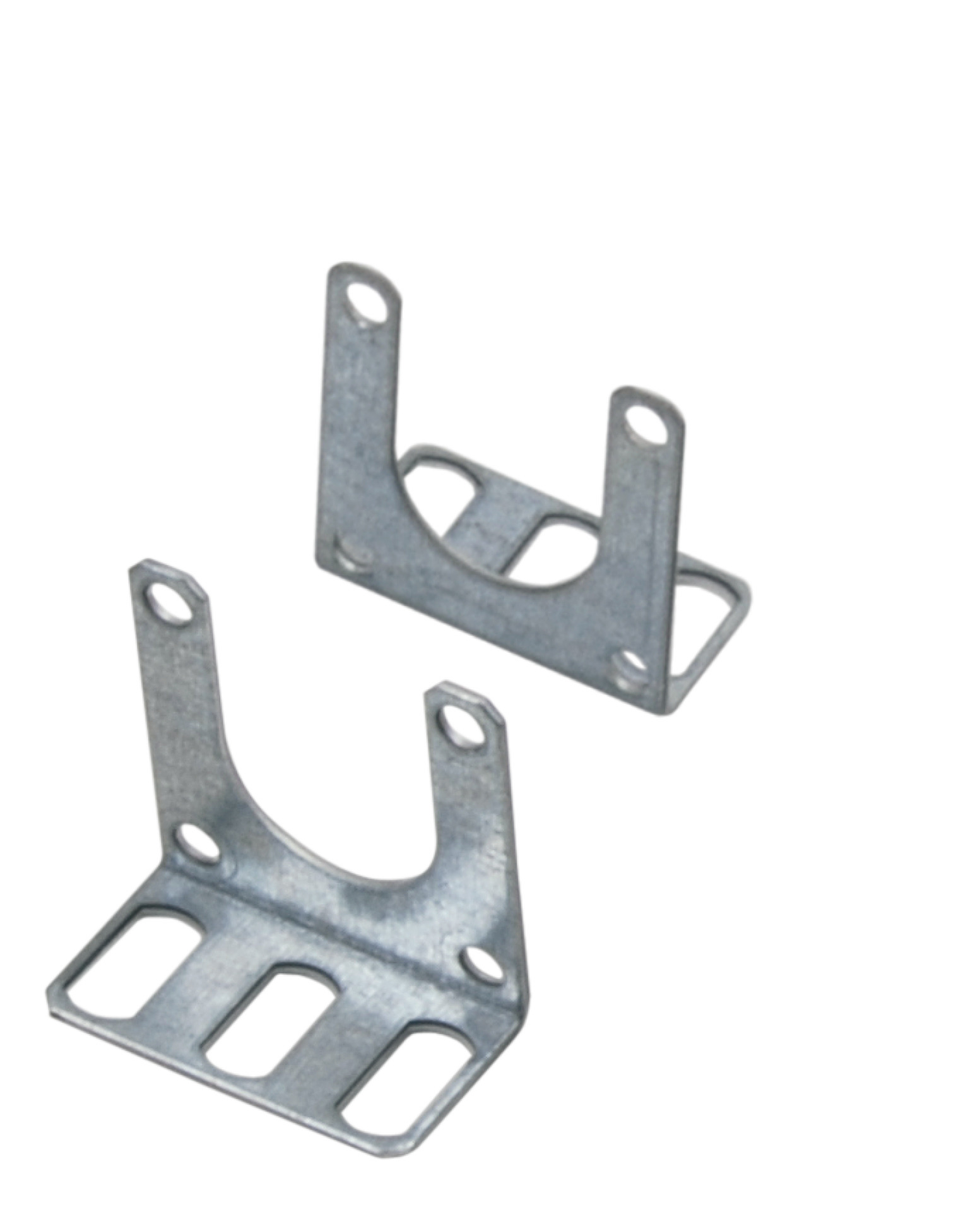

Incl. mounting brackets
With power measuring (display V/A/kW/Hz/PF)
Outlets 8 x CEE7/3, black
Cable 2.0 m H05VV-F 3G 1.5 mm² black, with angled CEE7/3 plug
Incl. mounting brackets
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 m |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | local |
| Height: | 44 mm |
| Length: | 482.6 mm |
| Mains filter: | True |
| Measuring Capability: | per PDU |
| Mounting dimension: | 482.6 mm (19 inch) |
| Mounting direction: | horizontal/vertical |
| Number of height units: | 1 U |
| Over voltage category: | nicht zutreffend |
| SNMP: | True |
| Supply voltage: | 250 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| Type of electric connection: | protective contact (SCHUKO) |
| Width: | 44 mm |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
