PDU Vertical BN2000 Monitored 24 x C13 + 6 x C19 + 6 x CB
PDU Vertical BN2000 Monitored 24 x C13 + 6 x C19 + 6 x CB
Varenummer:
691791.7
EAN Nr.:
4016514075126
Produktinformation til PDU Vertical BN2000 Monitored 24 x C13 + 6 x C19 + 6 x CB
Vertical PDU BlueNet BN2000 Monitored
Feeding 3-phase
Outlets 3 phases each with circuit breaker C16A:
8 x C13 + 2 x C19 (phase 1, red) + 2 x CB
8 x C13 + 2 x C19 (phase 2, black) + 2 x CB
8 x C13 + 2 x C19 (phase 3, grey) + 2 x CB

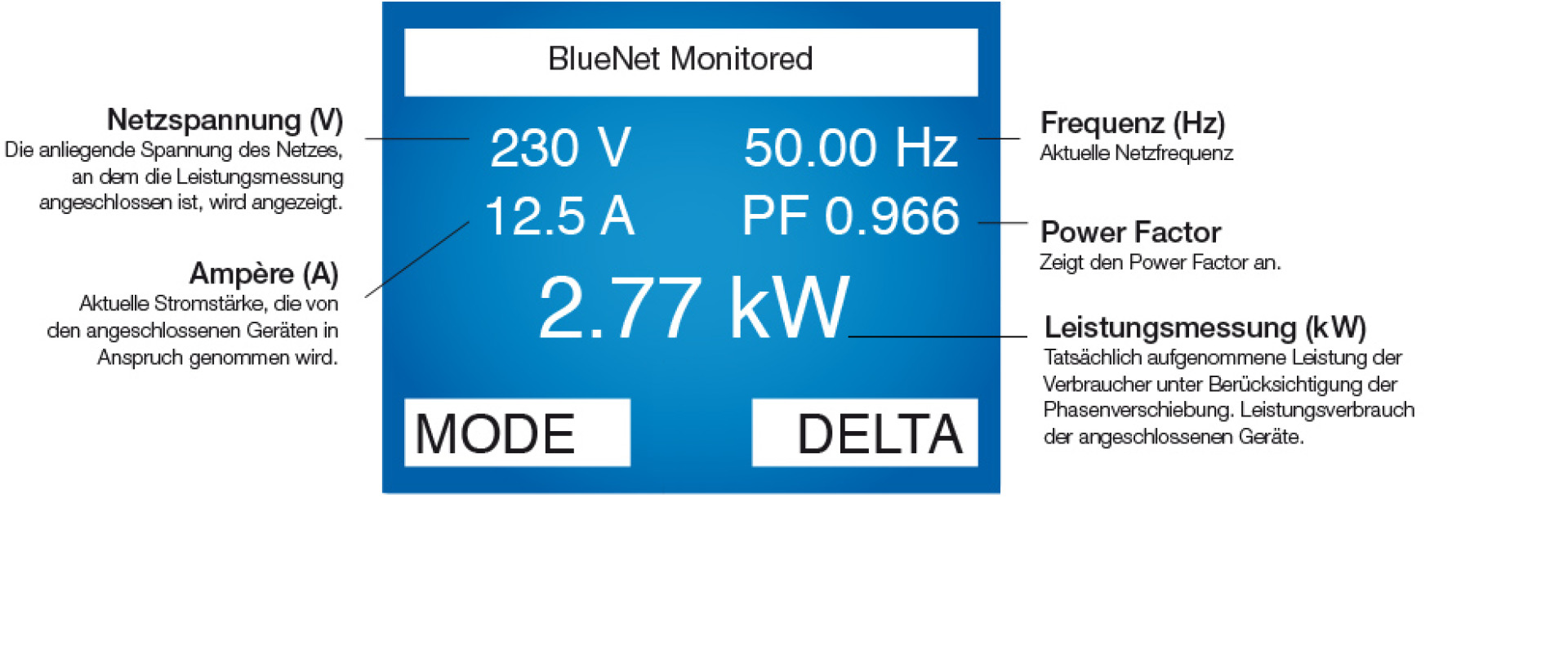

Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor
Integrated temperature sensor + two interfaces for external sensors

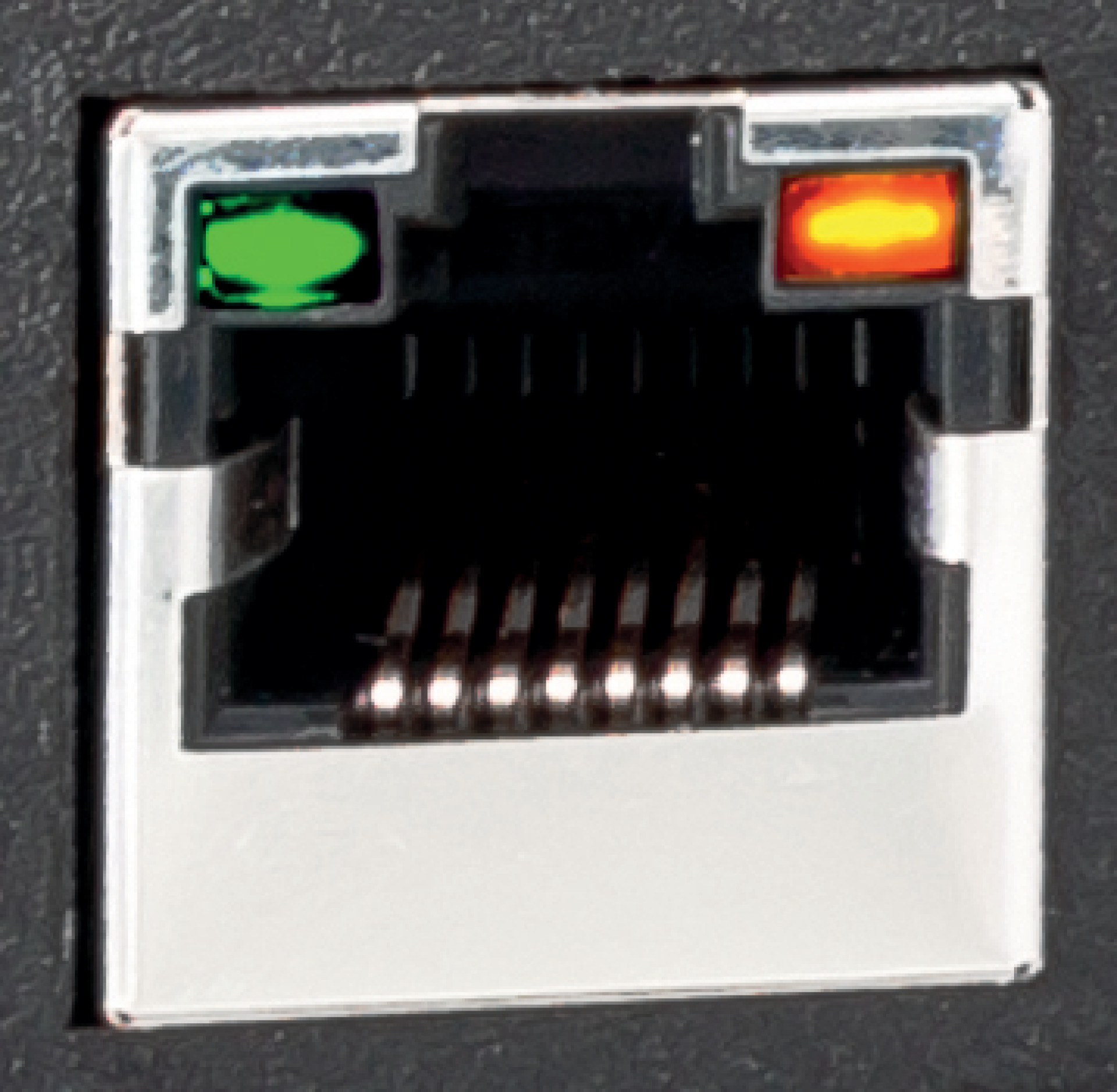

With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
Cable 3.0 m H05VV-F 5G 4.0 mm² with CEE plug 32 A red

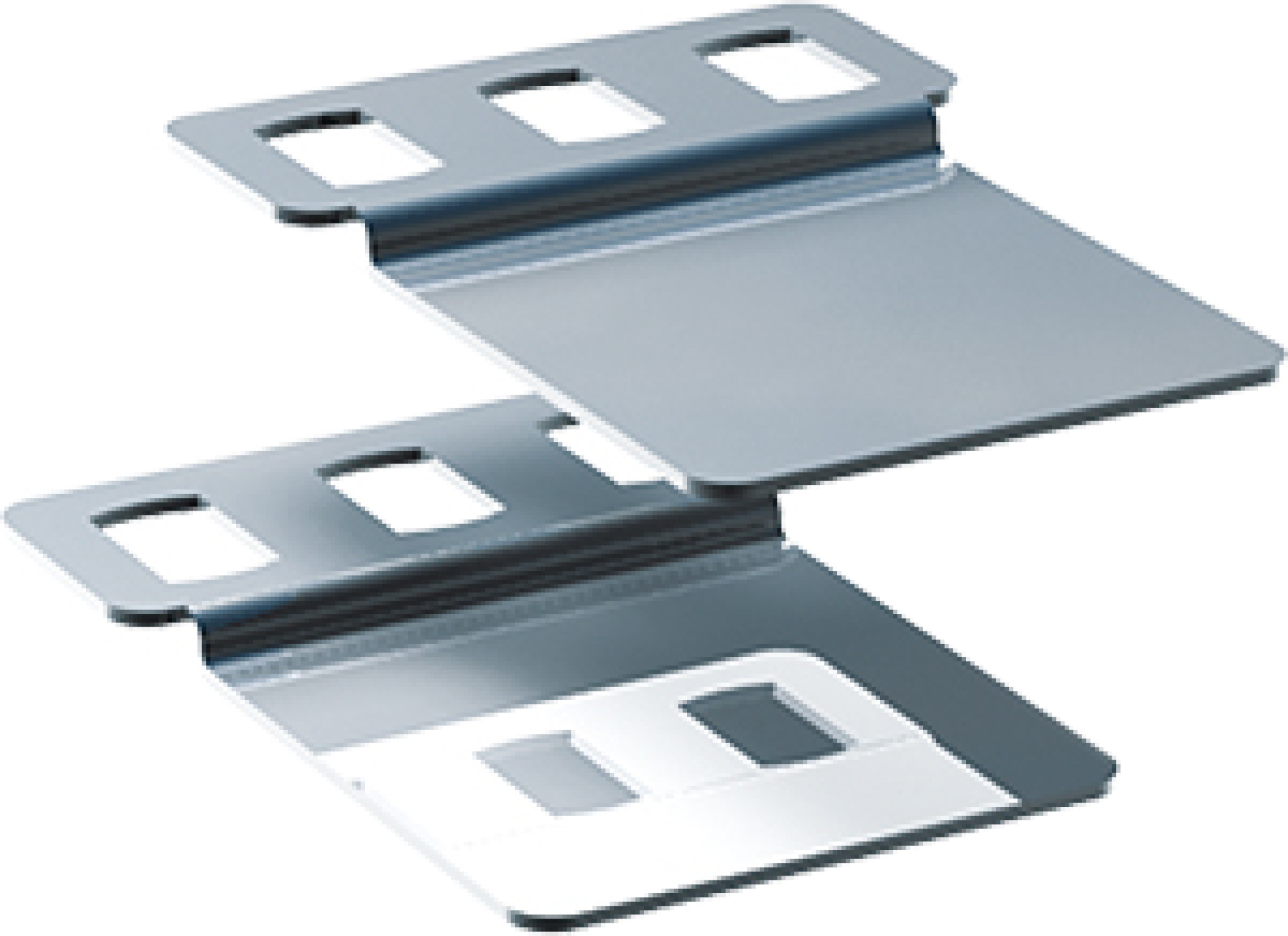

Delivery incl. mounting brackets and screws
Packed in carton
Feeding 3-phase
Outlets 3 phases each with circuit breaker C16A:
8 x C13 + 2 x C19 (phase 1, red) + 2 x CB
8 x C13 + 2 x C19 (phase 2, black) + 2 x CB
8 x C13 + 2 x C19 (phase 3, grey) + 2 x CB
Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor
Integrated temperature sensor + two interfaces for external sensors
With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
Cable 3.0 m H05VV-F 5G 4.0 mm² with CEE plug 32 A red
Packed in carton
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | at distance |
| Mains filter: | True |
| Mounting dimension: | other |
| Mounting direction: | vertical |
| Number of height units: | 0 U |
| SNMP: | True |
| Supply voltage: | 250 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
