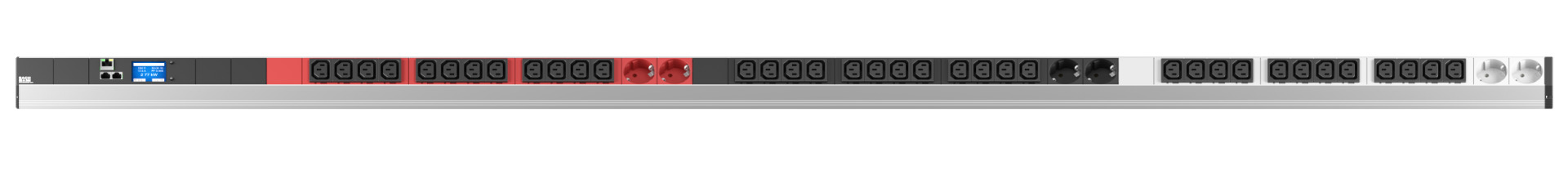

PDU Vertical BN2000 Monitored 36 x C13 + 6 x CEE7/3
PDU Vertical BN2000 Monitored 36 x C13 + 6 x CEE7/3, 3-Phase
Varenummer:
691791.3
EAN Nr.:
4016514048397
Produktinformation til PDU Vertical BN2000 Monitored 36 x C13 + 6 x CEE7/3, 3-Phase
Vertical PDU BlueNet BN2000 Monitored
Feeding 3-phase
Outlets:
12 x IEC C13 + 2 x CEE7/3 (phase 1, red)
12 x IEC C13 + 2 x CEE7/3 (phase 2, black)
12 x IEC C13 + 2 x CEE7/3 (phase 3, grey)

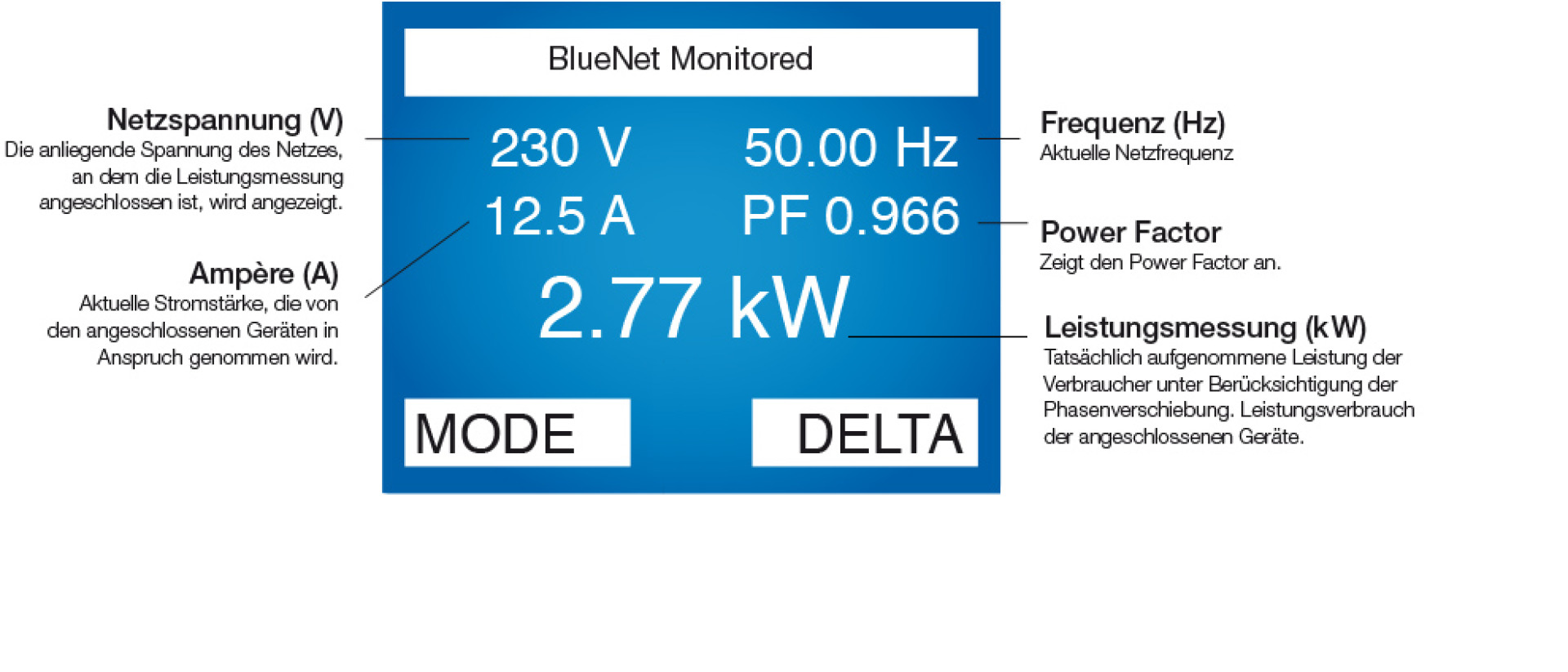

Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor

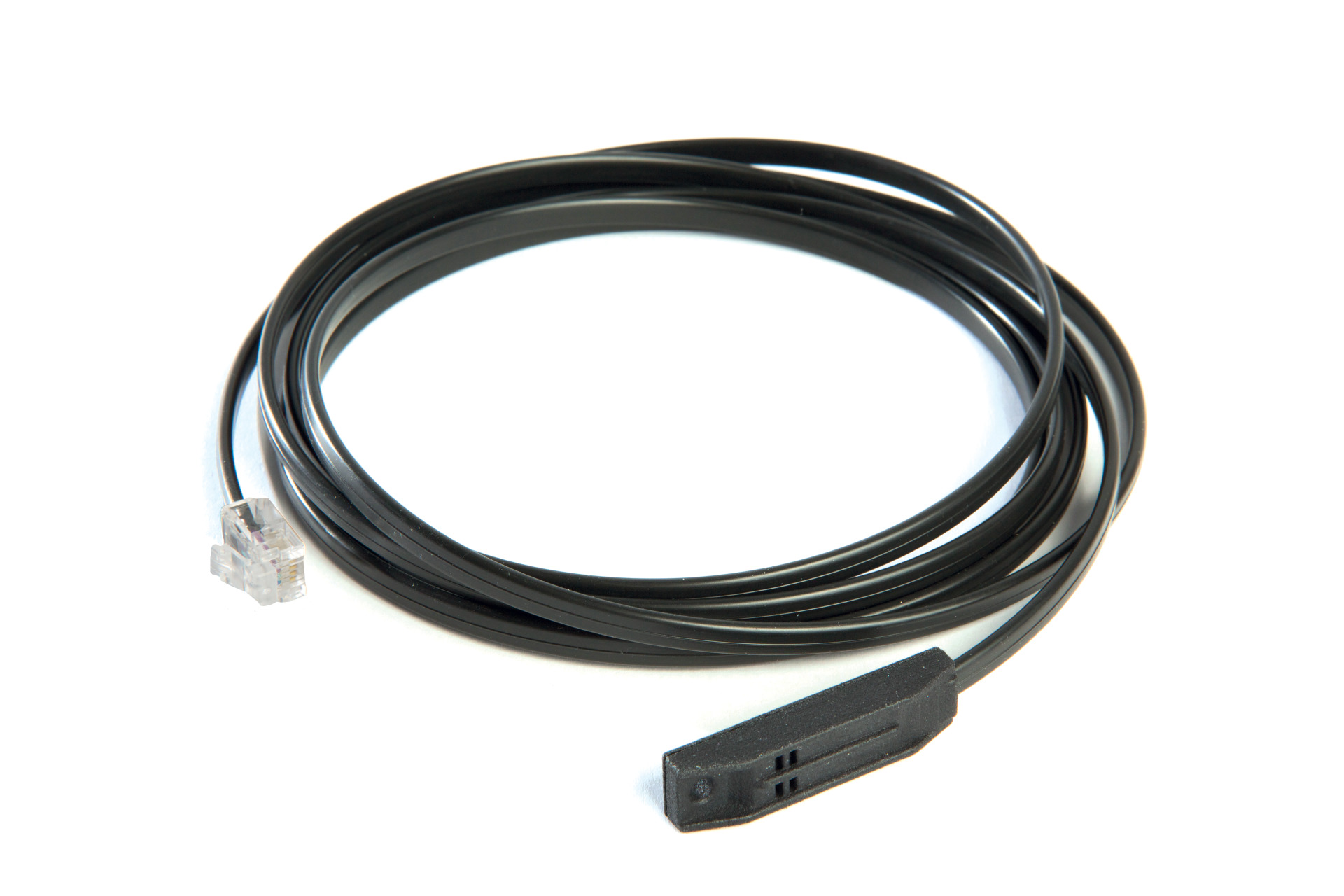

Integrated temperature sensor + two interfaces for external sensors

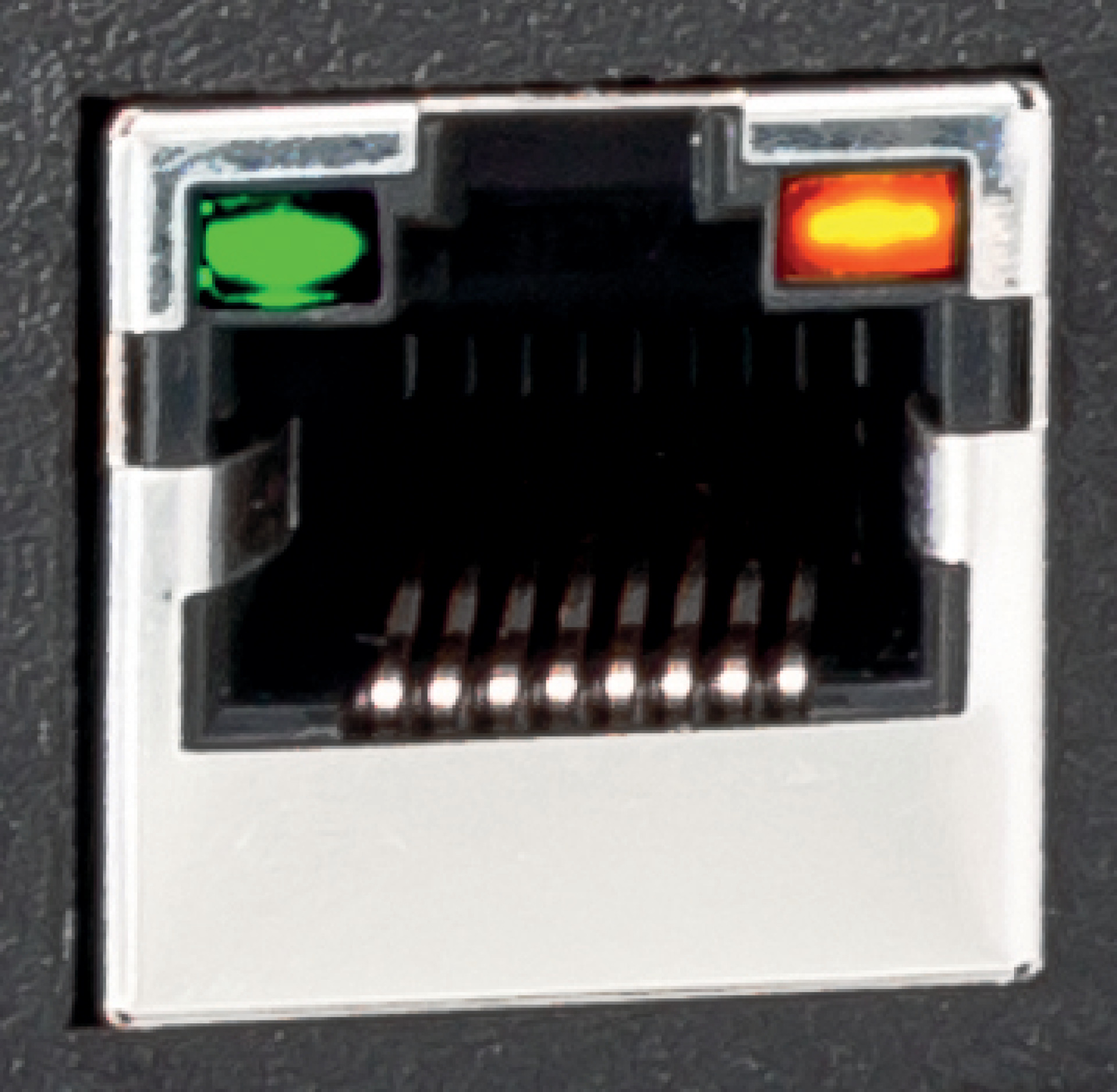

With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
Cable 3.0 m H05VV-F 5G 2.5 mm², CEE plug 16 A red
Housing aluminium profile

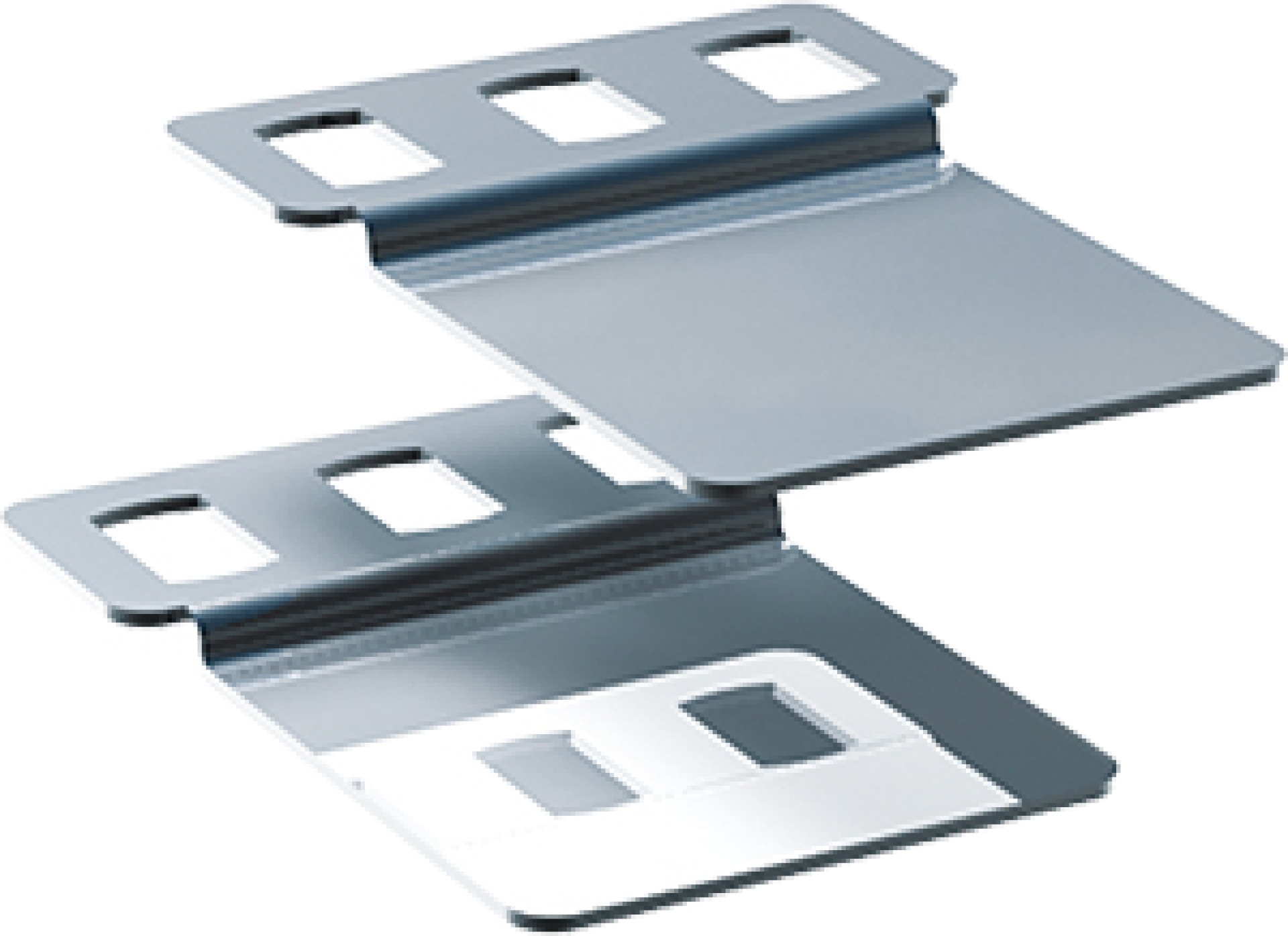

Delivery incl. mounting brackets and screws
Packed in carton
Feeding 3-phase
Outlets:
12 x IEC C13 + 2 x CEE7/3 (phase 1, red)
12 x IEC C13 + 2 x CEE7/3 (phase 2, black)
12 x IEC C13 + 2 x CEE7/3 (phase 3, grey)
Integrated function for measuring of current, voltage, reactive-, apparent-, active power, frequency and power factor
Integrated temperature sensor + two interfaces for external sensors
With integrated display, integrated web server with 10/100 Mbit/s Ethernet port (RJ45)
Cable 3.0 m H05VV-F 5G 2.5 mm², CEE plug 16 A red
Housing aluminium profile
Delivery incl. mounting brackets and screws
Packed in carton
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | at distance |
| Mains filter: | True |
| Mounting dimension: | other |
| Mounting direction: | vertical |
| Number of height units: | 0 U |
| Over voltage category: | nicht zutreffend |
| SNMP: | True |
| Supply voltage: | 400 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
Bachmann Sales GmbH & Co. KG
Ernsthaldenstr. 33
70565 Stuttgart
info@bachmann.com
www.bachmann.com
