PDU Vertical BN500 24xC13 3xC19 400V 16A with Power Measuring
PDU Vertical BN500 24xC13 3xC19 400V 16A with Power Measuring (Display)
Varenummer:
691790.5
EAN Nr.:
4016514092444
Produktinformation til PDU Vertical BN500 24xC13 3xC19 400V 16A with Power Measuring (Display)
BlueNET500 socket strip vertical, 3-phase infeed

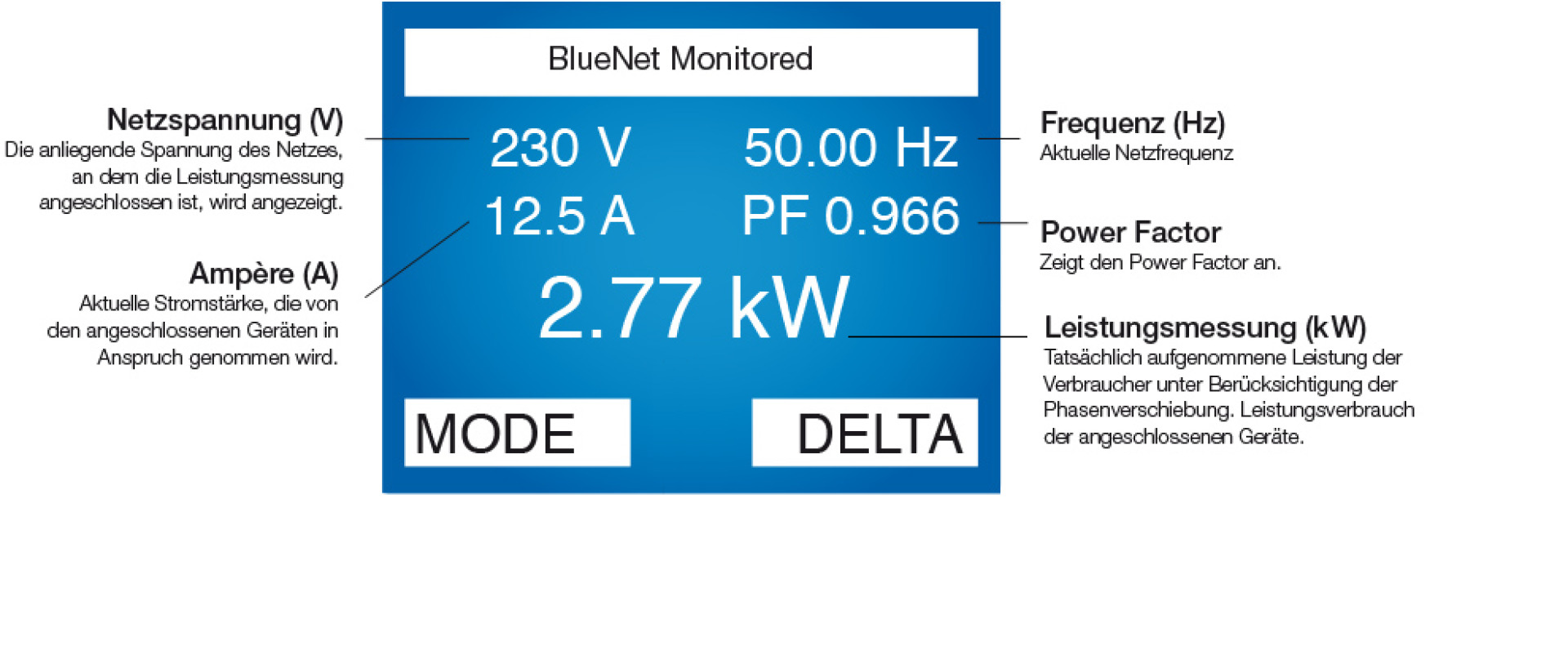

With power measuring (3 x display V/A/kW/Hz/PF)
Outlets 24 x IEC C13 + 3 x IEC C19 with IEC Lock (8 x C13 + 1 x C19 per phase)

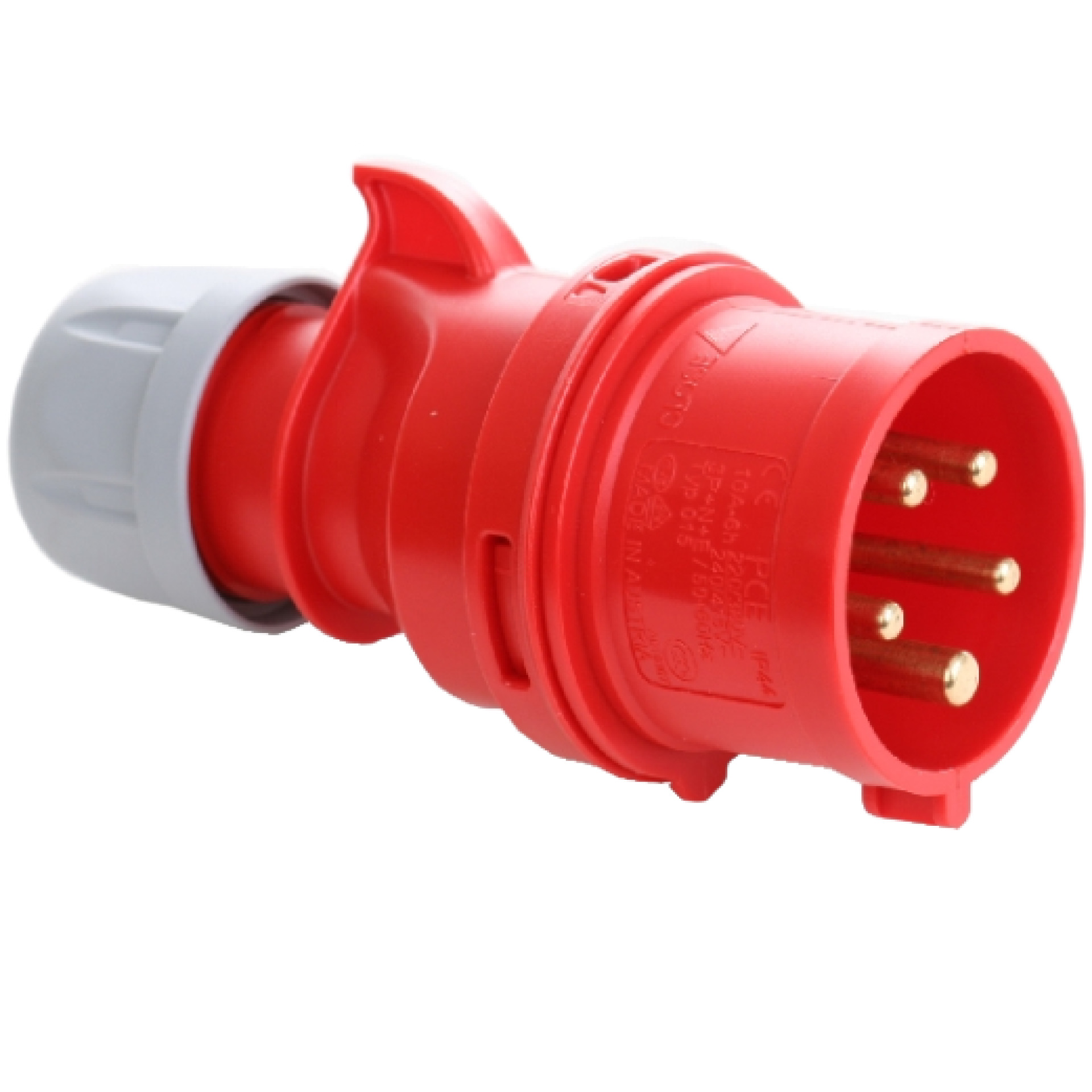

Cable 3.0 m H05VV-F 5G 2.5 mm² black with CEE plug 400 V 16 A red

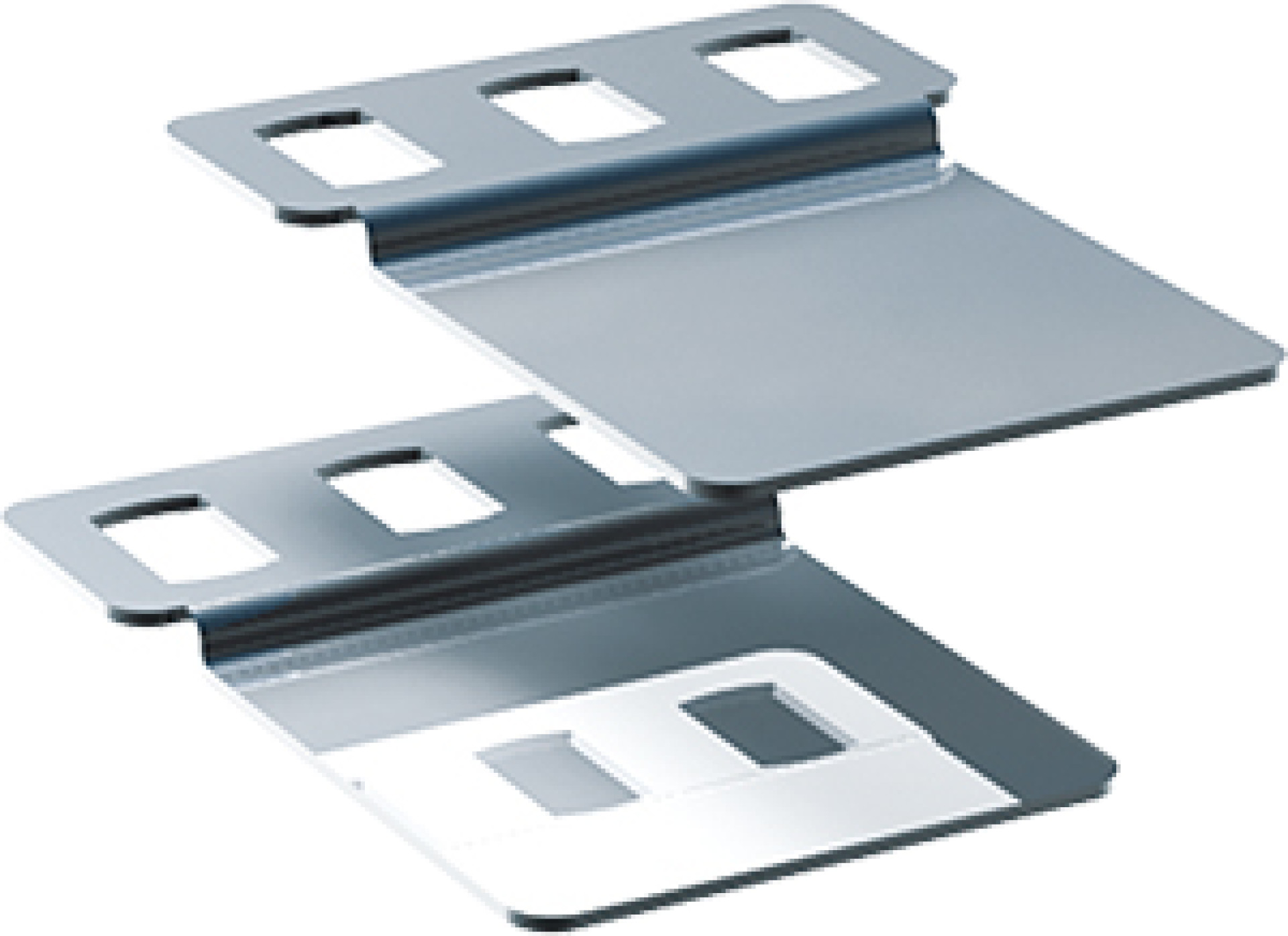

Incl. mounting brackets
With power measuring (3 x display V/A/kW/Hz/PF)
Outlets 24 x IEC C13 + 3 x IEC C19 with IEC Lock (8 x C13 + 1 x C19 per phase)
Cable 3.0 m H05VV-F 5G 2.5 mm² black with CEE plug 400 V 16 A red
Incl. mounting brackets
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 m |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | local |
| Height: | 44 mm |
| Length: | 1276.0 mm |
| Mains filter: | True |
| Measuring Capability: | per phase |
| Mounting dimension: | other |
| Mounting direction: | vertical |
| Number of height units: | 0 U |
| Over voltage category: | nicht zutreffend |
| SNMP: | True |
| Supply voltage: | 400 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| Type of electric connection: | other |
| Width: | 44 mm |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
