PDU Vertikal BN500 24xC13 6xCEE7/3 400V 16A with Power Measuring
Produktinformation til PDU Vertical BN500 24xC13 6xCEE7/3 400V 16A with Power Measuring (Display)

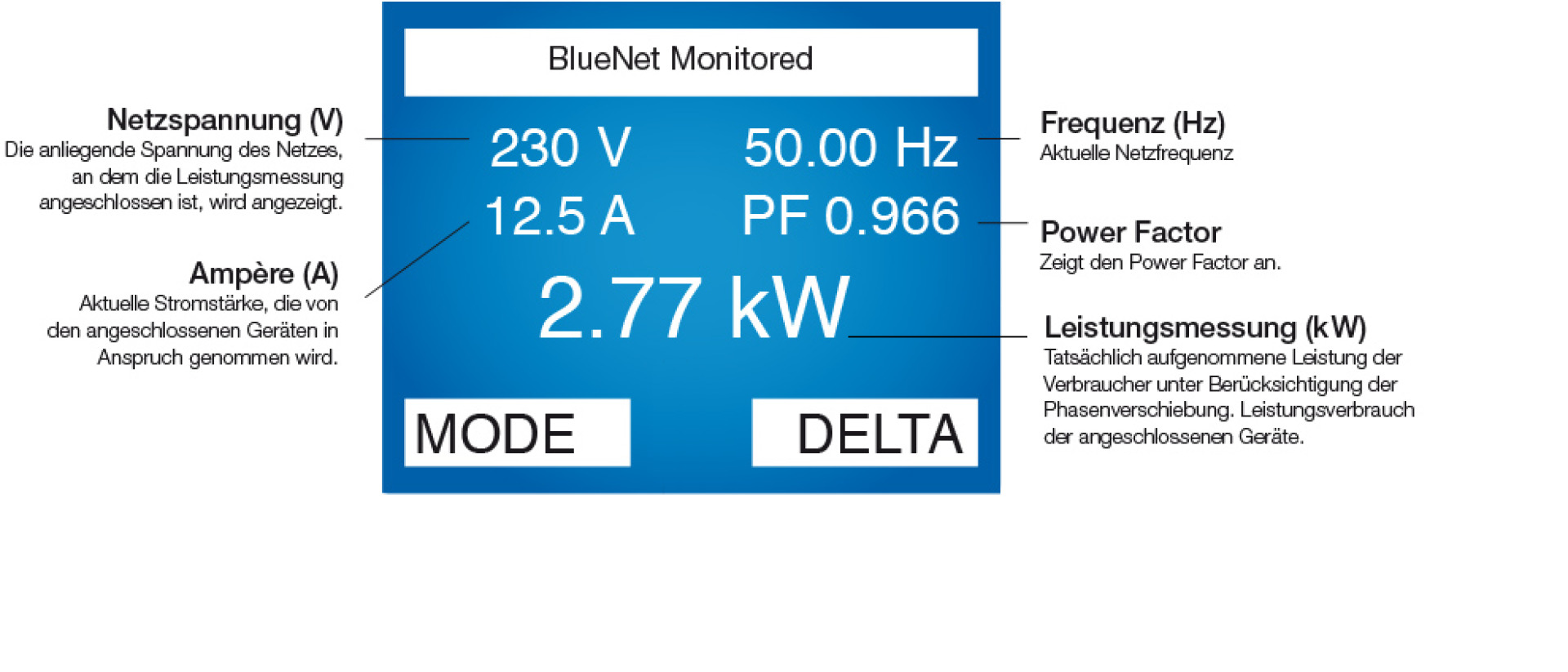

With power measuring (3 x display V/A/kW/Hz/PF)
Outlets 24 x IEC C13 + 6 x CEE7/3

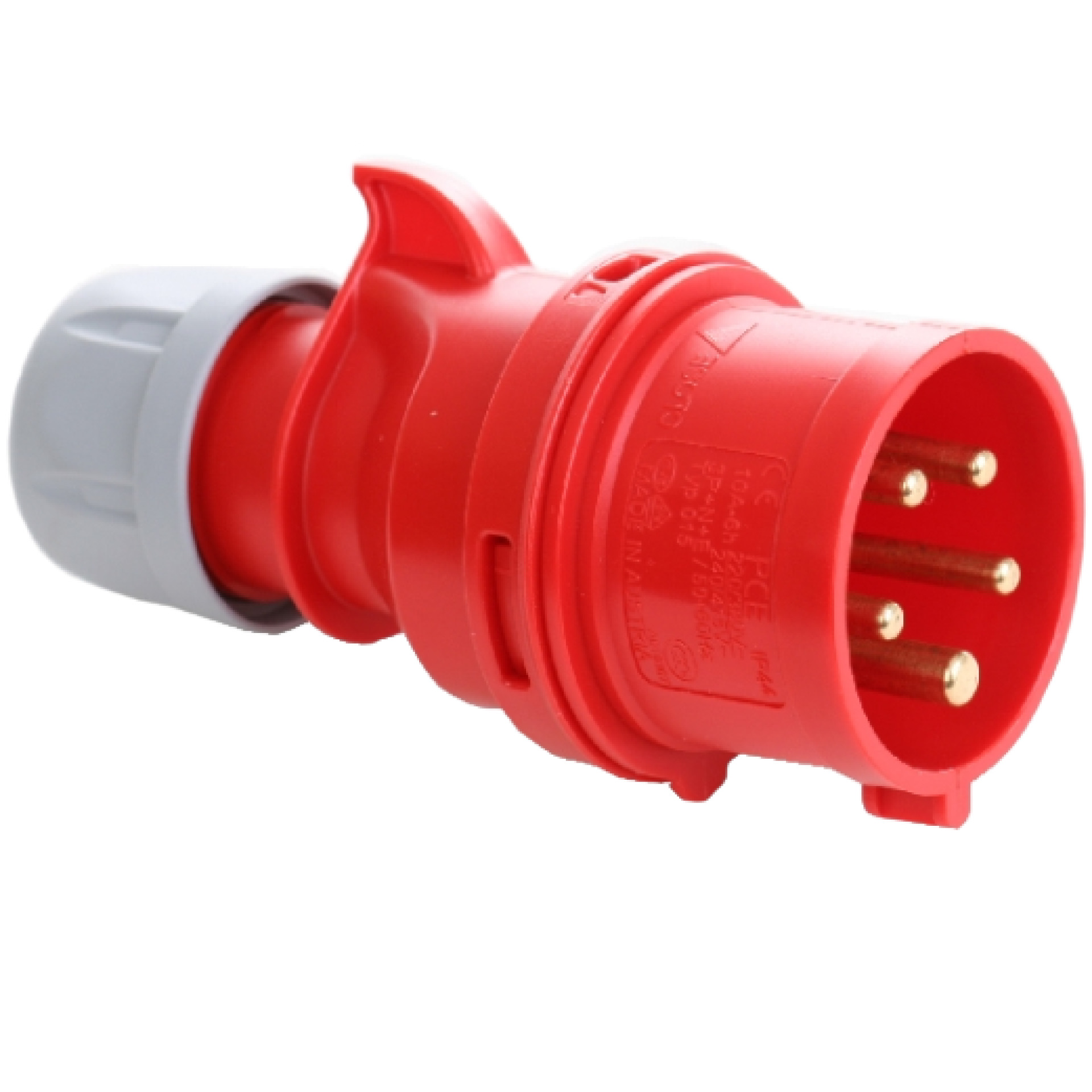

Cable 3.0 m H05VV-F 5G 2.5 mm² black with CEE plug 400 V 16 A red

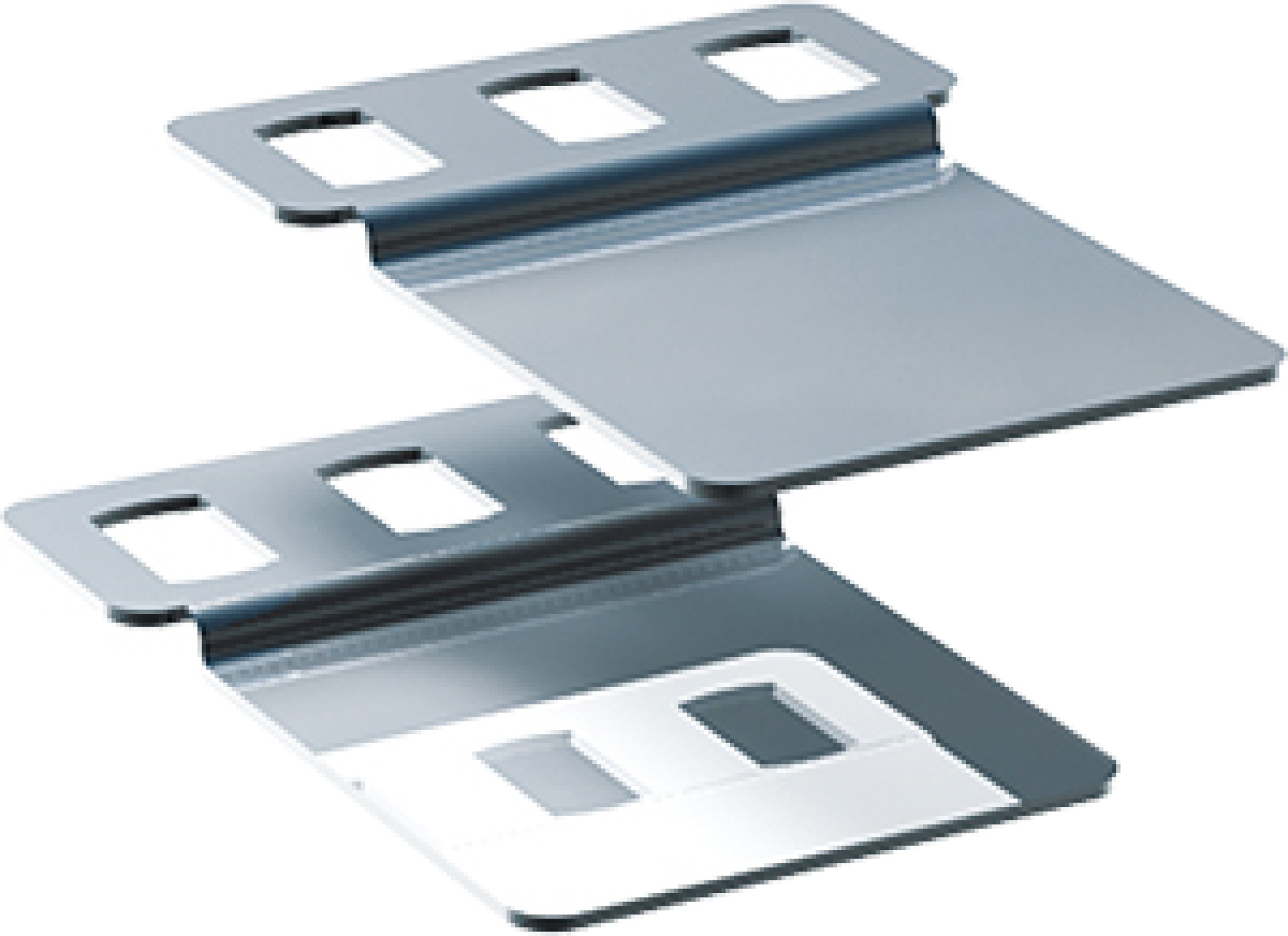

Incl. mounting brackets
Tekniske egenskaber
| Ampere meter: | True |
|---|---|
| Auto ping: | True |
| Cable length: | 3.0 m |
| Cascadable: | False |
| Electrical connection: | connection cable with plug |
| Evaluation: | local |
| Mains filter: | True |
| Measuring Capability: | per PDU |
| Mounting dimension: | other |
| Mounting direction: | vertical |
| Number of height units: | 0 U |
| SNMP: | True |
| Supply voltage: | 400 V |
| Switchable: | True |
| Switching Capability: | none |
| Temperature measurement: | True |
| Type of electric connection: | other |
| With LED indication: | True |
| With display: | True |
| With fuse: | True |
| With mounting material: | True |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation. Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
