Power Cable CEE7/7 90° - C13 180°, Black, LSZH
Power Cable CEE7/7 90° - C13 180°, LSZH, Black, 1.8 m, 3 x 1.00 mm²
Varenummer:
EK504ZH.1,8
EAN Nr.:
4032528027784
Produktinformation til Power Cable CEE7/7 90° - C13 180°, LSZH, Black, 1.8 m, 3 x 1.00 mm²

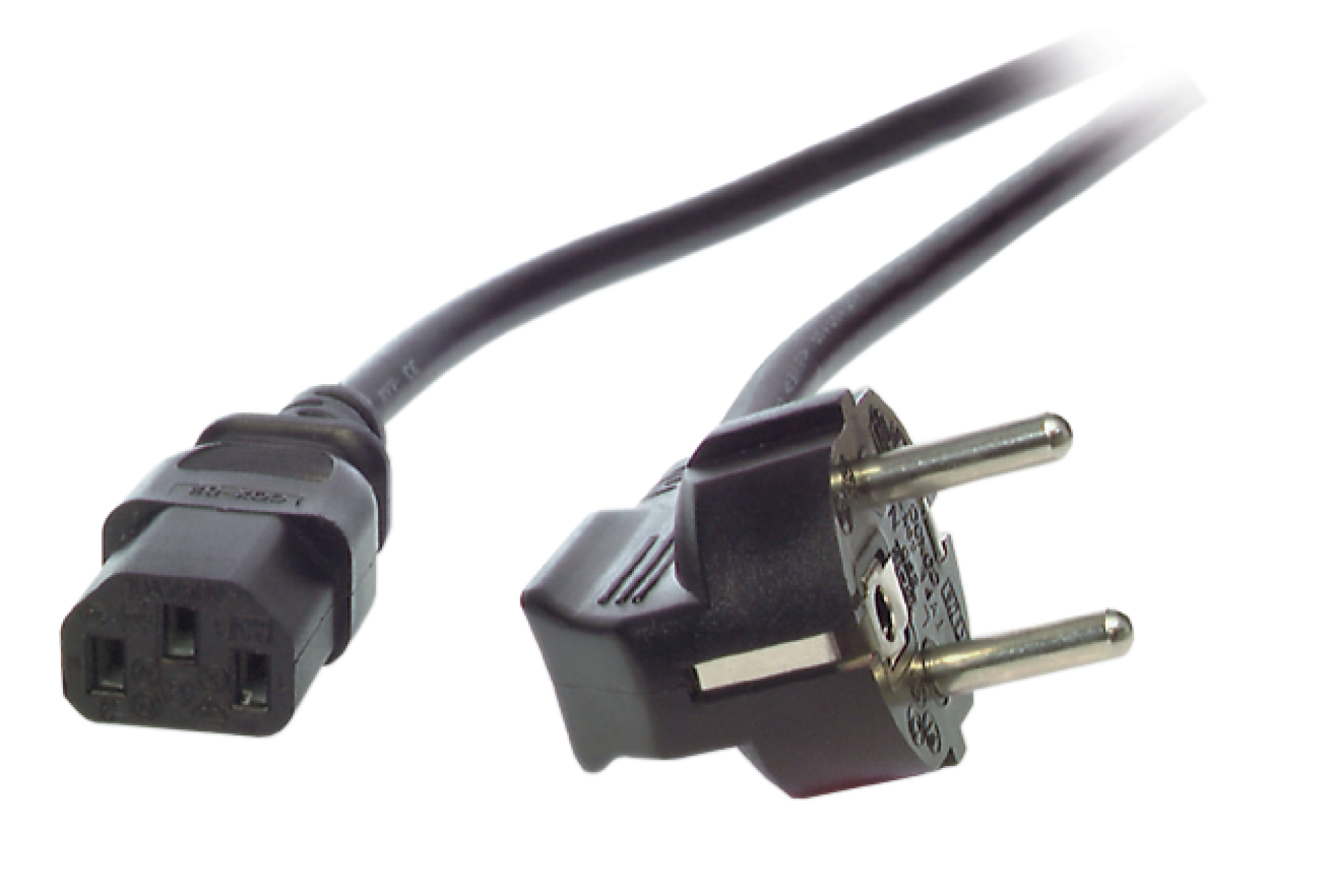

Power Cable CEE7/7 90° to jack IEC60320/C13
Halogen free
Cable H05Z1Z1-F 3 x 1.00 mm²
10 A / 250 V VDE tested
Suitable for Germany, Belgium, France and further
Halogen free
Cable H05Z1Z1-F 3 x 1.00 mm²
10 A / 250 V VDE tested
Suitable for Germany, Belgium, France and further
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Socket outlet with protective contact, right-angled |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | TPE |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | Ja |
| Spiralized cable: | False |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| EK504ZH.1,8 | Power Cable CEE7/7 90° - C13 180°, LSZH, Black, 1.8 m, 3 x 1.00 mm² | black | 1.8 m | 1.00 mm² | 7.0 mm | |
| EK504ZH.5 | Power Cable CEE7/7 90° - C13 180°, LSZH, Black, 5 m, 3 x 1.00 mm² | black | 5.0 m | 1.00 mm² | 7.0 mm |
