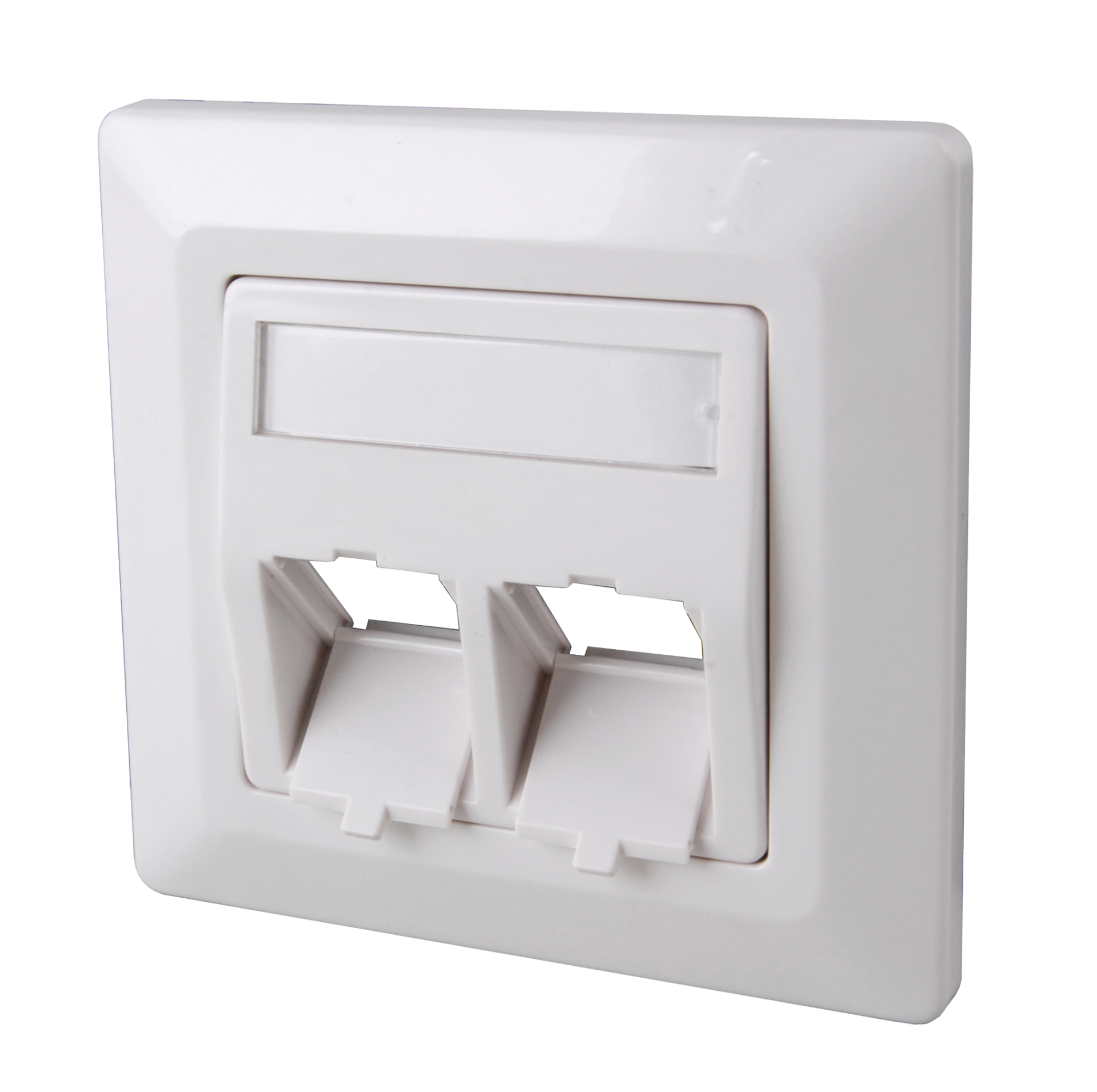

Rahmenset 2-Port, für Keystones,
Rahmenset 2-Port, für Keystones,,DIN49075, RAL9010
Varenummer:
ET-25085V2
EAN-nr.:
4049759180133
Produktinformation til Rahmenset 2-Port, für Keystones,,DIN49075, RAL9010
For holding all EFB RJ45 Keystone modules
Frame set in 1-port or 2-port
45° slanted outlet

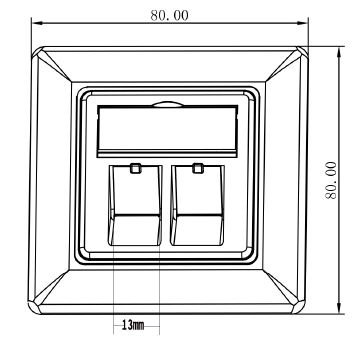

Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatibel to common switch programms with adapter plate
Separate earthing lead for 6.3mm fast-on connection
With dust covers and labeling field 12x40mm

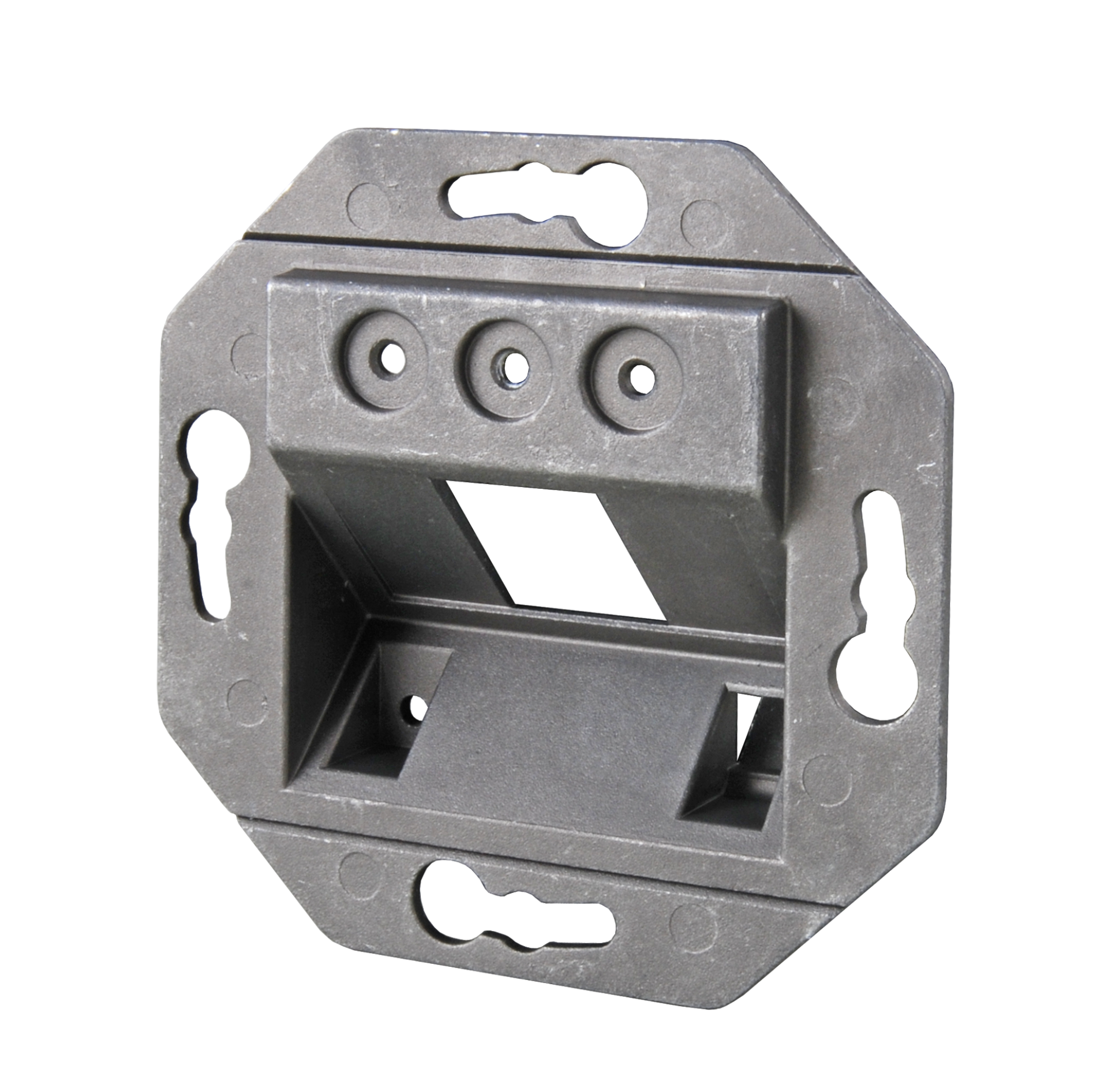

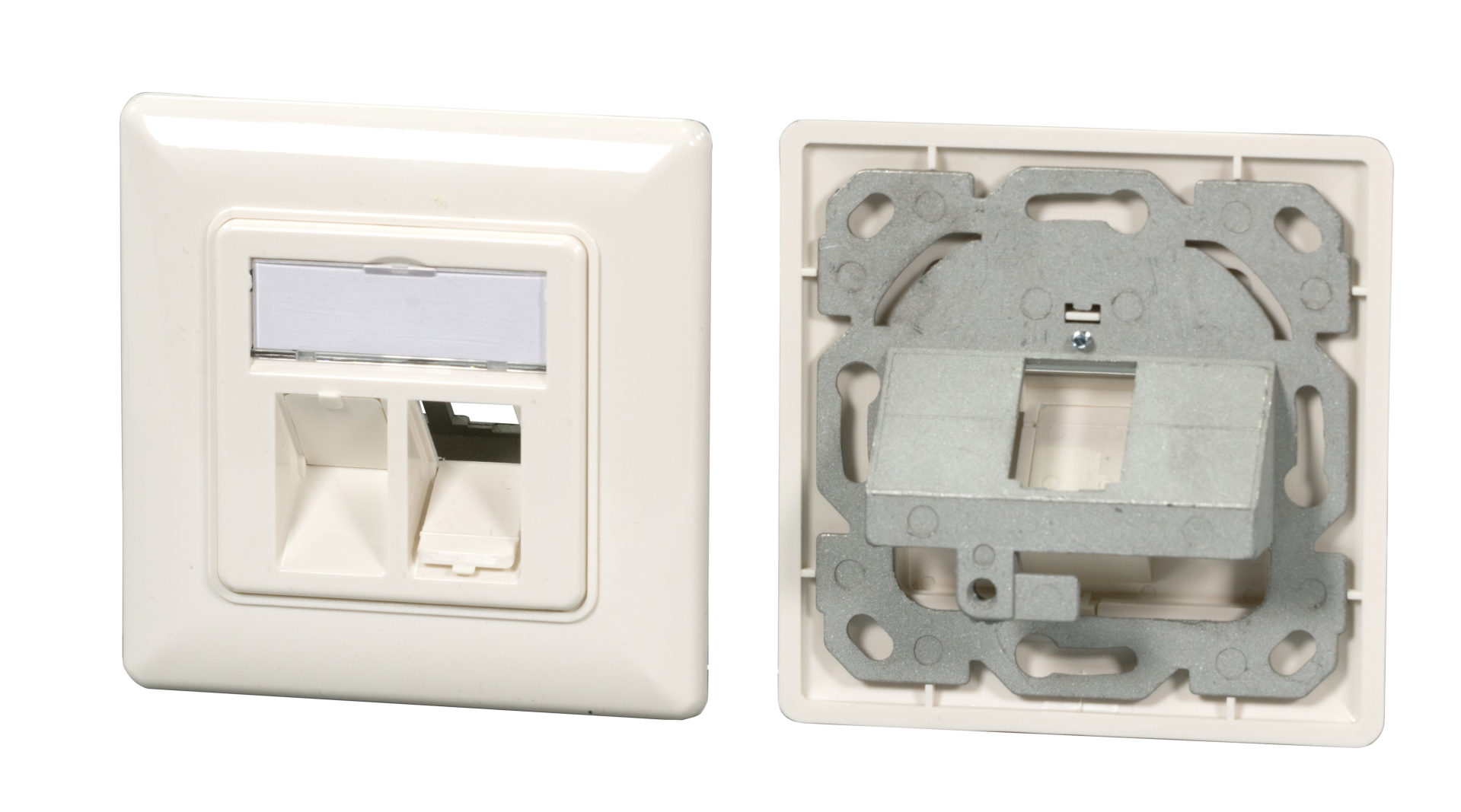

Scope of delivery: Keystone frame, outer ring, central plate
Frame set in 1-port or 2-port
45° slanted outlet
Outer ring 80x80mm and central plate 50x50mm according to DIN49075
Compatibel to common switch programms with adapter plate
Separate earthing lead for 6.3mm fast-on connection
With dust covers and labeling field 12x40mm
Scope of delivery: Keystone frame, outer ring, central plate
Tekniske egenskaber
| Assembly arrangement: | Frame set |
|---|---|
| Halogen free: | No |
| Imprintable label: | with indication plate |
| Luster terminal: | False |
| Material: |
Metal Plastic |
| Material quality: | other |
| Mounting method: | Flush mounted (plaster) |
| Number of modules (module system): | 2 |
| Storage Temperature: | 0 - 60° °C |
| Suitable for degree of protection (IP): | - |
| Support ring: | True |
| Surface finishing: | matt |
| Surface treatment: | Other |
| Transparent: | False |
| Type of fastening: | mounting with screw |
| With dust cover: | True |
| With hinged lid: | True |
| With imprint: | False |
| With strain relief: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
