RJ45 Connector STP, Cat.6A, Field-Plug
RJ45 Connector STP, Cat.6A, Field-Plug
Varenummer:
88035AV.1
EAN Nr.:
4049759155063
Produktinformation til RJ45 Connector STP, Cat.6A, Field-Plug
The RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

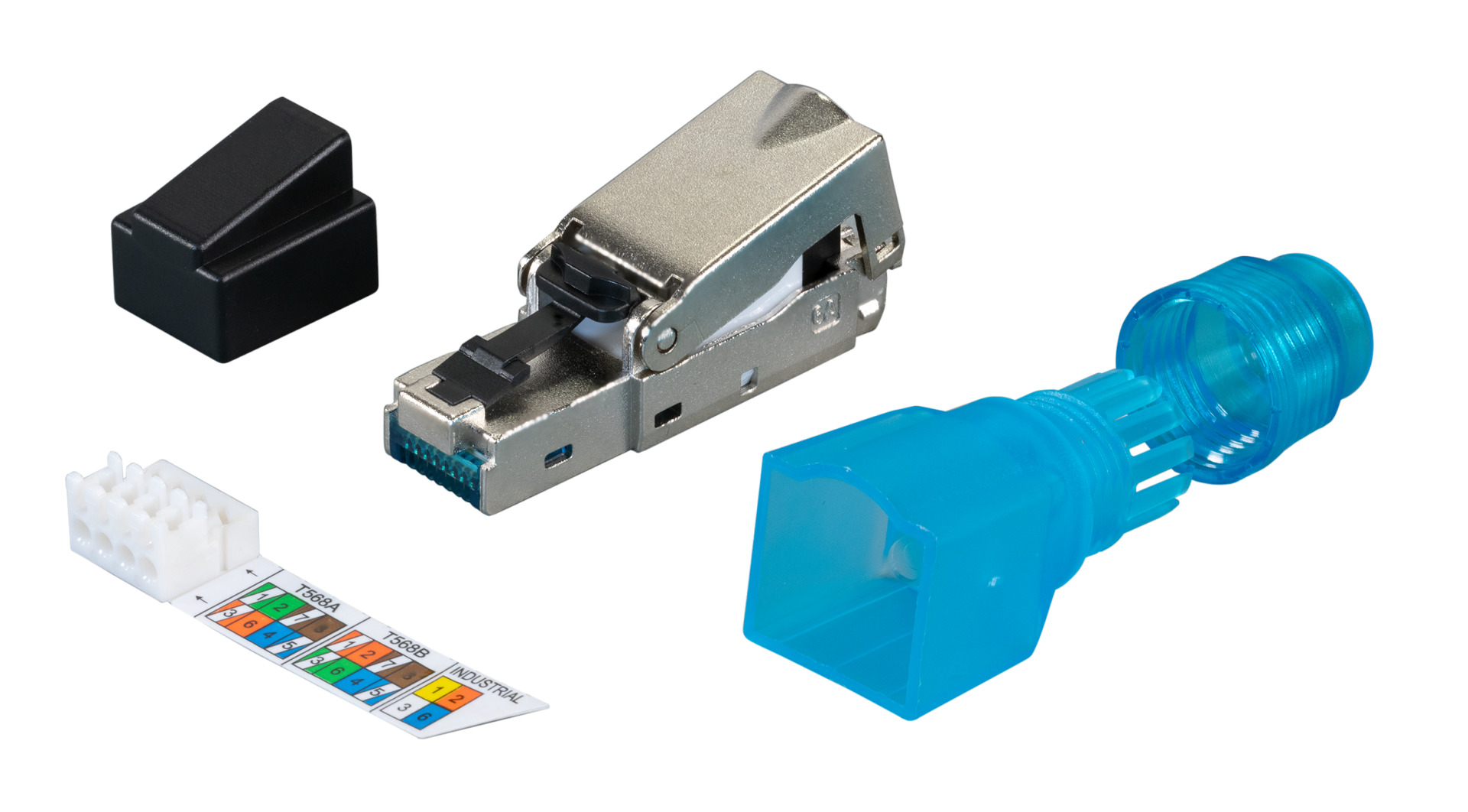

Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Class EA performance according to ISO/IEC11801 and IEC60603-7-51
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable gland
Tension relief with cable gland and sliding lever
Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Class EA performance according to ISO/IEC11801 and IEC60603-7-51
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable gland
Tension relief with cable gland and sliding lever
Tekniske egenskaber
| 4PPOE Zertifiziert: | Ja |
|---|---|
| 360° Schirmkontaktierung: | Ja |
| AWG-Bereich: | 22 – 27 |
| Anschlussart: | Schneidklemme IDC |
| Ausführung: | Stecker |
| Geeignet für Flachkabel: | Nein |
| Geeignet für Litzenleiter: | Ja |
| Geeignet für Massivleiter: | Ja |
| Geeignet für Rundkabel: | Ja |
| Geeignet für Schutzart (IP): | IP20 |
| Gehäuse Material: | Zinkdruckguss |
| Geschirmt: | Ja |
| Isolationswiderstand: | ≥ 500 MΩ |
| Kabeldurchmesser: | 9.0 mm |
| Kategorie: | 6A (TIA) |
| Konform zu UL94: | V-0 |
| Kontaktbeschichtung: | 50 µ" |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Prüfspannung Dieelektrikum: | 1000 V DC |
| Schirmung und Zugentlastung getrennt: | Nein |
| Separate Erdungsfahne: | Nein |
| Spezialwerkzeug notwendig: | Nein |
| Staubschutzkappe: | Ja, mit integriertem Shutter |
| Steckverbindertyp: | RJ45 8(8) |
| Steckzyklen: | ≥ 750 Steckzyklen |
| Strombelastbarkeit: | 1.5 A |
| Temperaturbereich: | -40 – 66 °C |
| Verriegelungsart: | Rastverriegelung |
