RJ45 Patch cable S/FTP, Cat.6, LSZH, blue

Priser kun synlige for indloggede brugere

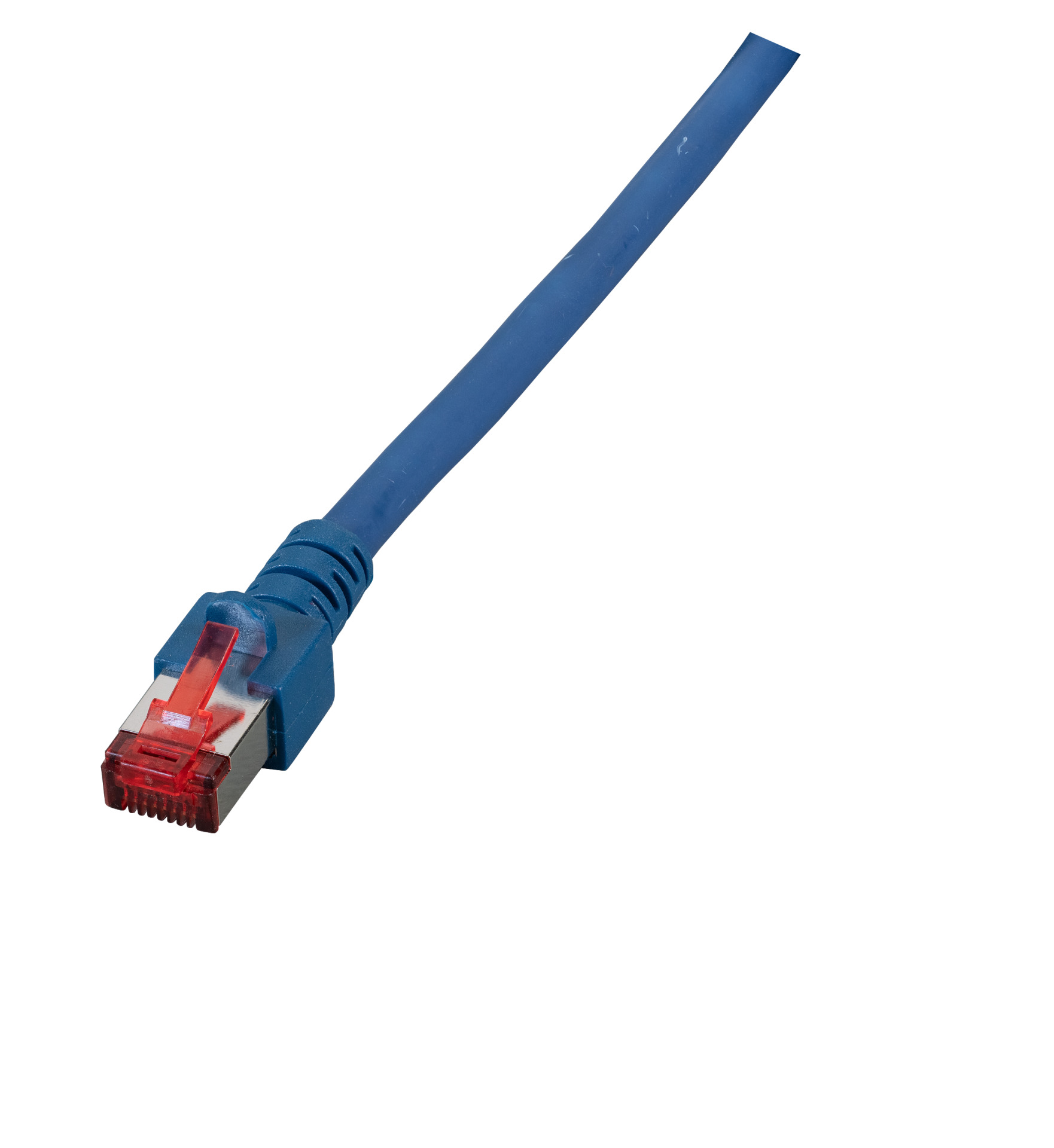

RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.15m, blue
Varenummer: K5513.0,15
EAN nr.: 4049759095529
Stück

Produktinformation für RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.15m, blue

The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.

Cross section 4 x 2 x AWG27/7
Moulded grommet (patented)
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): True
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 250MHz
Bending radius: >31 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-5
Connector type: RJ45 Standard
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: acc. IEC60332-1
Halogen-free: True
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Mating cycles: 2000
Model: Shielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.2 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit***
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5513.0,15 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.15m, blue 0.15 m ±5 % Vælg
K5513.0,25 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.25m, blue 0.25 m ±5 % Vælg
K5513.0,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.5m, blue 0.5 m ±5 % Vælg
K5513.1 RJ45 Patch cable S/FTP, Cat.6, LSZH, 1m, blue 1.0 m ±5 % Vælg
K5513.1,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 1.5m, blue 1.5 m ±5 % Vælg
K5513.10 RJ45 Patch cable S/FTP, Cat.6, LSZH, 10m, blue 10.0 m ±5 % Vælg
K5513.15 RJ45 Patch cable S/FTP, Cat.6, LSZH, 15m, blue 15.0 m ±5 % Vælg
K5513.2 RJ45 Patch cable S/FTP, Cat.6, LSZH, 2m, blue 2.0 m ±5 % Vælg
K5513.20 RJ45 Patch cable S/FTP, Cat.6, LSZH, 20m, blue 20.0 m ±5 % Vælg
K5513.25 RJ45 Patch cable S/FTP, Cat.6, LSZH, 25m, blue 25.0 m ±5 % Vælg
K5513.3 RJ45 Patch cable S/FTP, Cat.6, LSZH, 3m, blue 3.0 m ±5 % Vælg
K5513.30 RJ45 Patch cable S/FTP, Cat.6, LSZH, 30m, blue 30.0 m ±5 % Vælg
K5513.5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 5m, blue 5.0 m ±5 % Vælg
K5513.50 RJ45 Patch cable S/FTP, Cat.6, LSZH, 50m, blue 50.0 m ±5 % Vælg
K5513.7,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 7.5m, blue 7.5 m ±5 % Vælg
