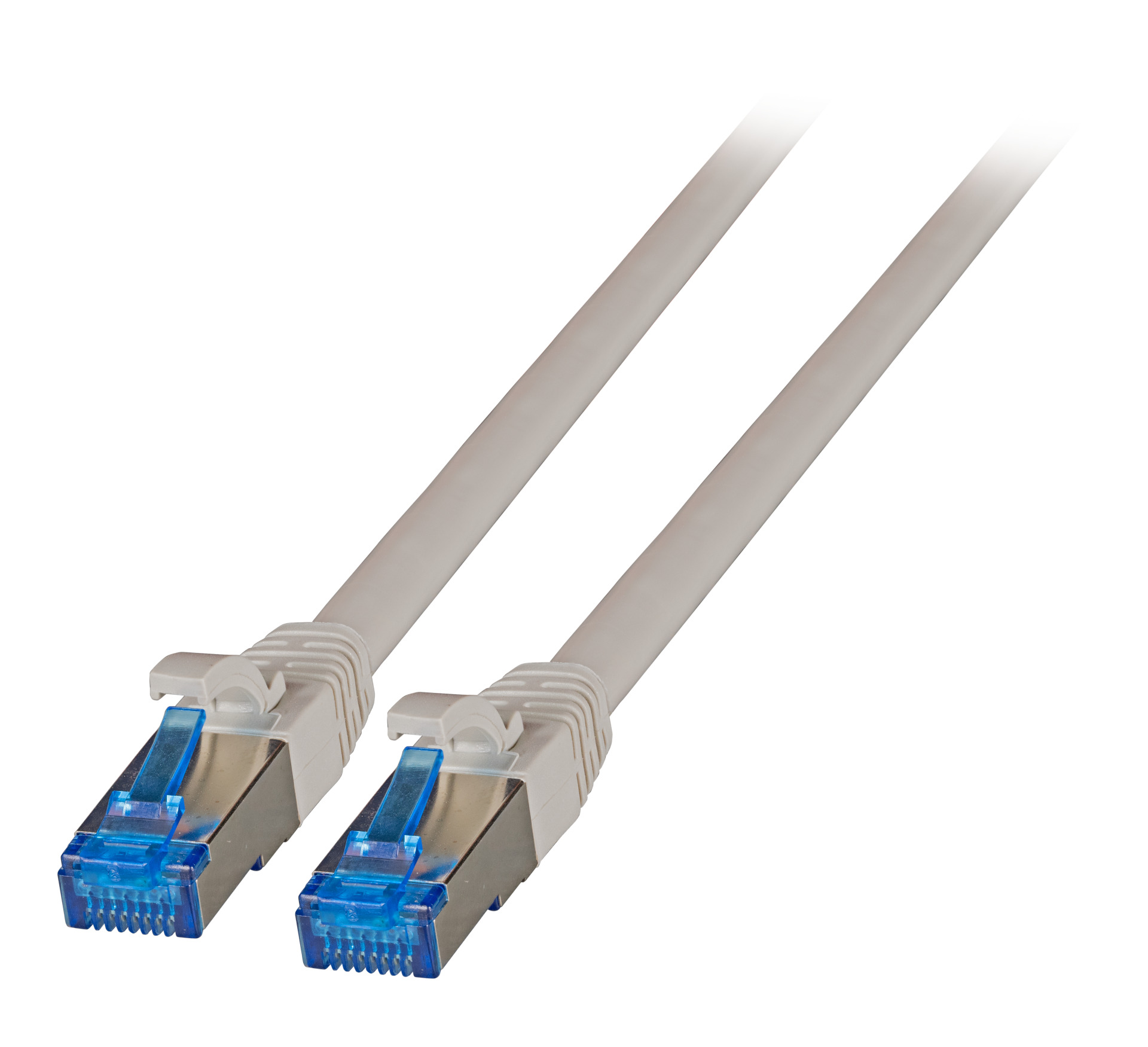

RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, grey
Priser kun synlige for indloggede brugere
RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, grey
Varenummer:
K5525FGR.0,15
EAN nr.:
4049759187262
Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, grey
The shielded Cat.6A RJ45 patch cable with component certification from the GHMT ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: | Data center, Industrial Ethernet, Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >32.5 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: | ANSI/TIA-568-C.2, EN50173, ISO/IEC 11801 |
| Category: | 6A (IEC) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 142 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard blue |
| Contact resistance: | 30 mΩ |
| Contacts: | 50 µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Halogen-free: | yes |
| Impedance: | 100 ±25 Ω |
| Insulation resistance: | 100 MΩ |
| Jacket material: | TPE/LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 284 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: | 4PPoE acc. to IEEE802.3bt, PoE+ acc. to IEEE802.3at, PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A Patchcord SUPERFLEX S/FTP |
| Raw cable: | Cat.7 |
| Resistance unbalance: | 2 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 75 °C |
| Test voltage: | 1000 V DC, 1min |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K5525FGR.0,15 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,15m, grey | 0.15 m | ±5 % | Vælg varianter |
| K5525FGR.0,25 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,25m, grey | 0.25 m | ±5 % | Vælg varianter |
| K5525FGR.0,5 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 0,5m, grey | 0.5 m | ±5 % | Vælg varianter |
| K5525FGR.1 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 1m, grey | 1.0 m | ±5 % | Vælg varianter |
| K5525FGR.1,5 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 1,5m, grey | 1.5 m | ±5 % | Vælg varianter |
| K5525FGR.2 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 2m, grey | 2.0 m | ±5 % | Vælg varianter |
| K5525FGR.3 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 3m, grey | 3.0 m | ±5 % | Vælg varianter |
| K5525FGR.5 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 5m, grey | 5.0 m | ±5 % | Vælg varianter |
| K5525FGR.7,5 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 7,5m, grey | 7.5 m | ±5 % | Vælg varianter |
| K5525FGR.10 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 10m, grey | 10.0 m | ±5 % | Vælg varianter |
| K5525FGR.15 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 15m, grey | 15.0 m | ±5 % | Vælg varianter |
| K5525FGR.20 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 20m, grey | 20.0 m | ±5 % | Vælg varianter |
| K5525FGR.25 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 25m, grey | 25.0 m | ±5 % | Vælg varianter |
| K5525FGR.30 | RJ45 Patch cable S/FTP, Cat.6A, Cat.7 Raw cable TPE superflex, 30m, grey | 30.0 m | ±5 % | Vælg varianter |
