RJ45 Patch cable S/FTP, Cat. 6A, grey

Priser kun synlige for indloggede brugere

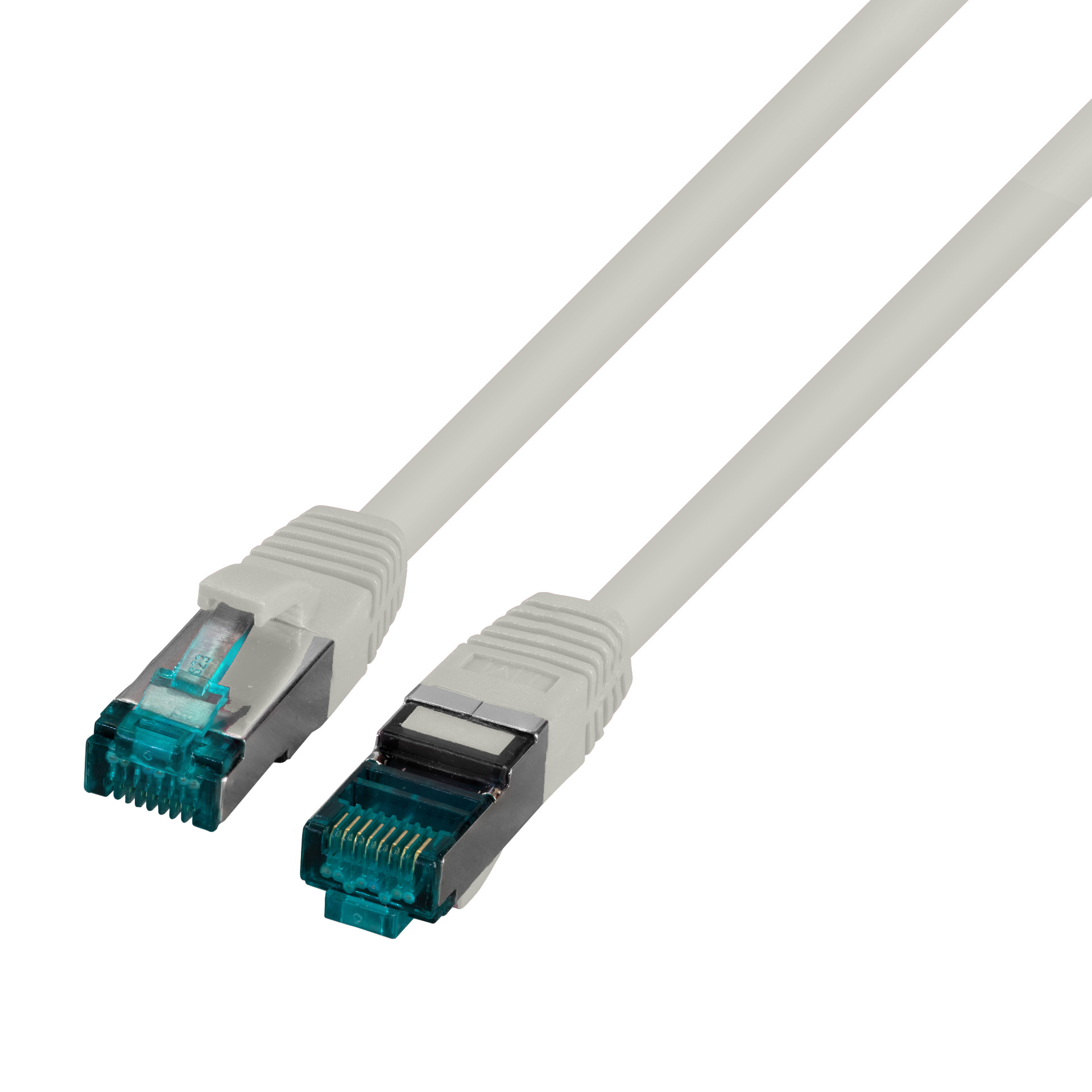

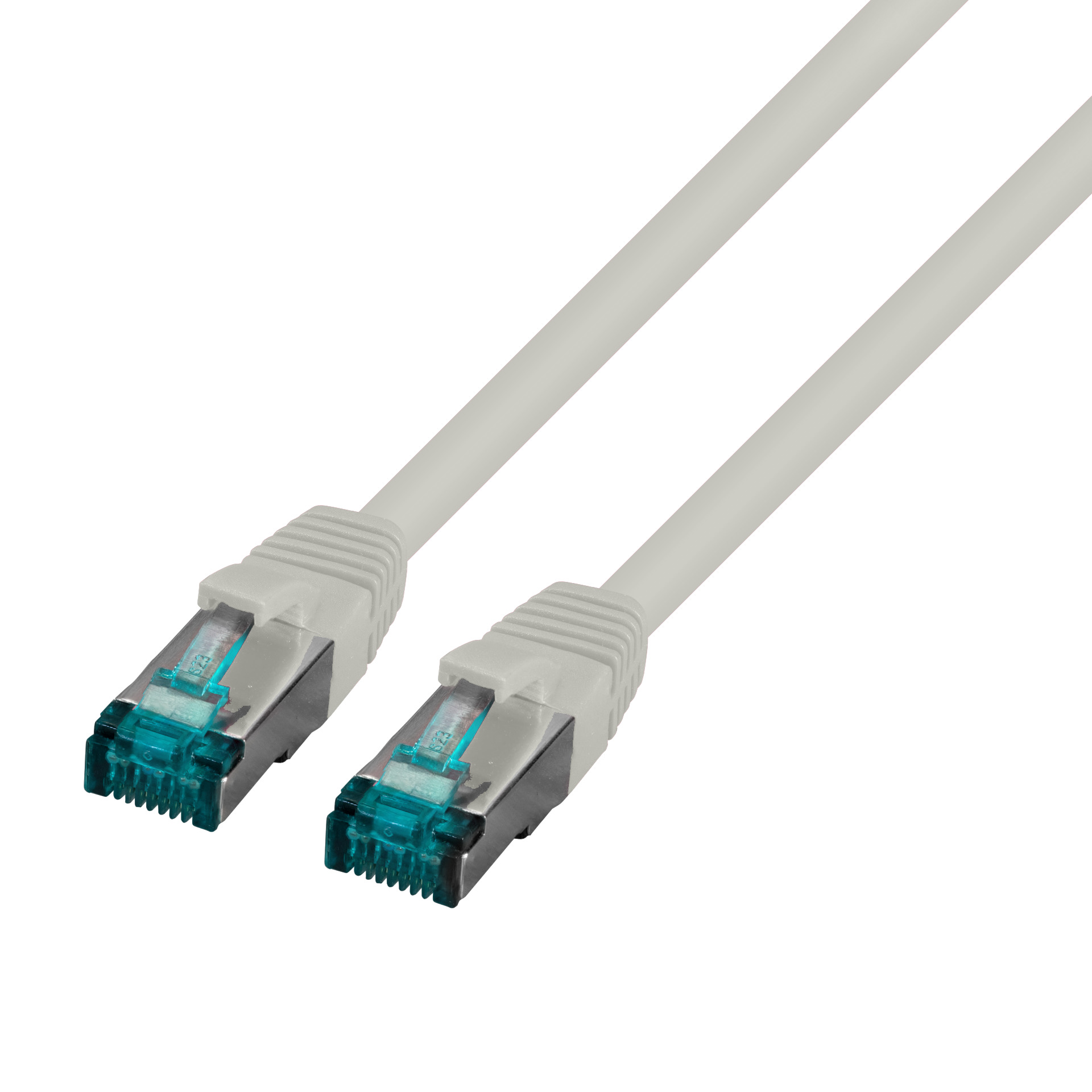

RJ45 Patch cable S/FTP, Cat.6A, LSZH, 0.15m, grey
Varenummer: MK6001.0,15G
EAN nr.: 4049759226213
Stück

Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, LSZH, 0.15m, grey

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG27/7
Length imprint on boot

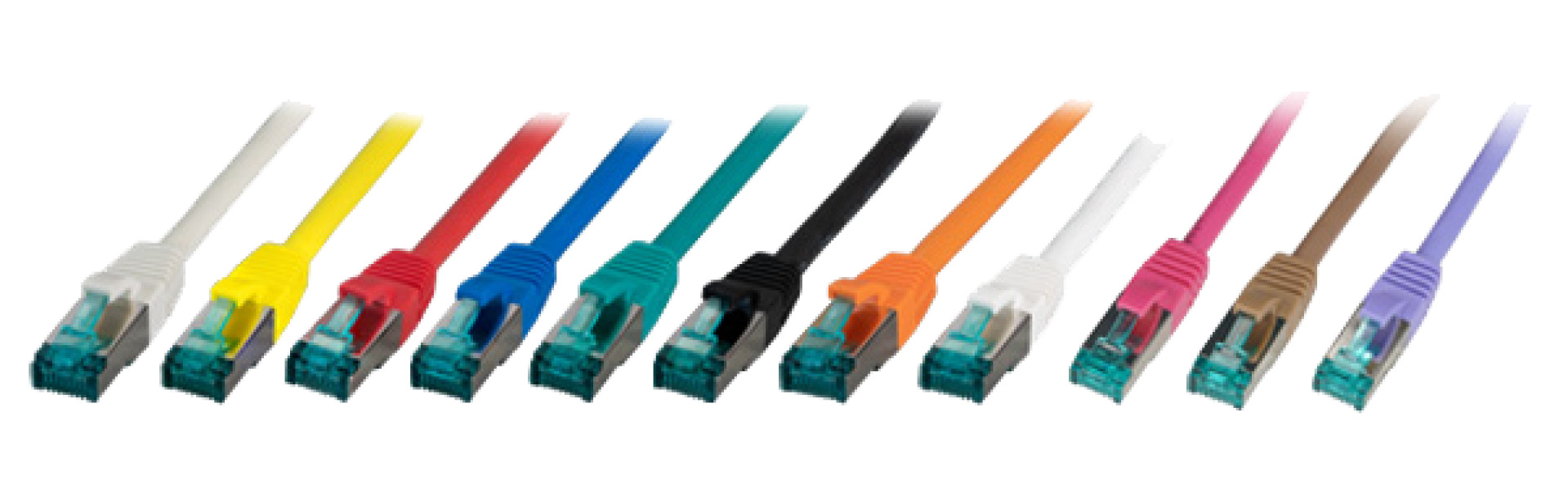

Available in 11 colours

Tekniske egenskaber

(Halogenfree): True
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 500MHz
Bending radius: >30 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (TIA)
Colour anti-kink sleeve: grey
Colour outer sheath: grey
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard green
Contact resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: True
Flame-retardant: True
Halogen-free: True
Impedance: 100 ±15 Ω
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Loop resistance: 370 Ω/km
Low smoke: True
Mating cycles: 2000
Model: Shielded
NVP value: 74 %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.0 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet***
Raw cable: Cat.6A
Resistance unbalance: 3 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False

Varianter

Art. Nej. Betegnelse Length Length tolerance
MK6001.0,15G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 0.15m, grey 0.15 m ±5 % Vælg
MK6001.0,25G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 0.25m, grey 0.25 m ±5 % Vælg
MK6001.0,5G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 0.5m, grey 0.5 m ±5 % Vælg
MK6001.1,5G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 1.5m, grey 1.5 m ±5 % Vælg
MK6001.10G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 10m, grey 10.0 m ±5 % Vælg
MK6001.15G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 15m, grey 15.0 m ±5 % Vælg
MK6001.1G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 1m, grey 1.0 m ±5 % Vælg
MK6001.20G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 20m, grey 20.0 m ±5 % Vælg
MK6001.25G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 25m, grey 25.0 m ±5 % Vælg
MK6001.2G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 2m, grey 2.0 m ±5 % Vælg
MK6001.30G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 30m, grey 30.0 m ±5 % Vælg
MK6001.3G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 3m, grey 3.0 m ±5 % Vælg
MK6001.40G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 40m, grey 40.0 m ±5 % Vælg
MK6001.50G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 50m, grey 50.0 m ±5 % Vælg
MK6001.5G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 5m, grey 5.0 m ±5 % Vælg
MK6001.7,5G RJ45 Patch cable S/FTP, Cat.6A, LSZH, 7.5m, grey 7.5 m ±5 % Vælg
