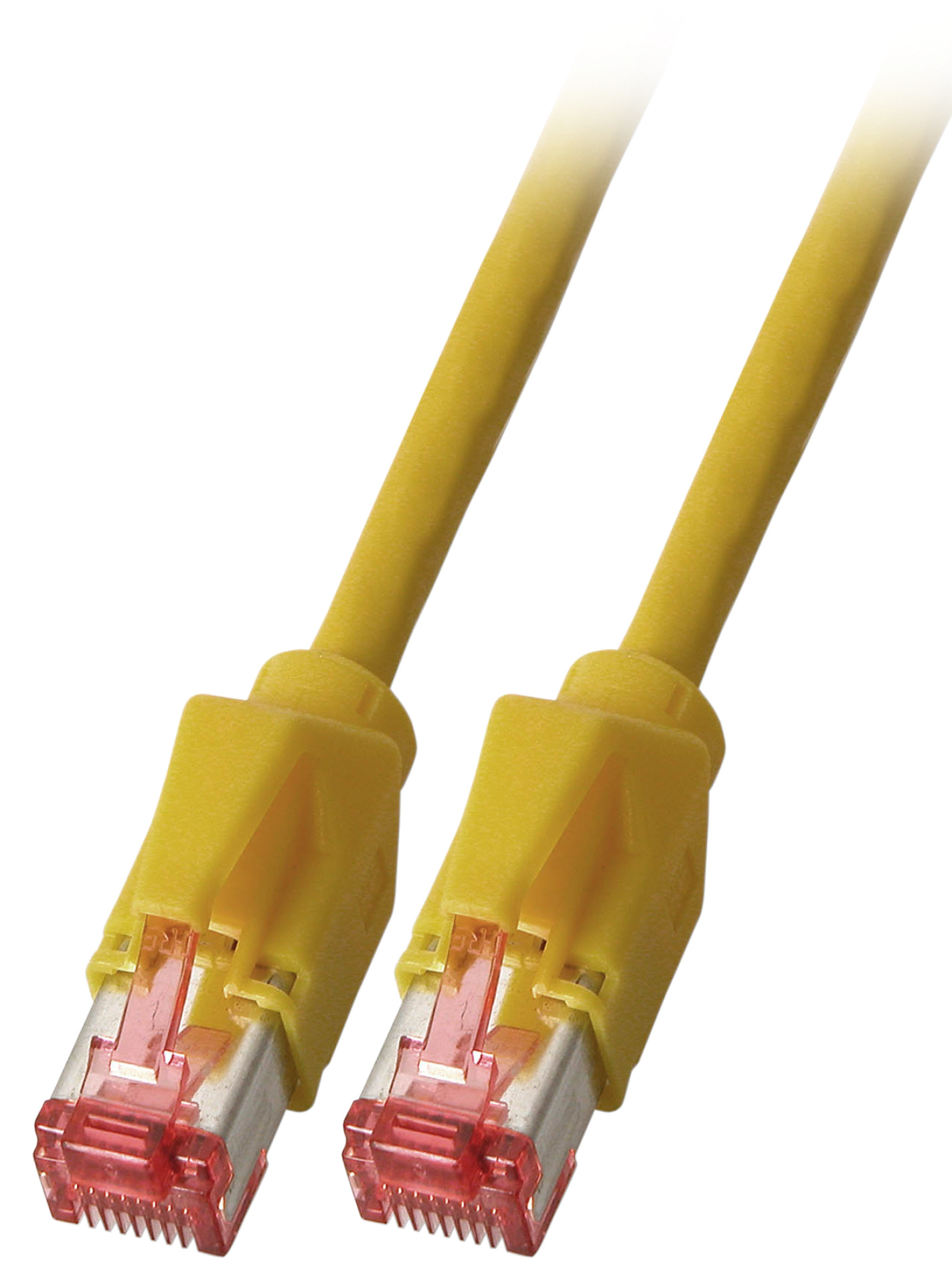

RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, yellow
Priser kun synlige for indloggede brugere
RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 0,5m, yellow
Varenummer:
K8708GE.050
EAN nr.:
4049759009878
Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 0,5m, yellow
The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable CU 7702 flex from Daetwyler and TM21 connectors from Hirose.
Cross section 4 x 2 x AWG26/7
Mounted anti-kink grommet
Clear differentiation of the cores in the assembled connector thanks to different core colours
Cross section 4 x 2 x AWG26/7
Mounted anti-kink grommet
Clear differentiation of the cores in the assembled connector thanks to different core colours
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: | Data center, Industrial Ethernet, Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Dätwyler CU 7702 flex |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | yellow |
| Colour outer sheath: | yellow |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 135 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Impedance: | 100 ±5 Ω |
| Jacket material: | LSZH |
| Locking lever: | True |
| Loop resistance: | 270 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 78 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.8 mm |
| POE class: | 4PPoE acc. to IEEE802.3bt, PoE+ acc. to IEEE802.3at, PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K8708GE.050 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 0,5m, yellow | 0.5 m | ±5 % | Vælg varianter |
| K8708GE.1 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 1m, yellow | 1.0 m | ±5 % | Vælg varianter |
| K8708GE.1,5 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 1,5m, yellow | 1.5 m | ±5 % | Vælg varianter |
| K8708GE.2 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 2m, yellow | 2.0 m | ±5 % | Vælg varianter |
| K8708GE.3 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 3m, yellow | 3.0 m | ±5 % | Vælg varianter |
| K8708GE.5 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 5m, yellow | 5.0 m | ±5 % | Vælg varianter |
| K8708GE.7,5 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 7,5m, yellow | 7.5 m | ±5 % | Vælg varianter |
| K8708GE.10 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 10m, yellow | 10.0 m | ±5 % | Vælg varianter |
| K8708GE.15 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 15m, yellow | 15.0 m | ±5 % | Vælg varianter |
| K8708GE.20 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 20m, yellow | 20.0 m | ±5 % | Vælg varianter |
| K8708GE.25 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 25m, yellow | 25.0 m | ±5 % | Vælg varianter |
| K8708GE.30 | RJ45 Patch cable S/FTP, Cat.6A, TM21, Dätwyler 7702, 30m, yellow | 30.0 m | ±5 % | Vælg varianter |
