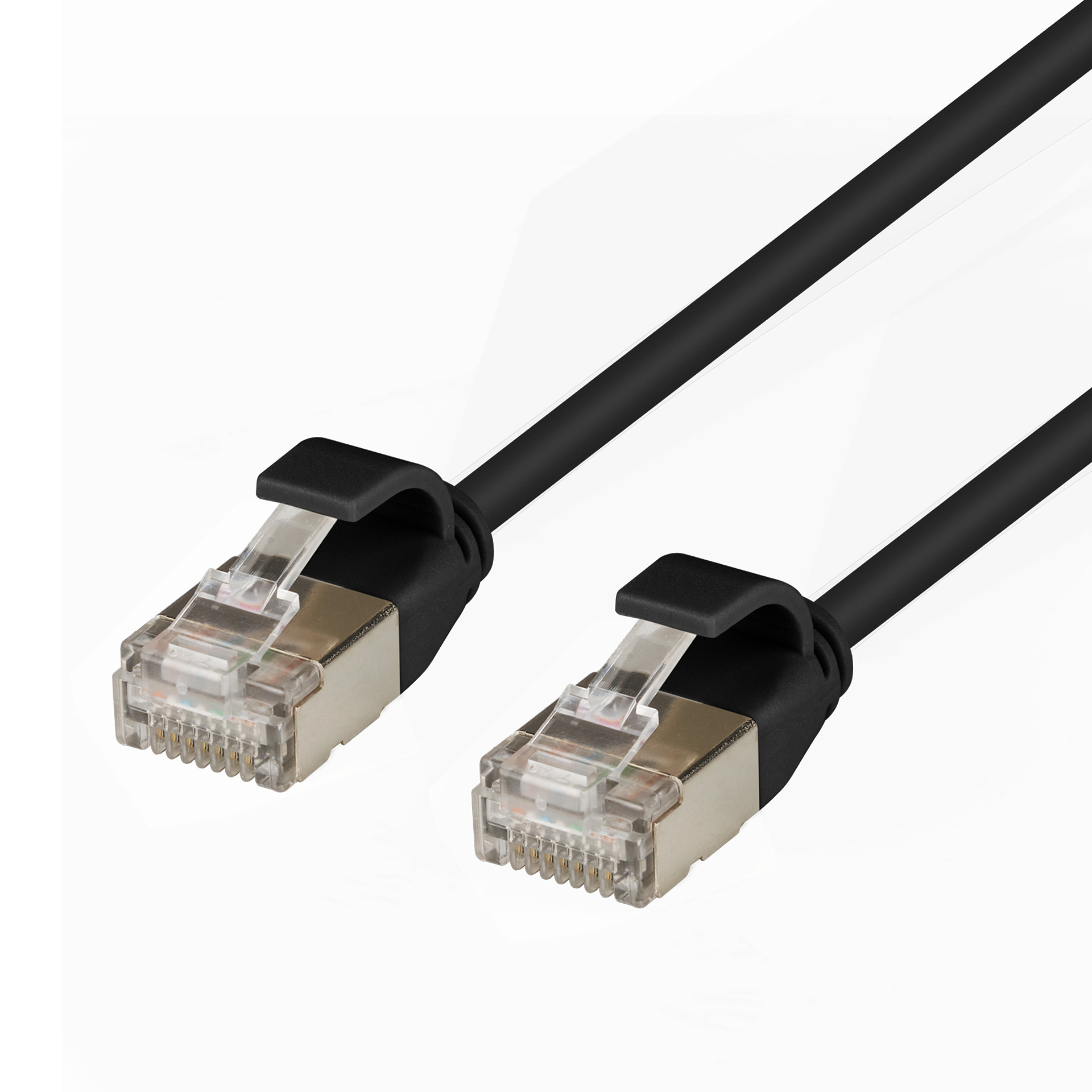

RJ45 Patch Cord Cat.6A U/FTP TPE 4mm ultraflex black
RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 0,15m
Varenummer:
K5547SW.0,15
EAN Nr.:
4049759188122
Produktinformation til RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 0,15m
RJ45 flat patch cable Cat.6A U/FTP PVC
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A (TIA)
• U/FTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 55 °C.
The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A (TIA)
• U/FTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the temperature range -20 - 55 °C.
The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 30/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >16 mm |
| Cable construction: | 4x2 |
| Cable type: | U/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 376 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 short version |
| Contact Resistance: | < 20 mΩ |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 100 MΩ |
| Jacket Material: | TPE/LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | 752 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 76 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 4.0 mm |
| POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A Patchcord ULTRAFLEX U/FTP TPE 10G www.efb-elektronik.de |
| Resistance unbalance: | < 4 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5547SW.0,15 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 0,15m | 0.15 m | ±5 % | |
| K5547SW.0,25 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 0,25m | 0.25 m | ±5 % | |
| K5547SW.0,5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 0,5m | 0.5 m | ±5 % | |
| K5547SW.1 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 1m | 1.0 m | ±5 % | |
| K5547SW.1,5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 1,5m | 1.5 m | ±5 % | |
| K5547SW.2 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 2m | 2.0 m | ±5 % | |
| K5547SW.3 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 3m | 3.0 m | ±5 % | |
| K5547SW.5 | RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex black 5m | 5.0 m | ±5 % |
