RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, grey

Priser kun synlige for indloggede brugere

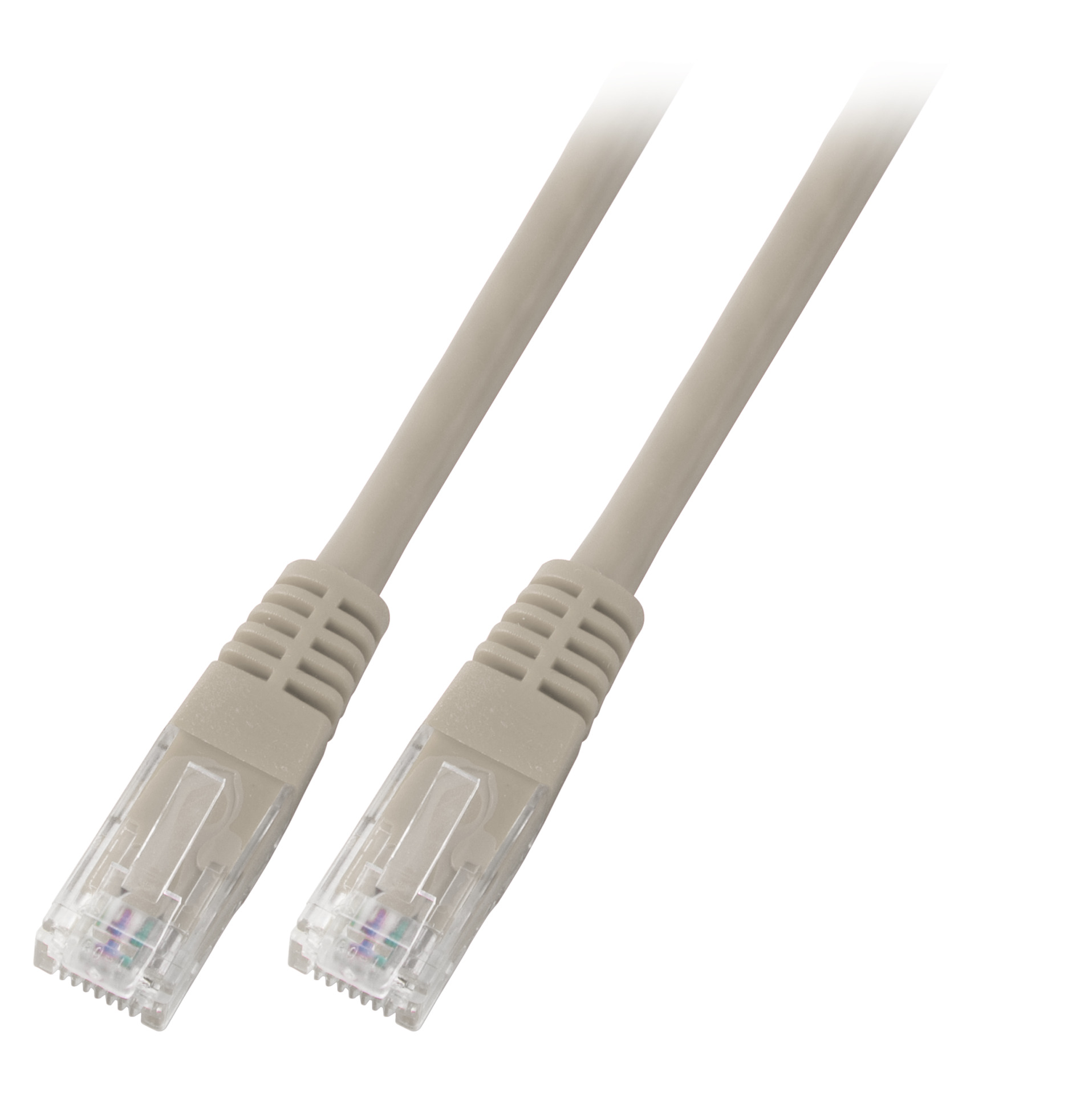

RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, grey
Varenummer: K8456.0,5
EAN nr.: 4049759034481
Stück

Produktinformation für RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, grey

The unshielded Cat.5e RJ45 patch cable with ensures excellent performance for 2.5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): False
AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: moulded-on
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 100MHz
Bending radius: 27 mm
Cable construction: 4x2
Cable type: U/UTP
Cabling Standard: ISO/IEC 11801;EN50173
Category: 5e
Colour anti-kink sleeve: grey
Colour outer sheath: grey
Conductor Material: CCA
Connector: IEC 60603-7-2
Connector type: RJ45 standard
Contact resistance: < 20 mΩ
Contacts: Gold plated µ" gold plated
Current capacity: max. 1 A
Fire retardant version: True
Jacket material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: False
Mating cycles: ≥750
Model: Unshielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.4 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K8456.0,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, grey 0.5 m ±5 % Vælg
K8456.1 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1m, grey 1.0 m ±5 % Vælg
K8456.1,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1.5m, grey 1.5 m ±5 % Vælg
K8456.10 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 10m, grey 10.0 m ±5 % Vælg
K8456.15 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 15m, grey 15.0 m ±5 % Vælg
K8456.2 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 2m, grey 2.0 m ±5 % Vælg
K8456.20 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 20m, grey 20.0 m ±5 % Vælg
K8456.25 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 25m, grey 25.0 m ±5 % Vælg
K8456.3 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 3m, grey 3.0 m ±5 % Vælg
K8456.30 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 30m, grey 30.0 m ±5 % Vælg
K8456.5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 5m, grey 5.0 m ±5 % Vælg
K8456.7,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 7.5m, grey 7.5 m ±5 % Vælg
