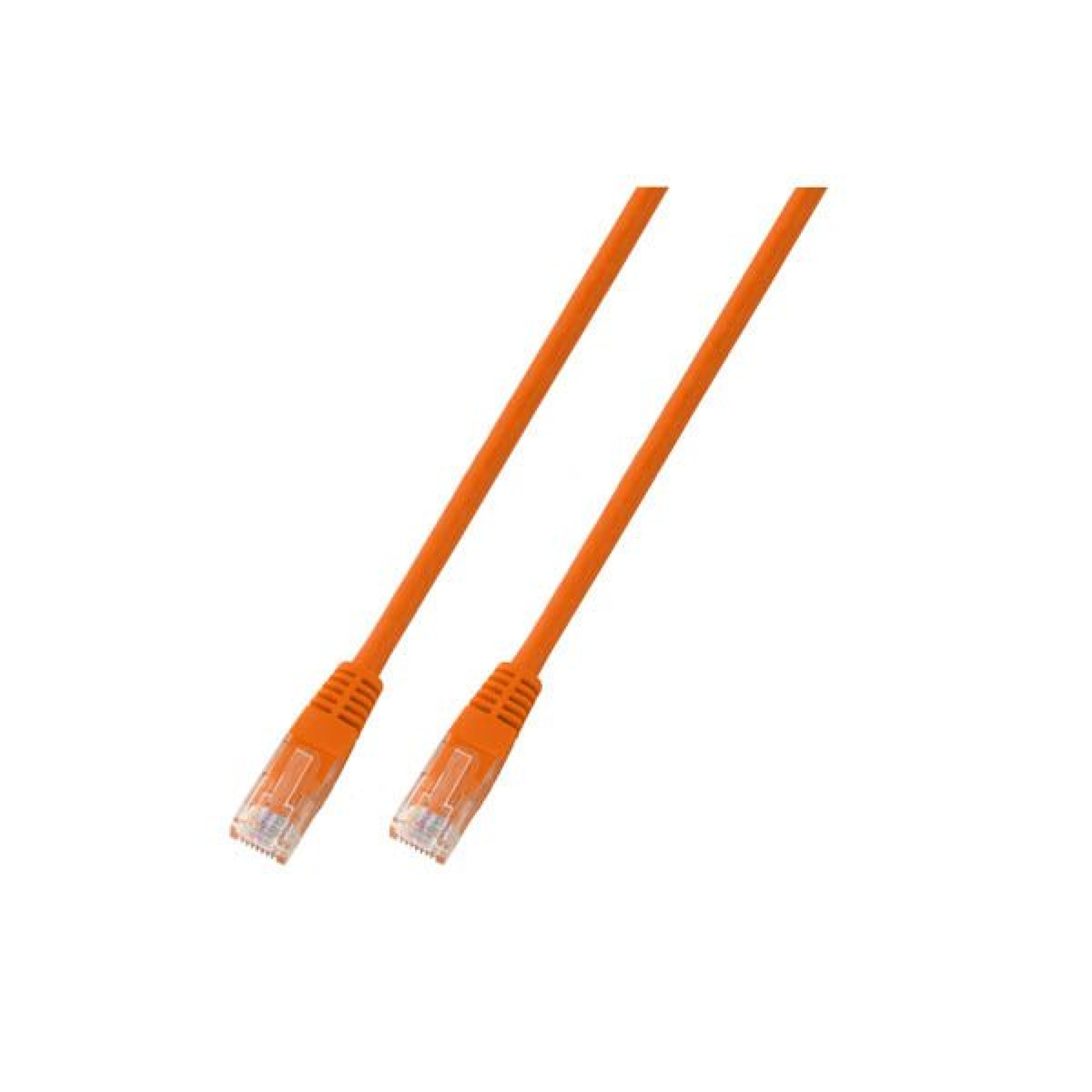

RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, orange

Priser kun synlige for indloggede brugere

RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, orange
Varenummer: K8099.0,5
EAN nr.: 4049759032814
Stück

Produktinformation für RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, orange

The unshielded Cat.5e RJ45 patch cable with ensures excellent performance for 2.5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot

Tekniske egenskaber

(Halogenfree): False
AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 100MHz
Bending radius: 27 mm
Cable construction: 4x2
Cable type: U/UTP
Cabling Standard: ISO/IEC 11801;EN50173
Category: 5e
Colour anti-kink sleeve: orange
Colour outer sheath: orange
Conductor Material: CCA
Connector: IEC 60603-7-2
Connector type: RJ45 standard
Contact resistance: < 20 mΩ
Contacts: Gold plated µ" gold plated
Current capacity: max. 1 A
Fire retardant version: True
Jacket material: Polyvinylchlorid (PVC)
Length imprint: True
Locking lever: False
Mating cycles: ≥750
Model: Unshielded
NVP value: - %
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 5.4 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Pin assignment: 1:1
Printing: UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K8099.0,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, orange 0.5 m ±5 % Vælg varianter
K8099.1 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1m, orange 1.0 m ±5 % Vælg varianter
K8099.1,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1.5m, orange 1.5 m ±5 % Vælg varianter
K8099.10 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 10m, orange 10.0 m ±5 % Vælg varianter
K8099.15 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 15m, orange 15.0 m ±5 % Vælg varianter
K8099.2 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 2m, orange 2.0 m ±5 % Vælg varianter
K8099.20 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 20m, orange 20.0 m ±5 % Vælg varianter
K8099.25 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 25m, orange 25.0 m ±5 % Vælg varianter
K8099.3 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 3m, orange 3.0 m ±5 % Vælg varianter
K8099.30 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 30m, orange 30.0 m ±5 % Vælg varianter
K8099.5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 5m, orange 5.0 m ±5 % Vælg varianter
K8099.7,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 7.5m, orange 7.5 m ±5 % Vælg varianter
