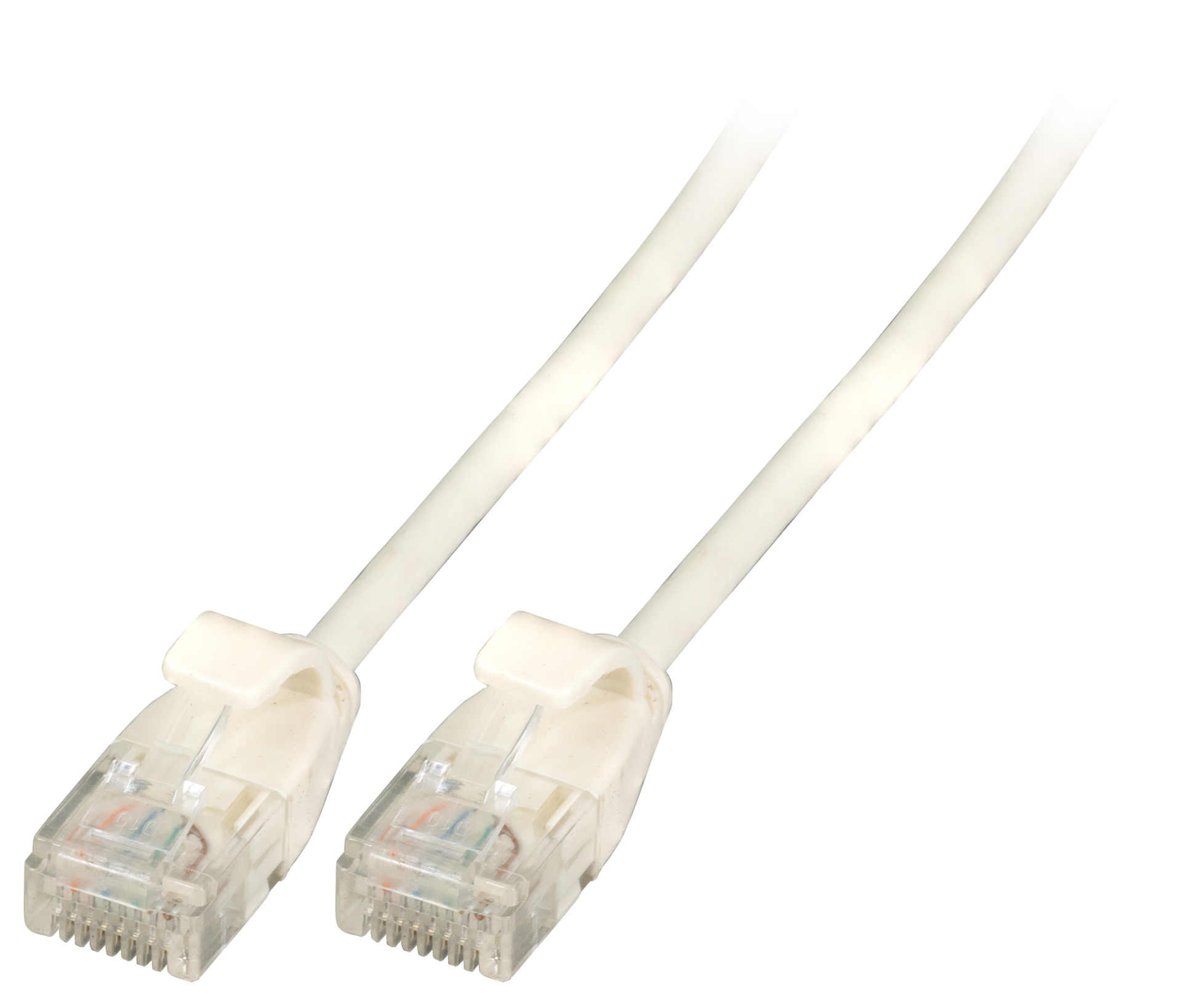

RJ45 Patch Cord Cat.6A U/UTP TPE 3,6mm ultraflex white
RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 0,15m
Varenummer:
K8108WS.0,15
EAN Nr.:
4049759188016
Produktinformation til RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 0,15m
RJ45 patch cable Cat.6A U/UTP TPE 3.6mm ultraflex
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat .6A (TIA)
• U/UTP cable with AWG30/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free TPE/LSZH material. The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the extended temperature range -20 – 75 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling. The bandwidth is 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 10Gbit Ethernet as a transmission standard.
Technical product properties
• Cat .6A (TIA)
• U/UTP cable with AWG30/7
• Sheath material made of halogen-free TPE/LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free TPE/LSZH material. The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the extended temperature range -20 – 75 °C.
The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling. The bandwidth is 500 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 30/7 |
|---|---|
| Ausführung: | ungeschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 3,6 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >15 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | weiß |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | 100 MΩ |
| Kabelaufdruck: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
| Kabelform: | slim |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | U/UTP |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet µ" gold plated |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 376 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | weiß |
| Mantel-Material: | TPE/LSZH |
| NVP-Wert: | 76 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | Ja |
| Schirmkontaktierung: | Nein |
| Schleifenwiderstand: | 752 Ω/km |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 kurze Ausführung |
| Steckverbinder: | IEC 60603-7-41 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -20 – 75 °C |
| UL approbiert: | False |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | < 4 % |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8108WS.0,15 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 0,15m | 0.15 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8108WS.0,25 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 0,25m | 0.25 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8108WS.0,5 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8108WS.1 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8108WS.2 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 2m | 2,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8108WS.3 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 3m | 3,0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8108WS.5 | RJ45 Patch Cord Cat.6A U/UTP TPE3,6mm ultraflex white 5m | 5.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8108WS.1,5 | RJ45 Patch Cord Cat.6A U/UTP TPE 3,6mm ultraflex white | 1,5 m | PoE nach IEEE802.3af | ±5 % |
