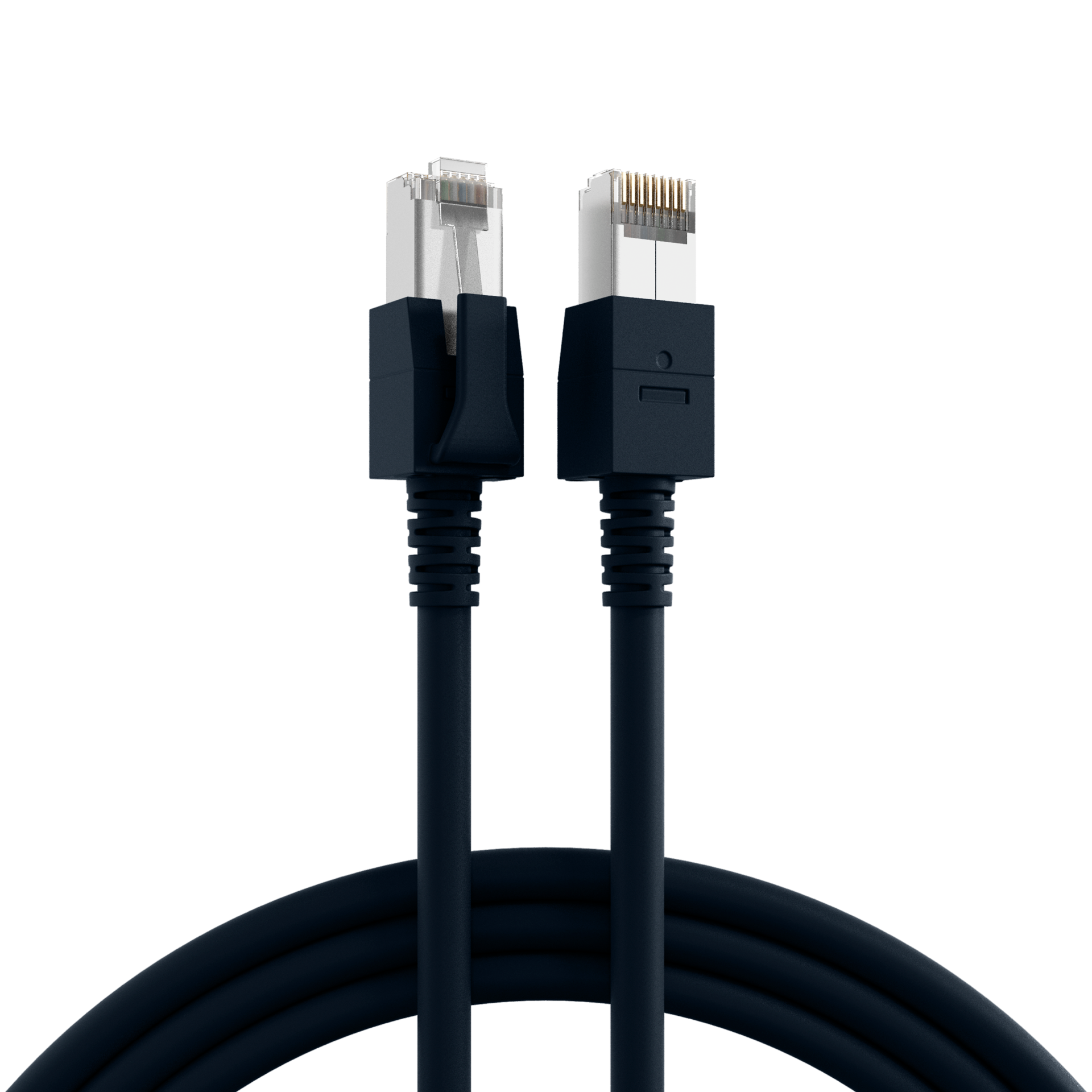

RJ45 Patch cable S/FTP, Cat.6A, VC LED, blue
Priser kun synlige for indloggede brugere
RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 0,5m
Varenummer:
DCK1001BL.0,5
EAN nr.:
4049759058951
Produktinformation für RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 0,5m
The shielded Cat.6A RJ45 patch cable provides excellent performance for 10 Gigabit Ethernet applications. With the help of a detector (Art.-Nr. DC10001 oder DC10001USB) light emitting diodes are excited in both RJ45 plugs of the patch cable. The illuminated RJ45 plugs make it easy to track the cable path.
Cross section 4 x 2 x AWG26/7
Length imprint on the grommet
Cross section 4 x 2 x AWG26/7
Length imprint on the grommet
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >20 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | white |
| Colour outer sheath: | blue |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 165 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 LED |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-3 |
| Halogen-free: | yes |
| Impedance: | 100 ±15 Ω |
| Insulation resistance: | > 5000 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 330 Ω/km |
| Low smoke: | acc. IEC61034 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.2 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Total screening: | >65 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| DCK1001BL.0,5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 0,5m | 0.5 m | ±5 % | |
| DCK1001BL.1 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 1m | 1.0 m | ±5 % | |
| DCK1001BL.1,5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 1,5m | 1.5 m | ±5 % | |
| DCK1001BL.2 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 2m | 2.0 m | ±5 % | |
| DCK1001BL.3 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 3m | 3.0 m | ±5 % | |
| DCK1001BL.5 | RJ45 Patch Cord Cat.6A S/FTP FRNC VC LED blau 5m | 5.0 m | ±5 % |
