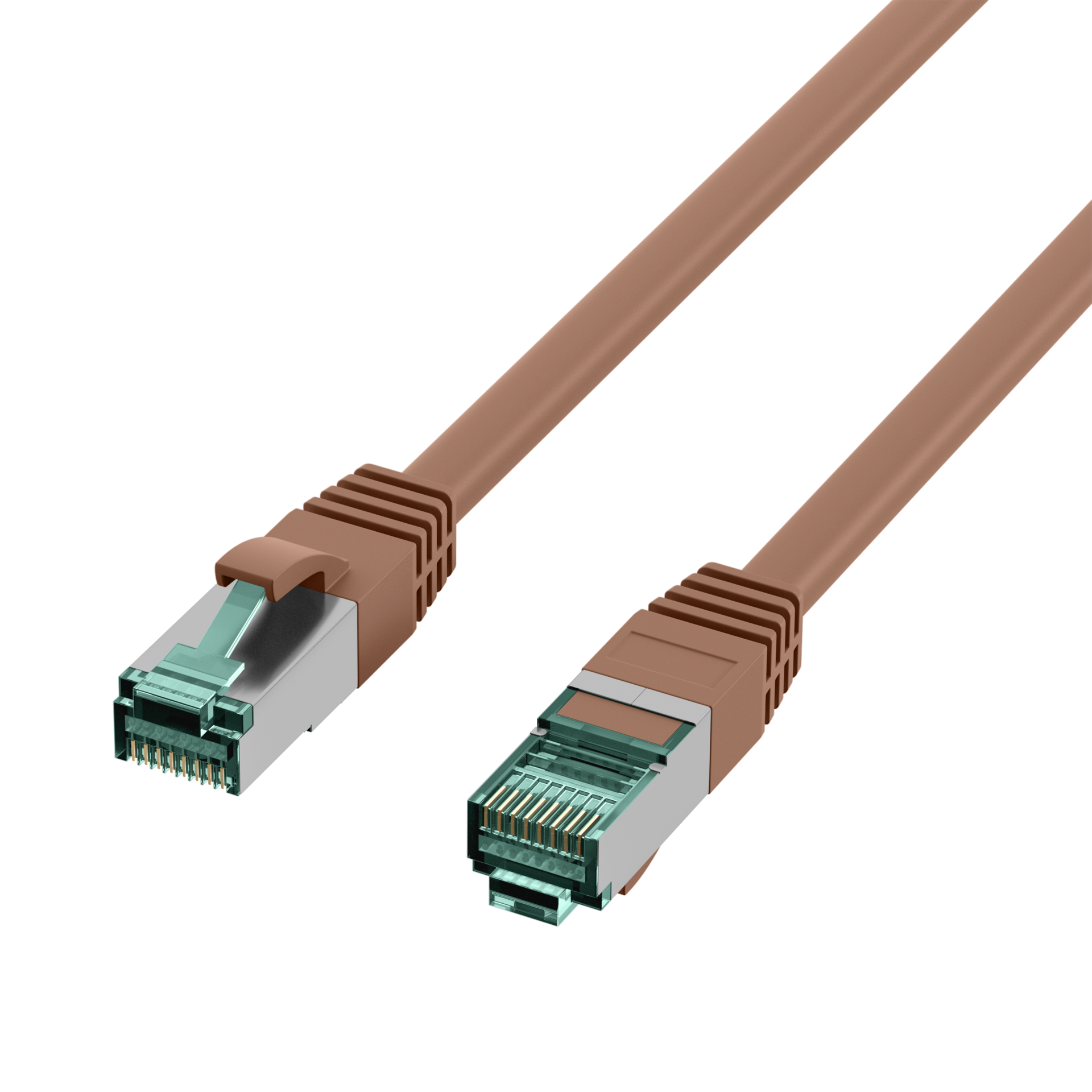

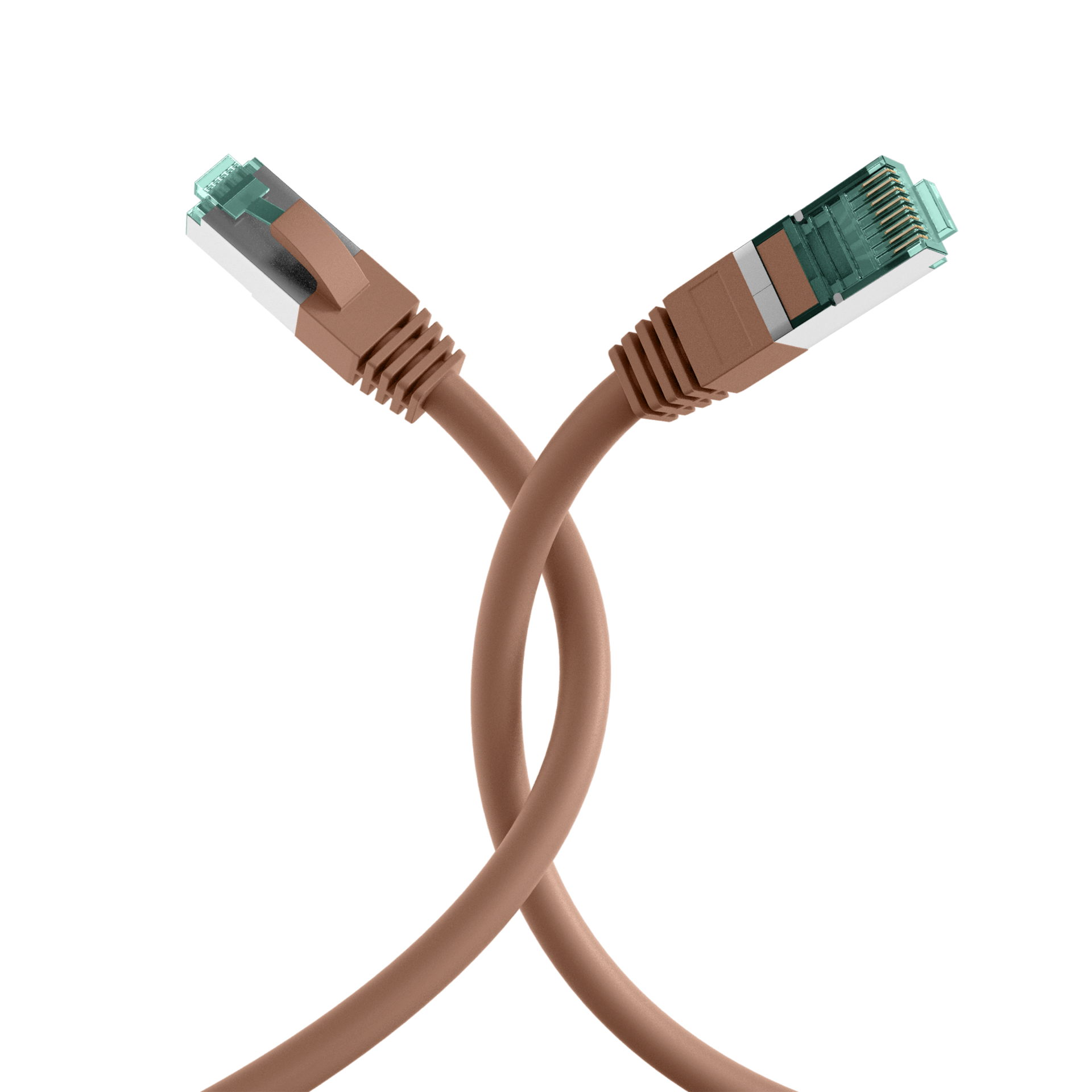

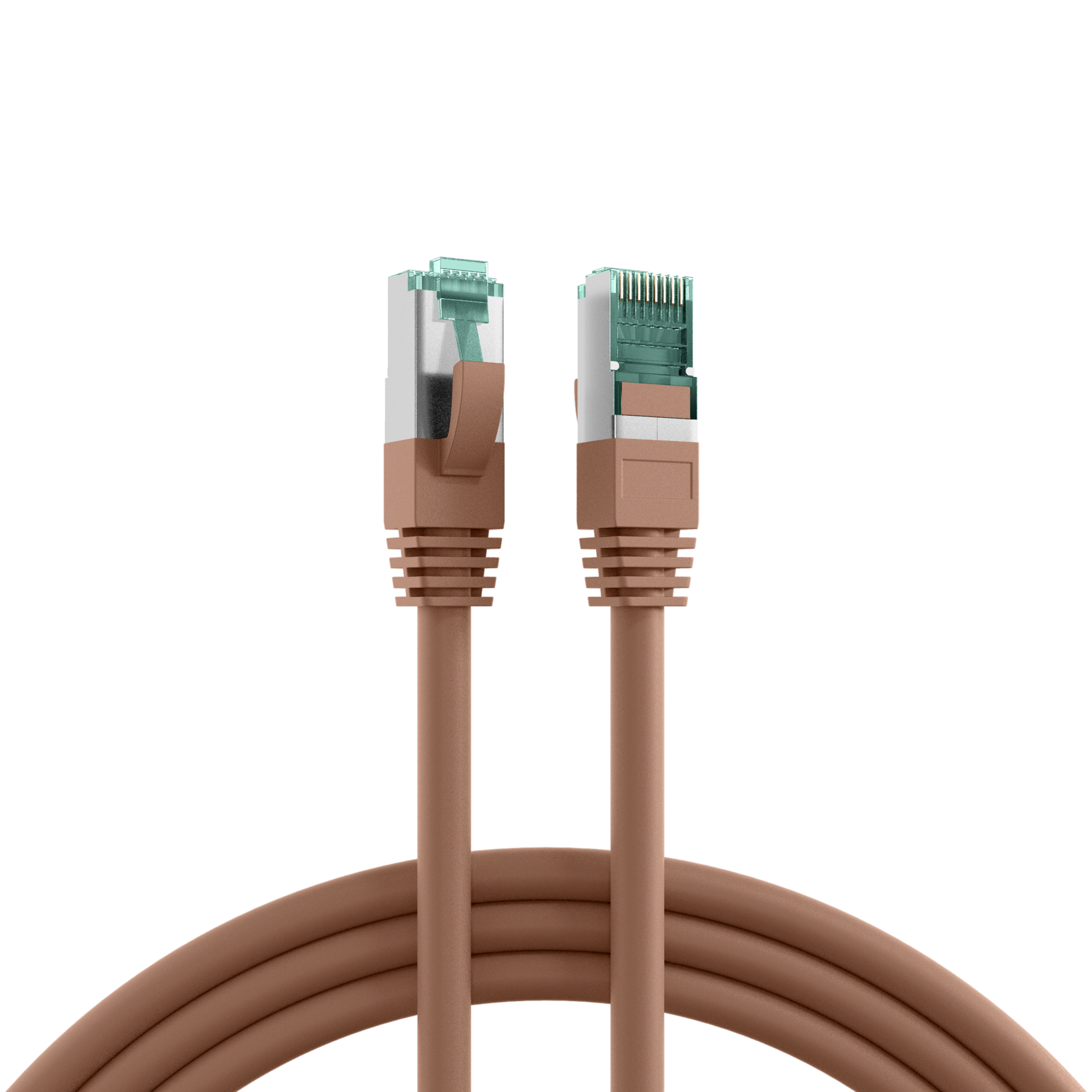

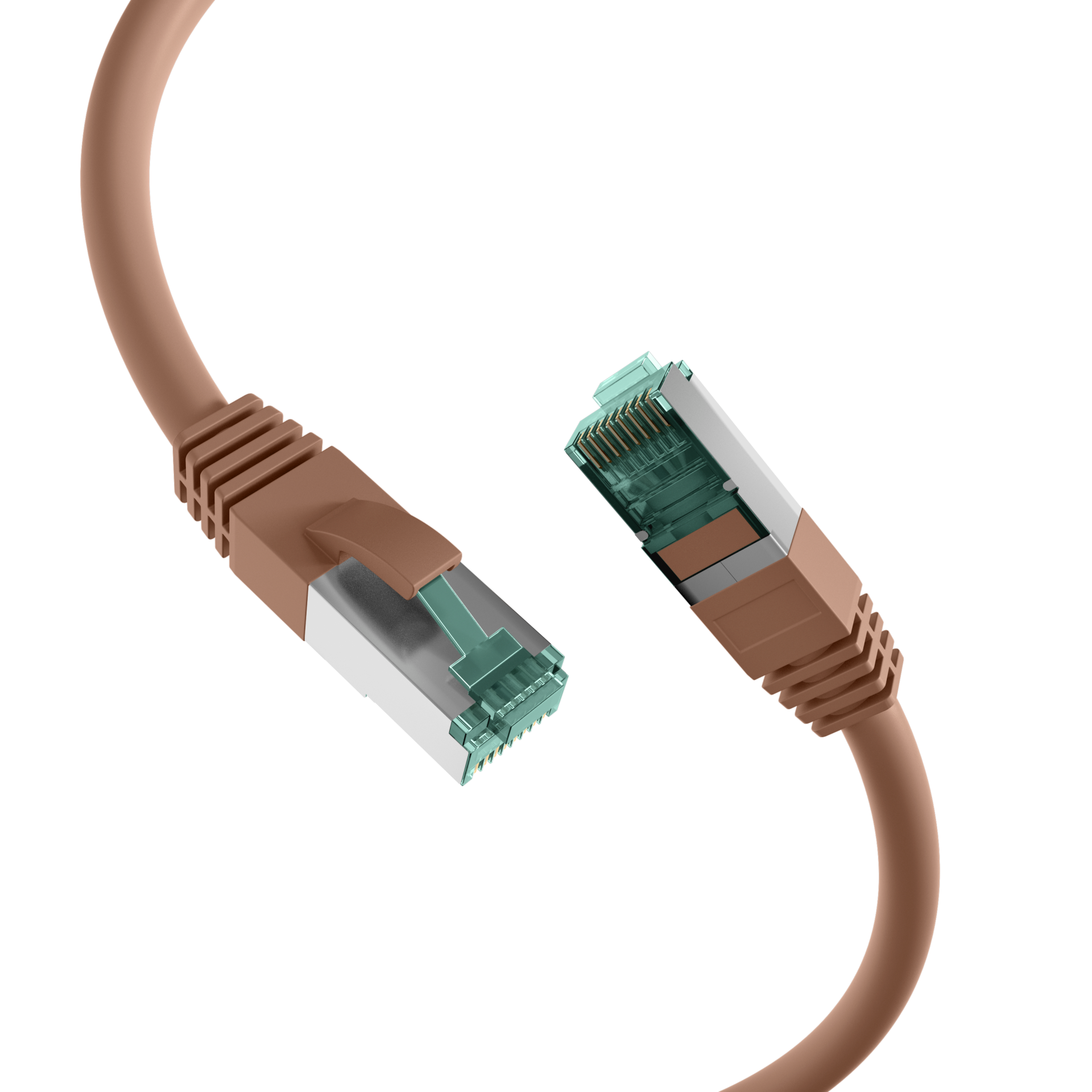

RJ45 Patchkabel S/FTP, Cat. 6A, brown
Priser kun synlige for indloggede brugere
RJ45 Patch Cord Cat.6A S/FTP LSZH braun 0,15m
Varenummer:
MK6001.0,15BR
Produktinformation für RJ45 Patch Cord Cat.6A S/FTP LSZH braun 0,15m
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG27/7
Length imprint on boot
Available in 11 colours
Cross section 4 x 2 x AWG27/7
Length imprint on boot
Available in 11 colours
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | brown |
| Colour outer sheath: | brown |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard green |
| Contact resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | True |
| Halogen-free: | True |
| Impedance: | 100 ±15 Ω |
| Insulation resistance: | 10 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 74 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de |
| Raw cable: | Cat.6A |
| Resistance unbalance: | 3 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 60 °C |
| Test voltage: | 1000 V DC, 1min |
| Total screening: | 80 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| MK6001.0,15BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 0,15m | 0.15 m | ±5 % | |
| MK6001.0,25BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 0,25m | 0.25 m | ±5 % | |
| MK6001.0,5BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 0,5m | 0.5 m | ±5 % | |
| MK6001.1BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 1m | 1.0 m | ±5 % | |
| MK6001.1,5BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 1,5m | 1.5 m | ±5 % | |
| MK6001.2BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 2m | 2.0 m | ±5 % | |
| MK6001.3BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 3m | 3.0 m | ±5 % | |
| MK6001.5BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 5m | 5.0 m | ±5 % | |
| MK6001.7,5BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 7,5m | 7.5 m | ±5 % | |
| MK6001.10BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 10m | 10.0 m | ±5 % | |
| MK6001.15BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 15m | 15.0 m | ±5 % | |
| MK6001.20BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 20m | 20.0 m | ±5 % | |
| MK6001.25BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 25m | 25.0 m | ±5 % | |
| MK6001.30BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 32m | 30.0 m | ±5 % | |
| MK6001.40BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 40m | 40.0 m | ±5 % | |
| MK6001.50BR | RJ45 Patch Cord Cat.6A S/FTP LSZH braun 50m | 50.0 m | ±5 % |
