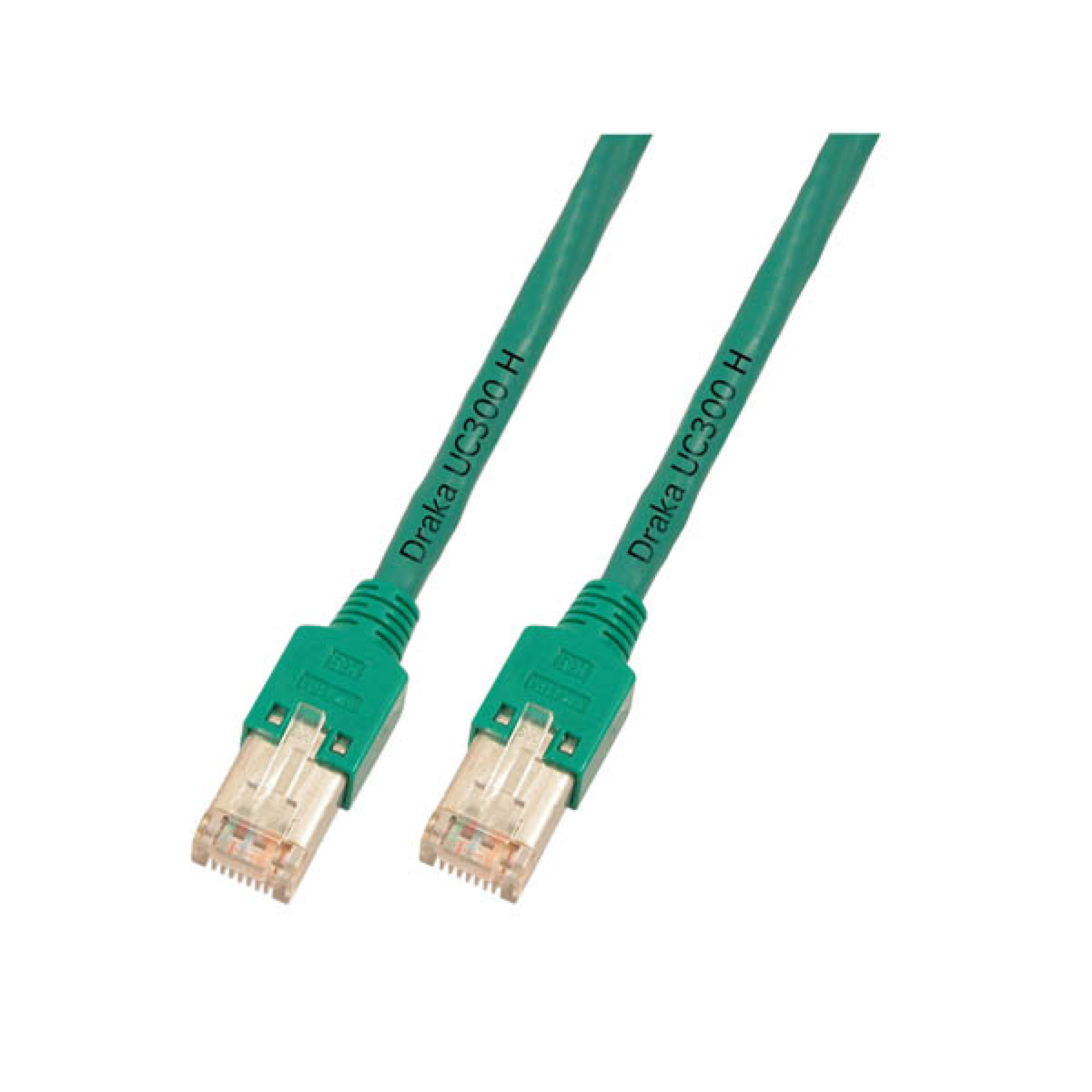

RJ45 Patchkabel F/UTP, Cat.5e, TM11, UC300, 20m,
RJ45 Patchkabel Cat.5e F/UTP LSZH Draka UC300 TM11 grün 20m
Varenummer:
K8073.20
EAN Nr.:
4049759013868
Produktinformation til RJ45 Patchkabel Cat.5e F/UTP LSZH Draka UC300 TM11 grün 20m
Besondere Merkmale
Mantelmaterial: LSZH
Querschnitt: 4 x 2 x AWG26/7
Kabeldurchmesser: 5,4mm
Kabeltyp: Draka UC300 S26
Steckertyp: HRS TM11
Art der Tülle: Montierte Knickschutztülle
Allgemeine Merkmale
Kategorie: Cat.5e
Übertragung: 2,5Gbit
Bandbreite: 100MHz
Belegung: nach TIA/EIA 568B
Leitermaterial: Kupfer
Stecker: RJ45 geschirmt, IEC-60603-7-3
Kontakte: vergoldet
Klinkenschutz: nicht vorhanden
Kabelaufbau: F/UTP
Flammwidrig: IEC60332-1
Halogenfrei: IEC60754-2
Raucharm: IEC61034
Mantelmaterial: LSZH
Querschnitt: 4 x 2 x AWG26/7
Kabeldurchmesser: 5,4mm
Kabeltyp: Draka UC300 S26
Steckertyp: HRS TM11
Art der Tülle: Montierte Knickschutztülle
Allgemeine Merkmale
Kategorie: Cat.5e
Übertragung: 2,5Gbit
Bandbreite: 100MHz
Belegung: nach TIA/EIA 568B
Leitermaterial: Kupfer
Stecker: RJ45 geschirmt, IEC-60603-7-3
Kontakte: vergoldet
Klinkenschutz: nicht vorhanden
Kabelaufbau: F/UTP
Flammwidrig: IEC60332-1
Halogenfrei: IEC60754-2
Raucharm: IEC61034
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >20 |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | F/UTP |
| Cable type acc. to Manufacturer: | Draka UC300 S26 |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 5e |
| Colour anti-kink sleeve: | green |
| Colour outer sheath: | green |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 130 Ω/km |
| Connector: | IEC 60603-7-3 |
| Connector type: | TM11 |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 |
| Insulation Resistance: | > 2000 MΩ |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | False |
| Loop resistance: | < 260 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 67 % |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 60 |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Resistance unbalance: | < 3 % |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 100MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
