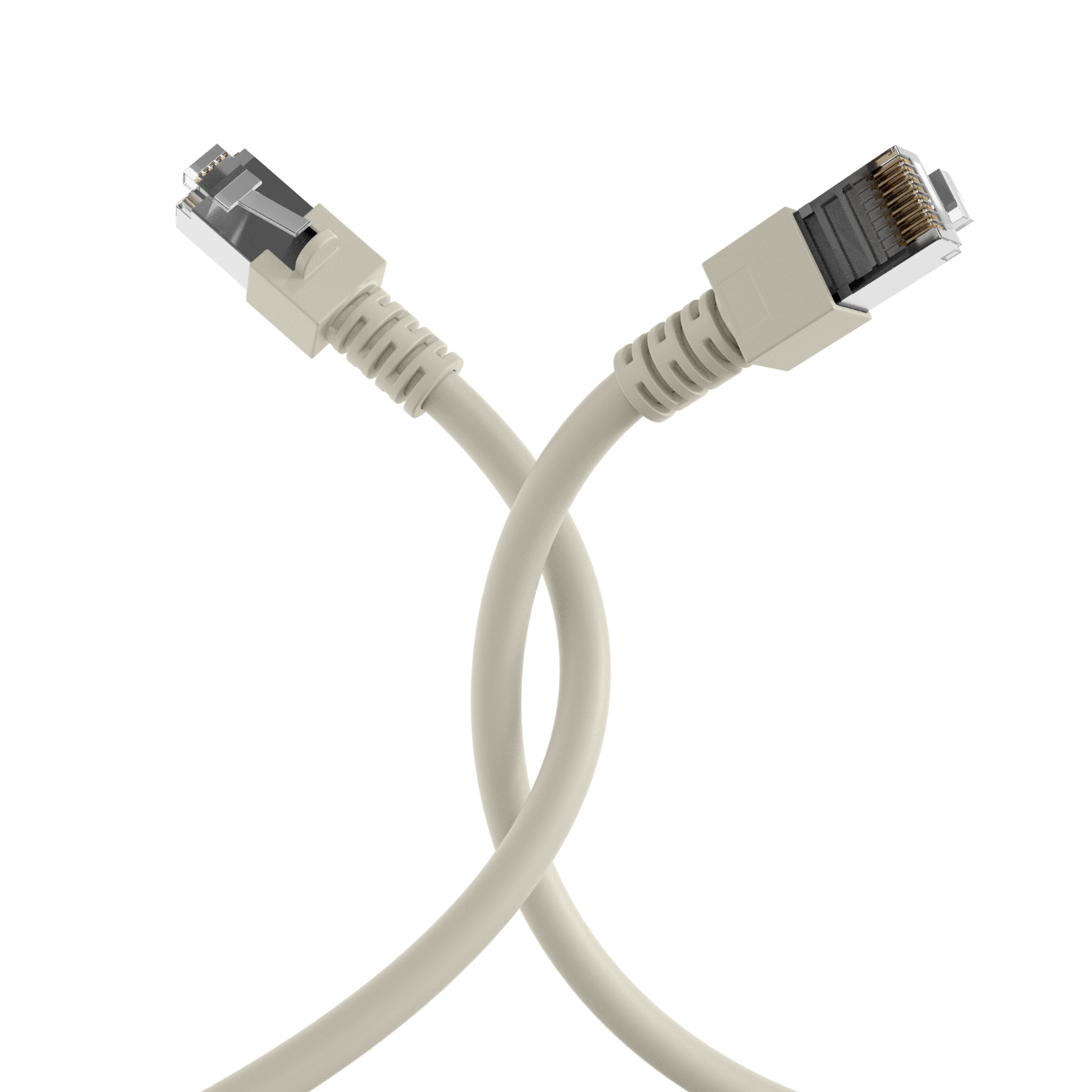

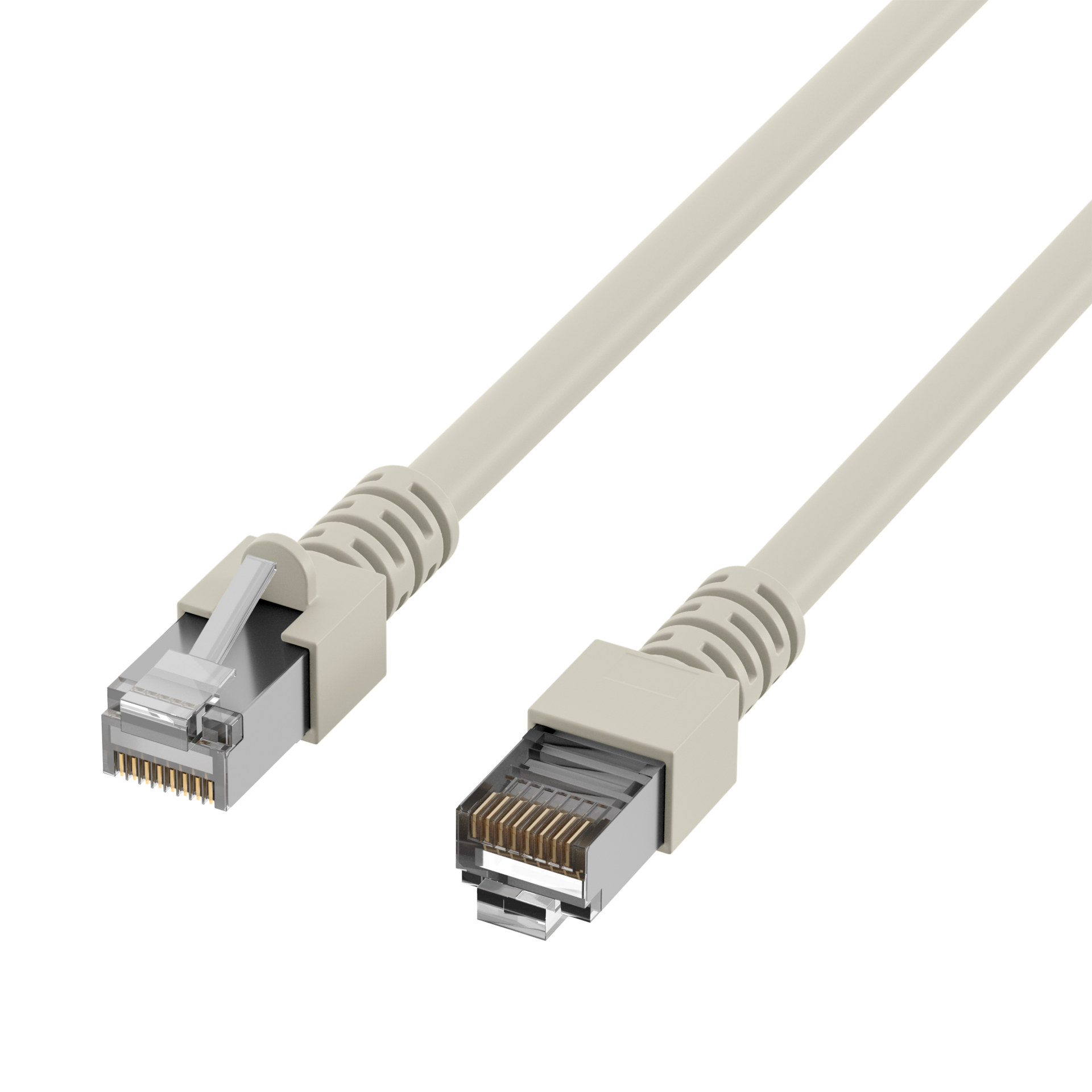

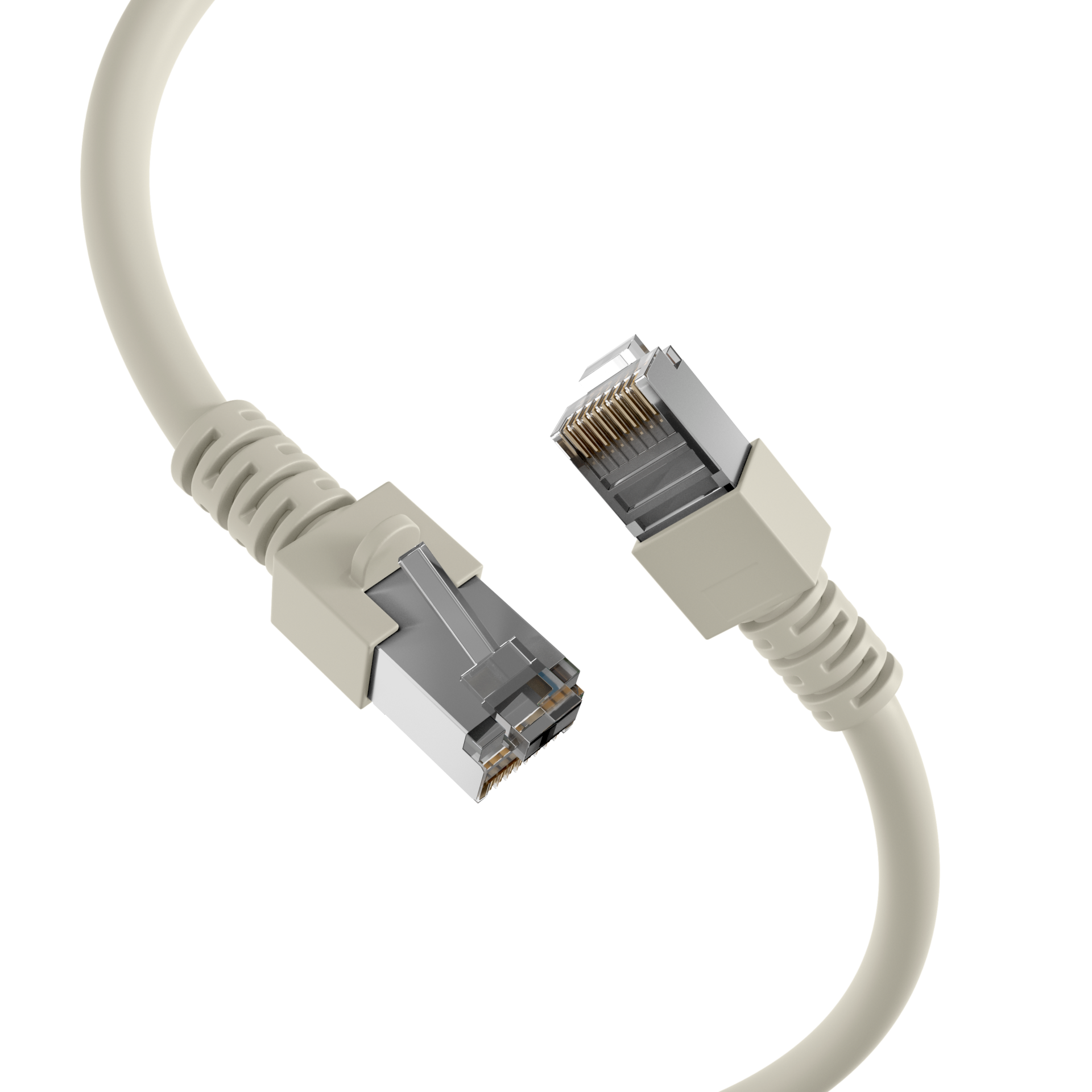

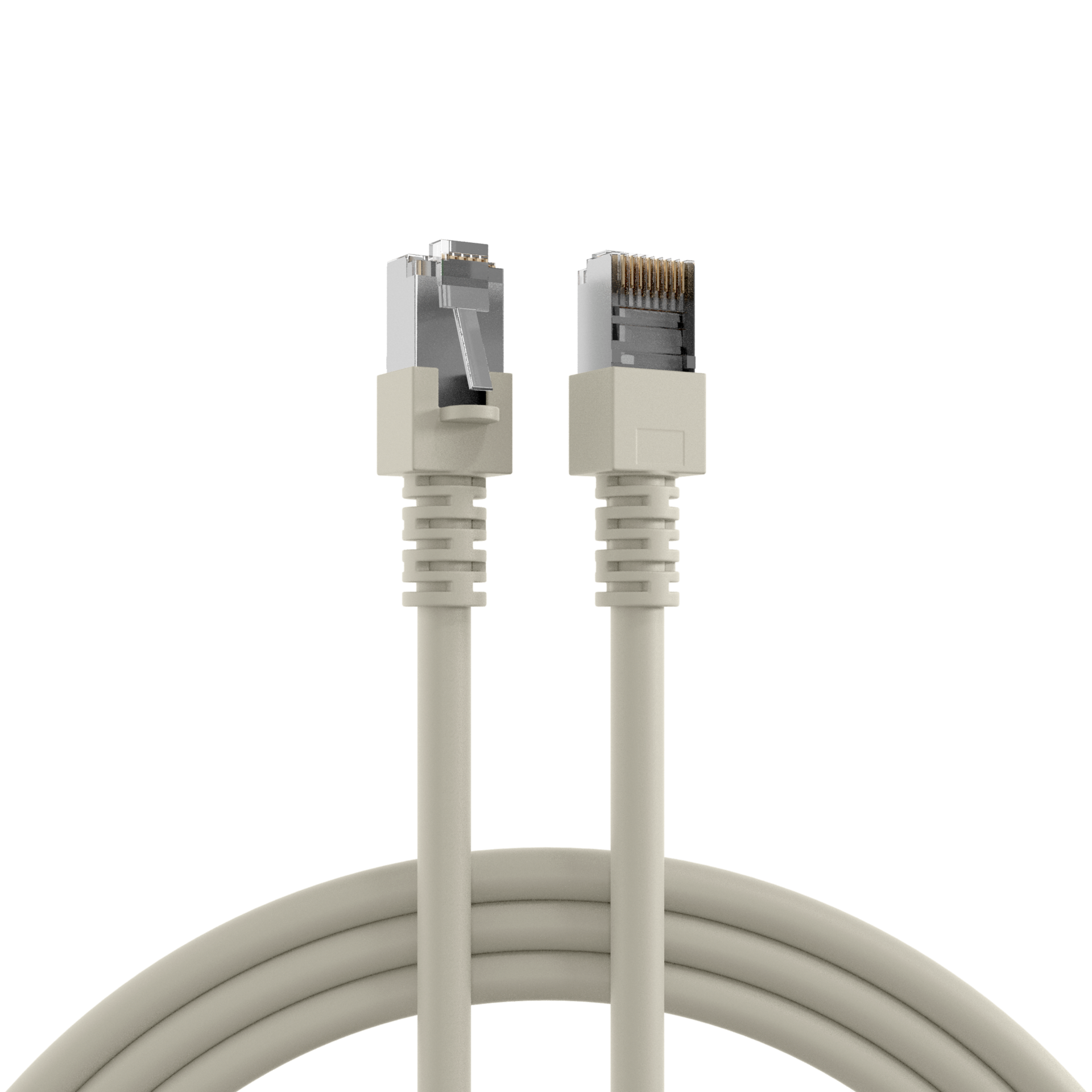

RJ45 Patchkabel Cat.5e SF/UTP PVC CCA grau




RJ45 Patchkabel Cat.5e SF/UTP PVC CCA grau 0,7m
Varenummer:
K5455.0,7
EAN Nr.:
4049759121877
Produktinformation til RJ45 Patchkabel Cat.5e SF/UTP PVC CCA grau 0,7m
RJ45 Patchkabel Cat.5e SF/UTP PVC CCA
Das Cat.5e Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• SF/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den Temperaturbereich -5 – 70 °C.
Das LAN Kabel verfügt über ein Leitermaterial aus CCA und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Eine Bandbreite von bis zu 100 MHz wird damit erreicht.
Das Cat.5e Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 2,5Gbit Ethernet.
Technische Produkteigenschaften
• Cat.5e
• SF/UTP Kabel mit AWG26/7
• Mantelmaterial aus Polyvinylchlorid (PVC)
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus Polyvinylchlorid (PVC) Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den Temperaturbereich -5 – 70 °C.
Das LAN Kabel verfügt über ein Leitermaterial aus CCA und eignet sich bestens für Anwendungen in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Eine Bandbreite von bis zu 100 MHz wird damit erreicht.
Tekniske egenskaber
(Halogenfree): | False |
---|---|
AWG-size: | 26/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 100MHz |
Bending radius: | >25 mm |
Cable construction: | 4x2 |
Cable type: | SF/UTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 5e |
Colour anti-kink sleeve: | grey |
Colour outer sheath: | grey |
Conductive shield: | Selected shield contact |
Conductor Material: | CCA |
Conductor resistance DC: | 146 Ω/km |
Connector: | IEC 60603-7-3 |
Connector type: | RJ45 Standard |
Contact Resistance: | 30 mΩ |
Contacts: | Gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | False |
Insulation Resistance: | 10 MΩ |
Jacket Material: | Polyvinylchlorid (PVC) |
Length imprint: | True |
Locking lever: | True |
Loop resistance: | 292 Ω/km |
Mating cycles: | 2000 |
Model: | Shielded |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 5.7 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de |
Resistance unbalance: | 5 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -5 – 70 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Total screening: | 65 % |
Transmission: | 2.5Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
