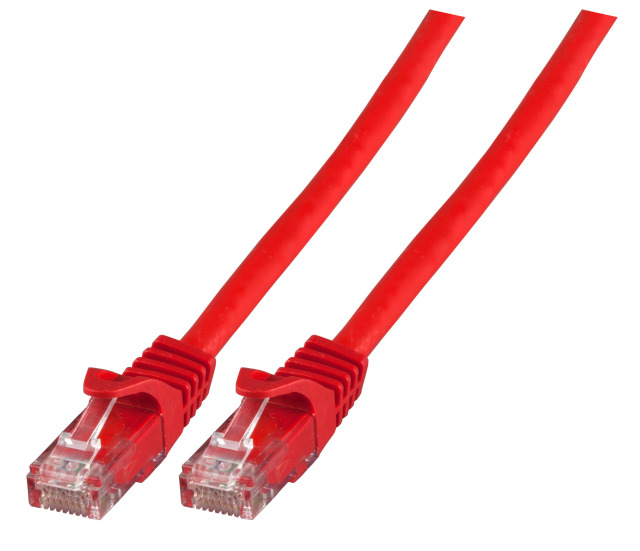

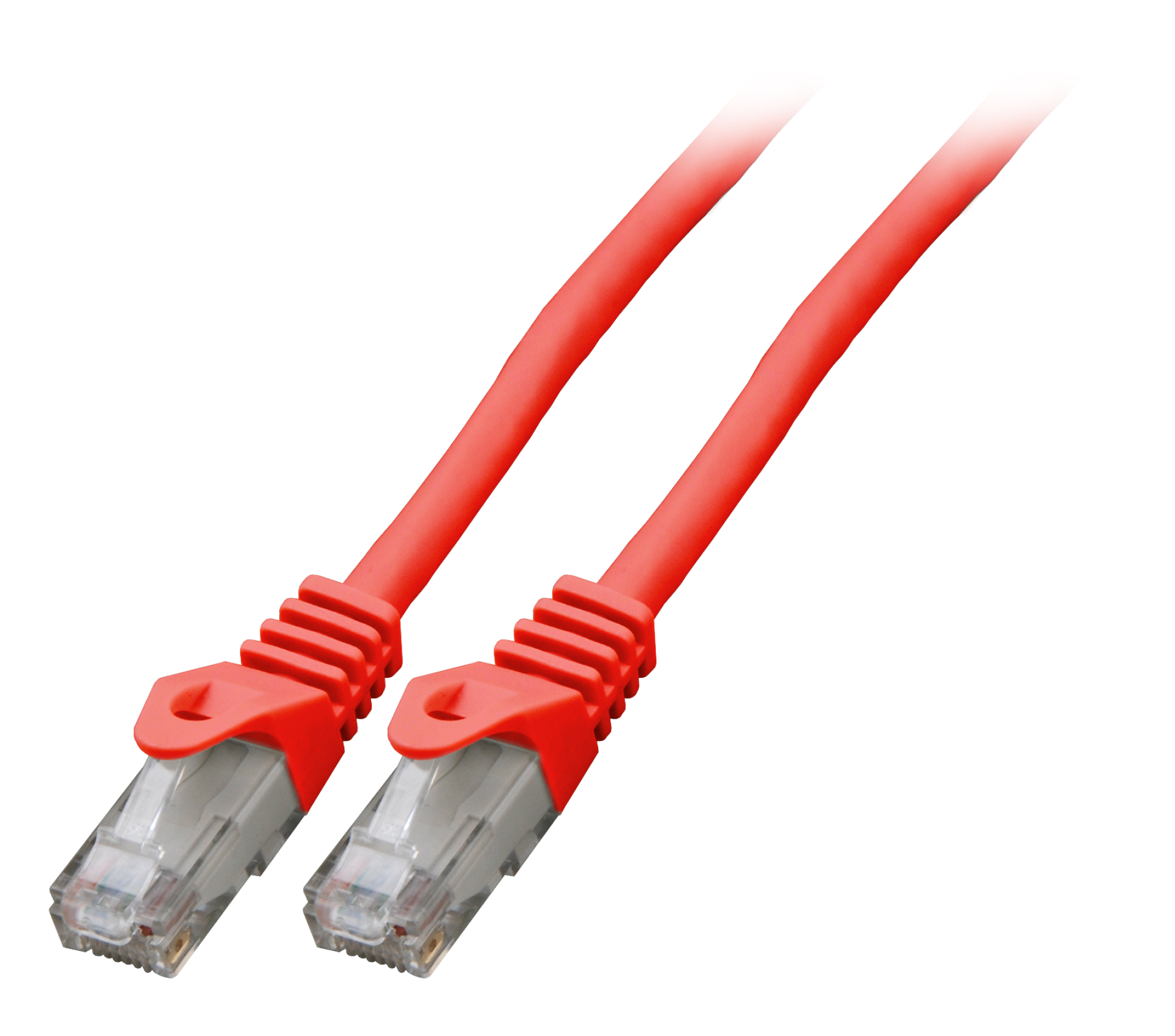

RJ45 Patchkabel Cat.6 U/UTP LSZH


RJ45 Patchkabel Cat.6 U/UTP LSZH,CCA rot 4m
Varenummer:
K8104RT.4
EAN Nr.:
4049759157128
Produktinformation til RJ45 Patchkabel Cat.6 U/UTP LSZH,CCA rot 4m
Das ungeschirmte Cat.6 RJ45 Patchkabel gewährleistet sehr gute Eigenschaften für 5 Gigabit Ethernet Anwendungen. Die gegossene Tülle besticht durch ihr schlankes Design und vereinfacht damit den Steckvorgang in beengten Verhältnissen.
Querschnitt 4 x 2 x AWG24/7
Gegossene Knickschutztülle, schlankes Design
Längenaufdruck auf der Tülle
Querschnitt 4 x 2 x AWG24/7
Gegossene Knickschutztülle, schlankes Design
Längenaufdruck auf der Tülle
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 24/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | moulded |
Bandwidth: | 250MHz |
Bending radius: | 30 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Category: | 6 |
Colour anti-kink sleeve: | red |
Colour outer sheath: | red |
Conductor Material: | CCA |
Connector: | IEC 60603-7-4 |
Connector type: | RJ45 Standard |
Contacts: | 3 µ" gold plated |
Fire retardant version: | True |
Flame-retardant: | True |
Halogen-free: | True |
Jacket Material: | LSZH |
Locking lever: | True |
Low smoke: | True |
Model: | Unshielded |
NVP value: | - % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Outer diameter of the cable: | 5.9 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable |
Silicone-free: | True |
Transmission: | 5Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
