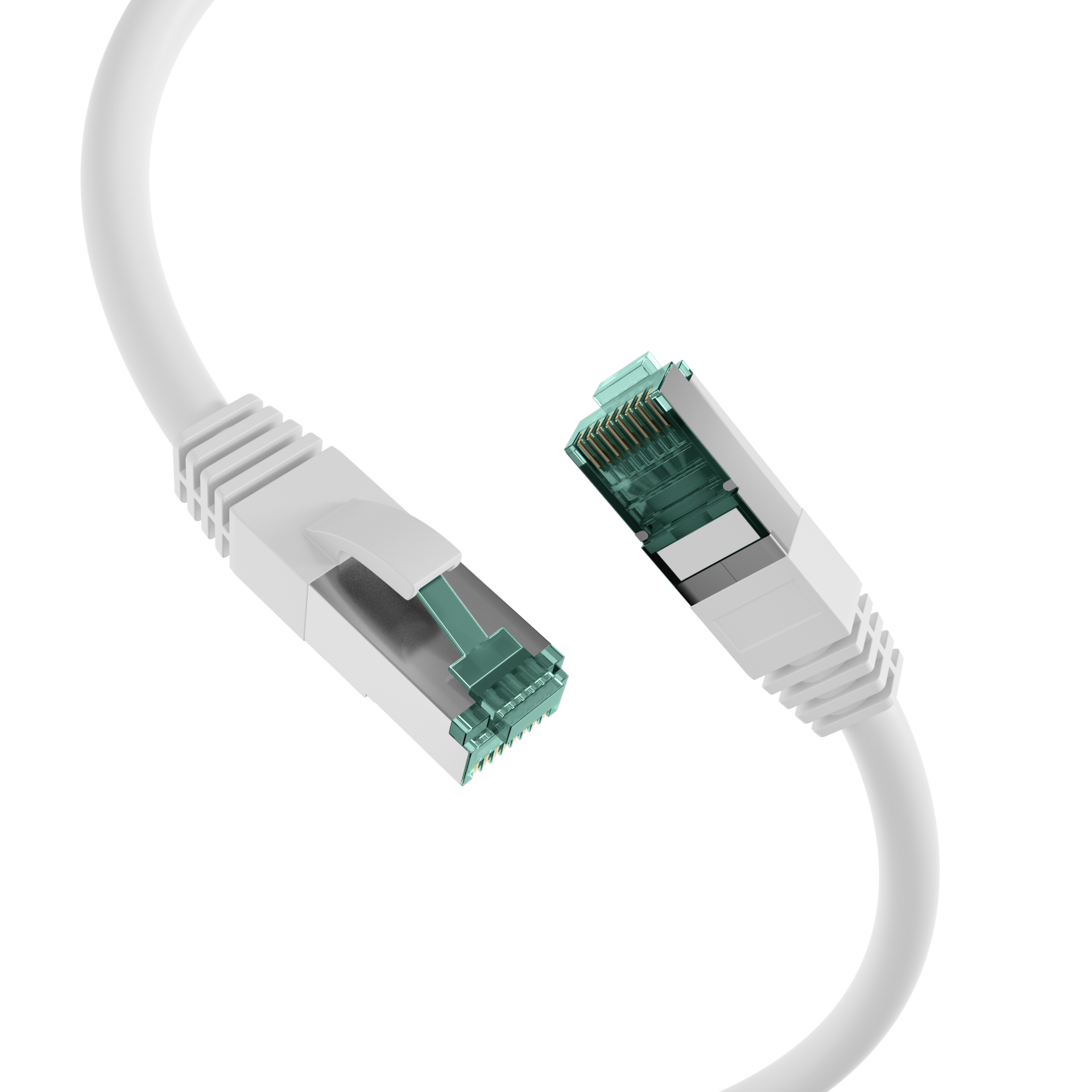

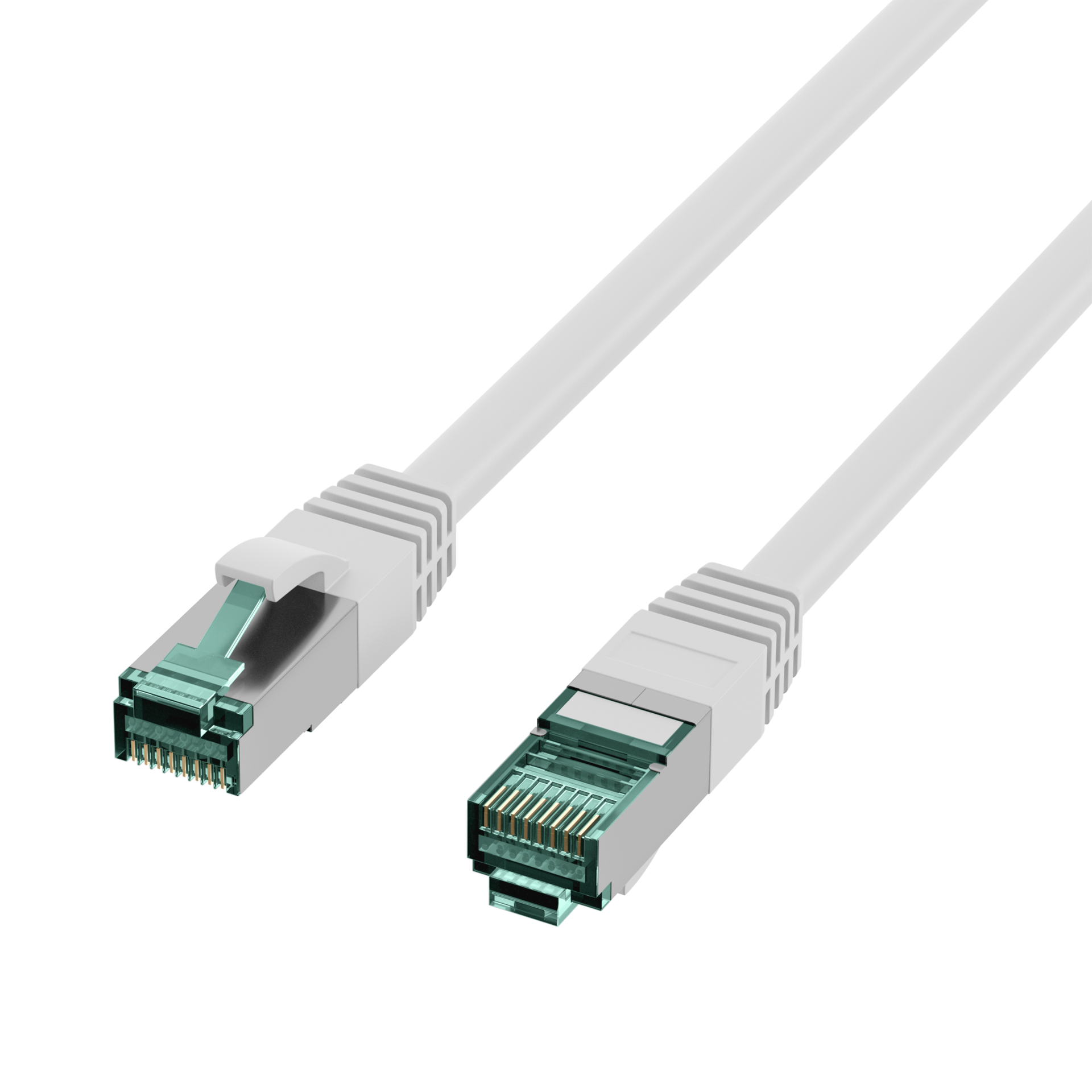

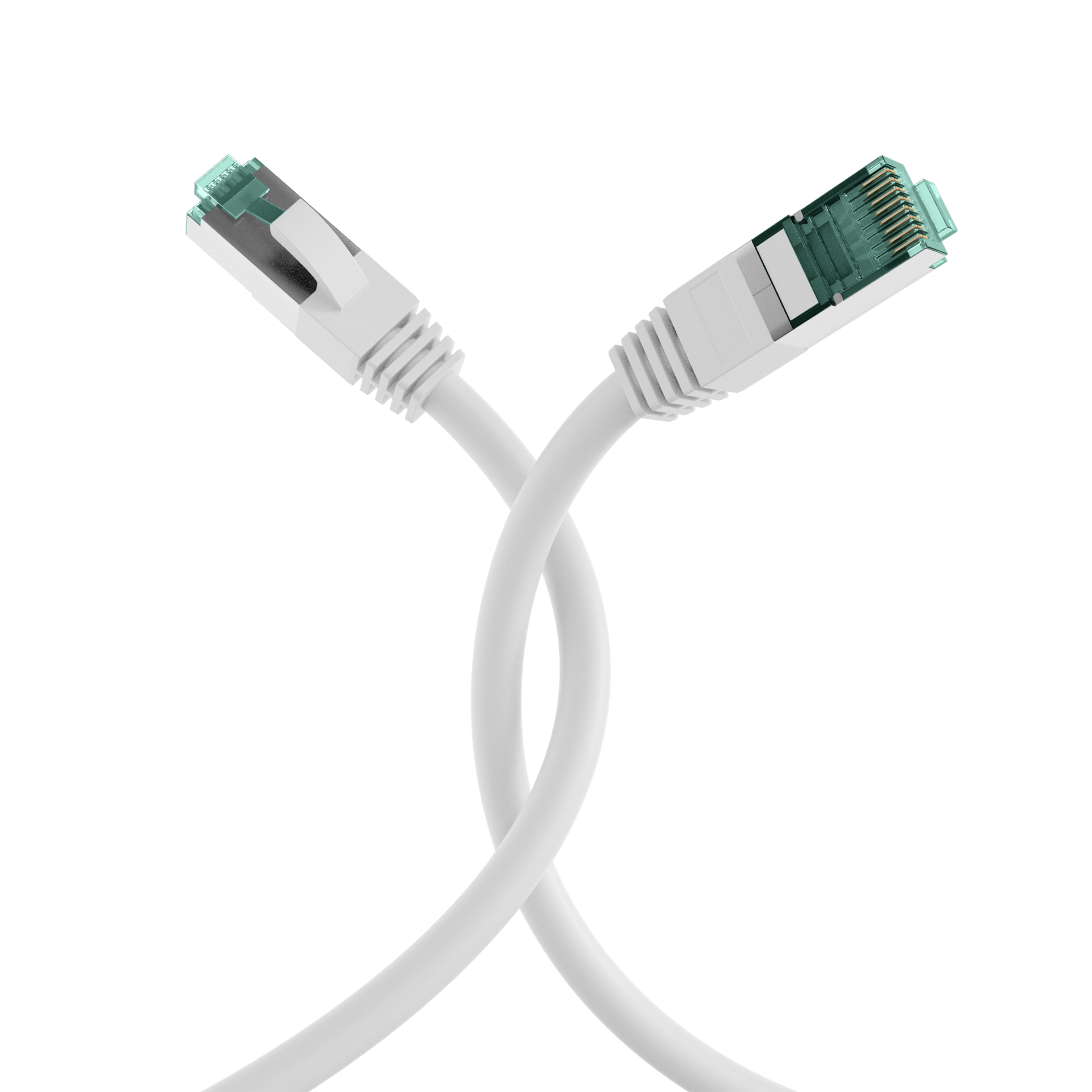

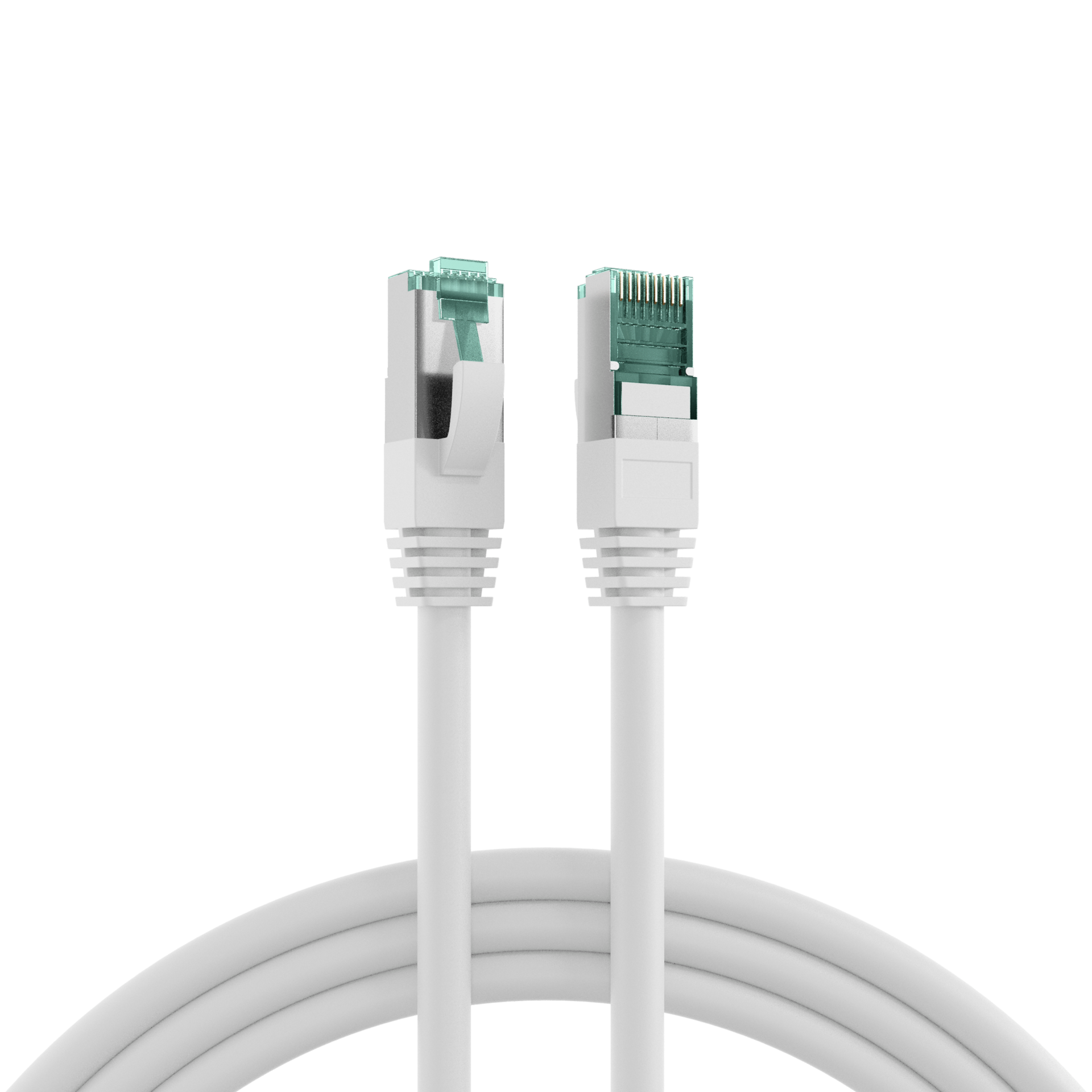

RJ45 Patchkabel Cat.6A S/FTP LSZH weiß




RJ45 Patchkabel Cat.6A S/FTP LSZH weiß 40m
Varenummer:
MK6001.40W
EAN Nr.:
4049759226817
Produktinformation til RJ45 Patchkabel Cat.6A S/FTP LSZH weiß 40m
RJ45 Patchkabel Cat.6A S/FTP LSZH
Das Cat.6A (TIA) Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 10Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.

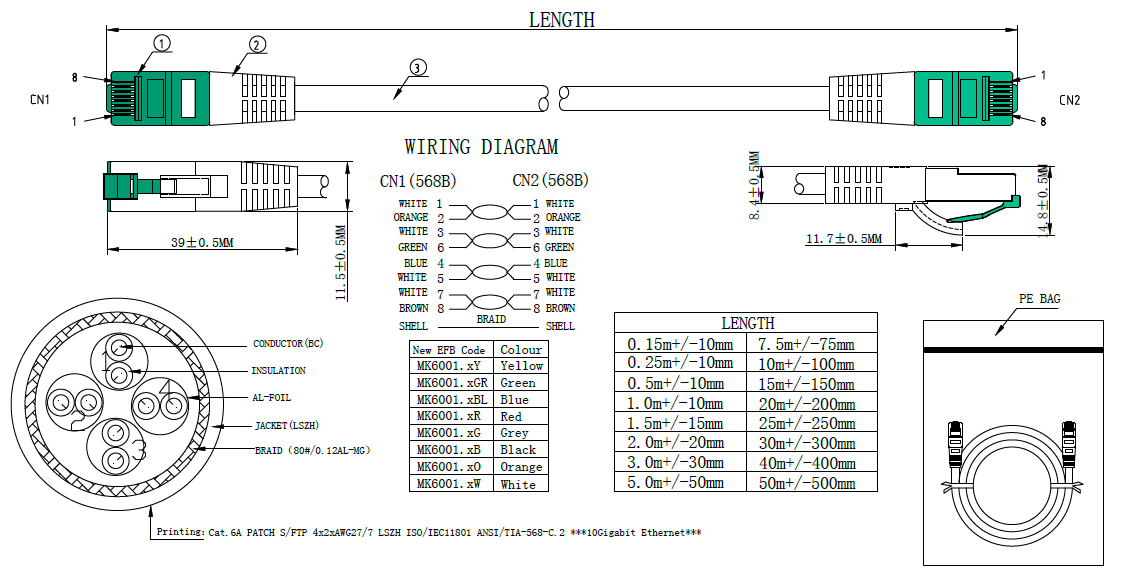

Die Belegung der grünen RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den Temperaturbereich -20 – 60 °C.
Das Netzwerkkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich optimal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von 500 MHz wird damit erzielt.
Das Cat.6A (TIA) Patchkabel hat vergoldete Kontakte und erfüllt die Anforderungen für 10Gbit Ethernet.
Technische Produkteigenschaften
• Cat.6A (TIA)
• S/FTP Kabel mit AWG27/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des geschirmten Patchkabels besteht aus halogenfreiem LSZH Material und besitzt einen Längenaufdruck auf der Tülle. Weiterhin bietet das Kabel die Option zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der grünen RJ45-Stecker ist 1:1 und erfolgt nach TIA/EIA 568B. Passend für den Temperaturbereich -20 – 60 °C.
Das Netzwerkkabel verfügt über ein Leitermaterial aus Kupfer und eignet sich optimal für den Einsatz in der strukturierten Gebäudeverkabelung, Industrial Ethernet und in Rechenzentren. Ein Frequenzbereich von 500 MHz wird damit erzielt.
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 27/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | >30 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | white |
Colour outer sheath: | white |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Conductor resistance DC: | 185 Ω/km |
Connector: | IEC 60603-7-51 |
Connector type: | RJ45 Standard green |
Contact Resistance: | 30 mΩ |
Contacts: | Gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | True |
Halogen-free: | True |
Impedance: | 100 ±15 Ω |
Insulation Resistance: | 10 MΩ |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Loop resistance: | 370 Ω/km |
Low smoke: | True |
Mating cycles: | 2000 |
Model: | Shielded |
NVP value: | 74 % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.0 mm |
POE class: | none |
Pin assignment: | 1:1 |
Printing: | Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de |
Raw cable: | Cat.6A |
Resistance unbalance: | 3 % |
Silicone-free: | True |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | -20 – 60 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Total screening: | 80 % |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
UL approbated: | False |
