RJ45 Premium plug STP, Cat.6A/ClassEA, Field-plug

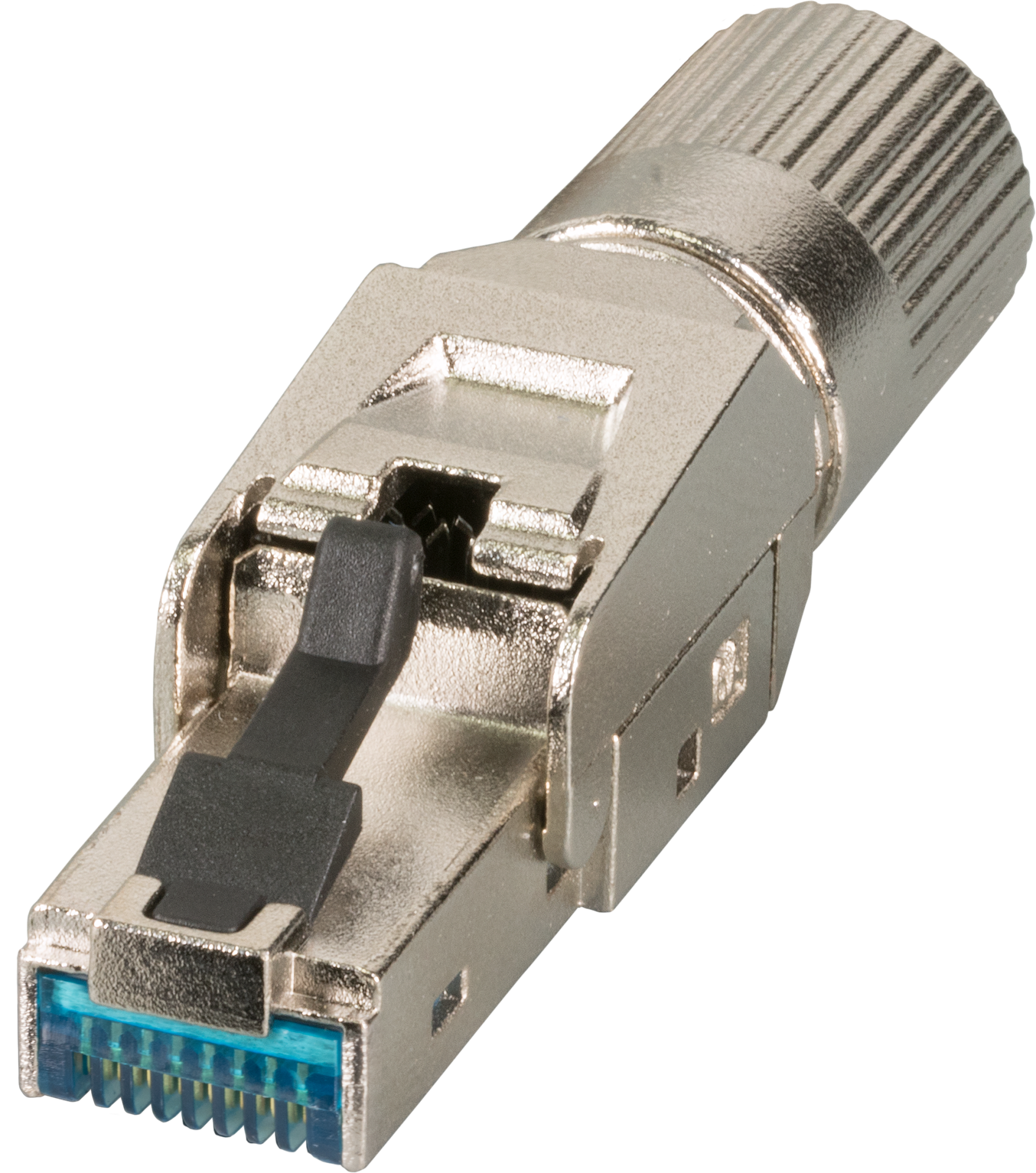

RJ45 Premium plug STP, Cat.6A/ClassEA, Field-plug, full metal
Varenummer:
88035P8.1
EAN Nr.:
4049759205027
Produktinformationen für RJ45 Premium plug STP, Cat.6A/ClassEA, Field-plug, full metal

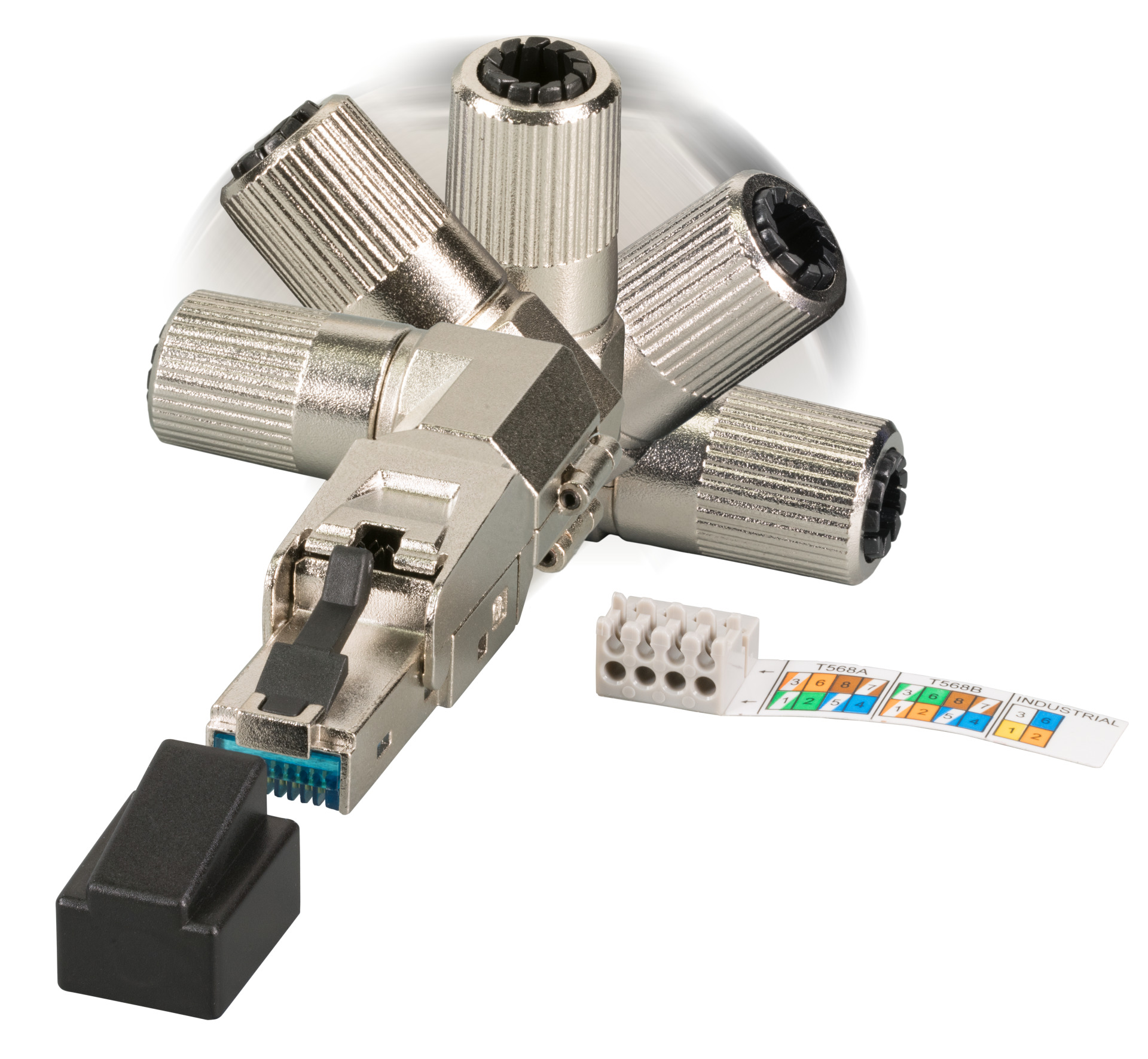

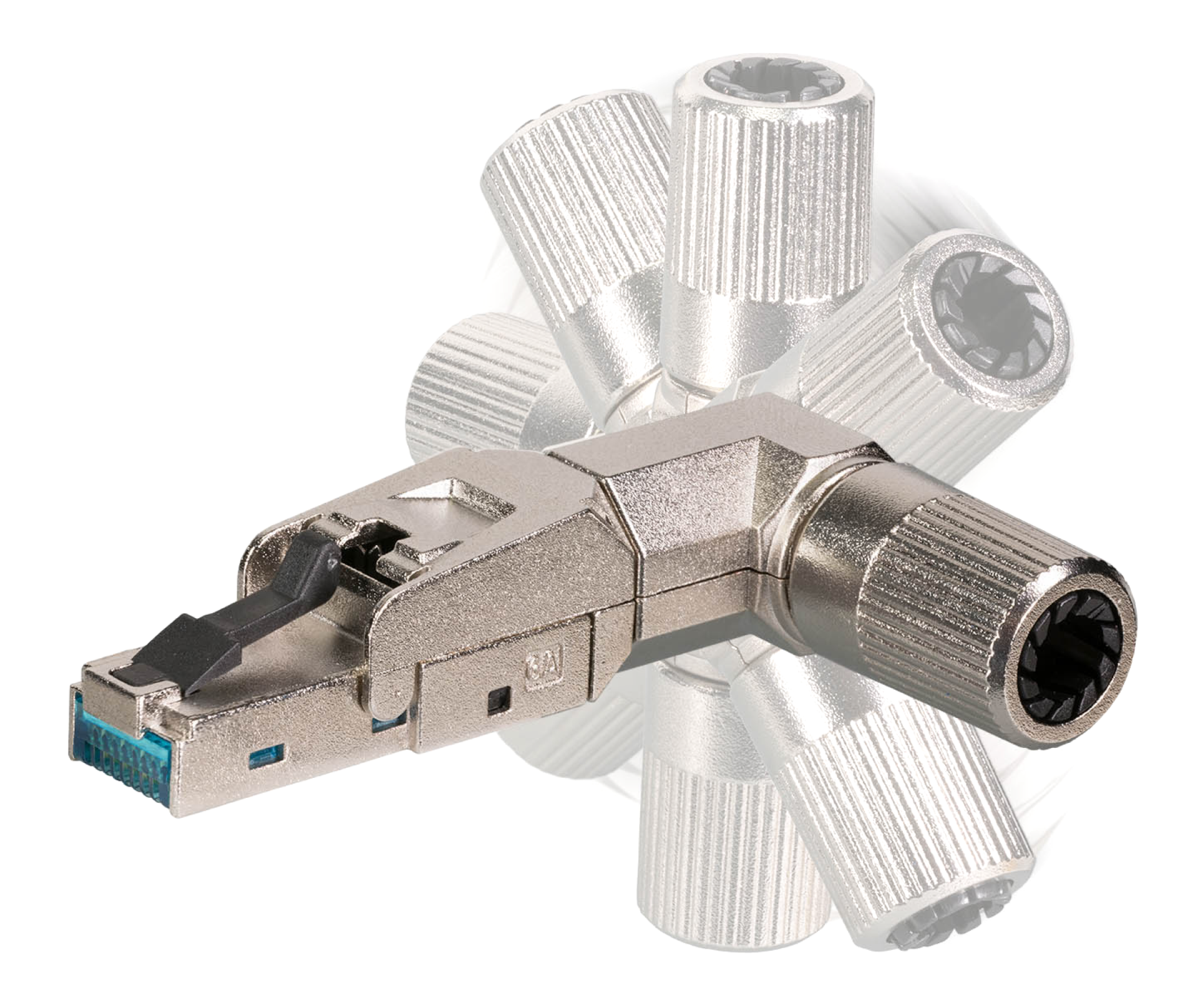

The Cat. 6A Premium RJ45 is a highlight in the chain of further development of RJ45 connectors for field assembly. An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application possibilities. Installation can be done in 9 different positions: 8 different angled positions and a 180° straight cable entry. The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm. The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second.
Technische Eigenschaften
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 22 – 26 |
| AWG-range for litz wire conductor: | 22 – 27 |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact coating: | 50 µ" |
| Contact resistance: | ≤ 20 mΩ |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V DC |
| Dust cover: | true |
| Housing material: | Zinc die cast |
| Insulation resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | plug |
| Screened: | True |
| Separate earthing flag: | False |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Temperature range: | -40 – 66 °C |
| Type of connector: | RJ45 8(8) |
| Type of locking: | snap lock |
| max. Cable diameter: | 9.0 mm |
