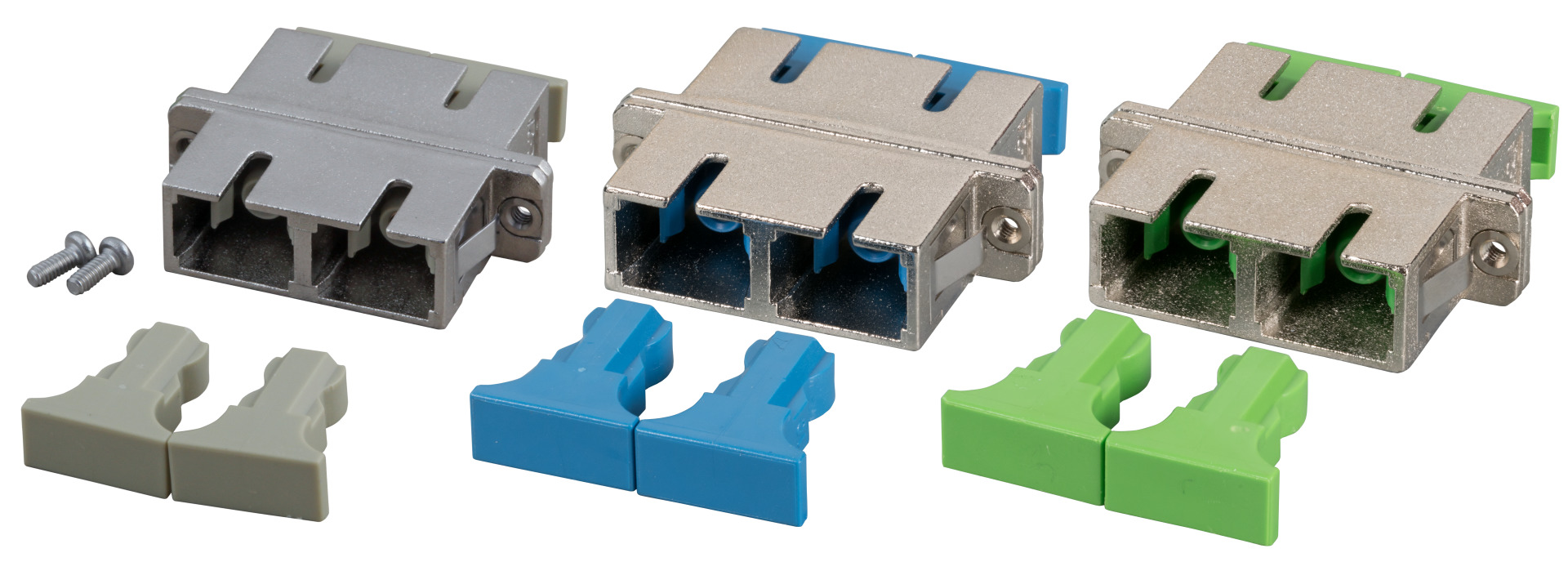

SC Duplex Adapter with Metal housing
Priser kun synlige for indloggede brugere
SC duplex adapter multimode sleeve ceramic
Varenummer:
53312.34
EAN nr.:
4049759023591
Produktinformation für SC duplex adapter multimode sleeve ceramic
• Breakout SC simplex hole
• With 2 x M2 screws
• With snap-in fixing
• With 2 x M2 screws
• With snap-in fixing
Tekniske egenskaber
Accessories: | Metric Screw |
---|---|
Conform to Standard: | IEC61754-4 |
Design: | SC Duplex |
Dust cover: | True |
Height: | 9.4 mm |
Insertion loss 1310nm: | - |
Internal Shutter: | False |
Length: | 27.4 mm |
Material housing: | Metal |
Material sleeve: | Ceramics |
Operating Temperature: | -40 – 75 °C |
Storage Temperature: | -55 – 85 °C |
Type of connector connection 1: | SC duplex |
Type of connector connection 2: | SC duplex |
Type of fastening: | Screw |
Type of housing: | With flange |
Width: | 34.7 mm |
Varianter
Art. Nej. | Betegnelse | Colour | Suitable for type of fibre | Model | Insertion loss 1310nm | Insertion loss 850nm | |
---|---|---|---|---|---|---|---|
53312.34 | SC duplex adapter multimode sleeve ceramic | metal | Multimode | SC / PC | - | < 0.15 dB | |
53316.34 | SC/SC dpx. adapter singlemode sleeve ceramic | metal | Singlemode | SC / PC | < 0.15 dB | - | |
53319.3 | SC/SC dpx. adapter APC single mode, sleeve ceramic | metal | Singlemode | SC / APC | < 0.15 dB | - |
