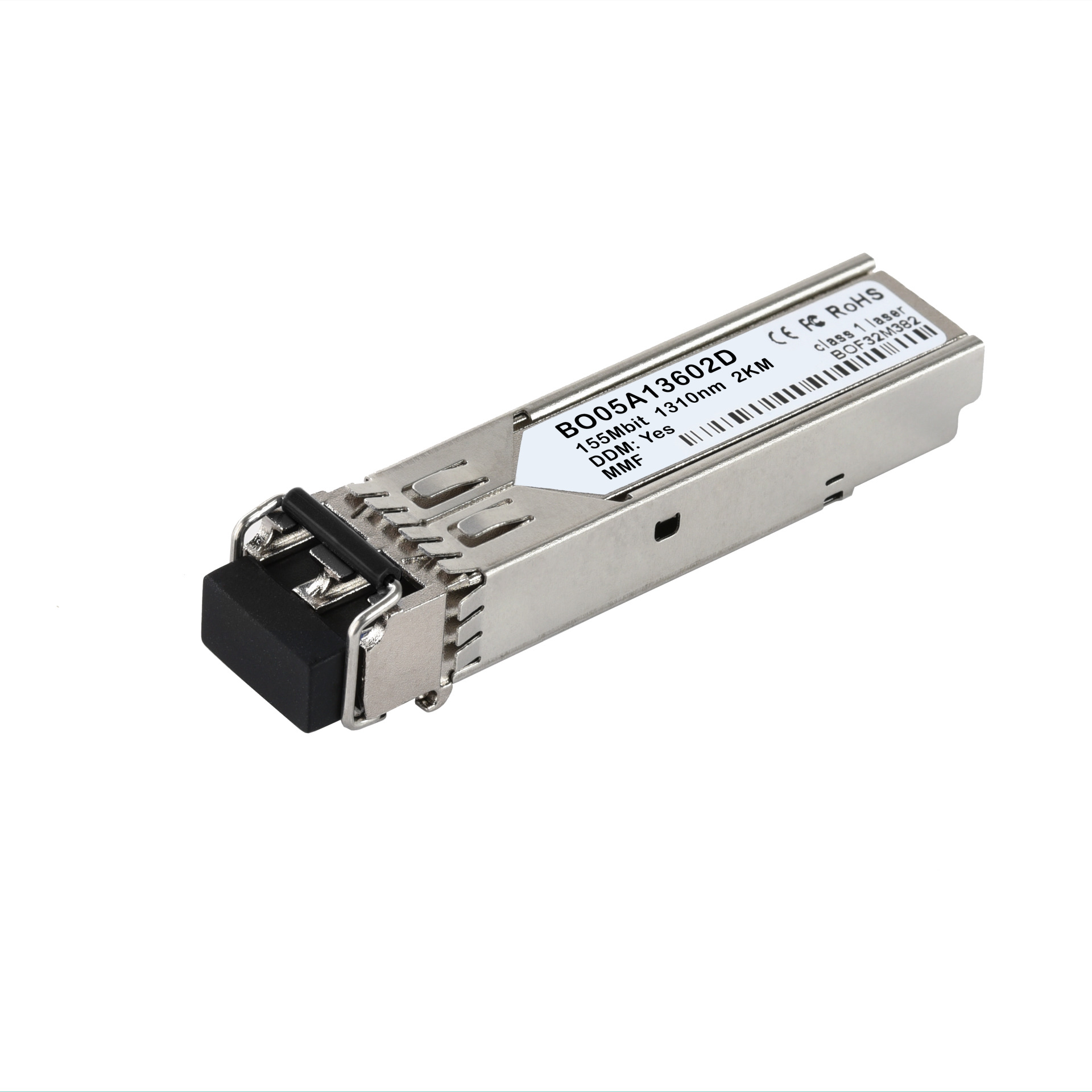

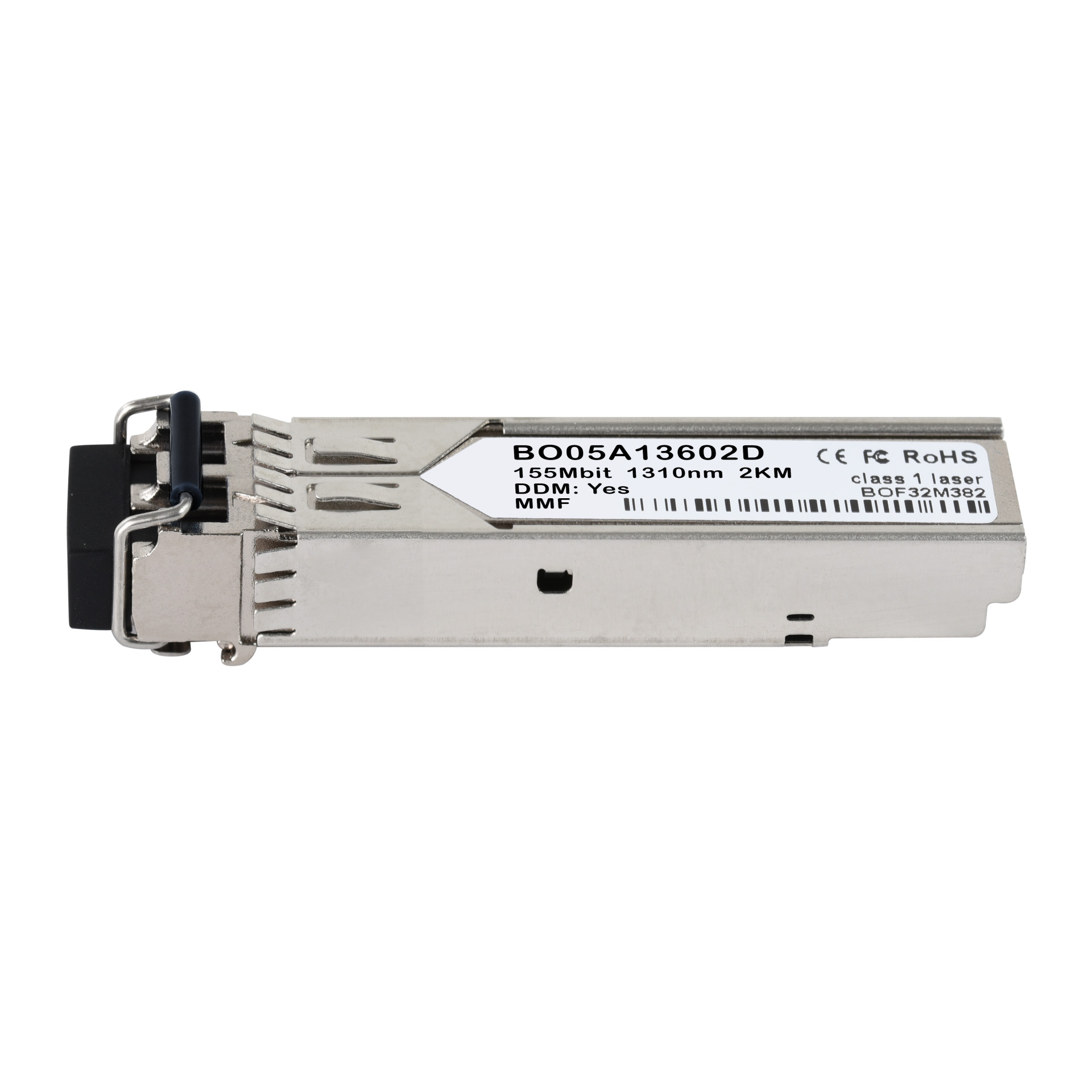

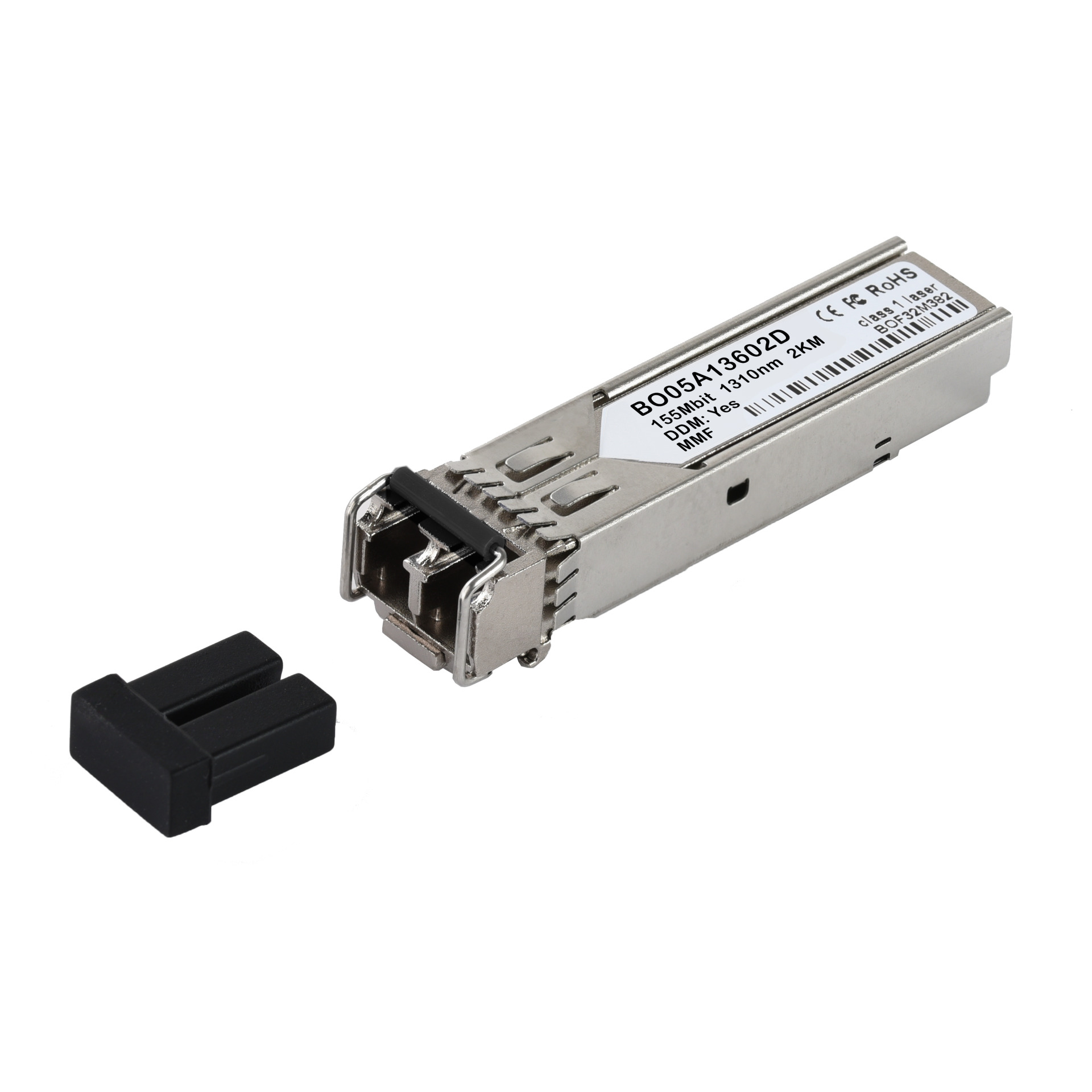

BlueOptics SFP Fast Ethernet MM 100FX 2km
SFP Fast Ethernet, MM, 100FX, 2km, 1310nm, 155Mbps, LC dplx, DDM
Varenummer:
BO05A13602D-BO
EAN Nr.:
4063232651385
Produktinformation til SFP Fast Ethernet, MM, 100FX, 2km, 1310nm, 155Mbps, LC dplx, DDM
The BlueOptics© BO05A13602 Small Form-Factor Pluggable (SFP) transceiver with LC duplex connector from CBO is designed for short-range multi-mode Fast Ethernet (FE), Fibre Channel over Ethernet (FCoE) applications of up to 155 megabits per second.
BlueOptics© SFP Transceiver
LC-Duplex
100BASE-FX
Multimode Fiber
1310nm
2KM
0°C/+70°C
DDM
BlueOptics© SFP Transceiver
LC-Duplex
100BASE-FX
Multimode Fiber
1310nm
2KM
0°C/+70°C
DDM
Tekniske egenskaber
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Construction type: | Mini GBIC |
| Detecting range: | 2 km |
| Fast Ethernet: | True |
| Medium: | Multimode |
| Protocol: | 100BaseFX |
| Speed: | 100 Mbit/s |
| Storage Temperature: | 0 – 70 °C |
| Wave length: | 1310 nm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
