BlueOptics SFP Gigabit Ethernet MM 1000SX 550m
SFP Gigabit Ethernet, MM, 1000SX, 550m, 850nm, LC dplx, DDM
Varenummer:
BO05C856S5D-BO
EAN Nr.:
4063232650517
Produktinformation til SFP Gigabit Ethernet, MM, 1000SX, 550m, 850nm, LC dplx, DDM

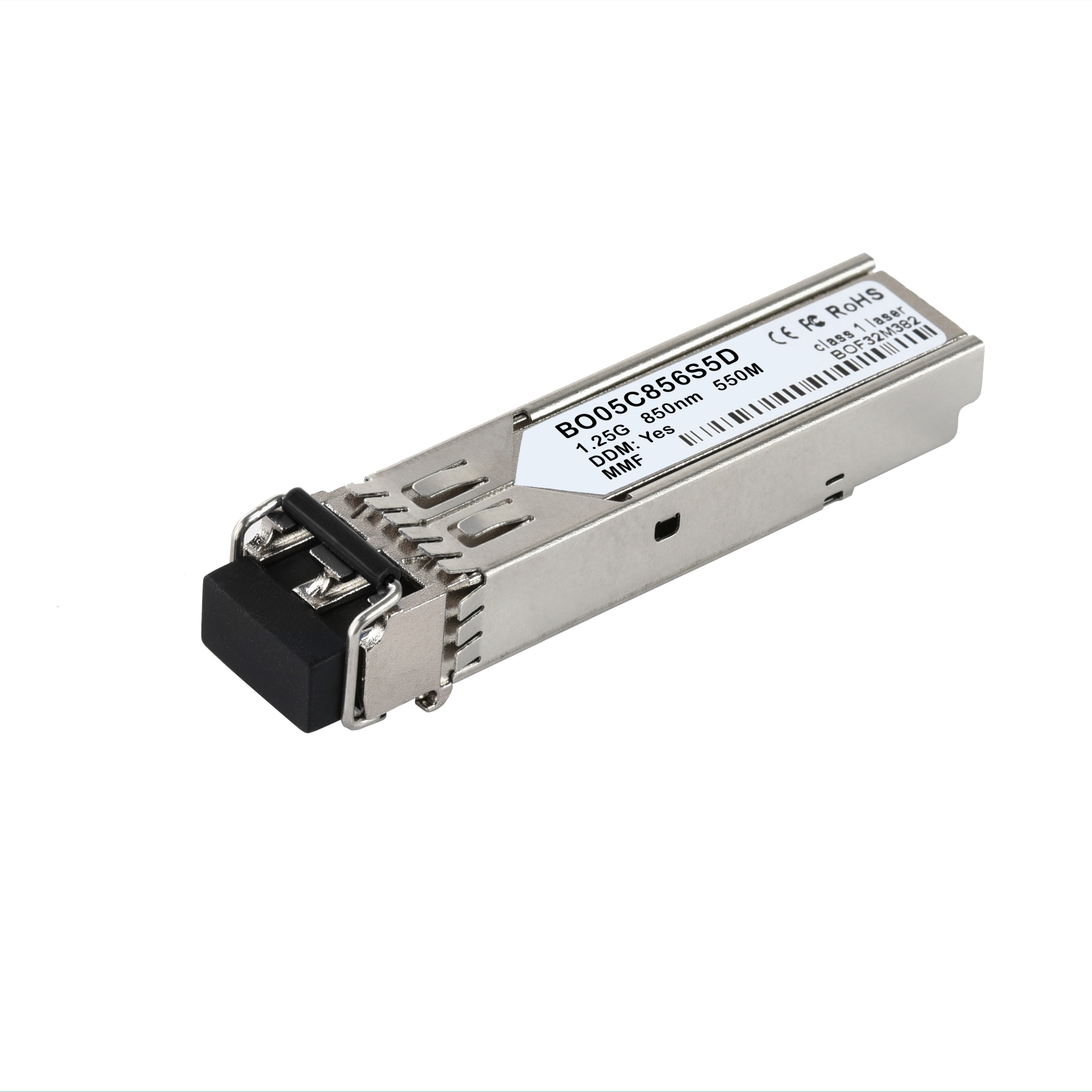

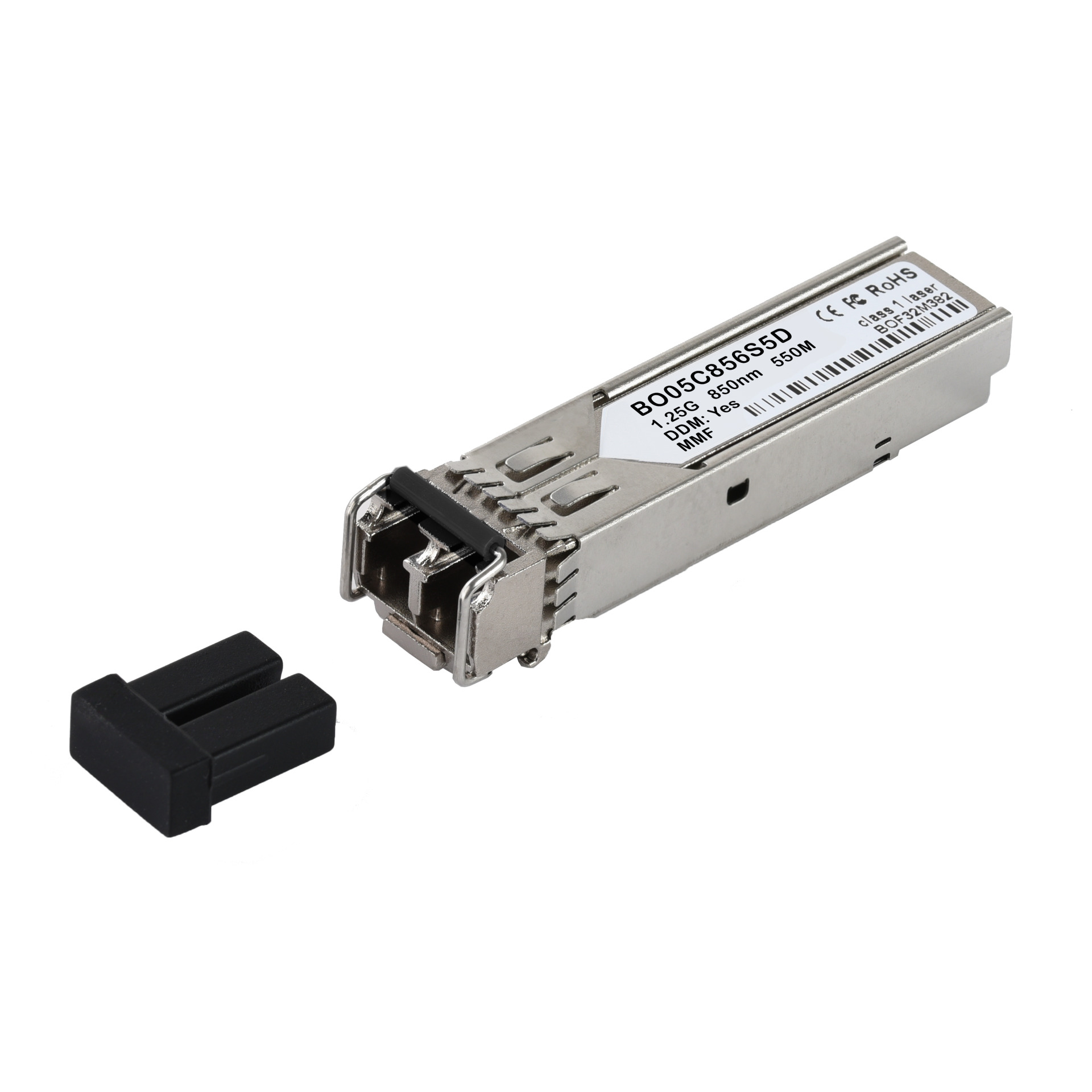

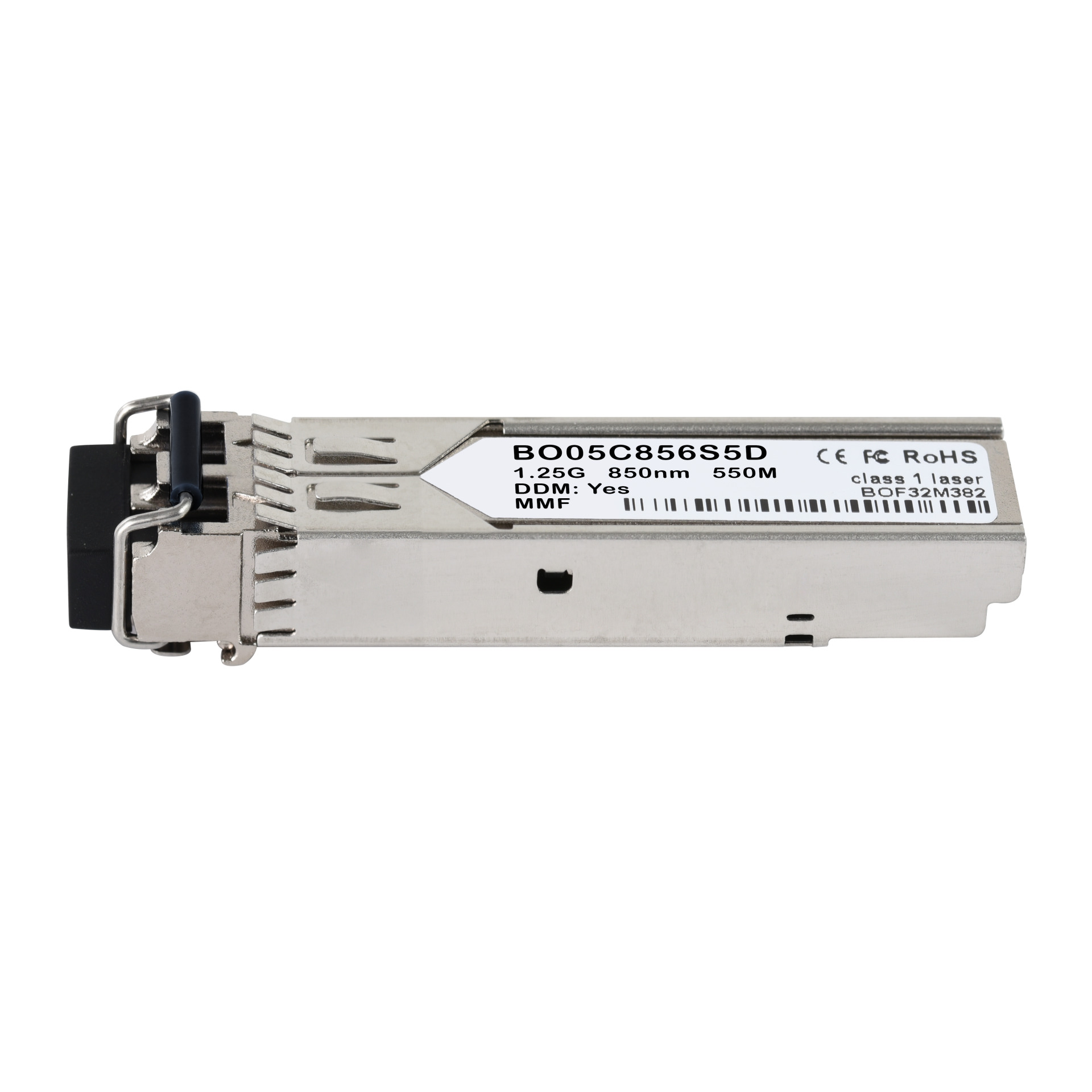

The BlueOptics© BO05C856S5 Small Form-Factor Pluggable (SFP) transceiver with LC duplex connector from CBO is designed for short-range multi-mode Gigabit Ethernet (GbE), Gigabit Fibre Channel over Ethernet (GB FCoE) applications of up to 1.25 gigabits per second.
BlueOptics© SFP Transceiver
LC-Duplex
1000BASE-SX
Multimode Fiber
850nm
550M
0°C/+70°C
DDM
BlueOptics© SFP Transceiver
LC-Duplex
1000BASE-SX
Multimode Fiber
850nm
550M
0°C/+70°C
DDM
Tekniske egenskaber
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Construction type: | Mini GBIC |
| Detecting range: | 550 m |
| Gigabit Ethernet: | True |
| Medium: | Multimode |
| Protocol: | 1000BaseSX |
| Speed: | 1000 Mbit/s |
| Storage Temperature: | 0 – 70 °C |
| Wave length: | 850 nm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
