Side Walls for ESV 42U, D=1000 mm, Type A/B/C/D/E, RAL7035

Side Wall for ESV 42U, D=1000 mm, Type A, RAL7035
Varenummer:
ESV-W420A.GR
EAN Nr.:
4049759244903
Produktinformation til Side Wall for ESV 42U, D=1000 mm, Type A, RAL7035
Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:

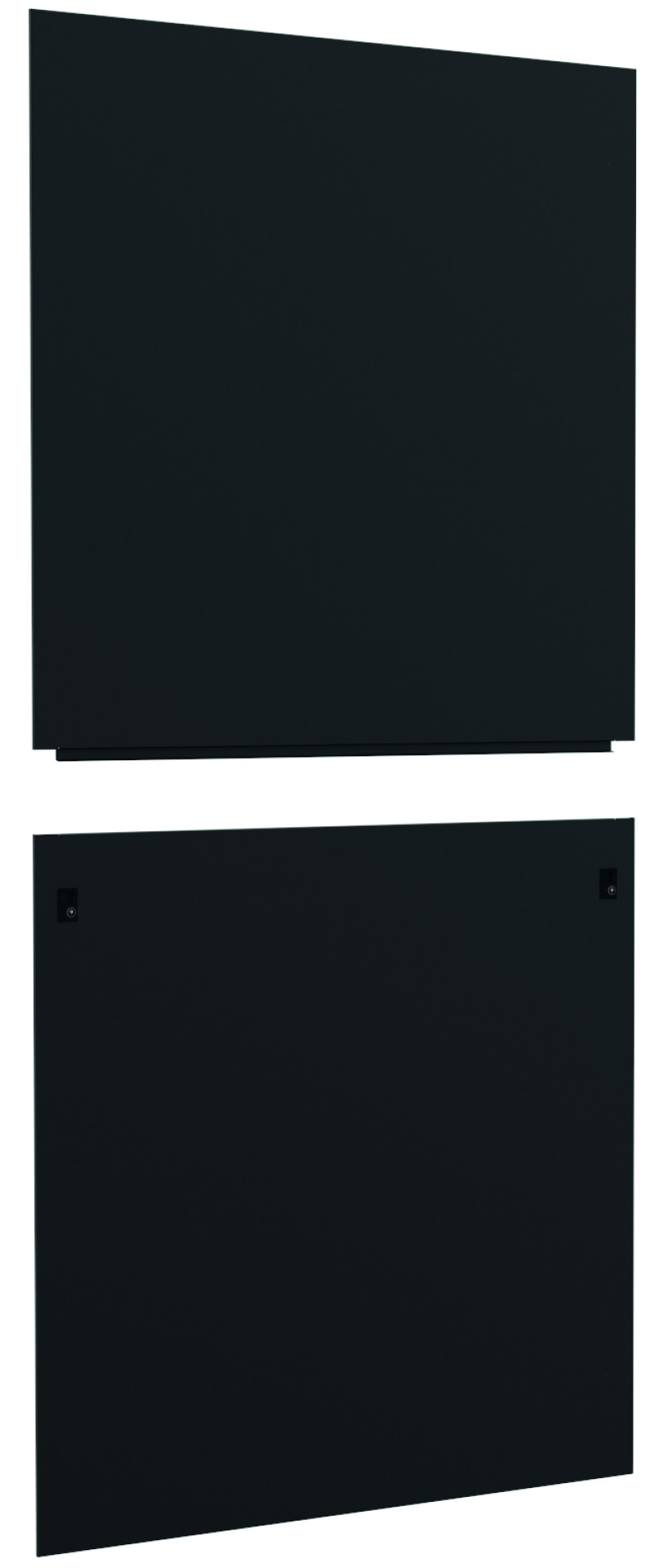

Side wall type A:
- horizontally divided
- enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
- not suitable for use with line-up connectorsSide wall type B:
- horizontally divided
- enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- cabinet width increases by 3 mm per side

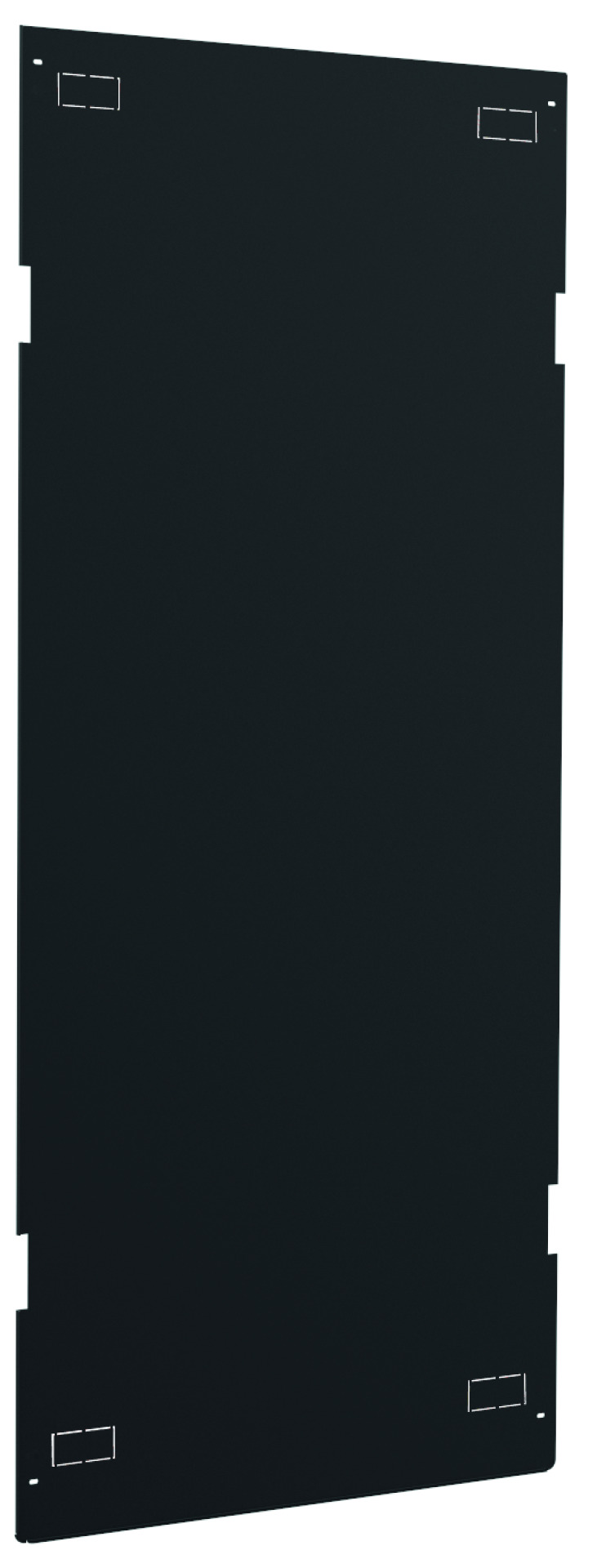

- not suitable for use with line-up connectorsPartition typ C/D:
- 1-part partition for mounting between lined-up cabinets
- suitable for use with line-up connectors ESV-ANR01
- with 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
- front and bottom bends for easy installation
- necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with leveling feet
Partition type D: for use at cabinets without levelling feet
Partition type E:- for mounting inside of the cabinet frame
- suitable for use with line-up connectors ESV-ANR02
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x side wall/partition incl. mounting acessories
Side wall type A:
- horizontally divided
- enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
- not suitable for use with line-up connectorsSide wall type B:
- horizontally divided
- enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- cabinet width increases by 3 mm per side
- not suitable for use with line-up connectorsPartition typ C/D:
- 1-part partition for mounting between lined-up cabinets
- suitable for use with line-up connectors ESV-ANR01
- with 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
- front and bottom bends for easy installation
- necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with leveling feet
Partition type D: for use at cabinets without levelling feet
Partition type E:- for mounting inside of the cabinet frame
- suitable for use with line-up connectors ESV-ANR02
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x side wall/partition incl. mounting acessories
Tekniske egenskaber
Cabinet Series: | EFB-Server |
---|---|
Material: | Steel |
Suitable as rear panel: | False |
Suitable as side panel: | True |
Surface finishing: | Powder coating |
Varianten
Art. Nr. | Bezeichnung | Type | Number of height units | Colour | Suitable for enclosure building depth | RAL-number | With cable entry | With lock | |
---|---|---|---|---|---|---|---|---|---|
ESV-W420A.GR | Side Wall for ESV 42U, D=1000 mm, Type A, RAL7035 | Door opening 270° | 42 U | grey | 1000 mm | 7035 | False | True | |
ESV-W420B.GR | Side Wall for ESV 42U, D=1000 mm, Type B, RAL7035 | PDU in W=600 mm | 42 U | grey | 1000 mm | 7035 | False | True | |
ESV-W420C.GR | Side Wall for ESV 42U, D=1000 mm, Type C, RAL7035 | Partition w/o feet | 42 U | grey | 1000 mm | 7035 | True | False | |
ESV-W420D.GR | Side Wall for ESV 42U, D=1000 mm, Type D, RAL7035 | Partition with feet | 42 U | grey | 1000 mm | 7035 | True | False |
