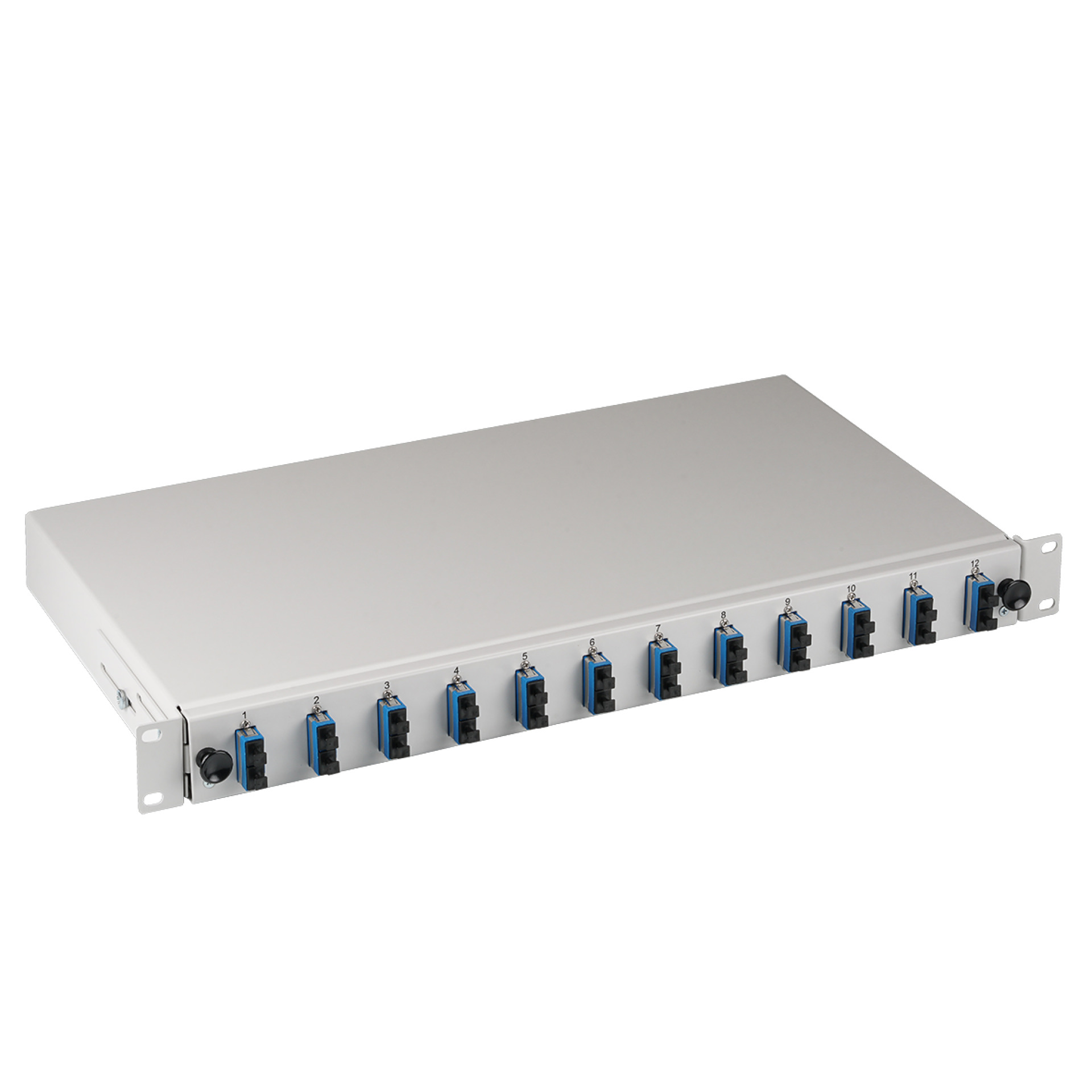

Splice box SC 9/125µ OS2 extendable
Splice box gy sliding SC OS2 24x pigtail and 24x simplex adapter
Varenummer:
B71223L24
EAN-nr.:
4049759284367
Produktinformation til Splice box gy sliding SC OS2 24x pigtail and 24x simplex adapter

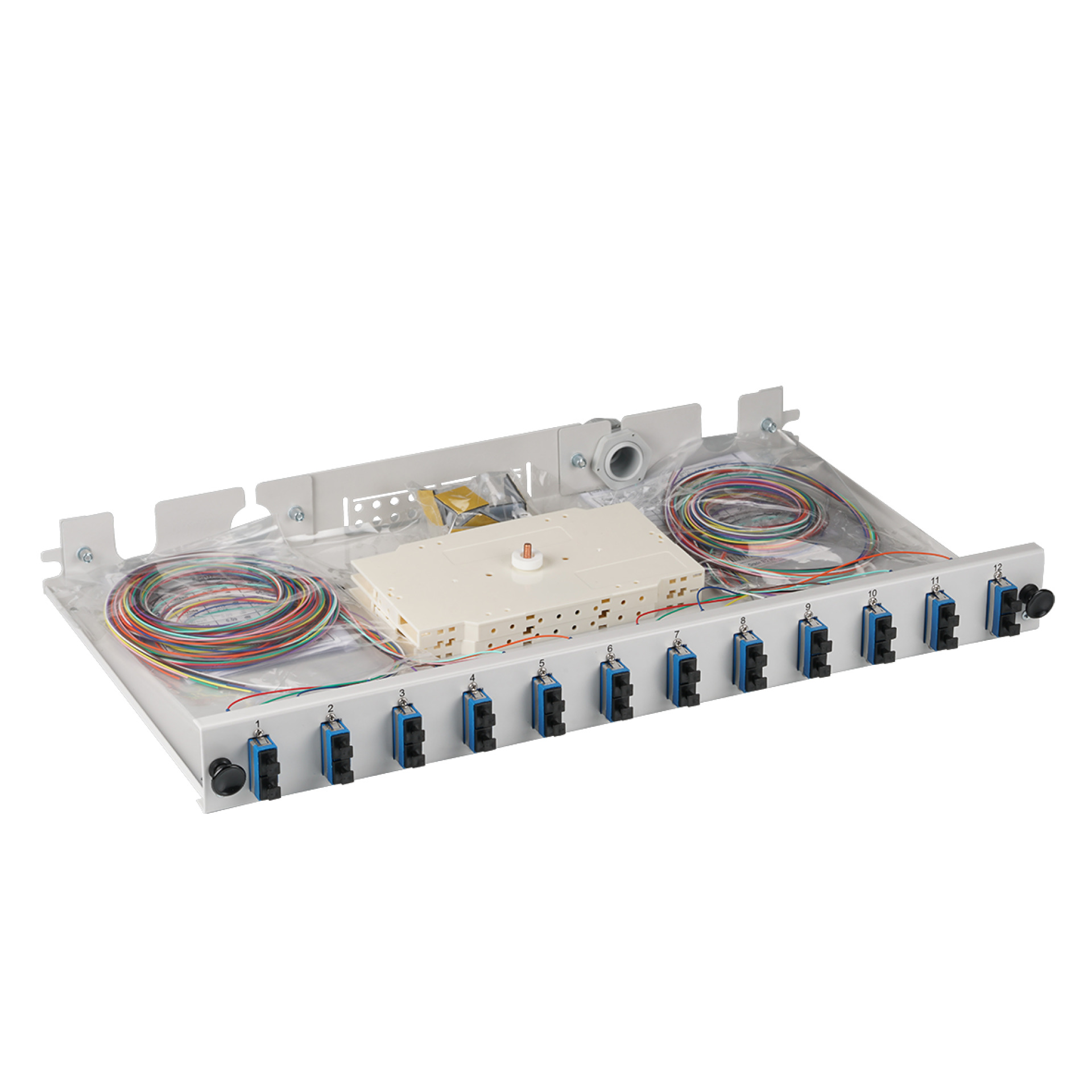

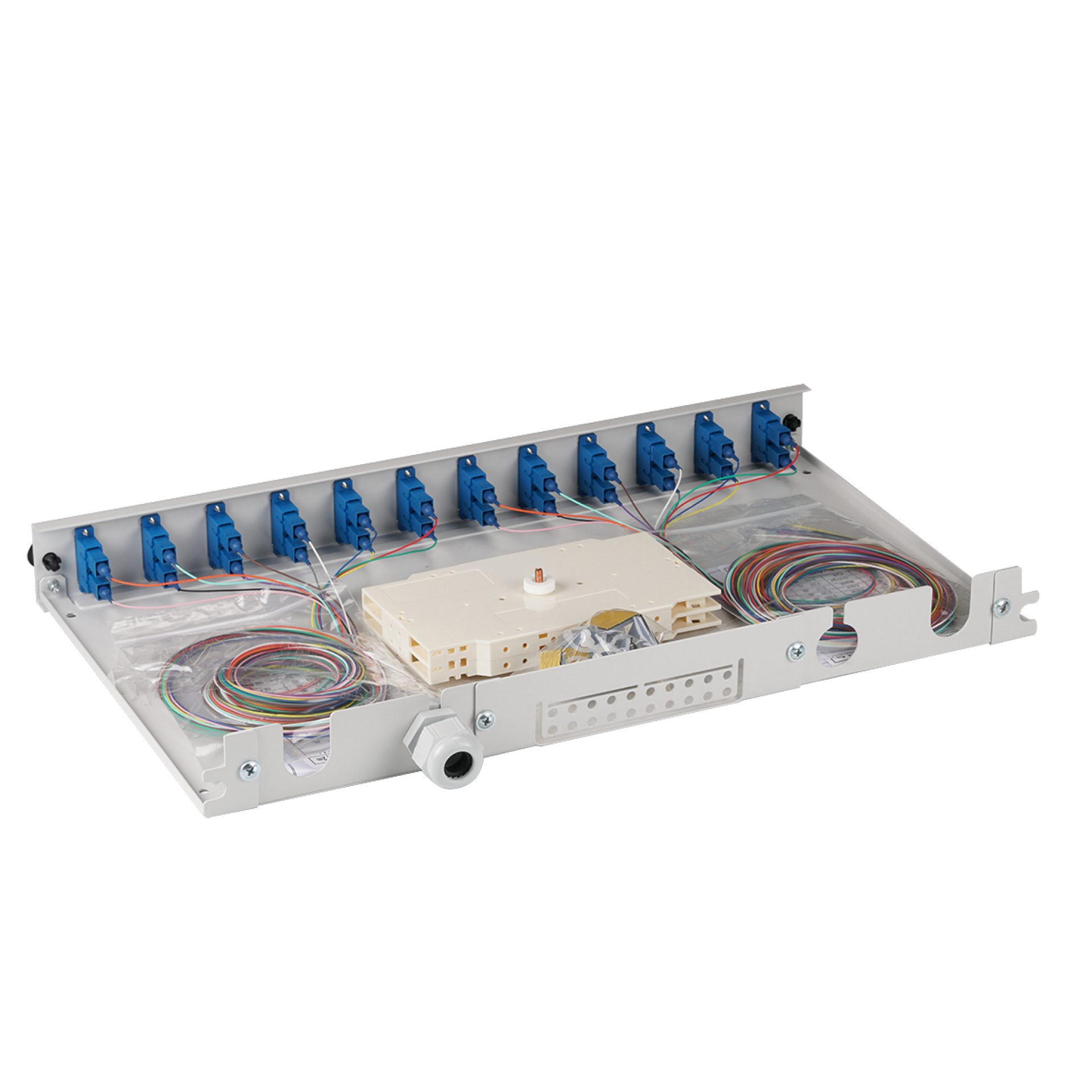

completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Tekniske egenskaber
| Adapter material: | plastic |
|---|---|
| Adapters: | SC-Duplex |
| Couplings (ferrule guide): | Ceramic |
| Depth: | 243 mm |
| Depth adjustment: | 40 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44 mm |
| Material: | Steel sheet |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 HE |
| Packaging: | EFB-Elektronik Carton |
| Pigtails prepared: | not stripped |
| Splice cassettes (capacity): | 4 |
| Splice cassettes (number): | 1 |
| Splice cassettes (number of splice holders): | 18 x crimp splice protection holder per splice cassette2 x shrink splice protection holder per splice cassette |
| Splice cassettes (splice holder capacity): | 2 per splice cassette |
| Splice holder (splice capacity):: | 1x Crimp/ANT = 12 splices1x Heatshrink = 6 splices |
| Splice holder (splice protection type): | Crimp/ANT (pre-assembled)Heatshrink (included) |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Width: | 482 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| ON | Label | Color | Suitable for number of couplings/adapters | Type of connector external | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Pigtail Coating material | Insertion loss 1625nm | Minimal bendung radius static | Pigtail colour | Pigtail Buffertype | Insertion loss 1550nm | Adapter colour | Pigtail diameter | Minimal bendung radius dynamic | Insertion loss 1310nm | Return loss1625nm | Scope of delivery | Return loss 1310nm | Pigtail length | Pigtail plug colour | Return loss 1550nm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B71223L12 | Splice box gy sliding SC OS2 12x pigtail and 6x duplex adapter | grey | 12 | SC-Duplex | 12 x SC | 6 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>6xadapter, 6xadapter dummy, <br>12xpigtail+Test protocol, 1xsplice cassette+cover+screw, 1xcrimp splice protector holder, 2xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB | |
| B71223L24 | Splice box gy sliding SC OS2 24x pigtail and 24x simplex adapter | grey | 12 | SC-Duplex | 24 x SC | 12 | 7035 | SC-Duplex | LSZH | ≤0.25 dB | 10xD | DIN | Loose-Buffered | ≤0.25 dB | blue | 0.9 mm | 20xD | ≤0.25 dB | ≥50 dB | 19'' splice box extendable with frontpanel and<br>12xadapter, 24xpigtail+Test protocol, 2xsplice cassette+cover+screw, 2xcrimp splice protector holder, 4xheat shrink splice protection holder<br>6xself adhesive fiber tray, 1xM20 | ≥50 dB | 2 m | blue | ≥50 dB |
