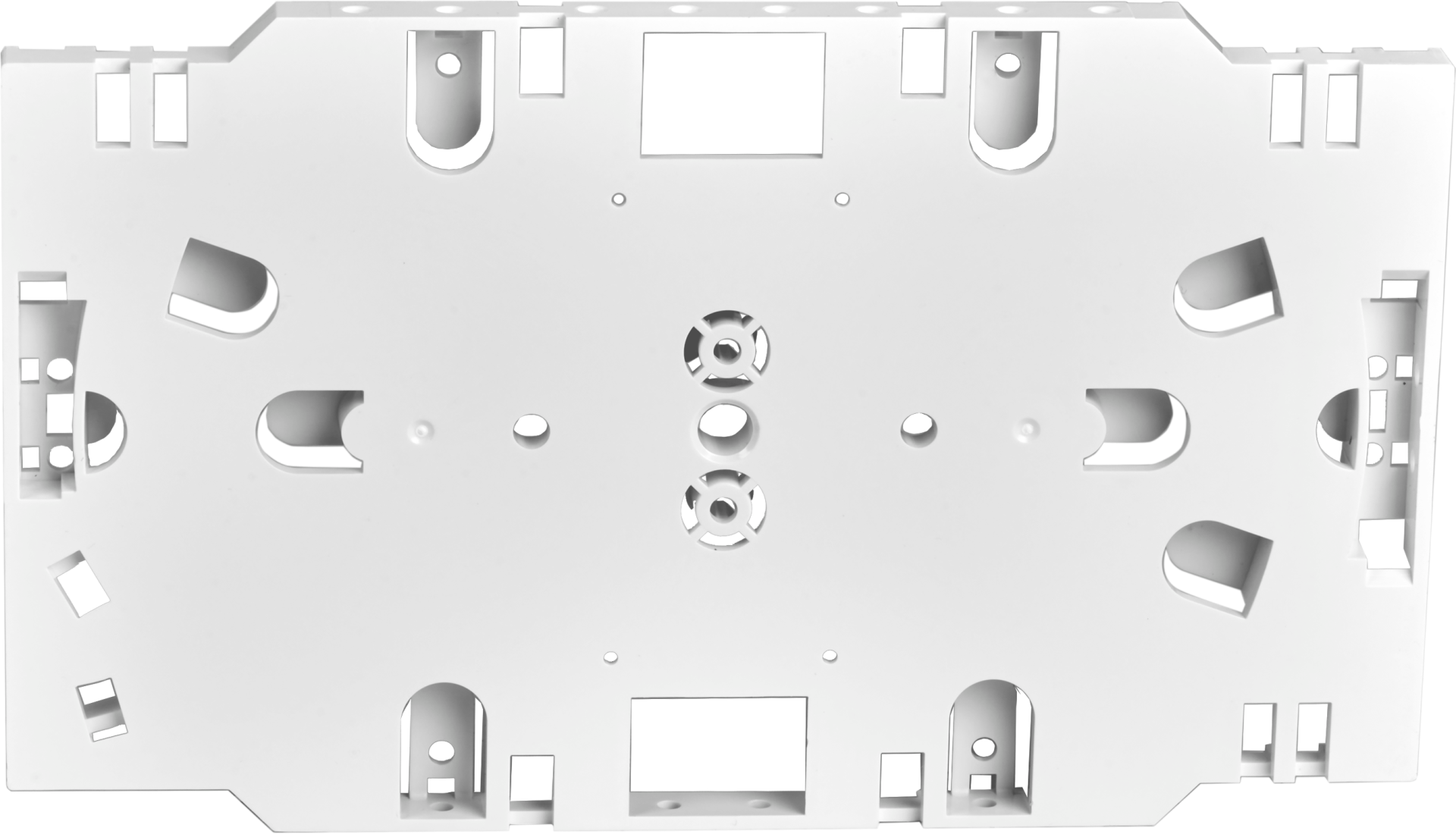

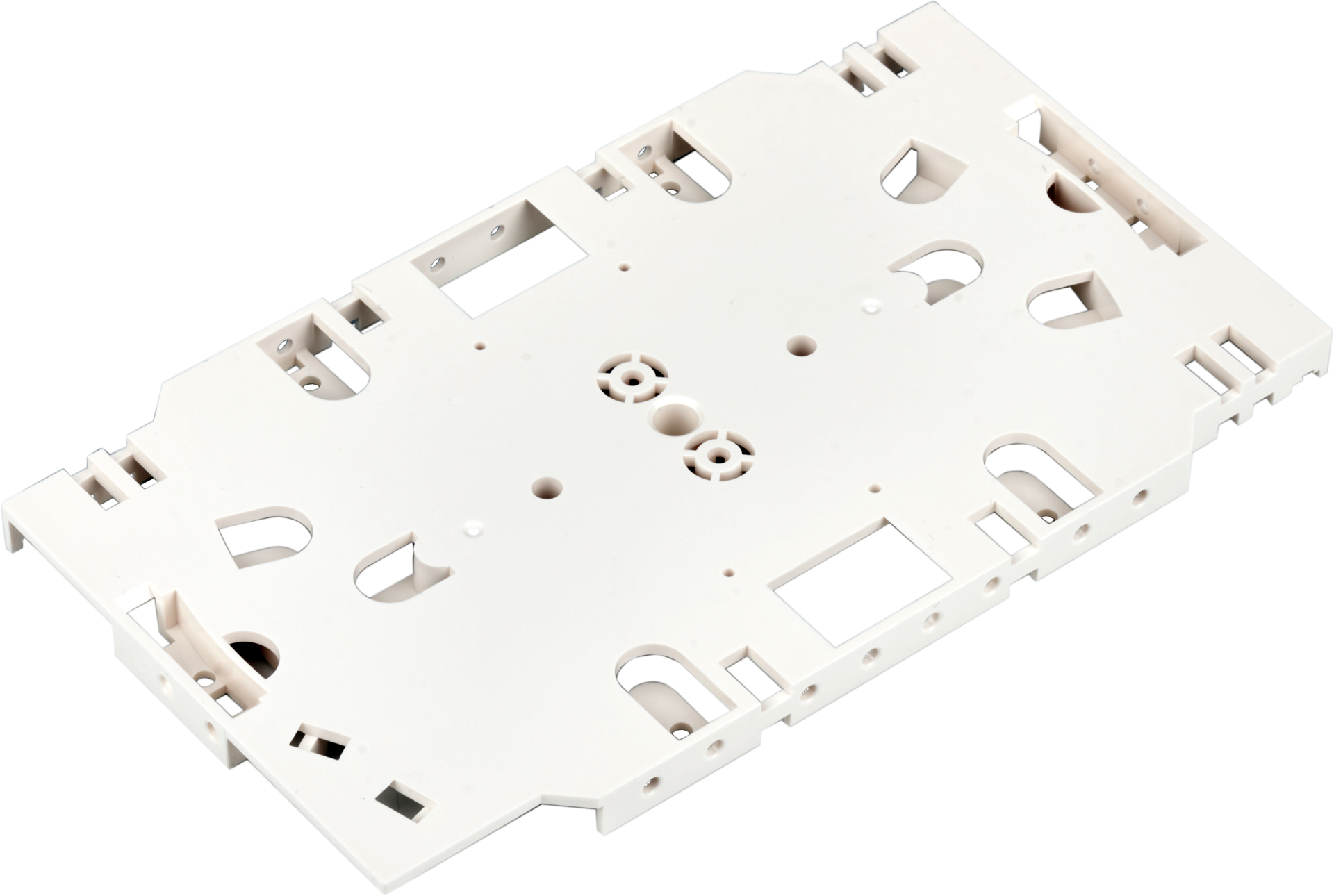

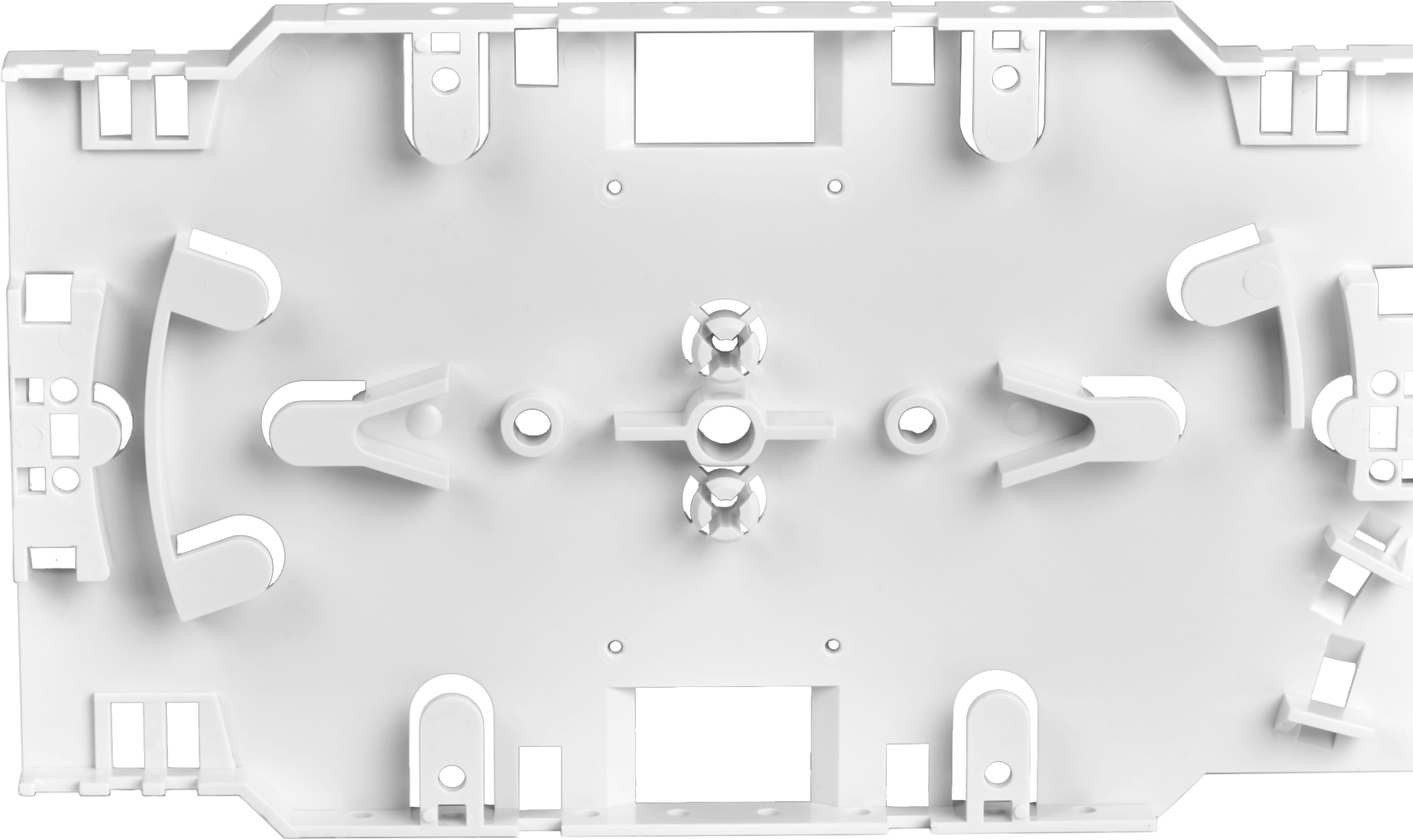

Splice Cassette for 2 x Splice Holder

Splice cassette w/o Logo white
Varenummer: 53100.200
EAN Nr.: 4049759023249

Produktinformation til Splice cassette w/o Logo white

Plastic housing RAL9010, white
For holding 2 splice holders
2 crimp splice holders each for 12 splices or 2 shrink splice holder each for 6 splices
Stackable
Delivery without cover and splice holder

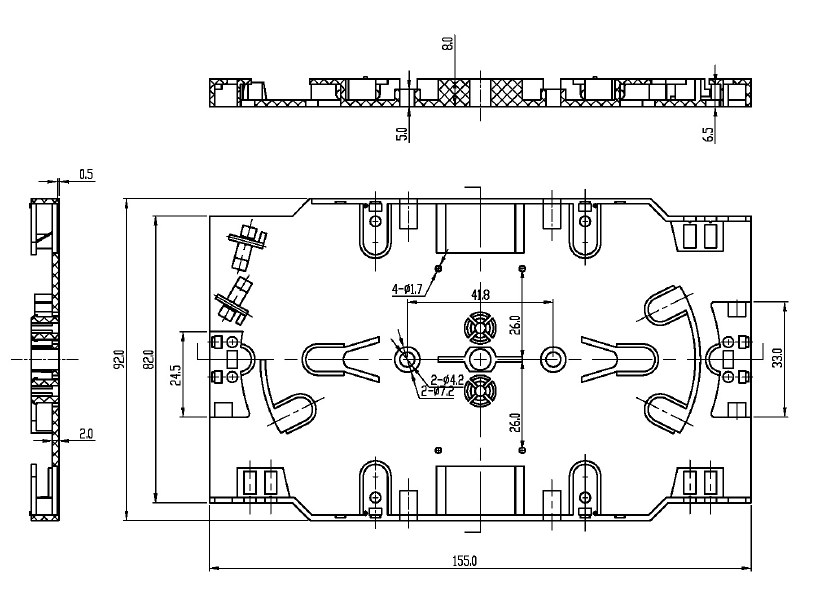

Dimensions: 155 x 92 x 8 mm

Tekniske egenskaber

Height: 8.0 mm
Length: 92.0 mm
Mounting method: Stud bolt
Suitable for: crimping/thermo
Suitable for number of splice holders: 2
Width: 155.0 mm
With splice holder: False
