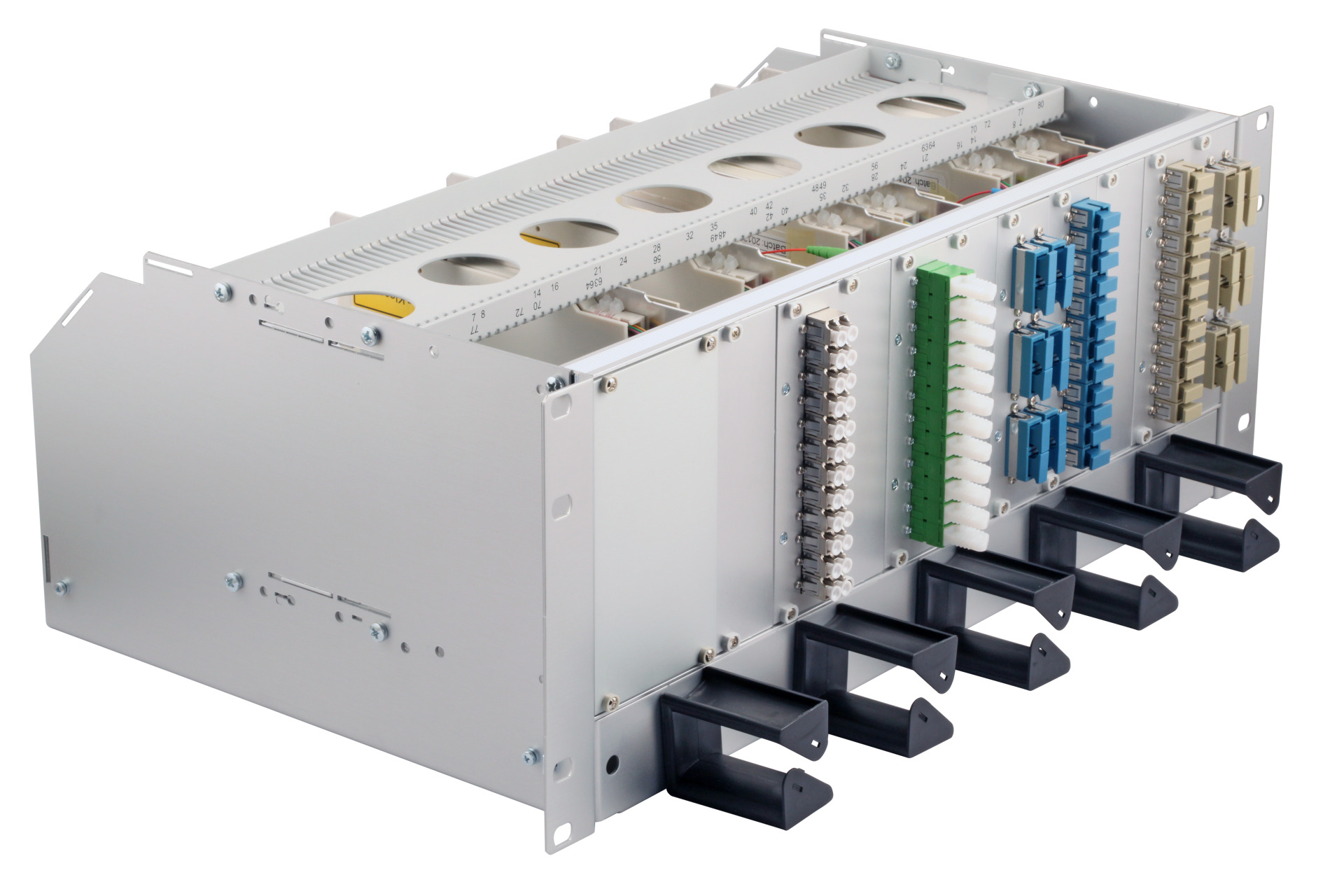

Subrack 19", 4U, 84TE
Subrack 4U 84TE/3U Incl. 1U Cable Overlength Box
Varenummer:
53711.1
EAN Nr.:
4049759072032
Produktinformationen für Subrack 4U 84TE/3U Incl. 1U Cable Overlength Box
19“/3U subrack with 84DU
Additional integrated 1U cable overlength box
Total height: 4U
4U aluminium side walls for installation in 19“ rack
84DU depth adjustable subrack with 1DU splitting (1DU=5,08mm)
DU numbert for bettere overview
Cable overlength box to the back/front sliding unit

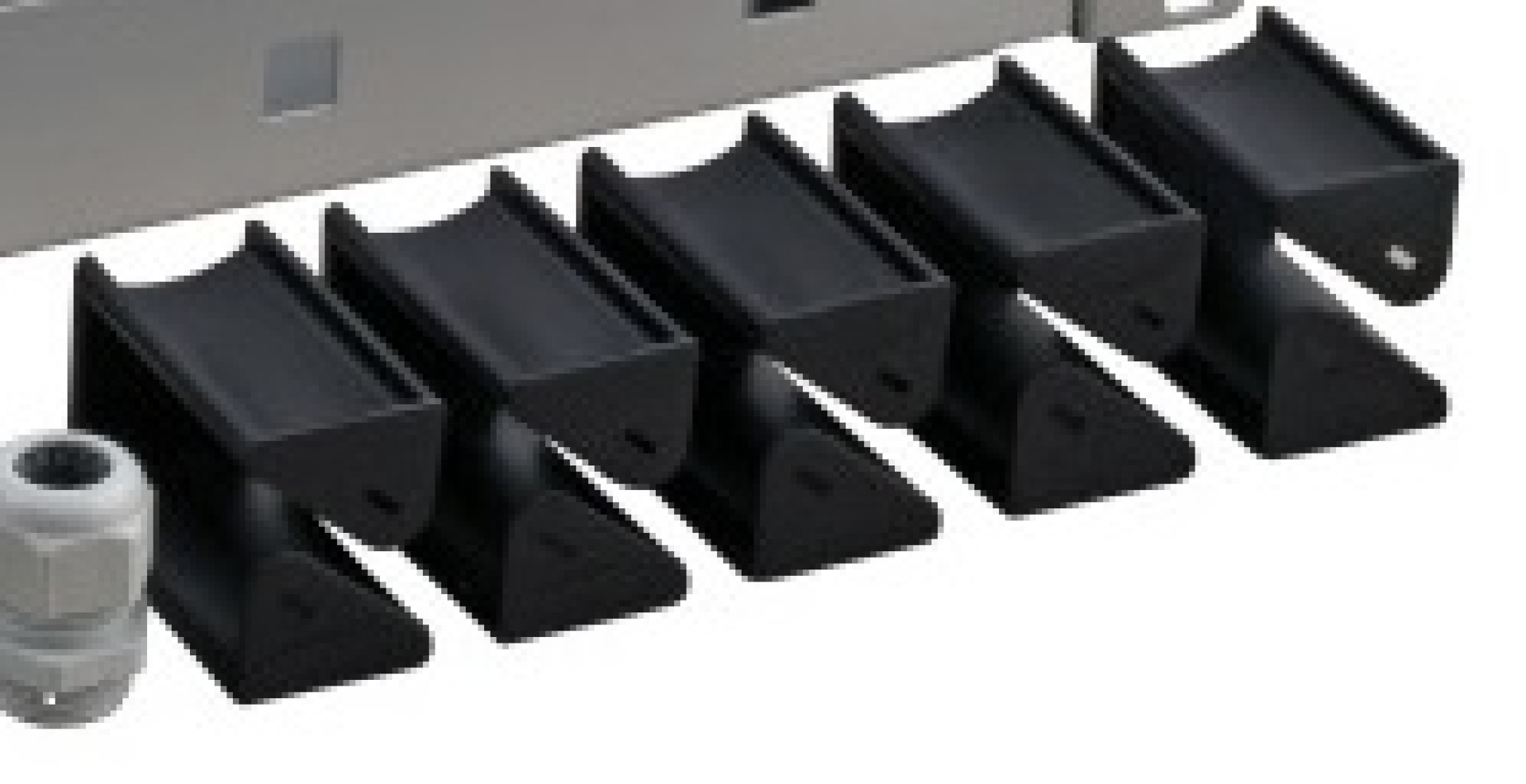

Front mounted cable routing panel with 5 cable brackets
Delivery unequipped
Scope of delivery: 1 x subrack mounted
1 x PG16 cable gland incl. locknut
5 x cable brackets

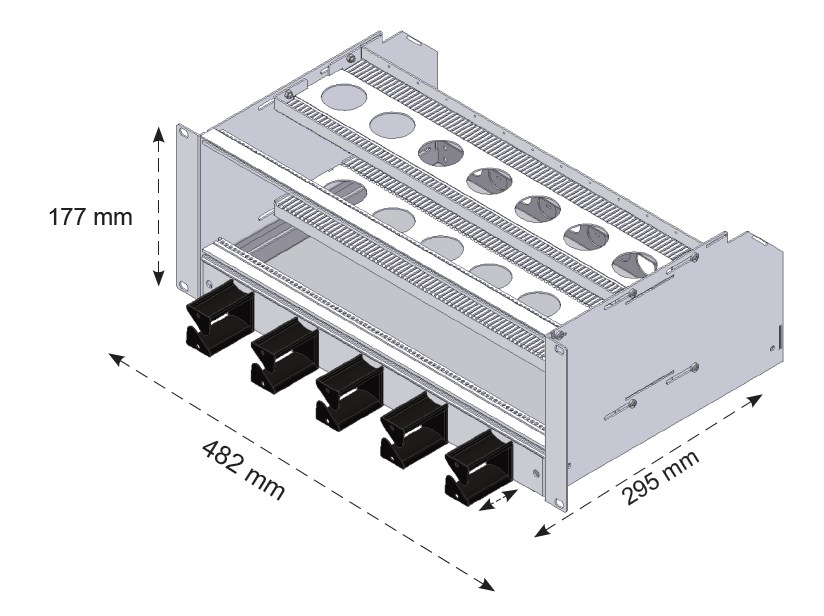

Dimensions: 483 x 178 x 295 mm
Additional integrated 1U cable overlength box
Total height: 4U
4U aluminium side walls for installation in 19“ rack
84DU depth adjustable subrack with 1DU splitting (1DU=5,08mm)
DU numbert for bettere overview
Cable overlength box to the back/front sliding unit
Front mounted cable routing panel with 5 cable brackets
Delivery unequipped
Scope of delivery: 1 x subrack mounted
1 x PG16 cable gland incl. locknut
5 x cable brackets
Dimensions: 483 x 178 x 295 mm
Technische Eigenschaften
| Degree of protection: | IP20 |
|---|---|
| Depth: | 295 mm |
| Height: | 177.8 mm |
| Material: | Thermoplastic |
| Operating Temperature: | - – - °C |
| Rail mounting possible: | False |
| Side-by-side housing: | False |
| Surface finishing: | With powder coating |
| Type of enclosure: | Open |
| Wall mounting possible: | False |
| Width: | 483 mm |
| With integrated PCB-mounting connection system: | False |
| With screening: | False |
| With ventilation slots: | True |
