SVGA/HDTV Anschlusskabel

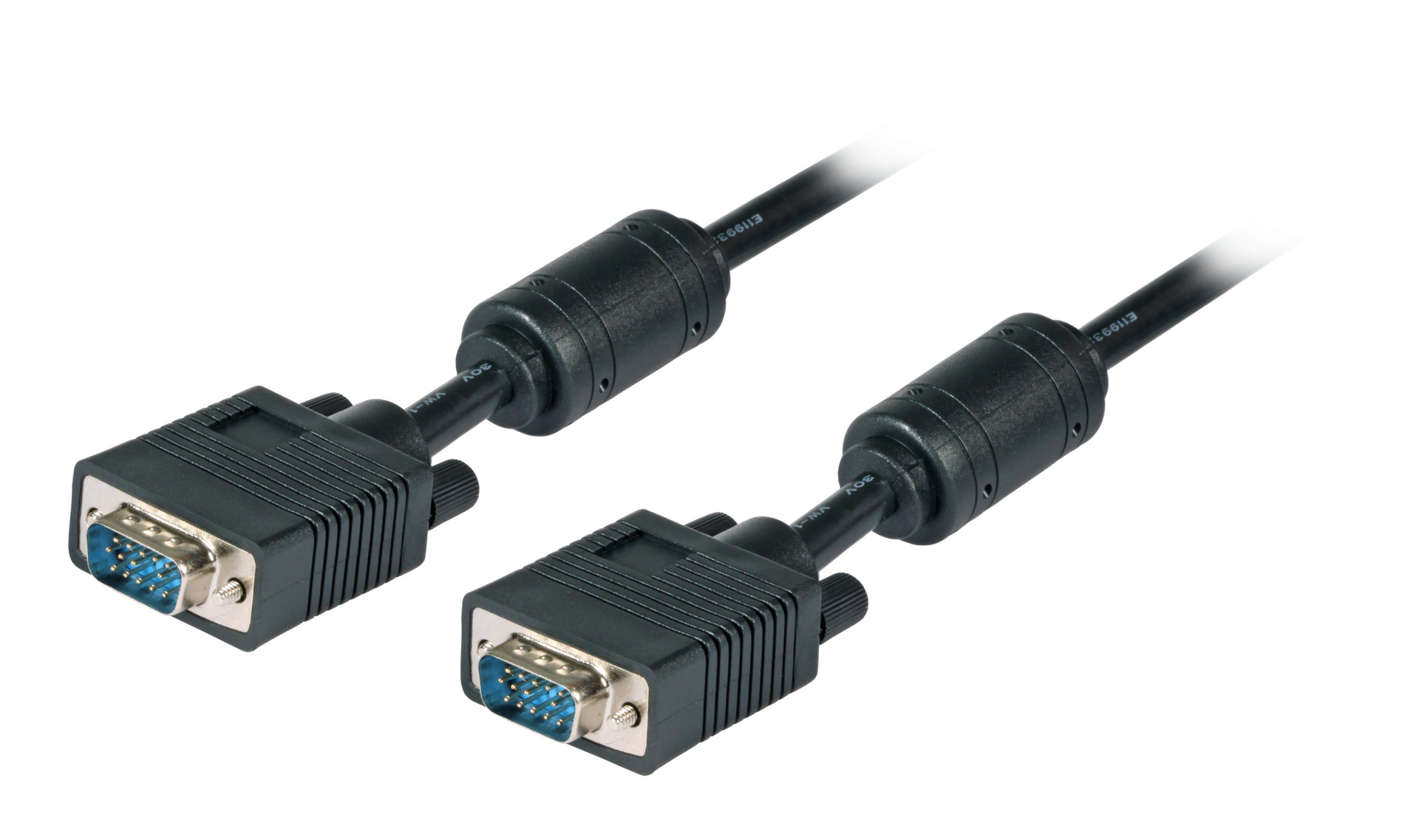

SVGA/HDTV Anschlusskabel, 2x HD-DSub 15, St.-St., 15,0m, schwarz
Varenummer:
K5326SW.15V2
EAN Nr.:
4049759253158
Produktinformation til SVGA/HDTV Anschlusskabel, 2x HD-DSub 15, St.-St., 15,0m, schwarz
Dieses Kabel ist mit der Coax, Folien und Geflecht- Schirmung besonders hochwertig gegen äußere Störeinflüsse geschützt.
Vergoldete Stecker und Kontakte
75 Ohm, doppelt geschirmt, mit 2 x Ferritkernen
Mit Rändelschrauben, vergossen, schwarz
Leitung: 3 x Koax RGB und 5 x Steuerleitungen
Vergoldete Stecker und Kontakte
75 Ohm, doppelt geschirmt, mit 2 x Ferritkernen
Mit Rändelschrauben, vergossen, schwarz
Leitung: 3 x Koax RGB und 5 x Steuerleitungen
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 12 Mbit/s |
| Beding radius (dynamic/static): | 25,4 mm |
| CEC: | False |
| Cable set: | True |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Color depth: | 8-Bit |
| Compliant with: |
Gaming Monitor Laptop Monitor Webcams |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | Nickel-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | SPCC |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 12 Mbit/S |
| Max. mating cycles: | 500 |
| Model: | Round Cable |
| Number of poles connection 1: | 15 |
| Number of poles connection 2: | 15 |
| Number of shieldings: | triple |
| Operating temperature: | -5 – 45 |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 34.0*15.8*45.7mm |
| Plug dimensions Side 2: | 34.0*15.8*45.7mm |
| Printing: | STYLE 2919 80℃ 30V VW-1 VGA Cable |
| Scope of delivery: | 1 x VGA Cable |
| Shielded: | True |
| Supported video standards: | 1920x1200 |
| Temperature: | -20 – 60 |
| Tensile strength (short/long): | 39,2 N |
| Type of connector connection 1: | VGA DBHD15 |
| Type of connector connection 2: | VGA DBHD15 |
| Type of packaging: | plastic bag |
| Type of signal: | Analog |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1*1.8m |
| Warranty: | 12 months |
| With termination resistor: | False |
| eARC: | False |
