Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2

Priser kun synlige for indloggede brugere

Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 10m
Varenummer: O8303L10OS2
Piece

Produktinformation für Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 10m

EFB sets standards in high quality

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with LC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

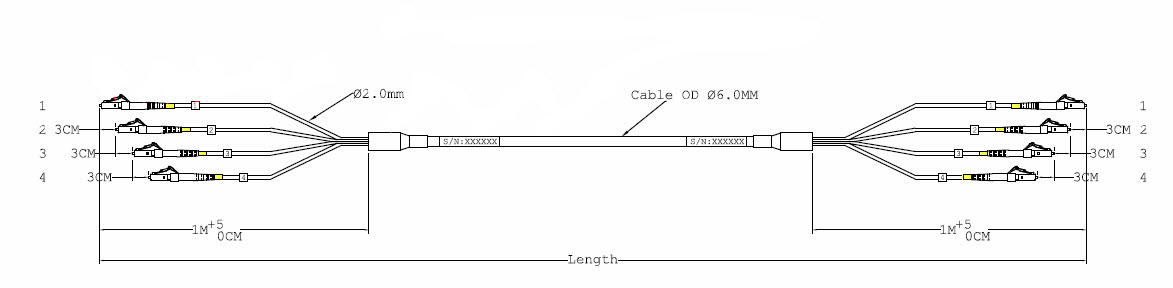

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided
Delivery on both sides with fabric hose as drawing-in tube

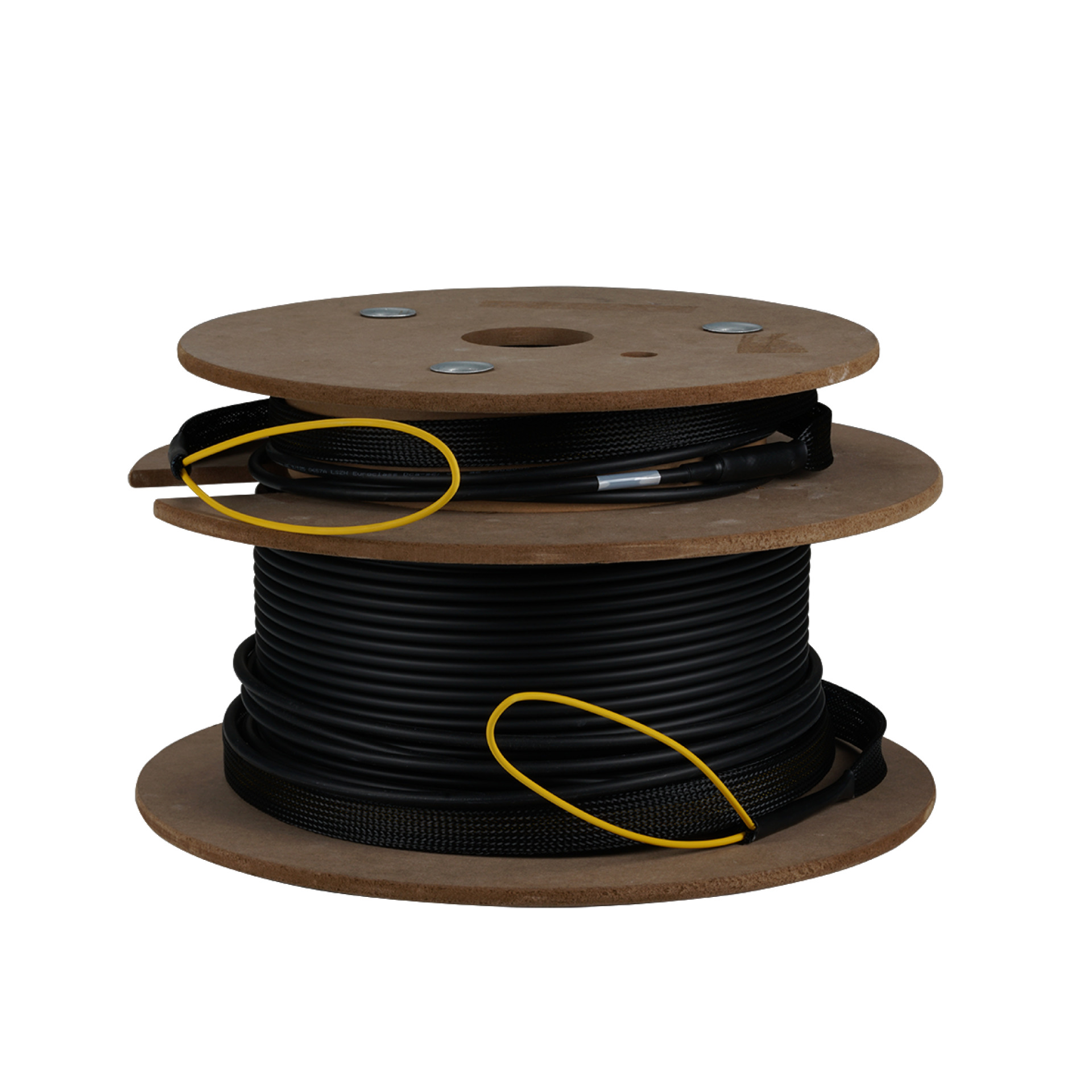

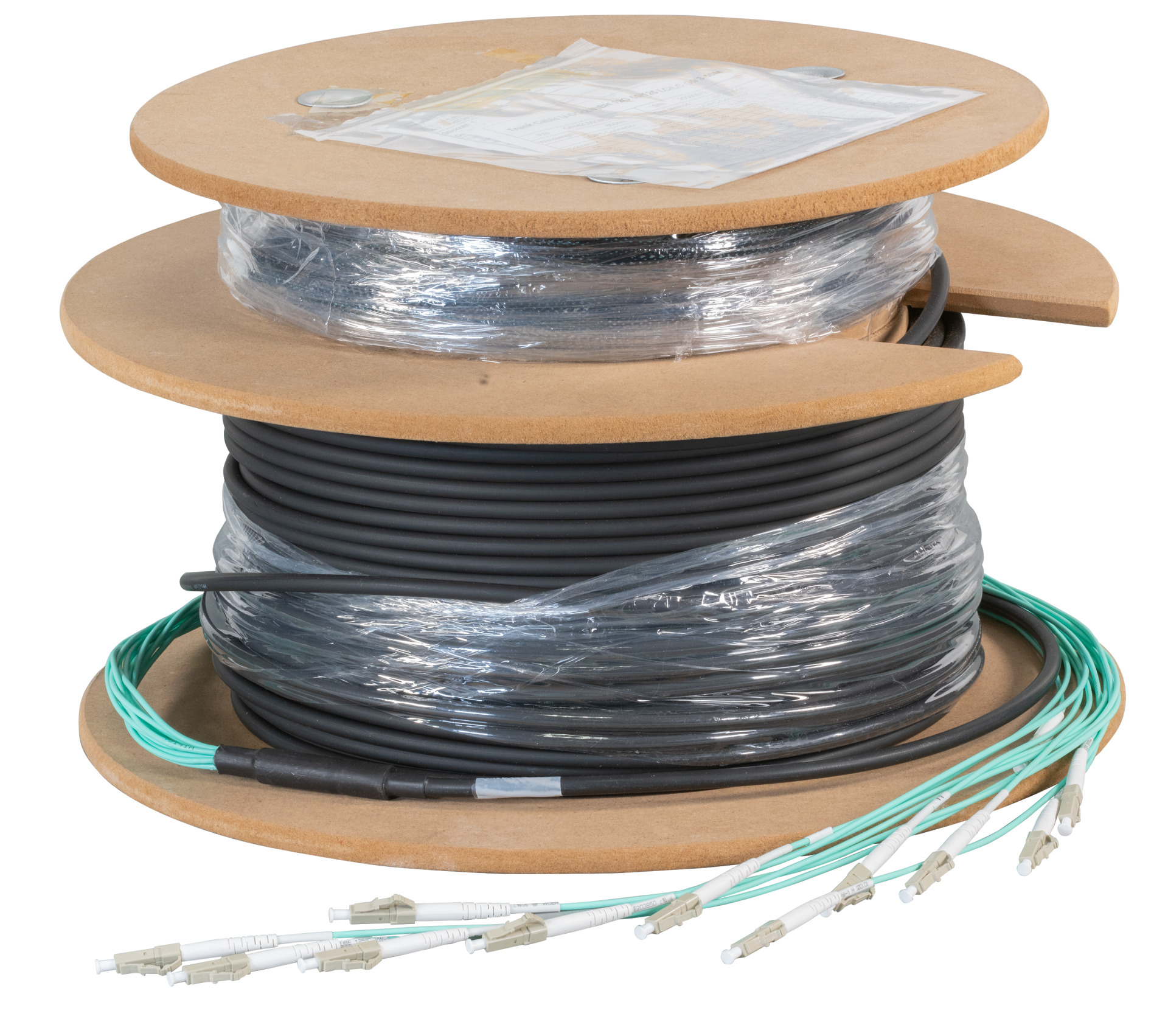

Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca

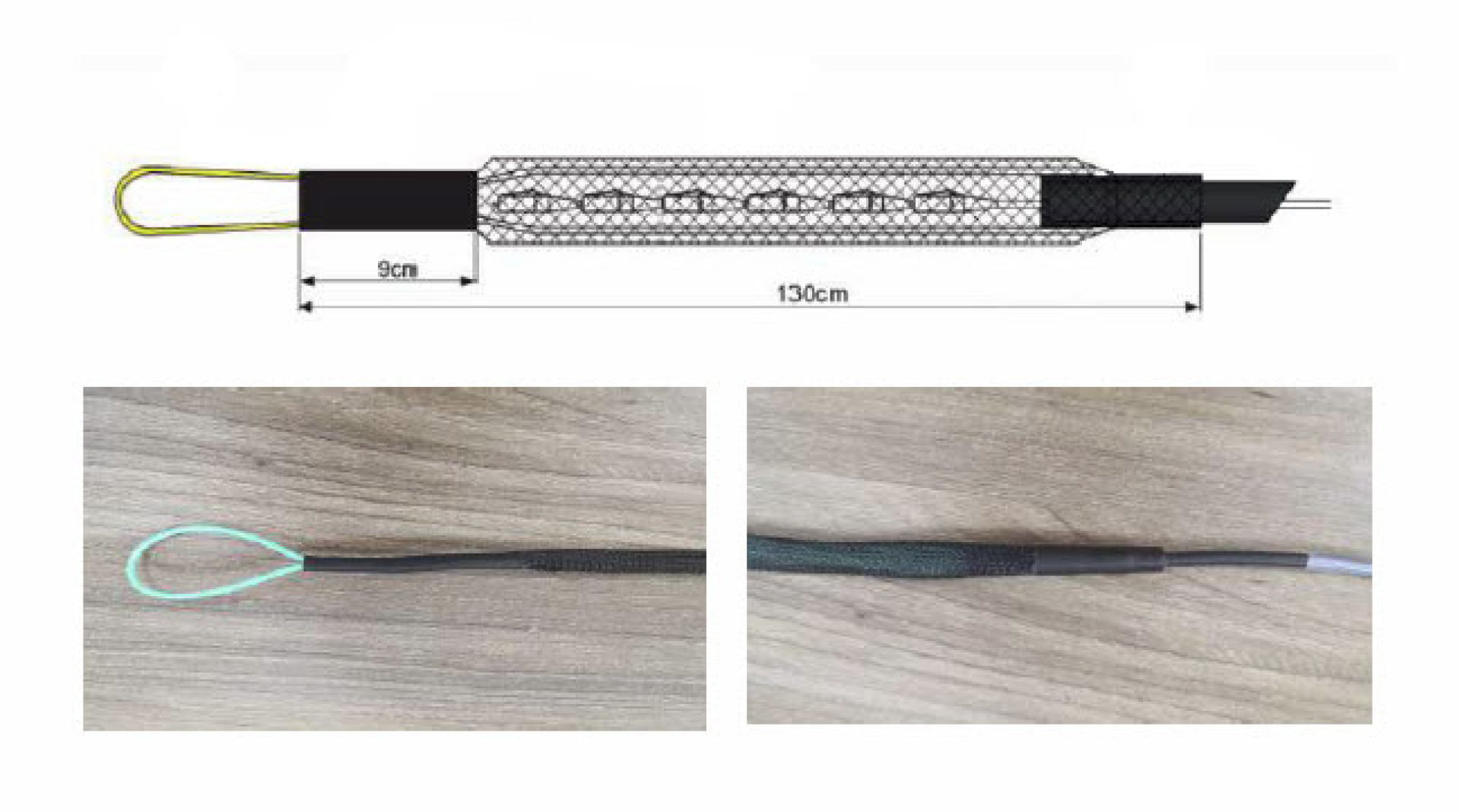

Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

Tekniske egenskaber

APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: no
Cable Conform to Standard: IEC 60793-2
Cable Construction: Multifiber
Cable type: U-DQ (ZN) BH
Cable Ø: 6.0 mm
Category: OS2 acc. to ITU-T G.652.D
Colour outer sheath: black
Connector Conform to Standard: IEC 61754-20
Connector colour 1: blue
Connector colour 2: blue
Dimension Cable divider: 11.5 x 50 mm
Fiber type: Single mode 9/125
Insertion loss 1310nm: < 0.3 dB
Jacket material: LSZH
Max. Tension: 200 N
Min. Bending radius (Dynamic): 180 mm
Min. Bending radius (Static): 90 mm
Number of fibres: 4
Operating Temperature: 0 – 50 °C
Quality class singlemode: B/2 acc. IEC 61753-1
Storage Temperature: -20 – 70 °C
Type of connector connection 1: 4 x LC
Type of connector connection 2: 4 x LC

Varianter

Art. Nej. Betegnelse Length Length tolerance
O8303L10OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 10m 10.0 m ±5 %
O8303L40OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 40m 40.0 m ±5 %
O8303L90OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 90m 90.0 m ±5 %
O8303L140OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 140m 140.0 m ±5 %
O8303L170OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 170m 170.0 m ±5 %
O8303L180OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 180m 180.0 m ±5 %
O8303L190OS2 Trunk cable U-DQ(ZN)BH 4E 9/125, LC/LC OS2 190m 190.0 m ±5 %

necessary tools

M20 Cable Glands grey, RAL7035
PG16 Cable Glands conical grey, RAL7035

main product

Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM2
