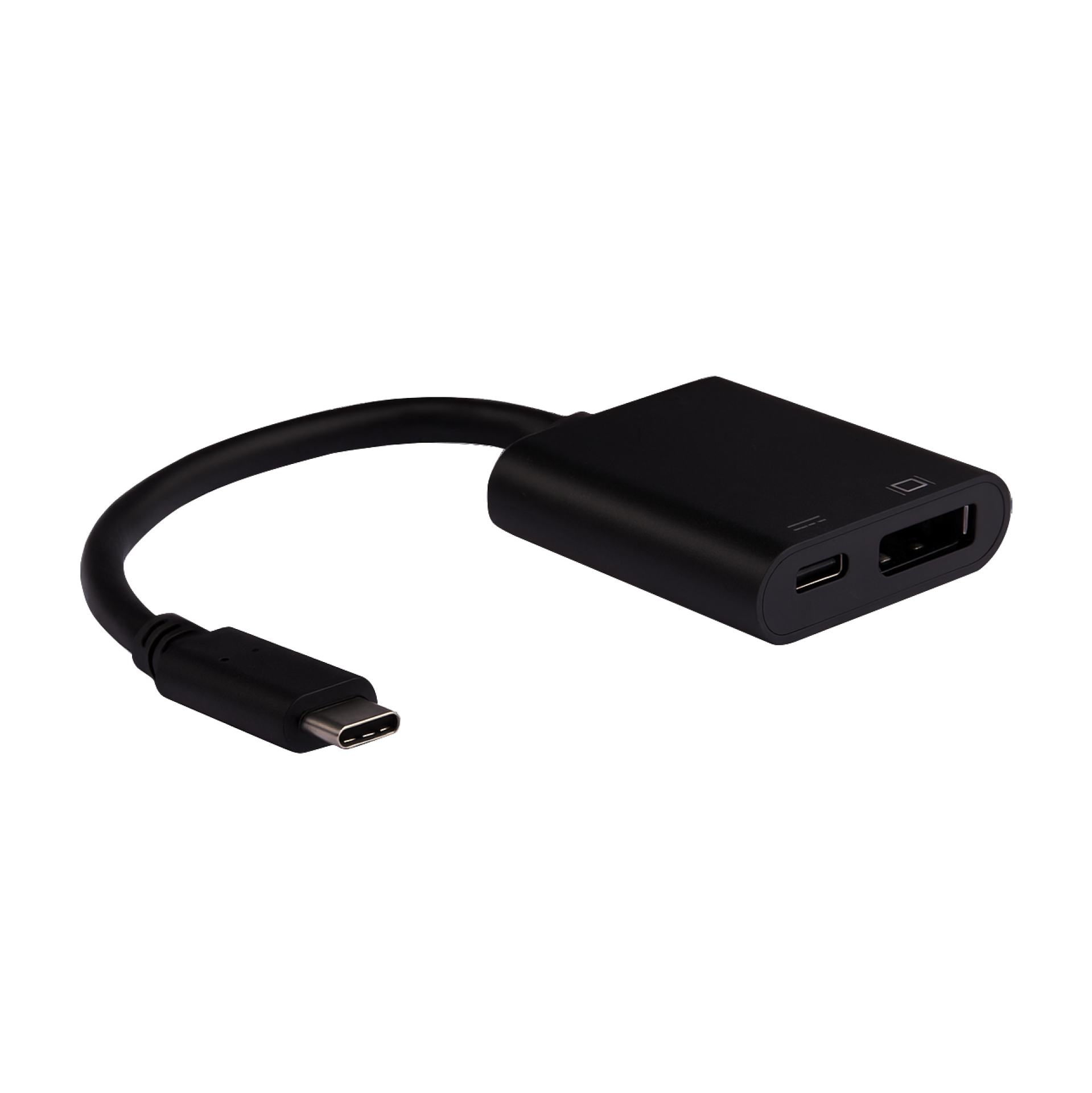

USB Type-C - DP1.2 Adapter, 4K60Hz, with Type-C Charging Port
USB Type-C - DP1.2 Adapter, 4K60Hz with Type-C PD Port, black
Varenummer:
EBUSBC-DP-4K60PD-SW
EAN-nr.:
4049759268961
Produktinformation til USB Type-C - DP1.2 Adapter, 4K60Hz with Type-C PD Port, black
With the USB Type-C to DisplayPort adapter (DP Alternate mode) you can connect a monitor with a DisplayPort port to the Type-C port of your PC / laptop / tablet.
With additional Type-C charging port for charging of devices up to 60W
Supports DisplayPort 1.2 alternate mode
Supports DisplayPort resolution up to 4kx2k @ 60Hz
Supports data rates per channel of 5.4 Gbit / s (HBR2), 2.7 Gbit / s (HBR) and 1.62 Gbit / s (RBR)
Thunderbolt3 compatible
USB bus powered (no external power supply)
With additional Type-C charging port for charging of devices up to 60W
Supports DisplayPort 1.2 alternate mode
Supports DisplayPort resolution up to 4kx2k @ 60Hz
Supports data rates per channel of 5.4 Gbit / s (HBR2), 2.7 Gbit / s (HBR) and 1.62 Gbit / s (RBR)
Thunderbolt3 compatible
USB bus powered (no external power supply)
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 21.6 Gbit/s |
| Bending radius (dynamic/static): | 39 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | active |
| Chip: | True |
| Color depth: | 12-Bit |
| Compliant with: | TV, Monitor, Smartphone, Tablet, Gaming monitor, Laptop |
| Compressions technologies: | Dolby TrueHD |
| Connection type connection 1: | jack |
| Connection type connection 1b: | Jack |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | nickel-plated |
| DSC: | False |
| Dust cover: | True |
| Enhanced Color: | HighDynamicRange |
| Fast Charging technologie: | PD 3.0 |
| HDMI Power: | False |
| HDMI certified: | False |
| HDR: | HDR |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | ABS |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 10000 |
| Max. resolution: | 4K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 1b: | 20 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | triple |
| Operating temperature: | 0 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 25mm x 12.2mm x 6.4mm |
| Plug dimensions Side 2: | 43mm x 40mm x 11.5mm |
| Power Delivery: | 100 W |
| Scope of delivery: | 1x USB-C to DP+USB-C PD adapter |
| Shielded: | True |
| Speed: | 21,6 Gbit/s |
| Storage Temperature: | -10 – 55 °C |
| Supported protocols / functions: | DP Alternate Mode |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 29,4 N |
| Thunderbolt compatible: | Thunderbolt 3 |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 1b: | DP |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | DP1.2 |
| Warranty: | 12 months |
| With termination resistor: | True |
| eARC: | False |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
