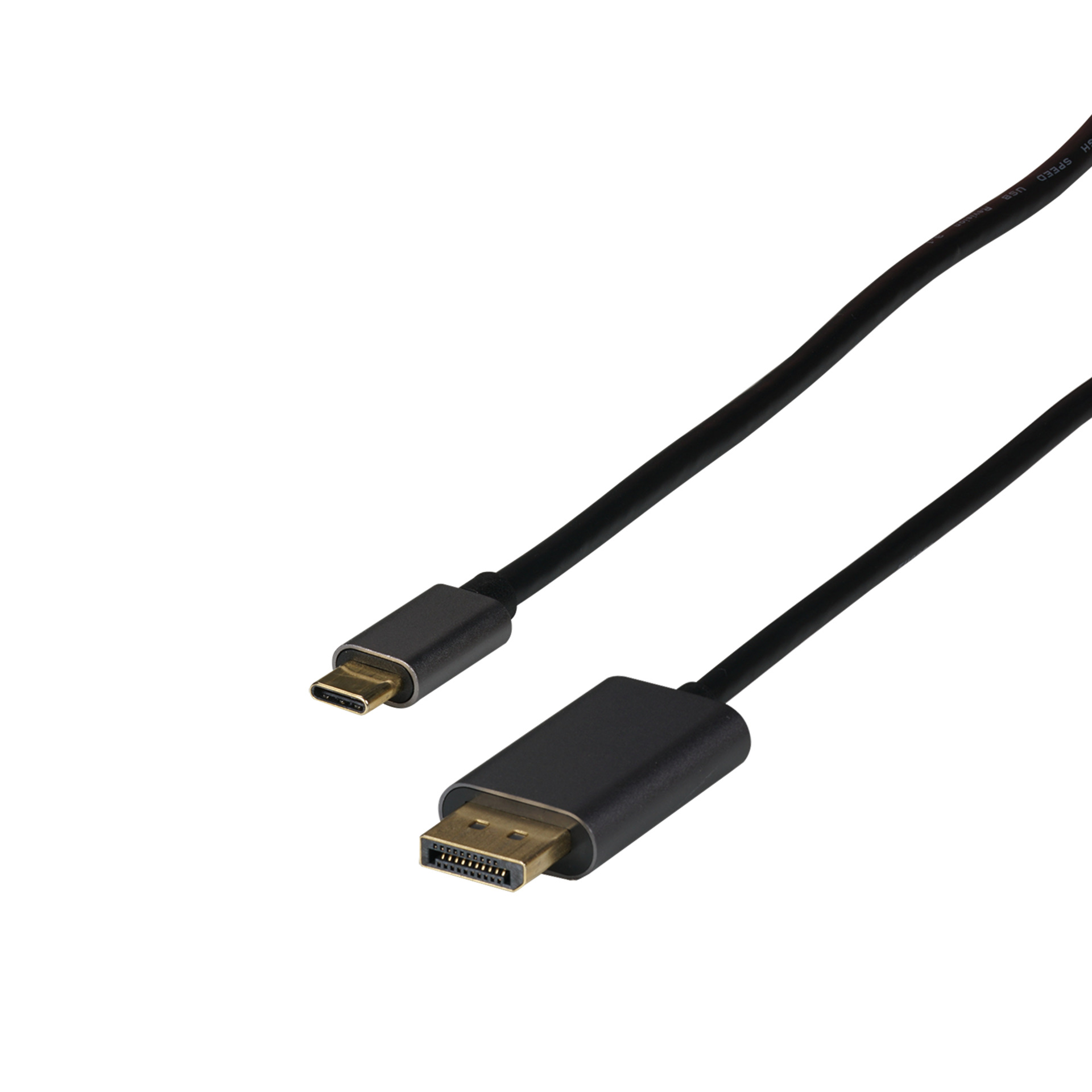

USB Type-C - DP1.2 Cable, 4K60Hz
USB Type-C - DP1.2 Cable, USB Type-C male- DP20 male, 4K@60Hz, 2m
Varenummer:
EBUSBC-DP12K.2
EAN-nr.:
4049759272029
Produktinformation til USB Type-C - DP1.2 Cable, USB Type-C male- DP20 male, 4K@60Hz, 2m
Typ C to DisplayPort connection cable for connection between a USB Type-C device like PC/Notebook/Tablet to a HDMI display
Supports DP1.2 with max 4K/60Hz resolution
Support RGB/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Supports Deep Color format: 6bit，8bit，10bit
HDR bypass
HDCP bypass
Thunderbolt 3 compatible
Supports DP1.2 with max 4K/60Hz resolution
Support RGB/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Supports Deep Color format: 6bit，8bit，10bit
HDR bypass
HDCP bypass
Thunderbolt 3 compatible
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 21.6 Gbit/s |
| Beding radius (dynamic/static): | 42 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | active |
| Chip: | True |
| Color depth: | 12-Bit |
| Compliant with: | TV, Monitor, Smartphone, Tablet, Gaming monitor, Laptop |
| Compressions technologies: | Dolby TrueHD |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | Nickel-plated |
| DSC: | False |
| Dust cover: | true |
| Enhanced Color: | HighDynamicRange |
| HDMI Power: | False |
| HDMI certified: | False |
| HDR: | HDR |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | ABS |
| Material Inner Conductor: | TC |
| Material jacket: | TPE |
| Max. mating cycles: | 10000 |
| Max. resolution: | 4K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 20 |
| Number of shieldings: | triple |
| Operating temperature: | 0 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 22mm x 12.3mm x 6.3mm |
| Plug dimensions Side 2: | 41mm x 21mm x 12mm |
| Scope of delivery: | 1x USB-C to DP cable |
| Shielded: | True |
| Speed: | 21,6 Gbit/s |
| Storage Temperature: | -10 – 55 °C |
| Supported protocols / functions: | DP Alternate Mode |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 29,4 N |
| Thunderbolt compatible: | Thunderbolt 3 |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | DP |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | DP1.2 |
| Warranty: | 12 months |
| With termination resistor: | True |
| eARC: | False |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
