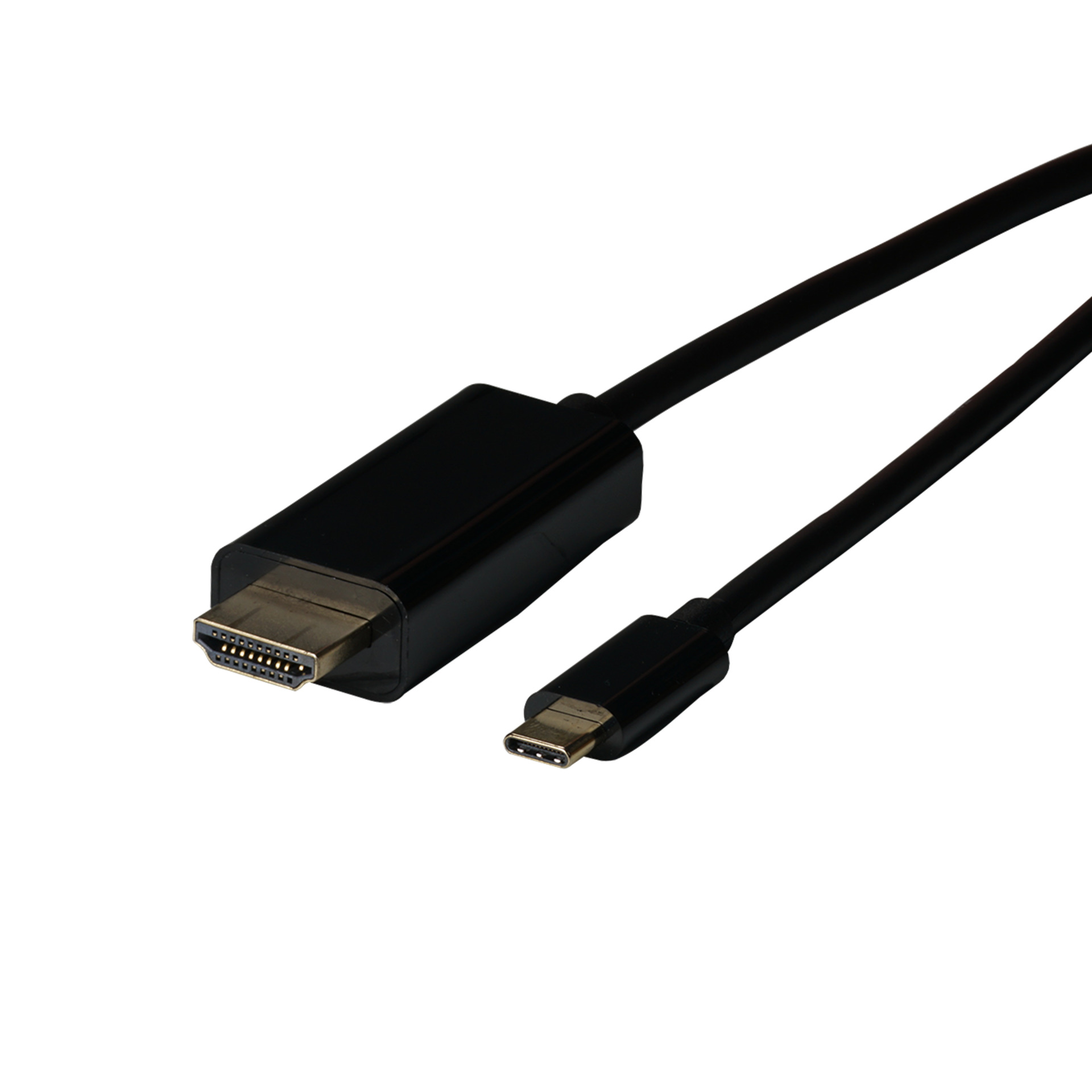

USB Type-C - HDMI Cable, 4K60Hz
USB Type-C - HDMI Cable, USB Type-C Plug - HDMI Plug, 4K@60Hz, 2m
Varenummer:
EBUSBC-HDMI-4K60K.2
EAN Nr.:
4049759271800
Produktinformation til USB Type-C - HDMI Cable, USB Type-C Plug - HDMI Plug, 4K@60Hz, 2m
Type-C to HDMI connection cable for connection between a USB Type-C device like PC/Notebook/Tablet to a HDMI display
Supports DP1.2/1.4 Alternate mode with max 4K/60Hz resolution
Support RGB/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0, Supports Deep Color format: 6bit，8bit，10bit, 12bit, HDR, HDCP
Thunderbolt 3 compatible
Supports DP1.2/1.4 Alternate mode with max 4K/60Hz resolution
Support RGB/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0, Supports Deep Color format: 6bit，8bit，10bit, 12bit, HDR, HDCP
Thunderbolt 3 compatible
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 12 mm |
| CEC: | False |
| Cable and plug compatibility: | Standard HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Compliant with: | USB Charger, USB PSU, Powerbank, Smartphone |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | true |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 19 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 27mm x12.5mm x 7mm |
| Plug dimensions Side 2: | 50.6mm x25.3mm x 12.6mm |
| Printing: | E519430 RU AWM STYLE 20276 80℃ 30V VW-1 |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -10 – 60 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | HDMI Type A |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
