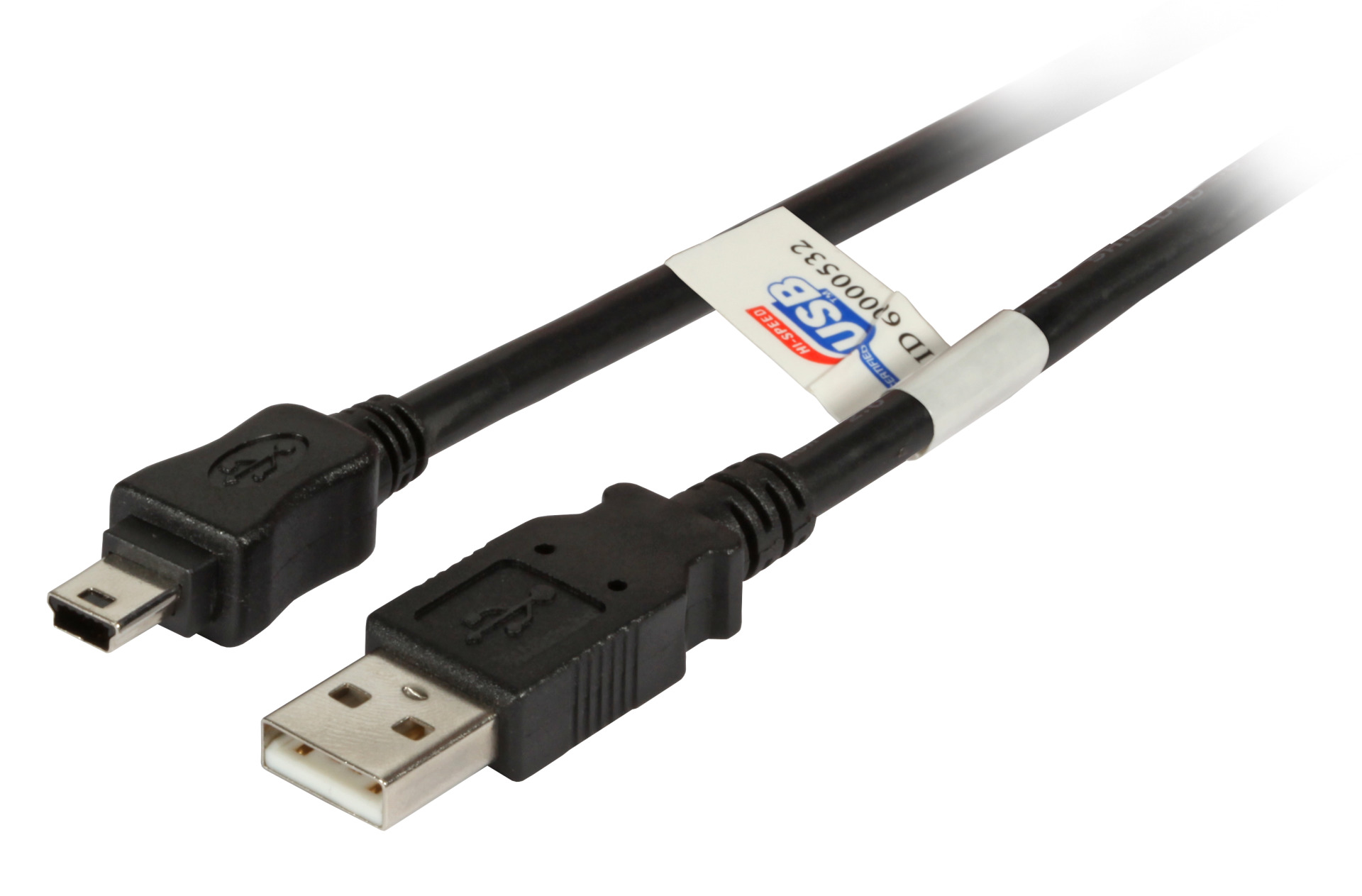

USB2.0 Anschlusskabel Stecker Typ-A auf Mini-Stecker Typ-B, Premium
USB2.0 Anschlusskabel A-Mini B (5polig), St.-St., 0,5m, schwarz, Premium
Varenummer:
K5251SW.0,5
EAN Nr.:
4049759063238
Produktinformation til USB2.0 Anschlusskabel A-Mini B (5polig), St.-St., 0,5m, schwarz, Premium
Für Datenübertragungsraten bis zu 480 Mbit/s. Leitermaterial: Kupfer. Leiterdurchmesser: AWG28 / AWG20. Schirmung: Folie + 80% Geflechtschirm. Umspritzte Stecker, PVC Mantel.
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 50 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | Digital camera,MP3 player,PDA,Mobile hard drive,Card Reader |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 480 Mbit/s |
| Max. mating cycles: | 1500 |
| Model: | Round Cable |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 5 |
| Number of shieldings: | double |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 17mm x 12mm x 4.5mm |
| Plug dimensions Side 2: | 23.5mm x 6.8mm x 3mm |
| Printing: | HI-SPEED USB Revision 2.0 SHIELDED 28AWG/1PR+20AWG/2C VW-1 80°C 30V |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB Mini-B |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 2 x 0.5m |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
