USB3.0 Connection Cable A-Micro-B, M-M, 1.0 m, black, Classic
USB3.0 Connection Cable A-Micro-B, M-M, 1.0 m, black, Classic
Varenummer:
K5295SW.1
EAN Nr.:
4049759106652
Produktinformation til USB3.0 Connection Cable A-Micro-B, M-M, 1.0 m, black, Classic

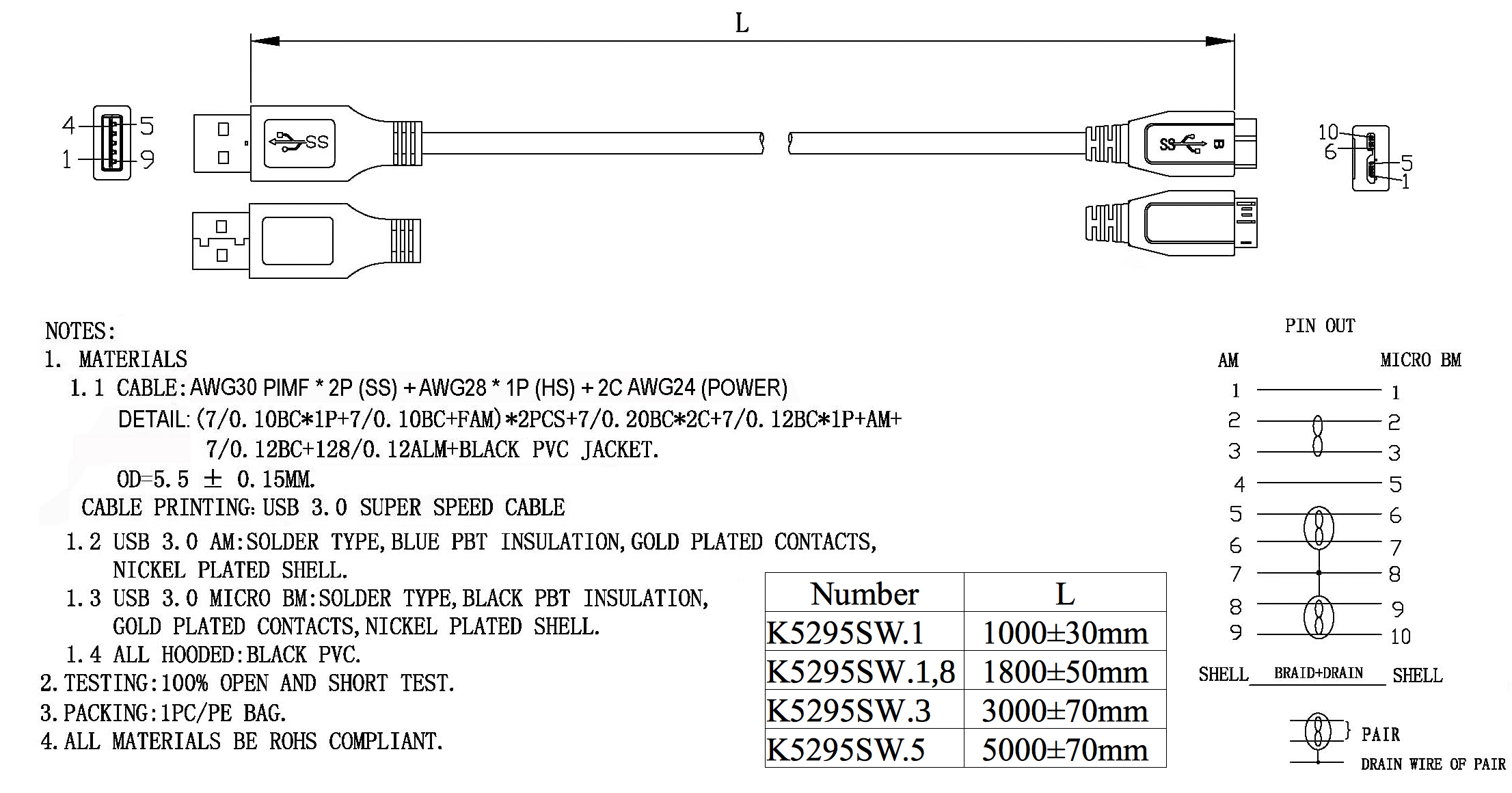

Für Datenübertragungsraten bis zu 5 Gbit/s. Leitermaterial: Kupfer. Leiteraufbau: AWG32 / AWG28 (1,0 m) und AWG30 / AWG24 (1,8 - 5,0 m). Schirmung: Folie + Geflecht. Umspritzte Stecker, PVC Mantel.
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 5 Gbit/s |
| Beding radius (dynamic/static): | 12 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Compliant with: | USB Charger, USB PSU, Powerbank, Smartphones |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| Fast Charging technologie: | PD 3.0 |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | IEC60754-2 |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 5 Gbit/s |
| Max. mating cycles: | 50000 |
| Model: | Round Cable |
| Number of poles connection 1: | 9 |
| Number of poles connection 2: | 9 |
| Number of shieldings: | double |
| Operating temperature: | 0 – 50 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 36.45mm x 11.8mm x 4.15mm |
| Plug dimensions Side 2: | 21.35mm x 13.1mm x 3.30mm |
| Plug imprint: | EFB Logo, PD Logo, 1M, USB 3.0 logo |
| Power Delivery: | 5 W |
| Printing: | USB 3.0 SUPER SPEED CABLE CE WWW.EFB-ELEKTRONIK.DE |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Storage Temperature: | -20 – 60 °C |
| Supported protocols / functions: | USB OTG |
| Tensile strength (short/long): | 107,9 N |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-B |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 3.0 SuperSpeed |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
