VGA Verlängerungskabel

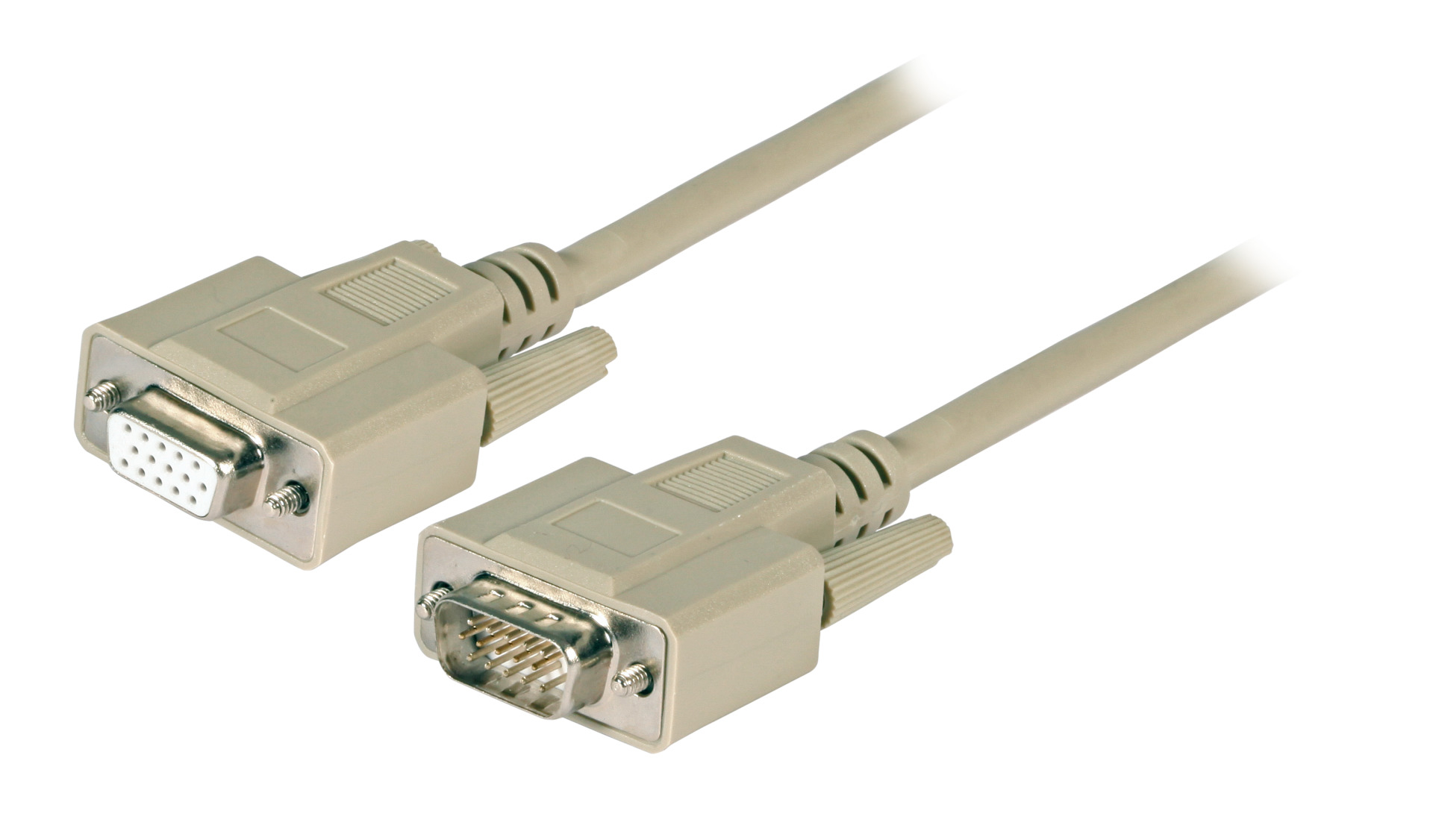

VGA Verlängerungskabel, 2x HD-DSub 15, St.-Bu., 3,0m, beige
Varenummer:
EK322.3
EAN Nr.:
4049759052812
Produktinformation til VGA Verlängerungskabel, 2x HD-DSub 15, St.-Bu., 3,0m, beige
1:1 geschaltet
Geschirmt
Vergossen
Farbe beige
Mit Rändelschrauben
Auf Anfrage auch in Schwarz lieferbar
Geschirmt
Vergossen
Farbe beige
Mit Rändelschrauben
Auf Anfrage auch in Schwarz lieferbar
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 60 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | Video Conference,Monitoring system,Testing and measuring equipment |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 500 |
| Model: | Round Cable |
| Number of poles connection 1: | 15 |
| Number of poles connection 2: | 15 |
| Number of shieldings: | single |
| Operating temperature: | -10 – 60 |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 30.85mm x 12.55mm x 16.92mm |
| Plug dimensions Side 2: | 30.85mm x 12.55mm x 16.4mm |
| Scope of delivery: | 1 x VGA Cable |
| Shielded: | True |
| Temperature: | -10 – 50 |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | VGA DBHD15 |
| Type of connector connection 2: | VGA DBHD15 |
| Type of packaging: | plastic bag |
| Type of signal: | Analog |
| VESA certified: | False |
| VRR: | False |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
