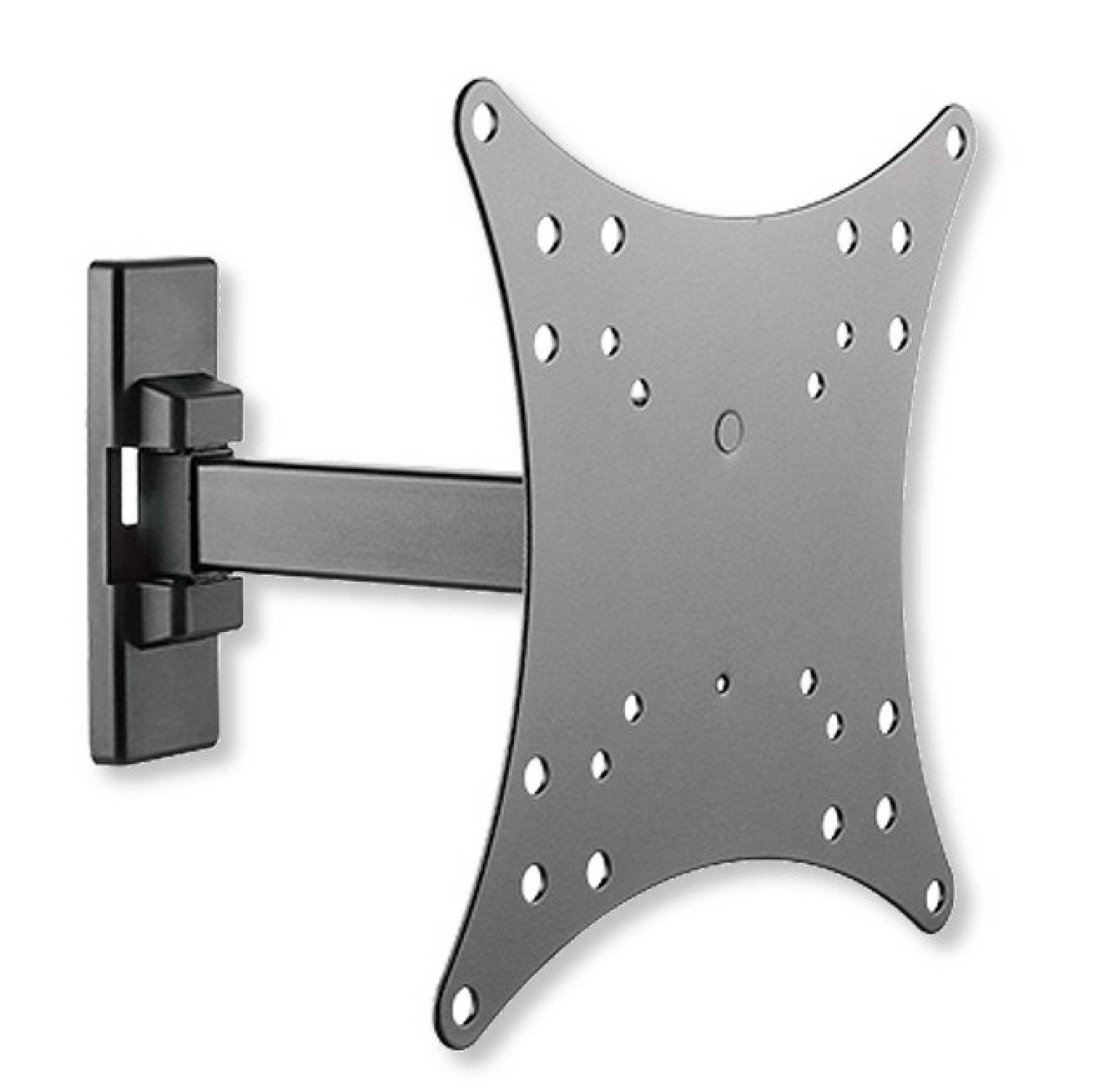

Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black

Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black
Varenummer: ICA-LCD-2901E
EAN Nr.: 8051128100860
Stück
Als Kunde einloggen
Beskrivelse

Produktinformationen für Wall bracket for 1 LCD TV LED 23"-42" 2 joints, black

  • Universal bracket for fixing a LED / LCD TV to the wall; Easy and fast to install, is ideal for home, office and commercial applications


    • Features
  • Adjustable bracket for LCD TV 23-42"
  • Supports VESA 75x75, 100x100, 200x100, 200x200 mm
  • Maximum supported weight: 20 kg
  • 2-joints arm with a maximum extension of 192 mm

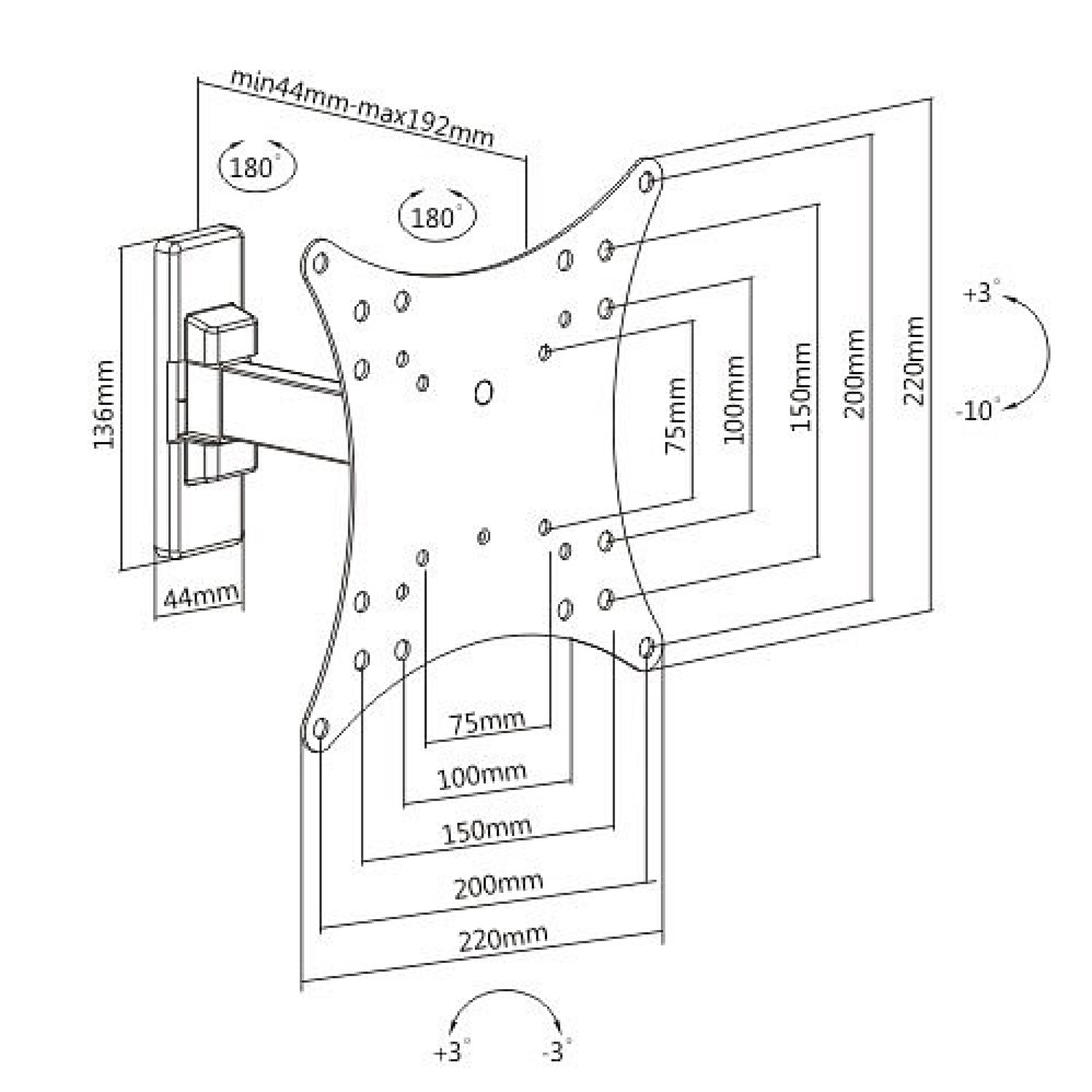

    • Specifications
  • Inclination from 3 to -10°
  • Horizontal orientation: 180°
  • Minimum distance from the wall: 44 mm
  • Maximum distance from the wall: 192 mm
  • Dimensions: 136 x 44 mm wall plate; 44 - 192 mm arm
  • Colour: Black


    • Package Contents
  • Wall-Mount for TV LCD LEDs
  • Fixing accessories (screws, dowels ...) and installation instructions
    • Technische Eigenschaften

    Technische Eigenschaften

    Colour: black
    Depth: 192.0 mm
    Height: 220.0 mm
    Lifting capacity: 20.0 kg
    Mounting method: Wall
    Number of joints: 2
    Suitable for: Television set
    Width: 220.0 mm
