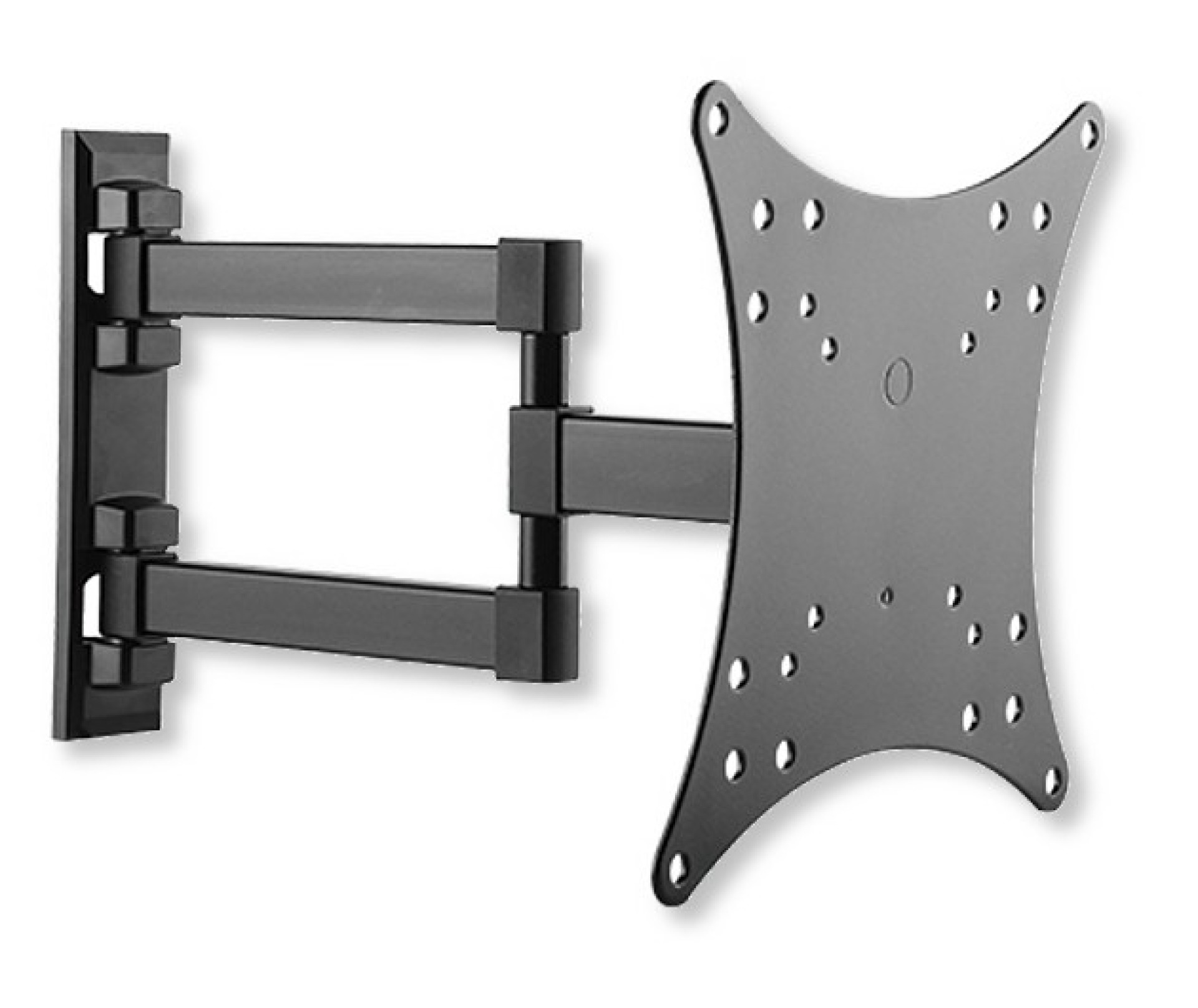

Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black

Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black
Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black
Varenummer: ICA-LCD-2923E
EAN Nr.: 8051128100877
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Stück
Log ind som kunde
Giv mig besked, når produktet er på lager igen.
Beskrivelse

Produktinformation til Wall bracket for 1 LCD TV LED 23"-42" 3 joints, black

  • Universal bracket for fixing a LED / LCD TV to the wall; Easy and fast to install, is ideal for home, office and commercial applications
  • Full-motion wall mount with single arm
  • The aluminum frame provides robustness while maintaining an elegant and modern style
  • Simple and fast installation


    • Features
  • Adjustable bracket for LCD TV 23-42"
  • Supports VESA 75x75, 100x100, 100x150, 150x100, 200x100, 150x150, 200x200 mm
  • Maximum supported weight: 20 kg
  • 3-arm arm with a maximum extension of 320 mm

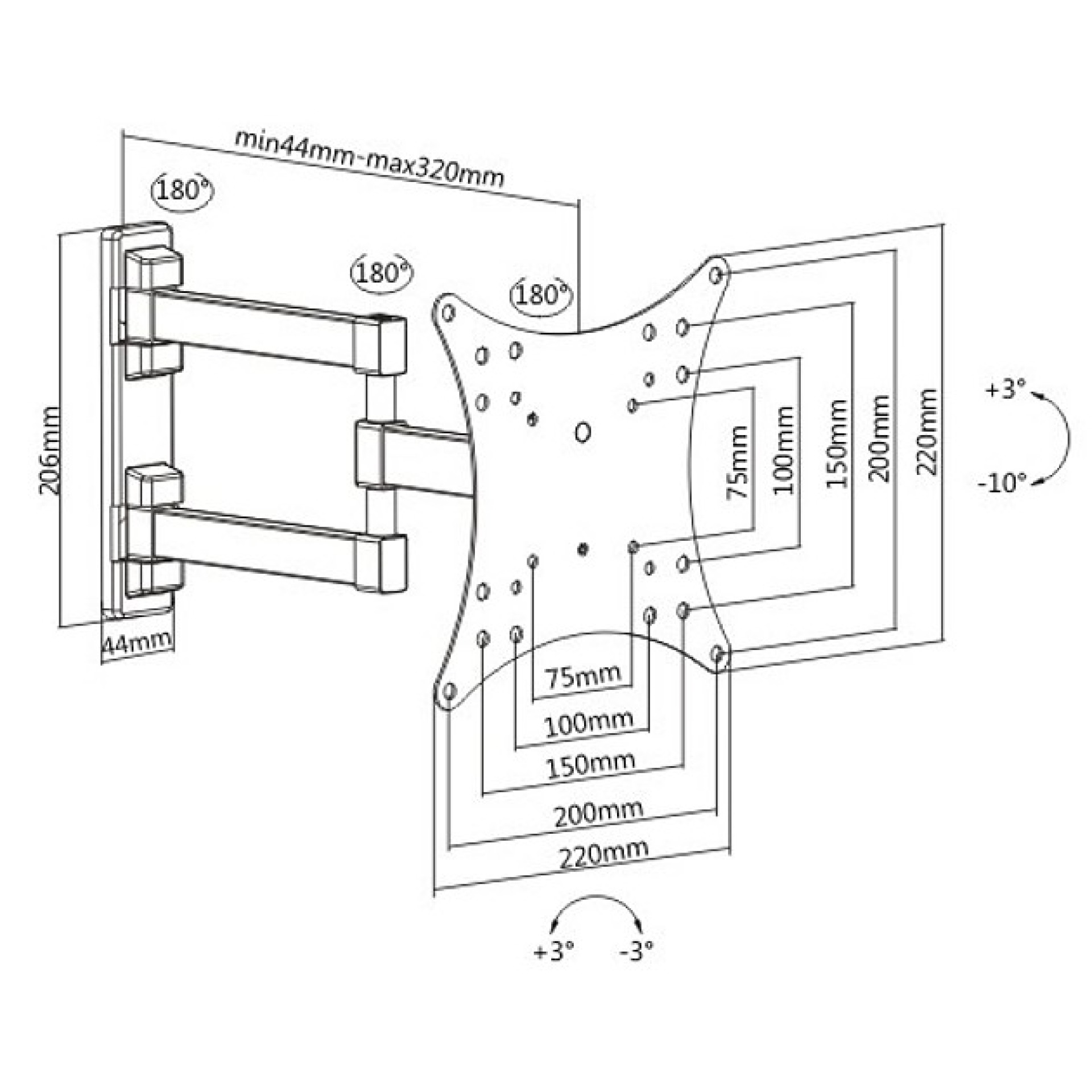

    • Specifications
  • Inclination 3 / -10°
  • Horizontal orientation: 180°
  • 90° rotation
  • Minimum distance from the wall: 44 mm
  • Maximum distance from the wall: 320 mm
  • Dimensions: 206 x 44 mm wall plate; 44 - 320 mm arm
  • Colour: Black


    • Package Contents
  • Wall-Mount for TV LCD LEDs
  • Fixing accessories (screws, dowels ...) and installation instructions
    • Tekniske egenskaber

    Tekniske egenskaber

    Color: black
    Depth: 320.0 mm
    Fit for: Television set
    Height: 220.0 mm
    Lifting capacity: 20.0 kg
    Mounting method: Wall
    Number of joints: 3
    Width: 220.0 mm
    Downloads

    Downloads

    Sikkerhedsanvisninger

    Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
