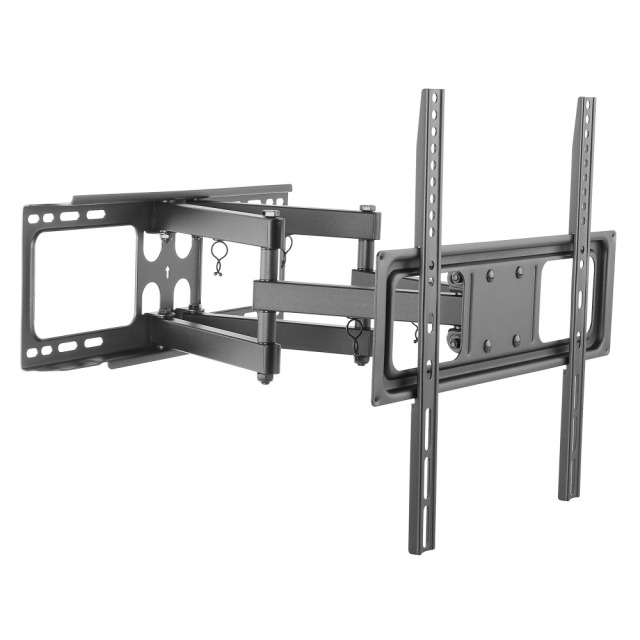

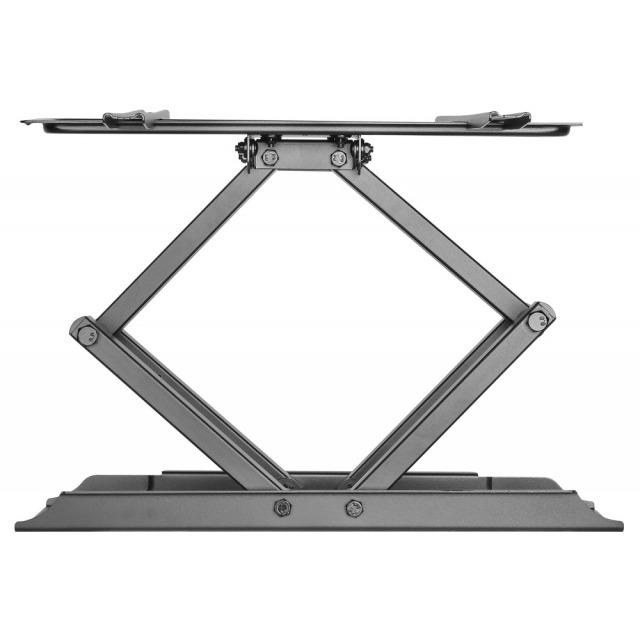

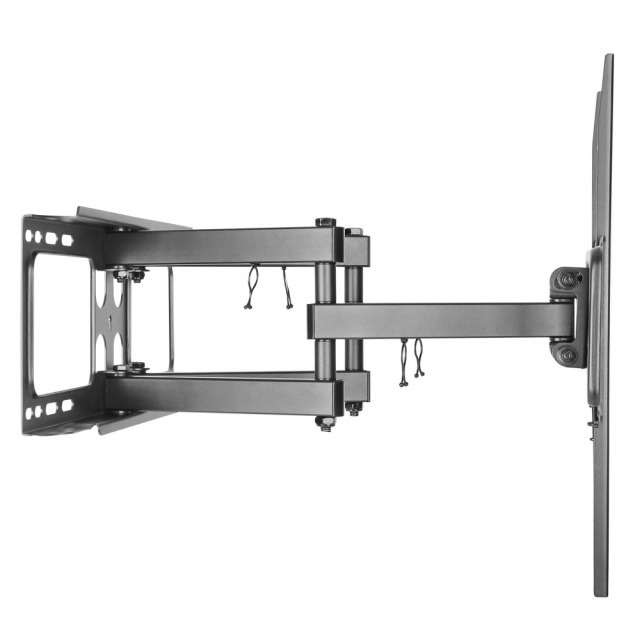

Wall Bracket for LCD LED TV 32-55" Full Motion, 40kg, Black
Wall Bracket for LCD LED TV 32-55" Full Motion, 40kg, Black
Varenummer:
ICA-PLB-344STY
EAN Nr.:
8059018361230
Produktinformation til Wall Bracket for LCD LED TV 32-55" Full Motion, 40kg, Black
The ICA-PLB 344STY full-motion mount accommodates most 32"-55" flat panel TVs up to 40kg. This mount extends out 464 mm from wall and allows full-motion capabilities. Full motion allows maximum flexibility - tilts and swivel your TV for easy viewing from any seat in a room. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. Integrated cable management system keeps cables organized and protected.
Features
Free-Tilting Design: for multiple monitor viewing angles
Swiveling Arm(s): offer(s) maximum viewing flexibility
Built-In Level Adjustment: ensures perfect positioning
Cable Management: elegantly hides any cables that are attached to displays
Technical Specifications
Material: steel
Metal sheet thickness: bracket arm 1,5 mm cold-rolled sheet; wall plate 2 mm cold-rolled sheet; VESA panel 1,8 mm cold-rolled sheet
Surface finish: powder coating
Color: black
Dimensions: 464 x 455 x 420 mm
Fits screen size: 32"-55"
Fits curved TV
Mounting hole pattern: VESA and universal
VESA Compatible: 200x200, 300x300, 400x200, 400x400
Max VESA: 400x400
Weight capacity: 40 kg
Profile: min. 53 max 464 mm
Tilt range: +5° -15°
Swivel range: +60° -60°
Installation: double stud (406mm/450mm), solid wall
Panel type: detachable panel
Wall plate type: fixed wall plate
Integrated cable management
package contents
Full-motion TV Wall Mount for 32"-55" LED, LCD Flat Panel TVs
Fixing accessories
User's guide
Features
Free-Tilting Design: for multiple monitor viewing angles
Swiveling Arm(s): offer(s) maximum viewing flexibility
Built-In Level Adjustment: ensures perfect positioning
Cable Management: elegantly hides any cables that are attached to displays
Technical Specifications
Material: steel
Metal sheet thickness: bracket arm 1,5 mm cold-rolled sheet; wall plate 2 mm cold-rolled sheet; VESA panel 1,8 mm cold-rolled sheet
Surface finish: powder coating
Color: black
Dimensions: 464 x 455 x 420 mm
Fits screen size: 32"-55"
Fits curved TV
Mounting hole pattern: VESA and universal
VESA Compatible: 200x200, 300x300, 400x200, 400x400
Max VESA: 400x400
Weight capacity: 40 kg
Profile: min. 53 max 464 mm
Tilt range: +5° -15°
Swivel range: +60° -60°
Installation: double stud (406mm/450mm), solid wall
Panel type: detachable panel
Wall plate type: fixed wall plate
Integrated cable management
package contents
Full-motion TV Wall Mount for 32"-55" LED, LCD Flat Panel TVs
Fixing accessories
User's guide
Tekniske egenskaber
| Color: | black |
|---|---|
| Fit for: | Television set |
| Lifting capacity: | 40.0 kg |
| Mounting method: | Wall |
| Number of joints: | 3 |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
