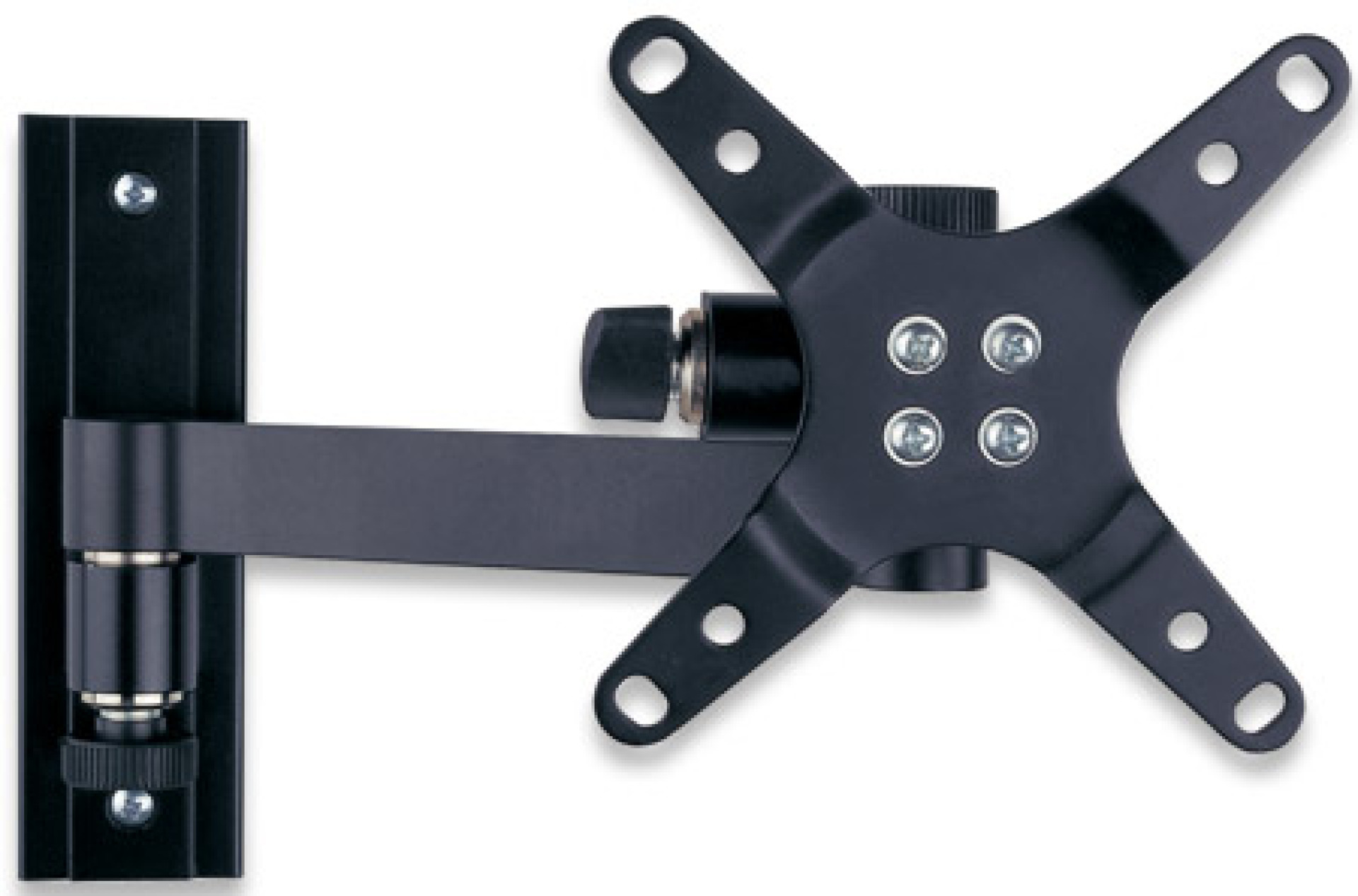

Wall bracket for LCD TV LED 13" - 30" tilting 2 joints black
Wall bracket for LCD TV LED 13" - 30" tilting 2 joints black
Varenummer:
ICA-LCD-105BK
EAN Nr.:
8057685301511
Produktinformation til Wall bracket for LCD TV LED 13" - 30" tilting 2 joints black
• Universal bracket for fixing a flat LED / LCD on the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 13-30"
• Supports VESA 75x75 and 100x100 mm
• Maximum weight supported: 15 kg
• Arm 2 joints with maximum extension of 235 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• Minimum distance from the wall: 81 mm
• Maximum distance from the wall: 235 mm

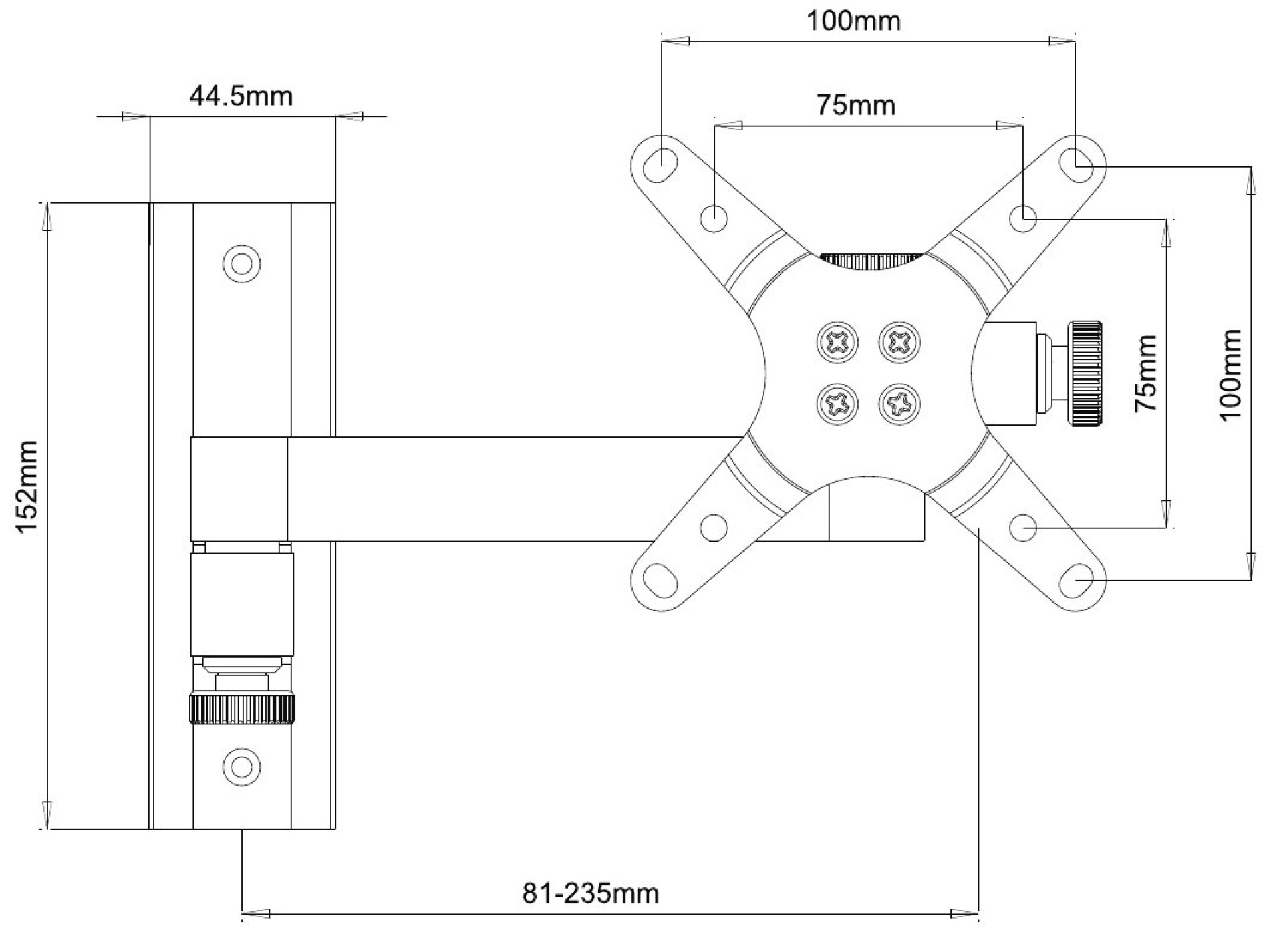

• Dimensions: 116 x 152 x (81-235) mm
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LED LCD TV 13-30"
• Supports VESA 75x75 and 100x100 mm
• Maximum weight supported: 15 kg
• Arm 2 joints with maximum extension of 235 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• Minimum distance from the wall: 81 mm
• Maximum distance from the wall: 235 mm
• Dimensions: 116 x 152 x (81-235) mm
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Tekniske egenskaber
| Color: | black |
|---|---|
| Fit for: | Television set |
| Mounting method: | Wall |
| Number of joints: | 2 |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
