Wall bracket for LCD TV LED 13" - 30" tilting 3 joints silver
Wall bracket for LCD TV LED 13" - 30" tilting 3 joints silver
Varenummer:
ICA-LCD-104
EAN Nr.:
8057685301481
Produktinformationen für Wall bracket for LCD TV LED 13" - 30" tilting 3 joints silver

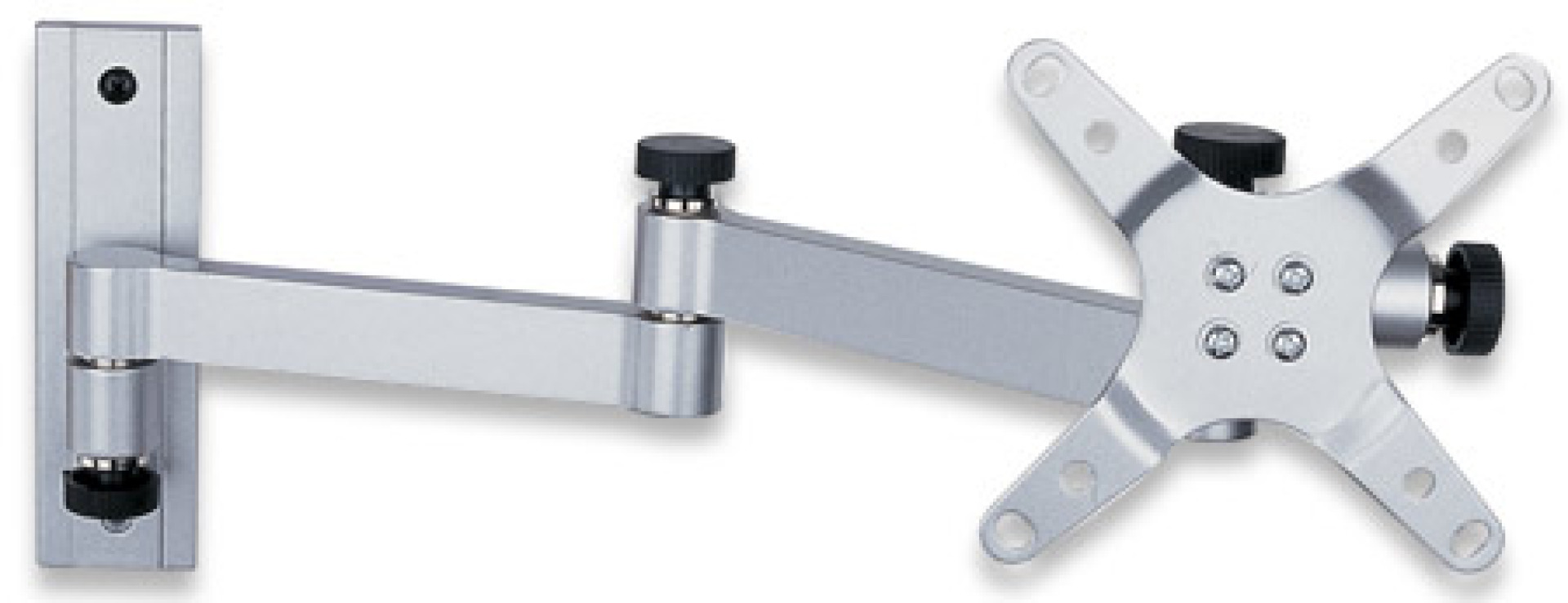

Universal bracket for fixing a flat LED / LCD on the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 13"-30"
• Supports VESA 75x75 and 100x100 mm
• Maximum weight supported: 15 kg
• Arm 3 joints with maximum extension of 390 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• Minimum distance from the wall: 81 mm
• Maximum distance from the wall: 390 mm

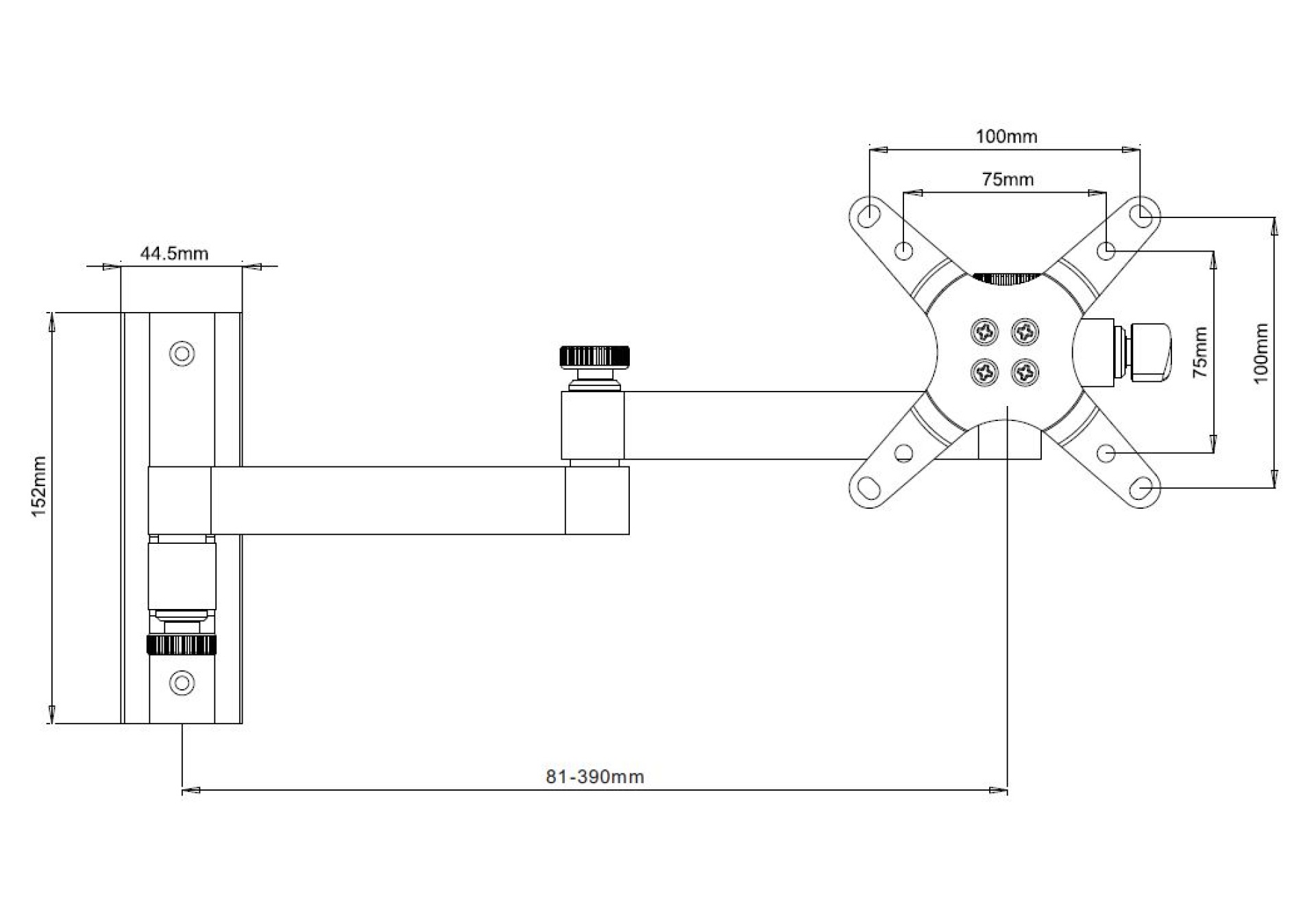

• Dimensions: 116 x 152 x (81-390) mm
• Weight: 1.0 kg
• Color: Silver
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LED LCD TV 13"-30"
• Supports VESA 75x75 and 100x100 mm
• Maximum weight supported: 15 kg
• Arm 3 joints with maximum extension of 390 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• Minimum distance from the wall: 81 mm
• Maximum distance from the wall: 390 mm
• Dimensions: 116 x 152 x (81-390) mm
• Weight: 1.0 kg
• Color: Silver
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Technische Eigenschaften
| Colour: | silver |
|---|---|
| Lifting capacity: | 15.0 kg |
| Mounting method: | Wall |
| Number of joints: | 3 |
| Suitable for: | Television set |
