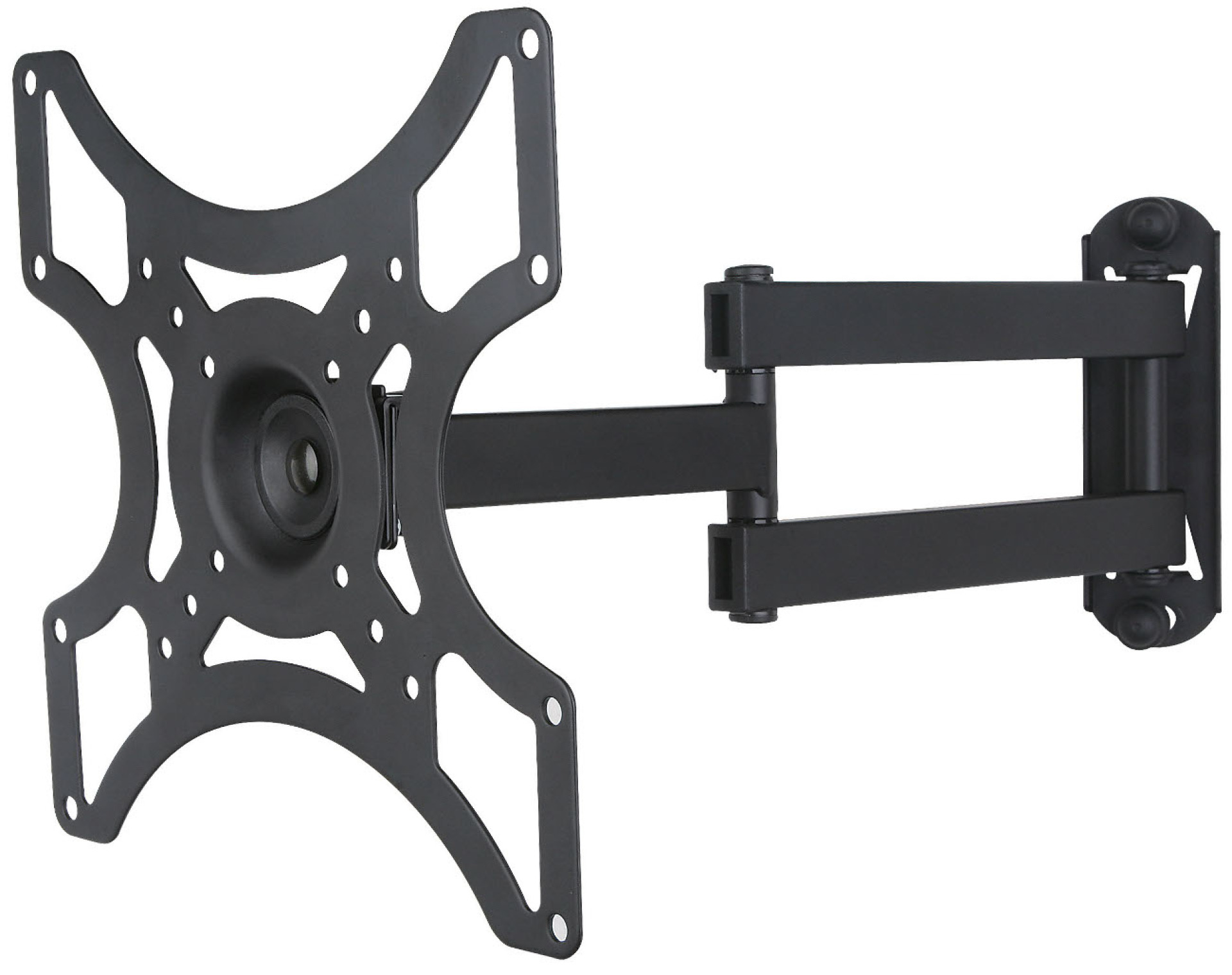

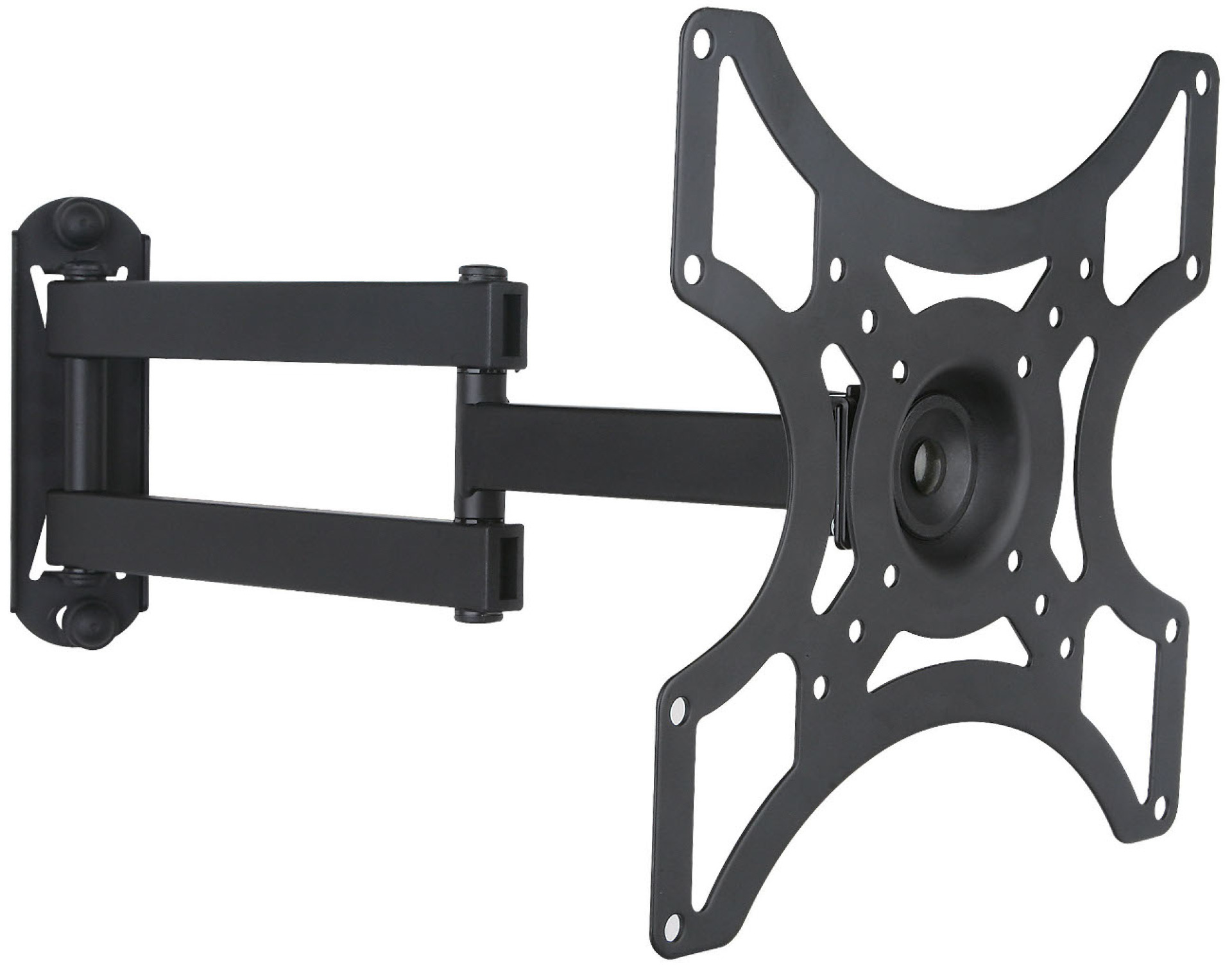

Wall bracket for LCD TV LED 19" - 37" tilting 2 joints black
Wall bracket for LCD TV LED 19" - 37" tilting 2 joints black
Varenummer:
ICA-LCD-2923B
EAN Nr.:
8054529025343
Produktinformation til Wall bracket for LCD TV LED 19" - 37" tilting 2 joints black
• Universal bracket for fixing a LED / LCD TV on the wall; easy and quick to install, it is ideal for home, office and commercial applications
• Support to Full-motion wall with single arm
• The aluminium frame provides strength while adding an elegant and modern style
• Quick and easy installation
Features
• Bracket suitable for LCD LED 19"-37"
• Supports VESA 75x75, 100x100, 200x200 mm
• Maximum weight supported: 25 kg
• Arm 2 joints with maximum extension of 382 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• 360° rotation
• Minimum distance from the wall: 54 mm
• Maximum distance from the wall: 382 mm

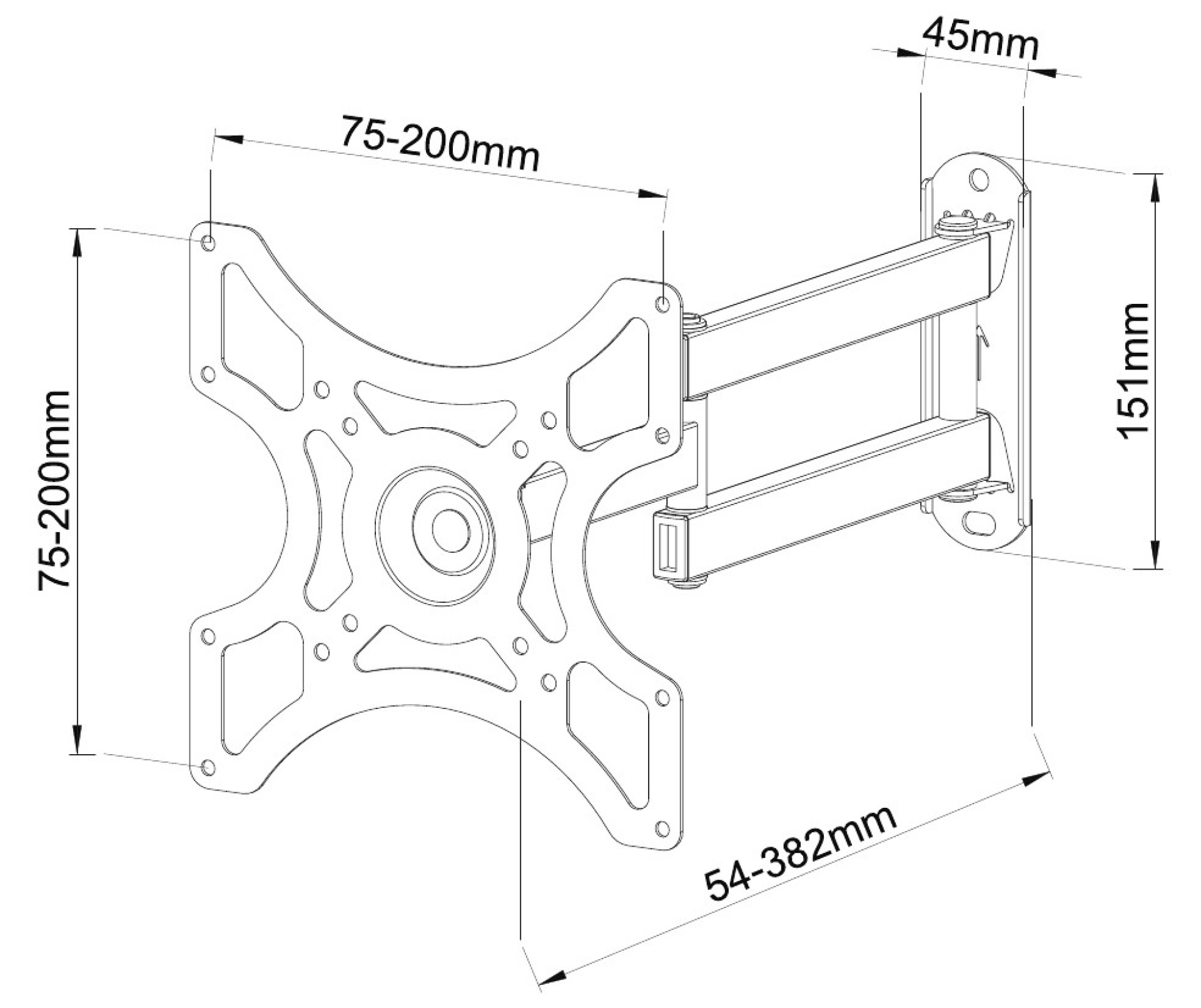

• Dimensions: 151 x 45 mm wall plaque; 54-382 mm arm
• Color: Black
Package Contents
• Wall support for LCD LED
• Mounting accessories (screws, plugs ...) and installation instructions
• Support to Full-motion wall with single arm
• The aluminium frame provides strength while adding an elegant and modern style
• Quick and easy installation
Features
• Bracket suitable for LCD LED 19"-37"
• Supports VESA 75x75, 100x100, 200x200 mm
• Maximum weight supported: 25 kg
• Arm 2 joints with maximum extension of 382 mm
Specifications
• Tilt +/- 15°
• Horizontal orientation: 180°
• 360° rotation
• Minimum distance from the wall: 54 mm
• Maximum distance from the wall: 382 mm
• Dimensions: 151 x 45 mm wall plaque; 54-382 mm arm
• Color: Black
Package Contents
• Wall support for LCD LED
• Mounting accessories (screws, plugs ...) and installation instructions
Tekniske egenskaber
| Color: | black |
|---|---|
| Fit for: | Television set |
| Mounting method: | Wall |
| Number of joints: | 2 |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
