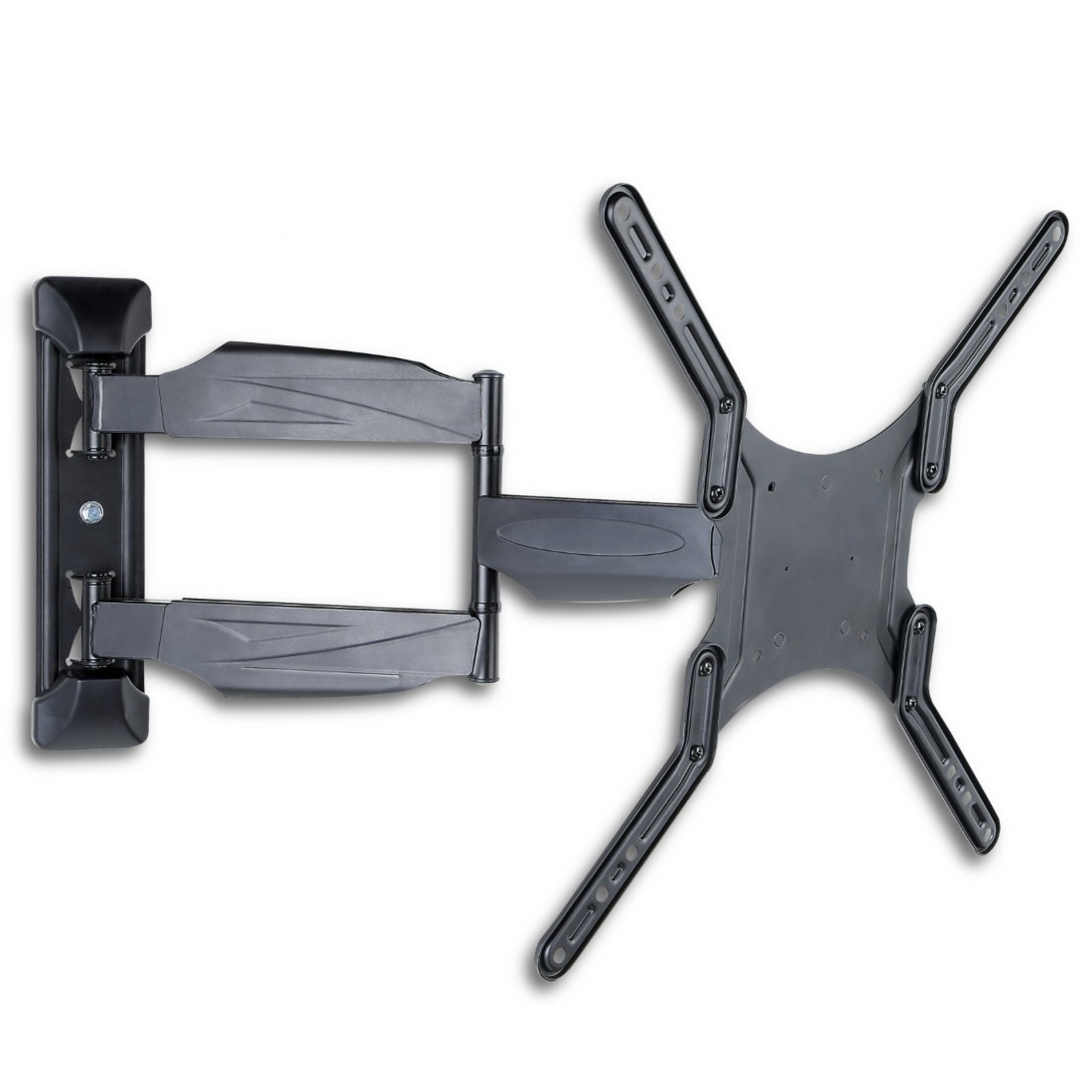

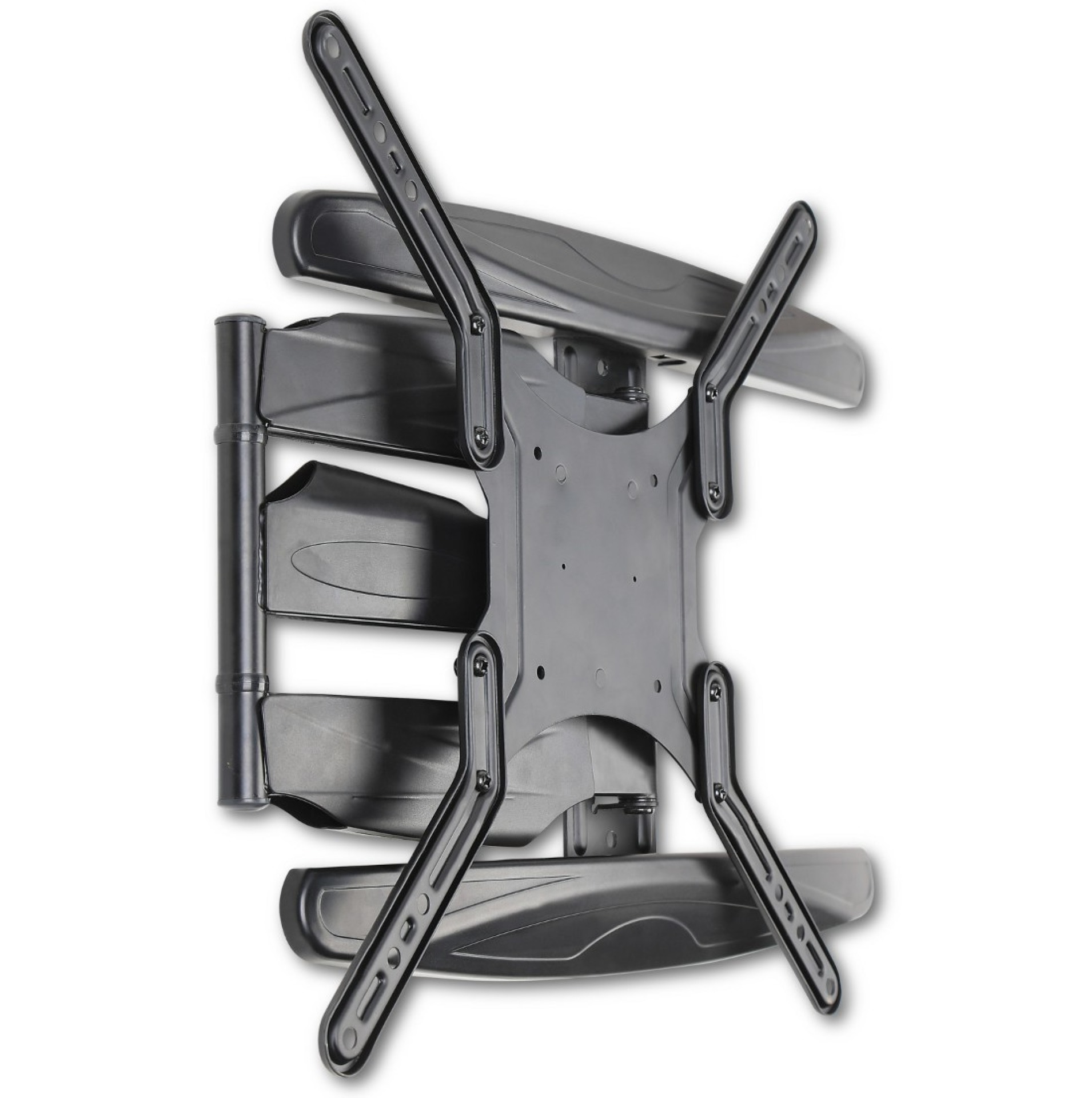

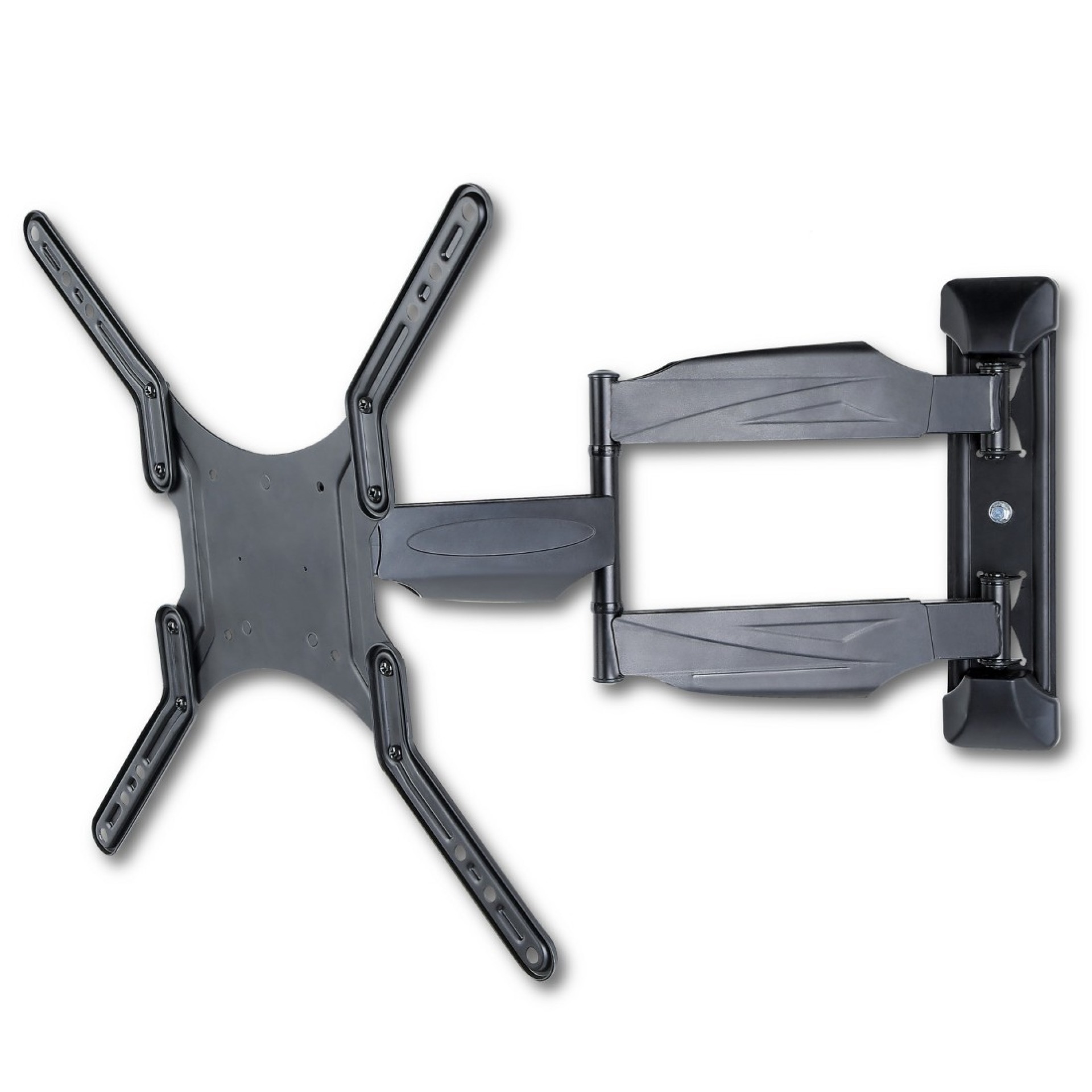

Wall support for LCD TV LED 23"-55" FullMotion, black, max. 30 kg
Wall bracket for LCD TV LED 23"-55" FullMotion, black
Varenummer:
ICA-PLB-171M
EAN Nr.:
8057685308862
Produktinformation til Wall bracket for LCD TV LED 23"-55" FullMotion, black
• Universal bracket for fixing a flat LED / LCD or a monitor to the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 23-55"
• Support VESA adjustable to 400 x 400 mm
• Maximum weight supported: 30 kg
• Arm 3 joints with maximum extension of 440 mm
Specifications
• inclination from 0° to -12°
• Horizontal orientation: 180°
• Distance to the wall: minimum 73 mm; Maximum 440 mm
• Allows angle mounting

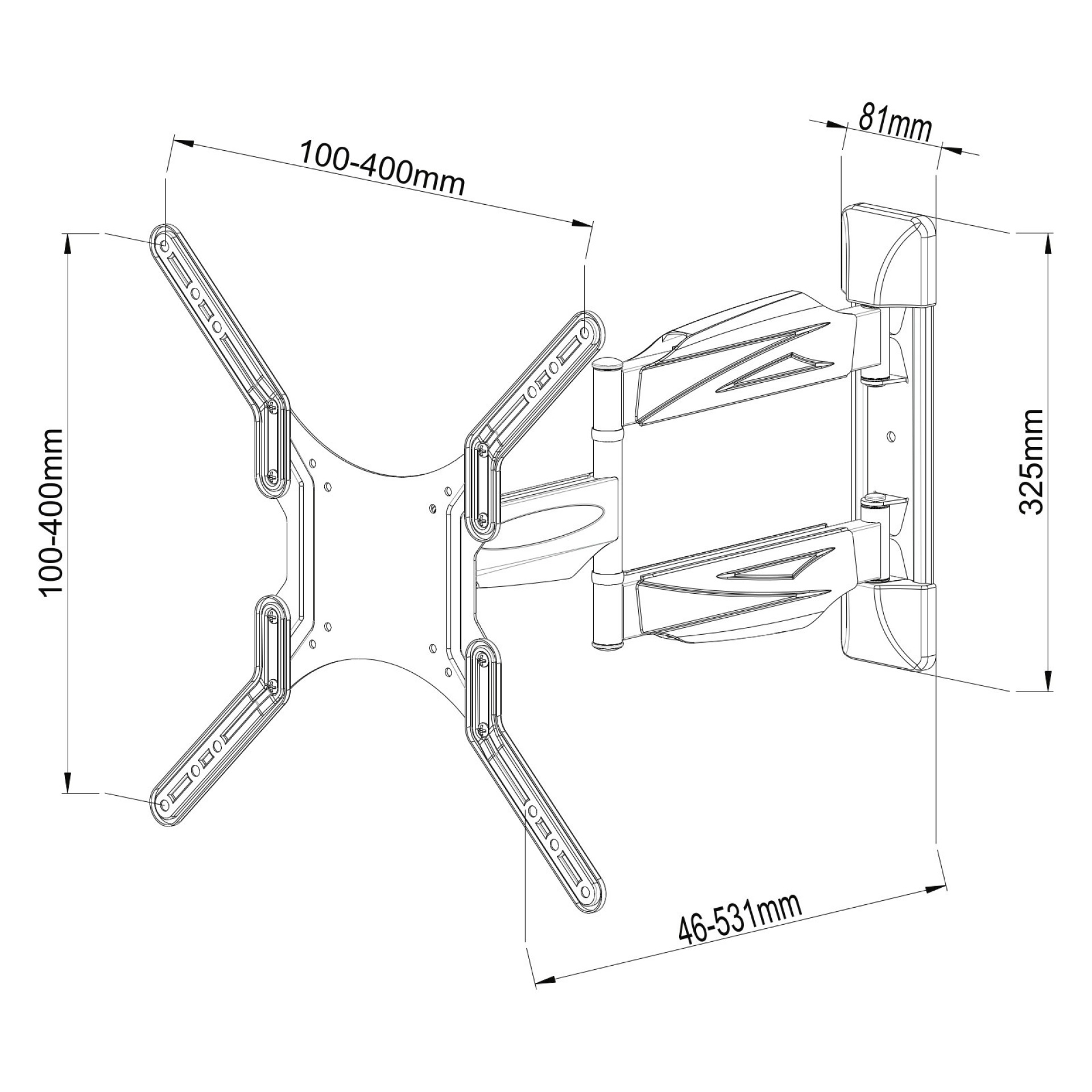

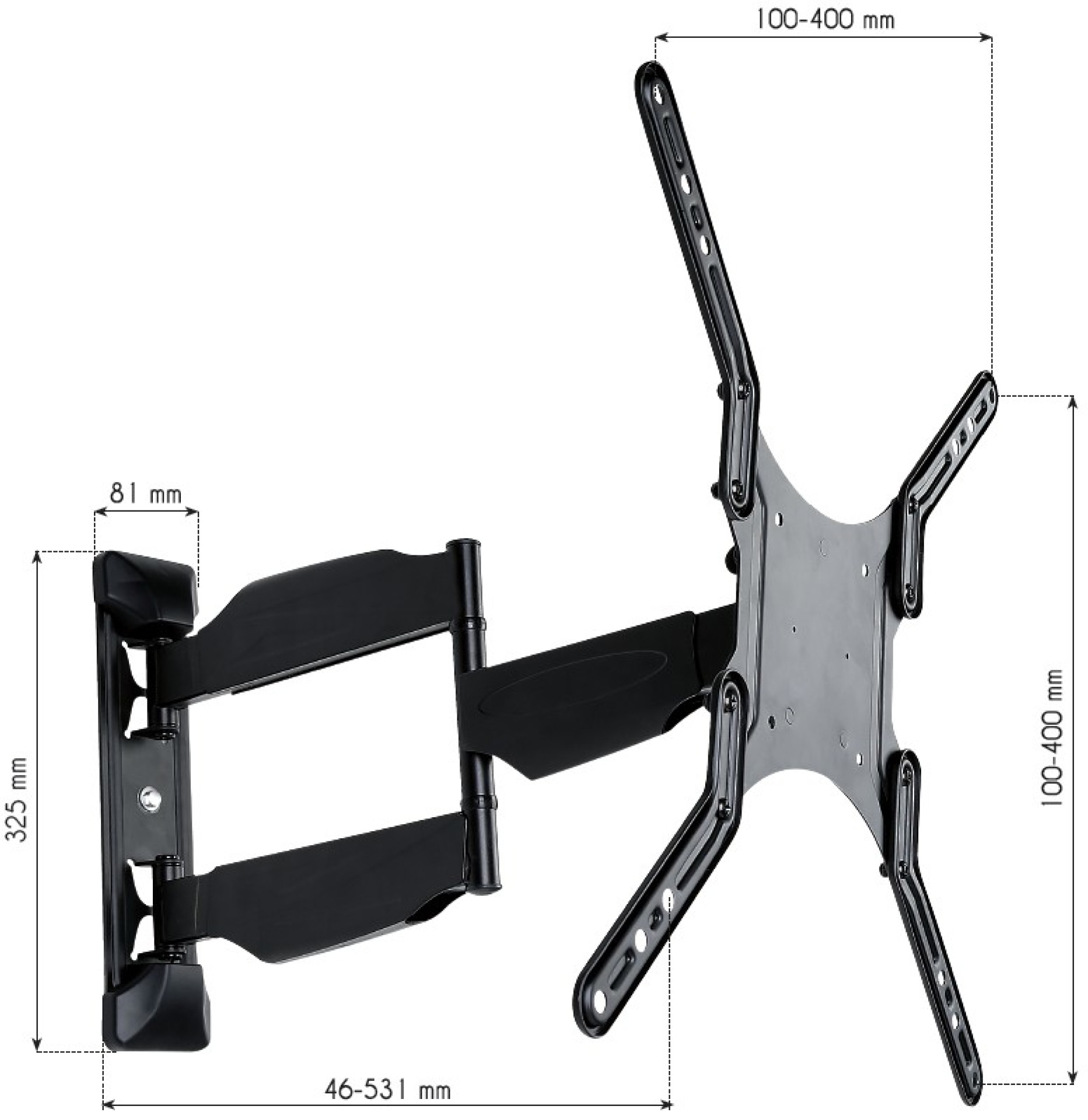

• Dimensions: 458 x 425 x (73-440) mm, 5.7 kg
• Color: Black
The package includes
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...)
• Installation instructions
• Bubble level
Features
• Bracket suitable for LED LCD TV 23-55"
• Support VESA adjustable to 400 x 400 mm
• Maximum weight supported: 30 kg
• Arm 3 joints with maximum extension of 440 mm
Specifications
• inclination from 0° to -12°
• Horizontal orientation: 180°
• Distance to the wall: minimum 73 mm; Maximum 440 mm
• Allows angle mounting
• Dimensions: 458 x 425 x (73-440) mm, 5.7 kg
• Color: Black
The package includes
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...)
• Installation instructions
• Bubble level
Tekniske egenskaber
| Fit for: | Television set |
|---|
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
