Wall bracket for LCD TV LED 40" - 80" Ultra Slim Full Motion black
Wall bracket for LCD TV LED 40" - 80" Ultra Slim Full Motion black
Varenummer:
ICA-PLB-172L
EAN Nr.:
8057685308886
Produktinformation til Wall bracket for LCD TV LED 40" - 80" Ultra Slim Full Motion black
• Universal bracket for a flat LED / LCD monitor on the wall
• Easy and quick to install, it is ideal for home, office and commercial applications
• New tilting system for achieving - 2 to + 12° angle adjustment
• Decorative sleeves on the arms for better cable management and nice appearance
Features
• Bracket profile suitable for ultra slim LED TV LCD 40-80 "
• Supports VESA up to 600 x 400 mm
• Maximum weight supported: 35 kg
• Maximum arm extension of 539 mm
Specifications
• Inclination from -2° to + 12°
• Horizontal orientation: 180°
• Minimum distance from the wall: 53 mm
• Maximum distance from the wall: 496 mm

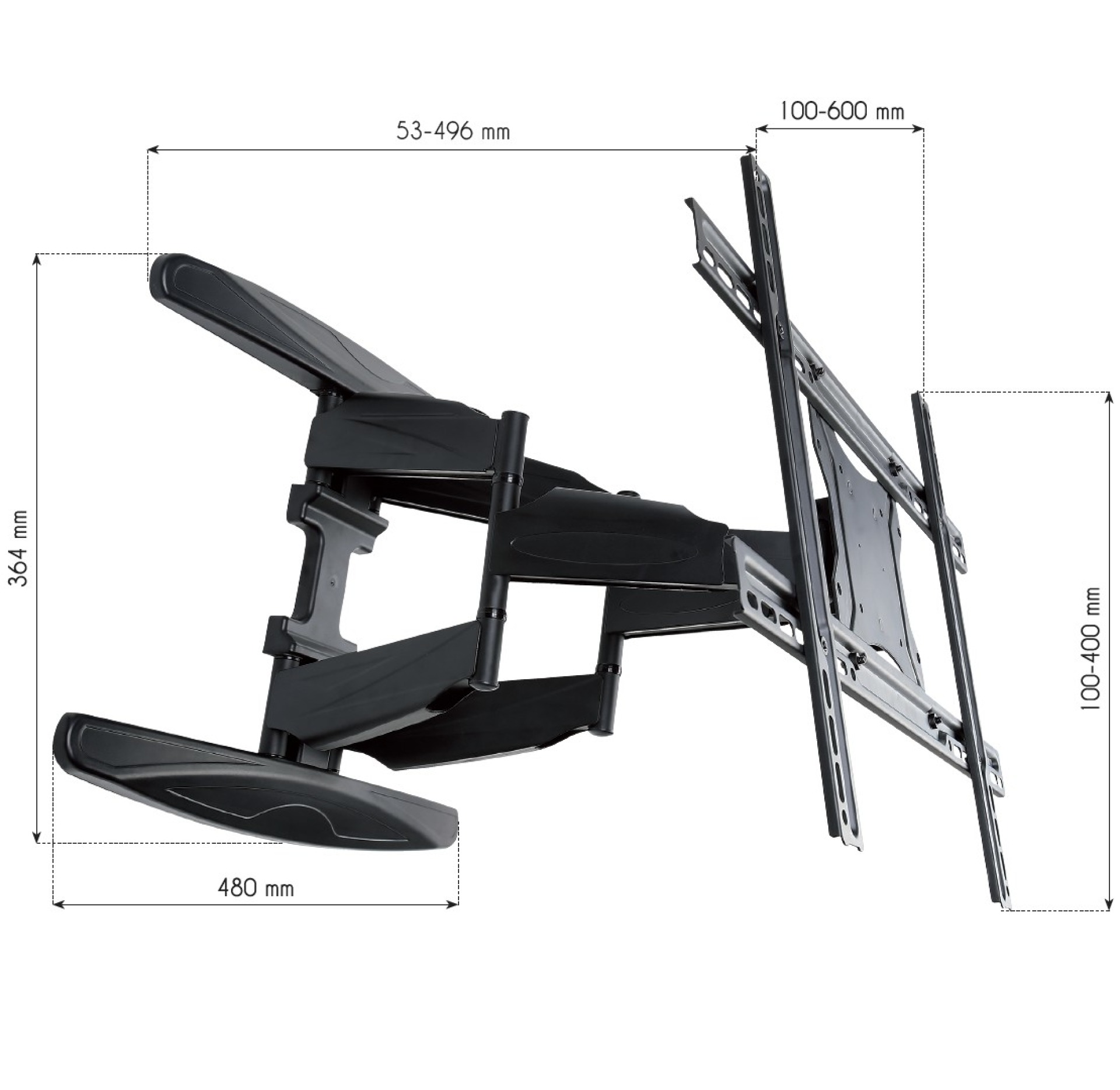

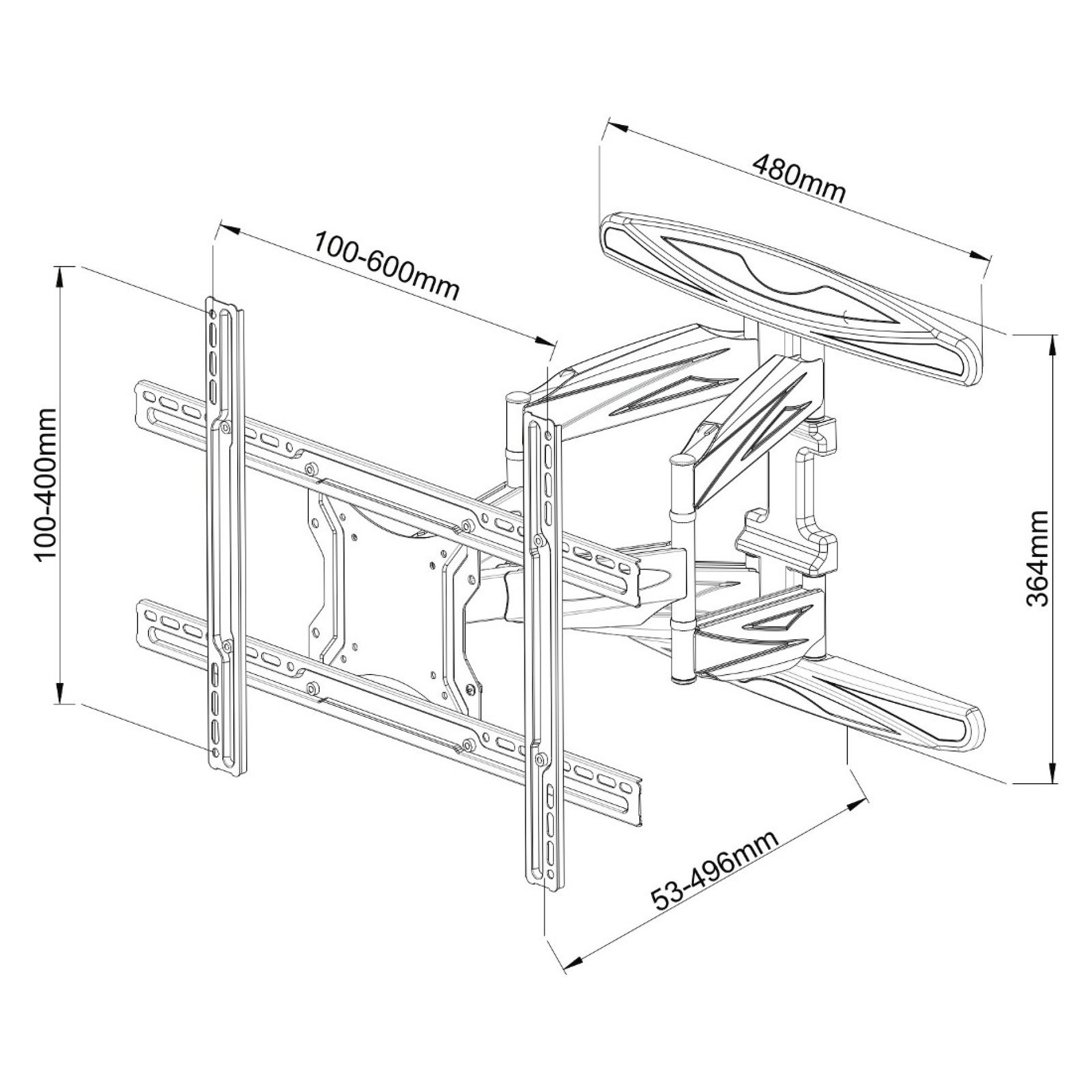

• Dimensions: 480 x 364 x (53-539) mm
• Color: Black
Package Contents
• Support TV Wall
• Mounting material
• Instruction Manual
• Bubble level
• Easy and quick to install, it is ideal for home, office and commercial applications
• New tilting system for achieving - 2 to + 12° angle adjustment
• Decorative sleeves on the arms for better cable management and nice appearance
Features
• Bracket profile suitable for ultra slim LED TV LCD 40-80 "
• Supports VESA up to 600 x 400 mm
• Maximum weight supported: 35 kg
• Maximum arm extension of 539 mm
Specifications
• Inclination from -2° to + 12°
• Horizontal orientation: 180°
• Minimum distance from the wall: 53 mm
• Maximum distance from the wall: 496 mm
• Dimensions: 480 x 364 x (53-539) mm
• Color: Black
Package Contents
• Support TV Wall
• Mounting material
• Instruction Manual
• Bubble level
Tekniske egenskaber
| Fit for: | Television set |
|---|
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
