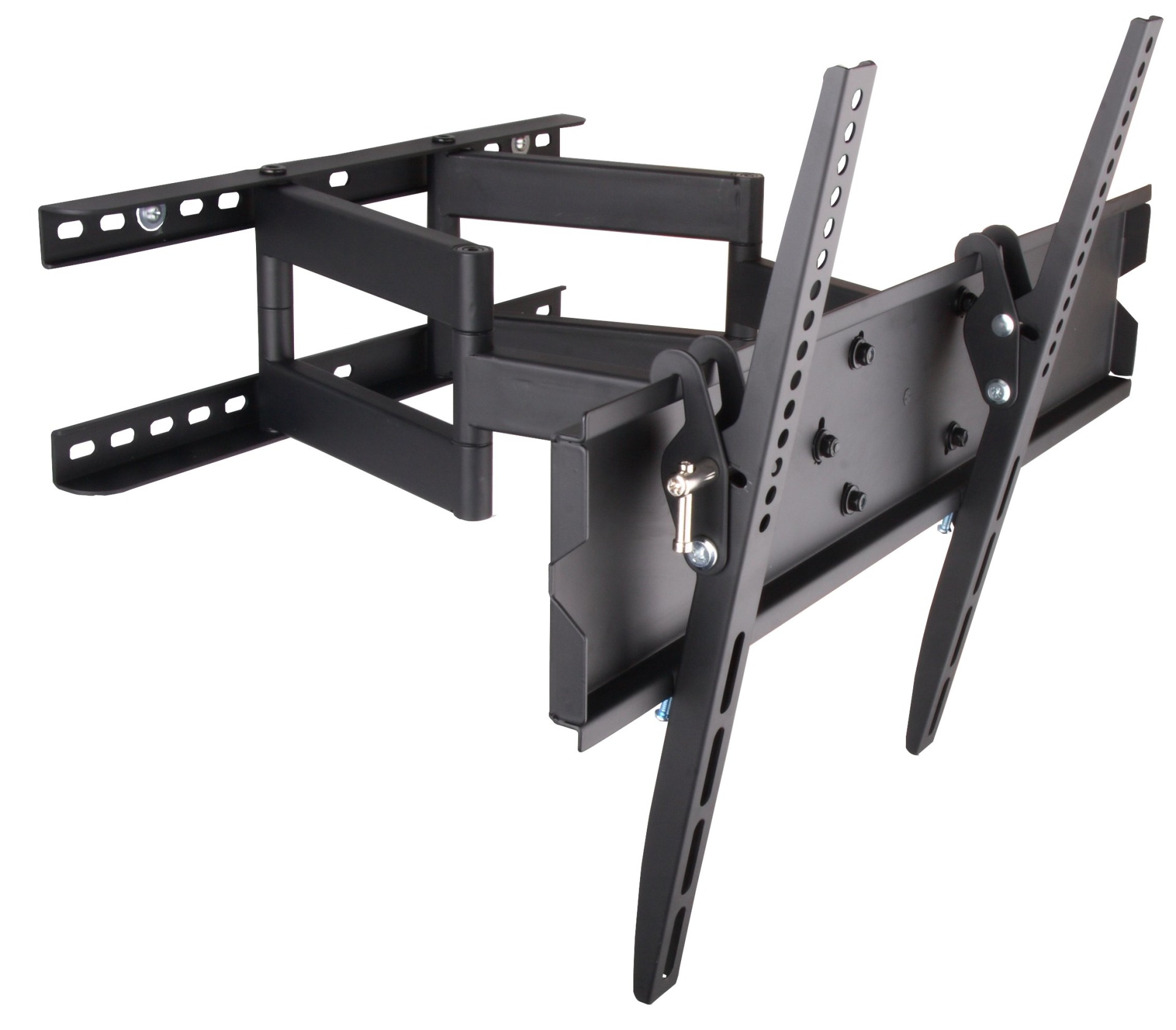

Wall bracket for LCD TV LED 42"-70" Full Motion Dual Arm, black
Wall bracket for LCD TV LED 42"-70" Full Motion Dual Arm, black
Varenummer:
ICA-PLB-147XL
EAN Nr.:
8057685301436
Produktinformation til Wall bracket for LCD TV LED 42"-70" Full Motion Dual Arm, black
• Universal bracket for fixing a flat LED / LCD on the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 42-70"
• Supports max VESA 800 x 400 mm
• Maximum weight supported: 70 kg
• Double arm 3 joints with maximum extension of 430 mm
Specifications
• Inclination from 0° to -12°
• Horizontal orientation: 90°
• Distance to the wall: minimum 70 mm; Maximum 430 mm
• Allows angle mounting

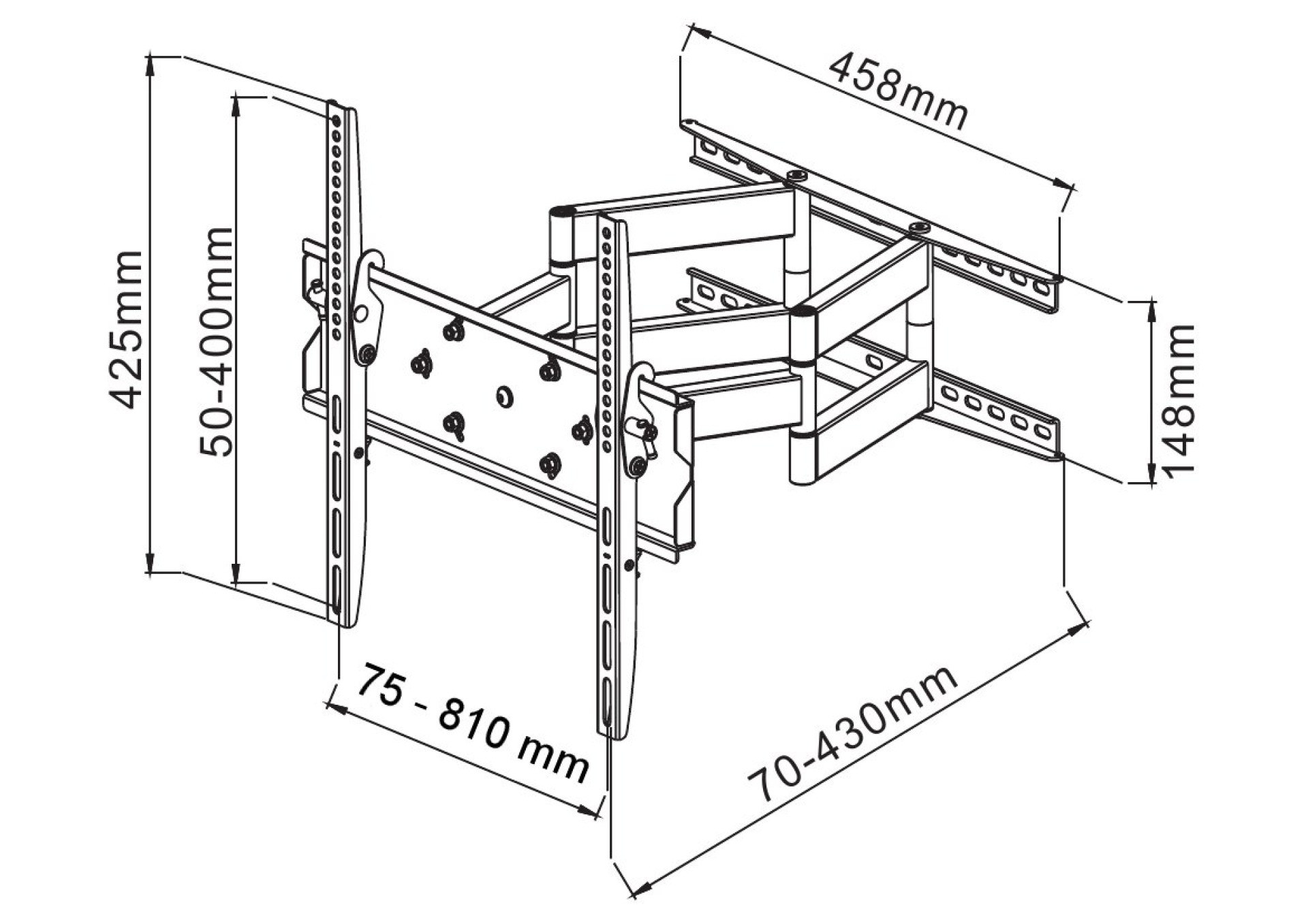

• Dimensions: 850 x 425 x (70-430) mm, 8.0kg
• Color: Black
The package includes
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...)
• Installation instructions
• Bubble level
Features
• Bracket suitable for LED LCD TV 42-70"
• Supports max VESA 800 x 400 mm
• Maximum weight supported: 70 kg
• Double arm 3 joints with maximum extension of 430 mm
Specifications
• Inclination from 0° to -12°
• Horizontal orientation: 90°
• Distance to the wall: minimum 70 mm; Maximum 430 mm
• Allows angle mounting
• Dimensions: 850 x 425 x (70-430) mm, 8.0kg
• Color: Black
The package includes
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...)
• Installation instructions
• Bubble level
Tekniske egenskaber
| Fit for: | Television set |
|---|
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
