Wall-Mounted Distribution Cabinets TWL

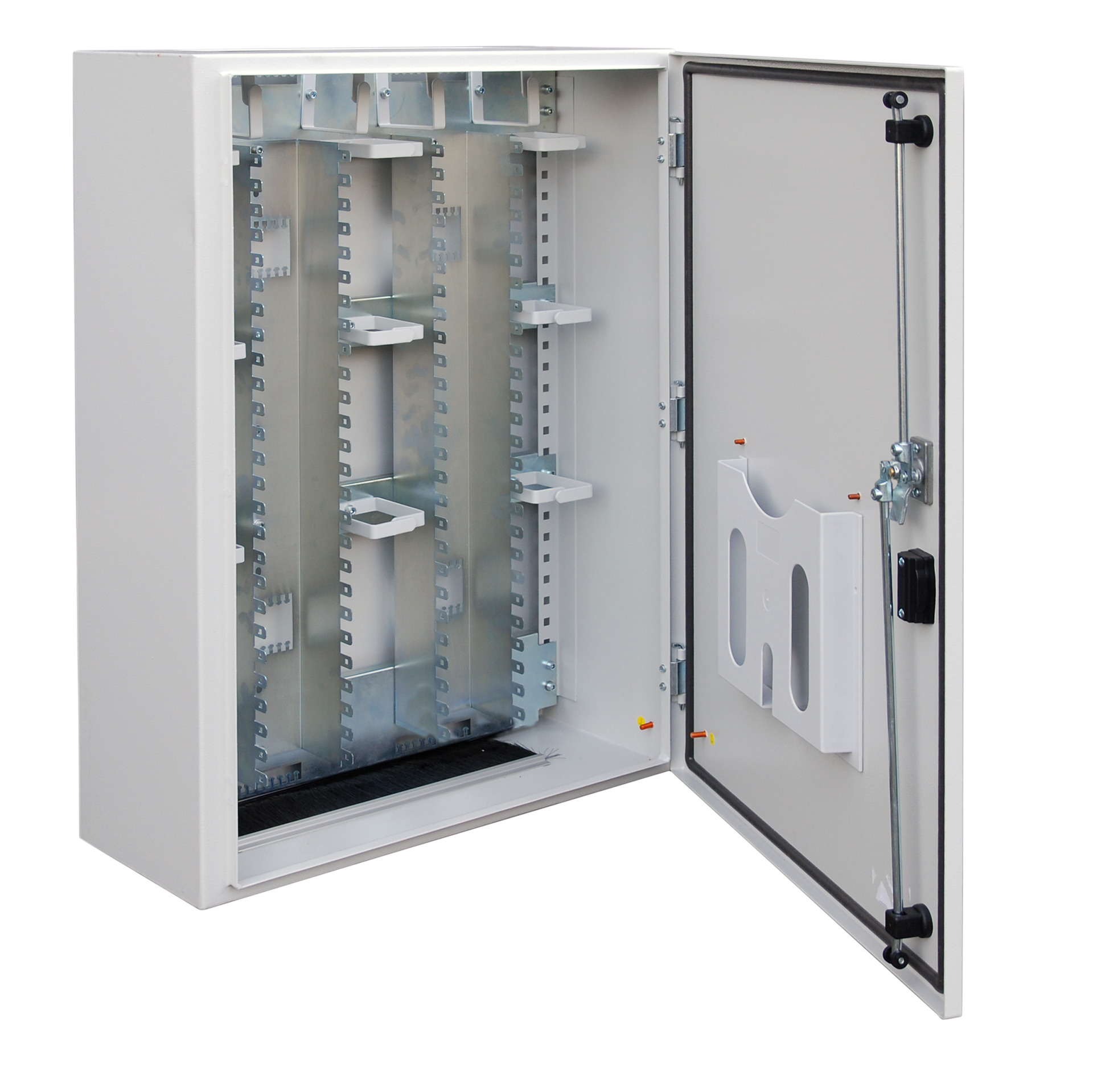

Wall Distribution Cabinet TWL300, W=600 x H=600 x D=240 mm
Varenummer:
46074.1V2
EAN Nr.:
4049759070366
Produktinformation til Wall Distribution Cabinet TWL300, W=600 x H=600 x D=240 mm

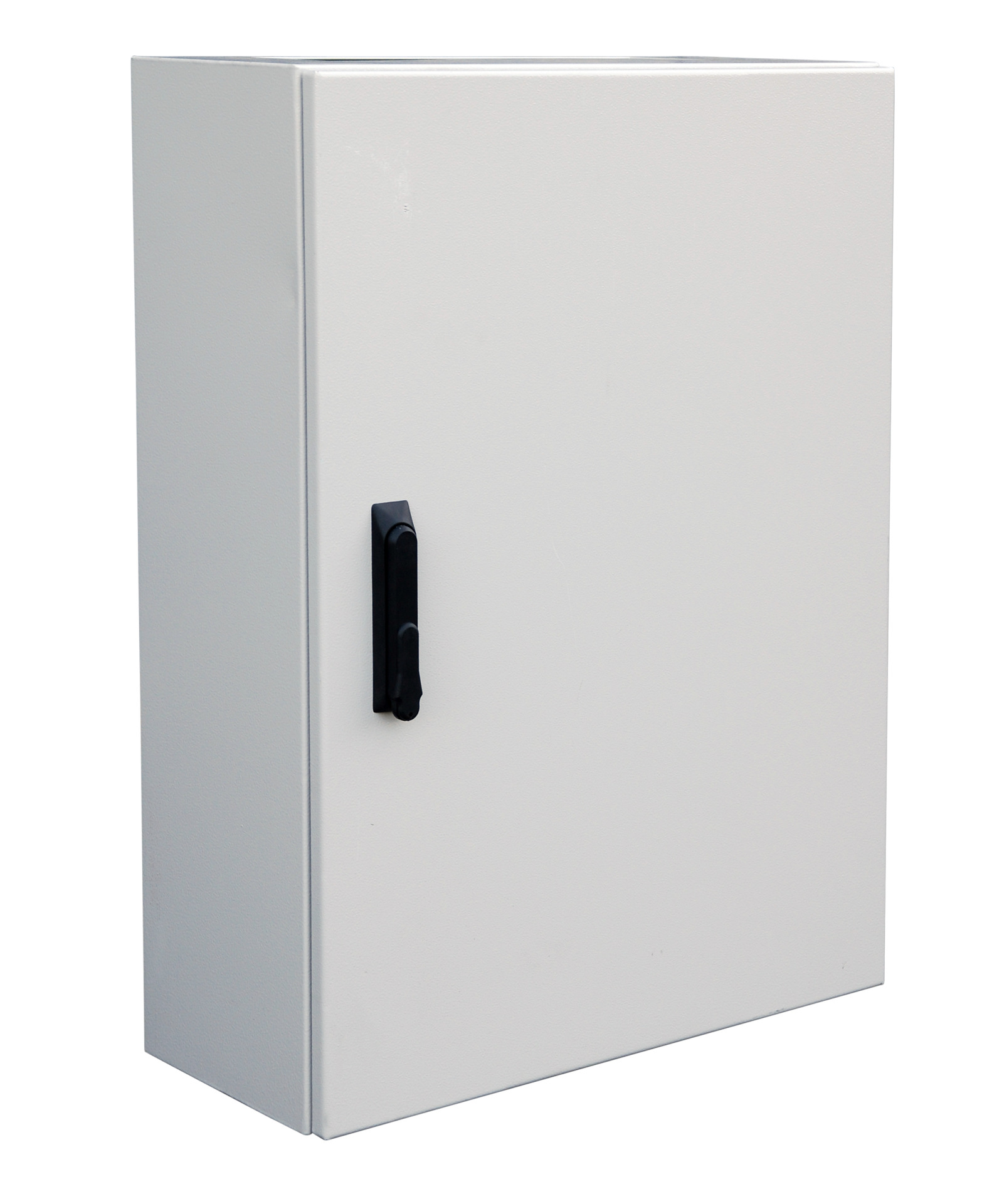

Closed sheet steel cabinet with swivel turning handle for profile half-cylinder
Cable entry at top and bottom via brush terminal
Colour RAL7035, light grey
Degree of protection IP40
Cable entry at top and bottom via brush terminal
Colour RAL7035, light grey
Degree of protection IP40
Tekniske egenskaber
110-compatible: | False |
---|---|
Colour: | grey |
DIN-compatible: | False |
Degree of protection: | IP40 |
LSA: | True |
Material: | Steel plate |
Model: | Wall-mounted distributor |
Mounting dimension: | 96 mm |
Mounting method: | Surface mounted (plaster) |
With connecting lugs: | False |
Varianten
Art. Nr. | Bezeichnung | Type | Max. number of dual cores | Width | Height | Depth | Weight | Module Slots | in Pairs | |
---|---|---|---|---|---|---|---|---|---|---|
46074.1V2 | Wall Distribution Cabinet TWL300, W=600 x H=600 x D=240 mm | TWL 300 | 300 | 600 mm | 600 mm | 240 mm | 25 kg | 2 x 18 | 2 x 150 | |
46075.1V2 | WM-Distribution Cabinet TWL500, W=600 x H=800 x D=240 mm | TWL 500 | 500 | 600 mm | 800 mm | 240 mm | 29 kg | 2 x 26 | 2 x 250 | |
46076.1V2 | WM-Distribution Cabinet TWL900, W=600 x H=1300 x D=240 mm | TWL 900 | 900 | 600 mm | 1300 mm | 240 mm | 35 kg | 2 x 46 | 2 x 450 | |
46077.1V2 | WM-Distribution Cabinet TWL1350, W=800 x H=1300 x D=240 mm | TWL 1350 | 1350 | 800 mm | 1300 mm | 240 mm | 40 kg | 3 x 46 | 3 x 450 |
